Check Geometry and Failure
The project, which was prepared with ideCAD Architectural, was opened with ideCAD Structural. You can download the project and Check Geometry and Failure. |

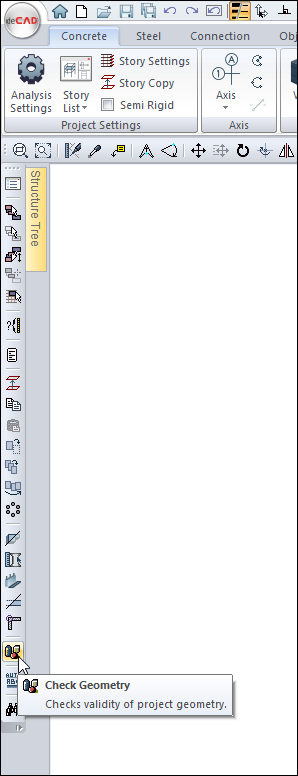

Click on the Geometry Check command.
![](../__attachments/2119696507/image-20211224-084736.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)

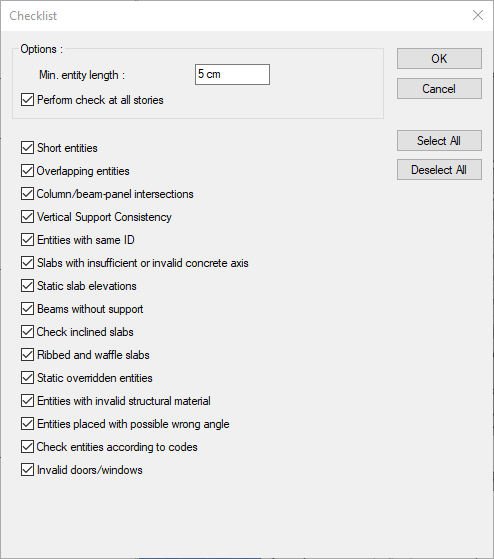

Click OK in the Checklist window with all options active.
![](../__attachments/2119696507/image-20211224-084810.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)

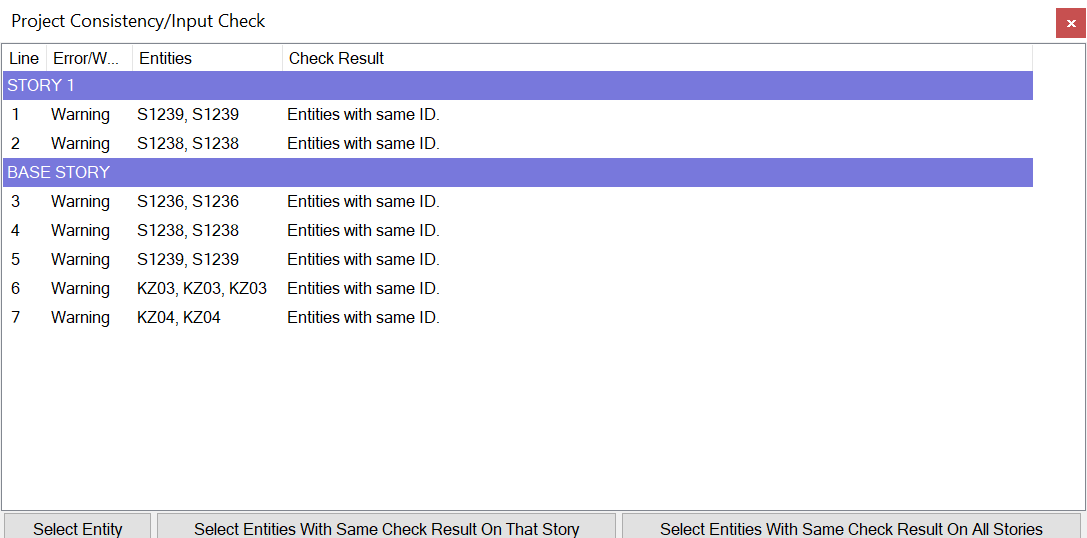

The cases where data entry is made incorrectly will be listed.
![](../__attachments/2119696507/image-20211224-084832.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Close the Project Consistency/Input Check window.

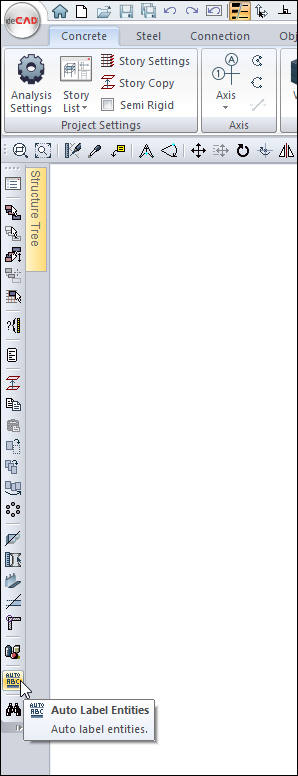

Click on the Auto Label Entities command.
![](../__attachments/2119696507/image-20211224-084912.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)

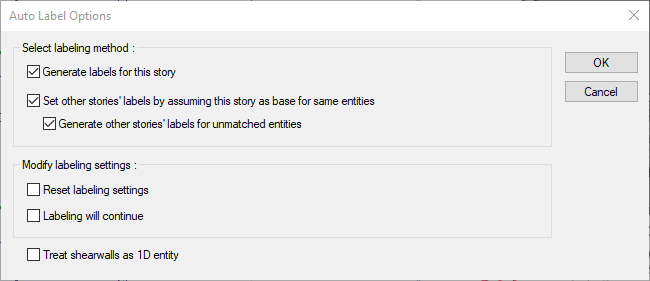

The Auto Label Options dialog will open.
Check the Set other stories' labels by assuming this story as base for same entities.
Check the Generate other stories' labels for unmatched entities.
![](../__attachments/2119696507/image-20211224-084946.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Click the OK button.

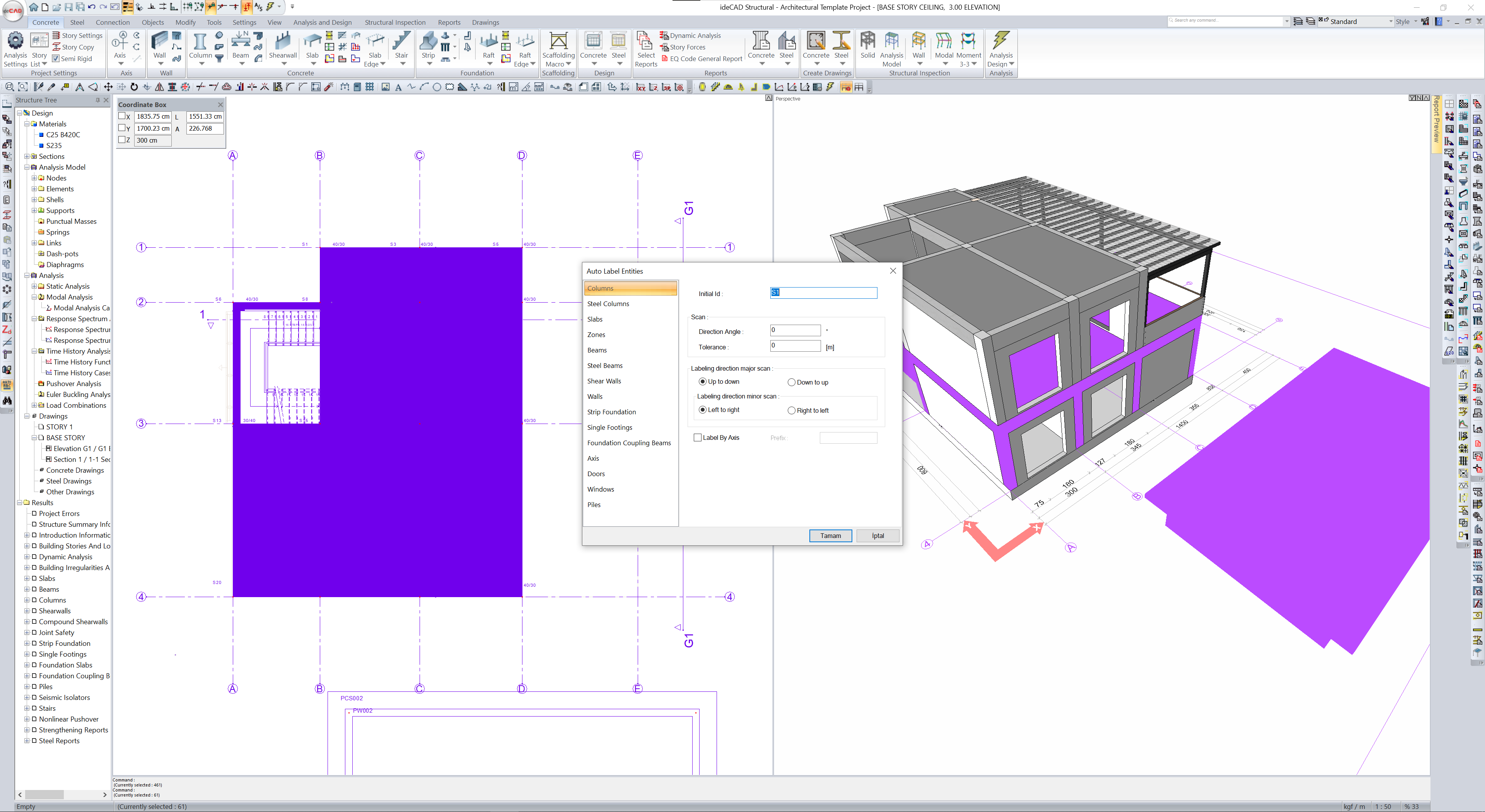

Select all elements by clicking any point on the plan plane with the right mouse button.
![](../__attachments/2119696507/image-20211224-085227.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
The auto label entities dialog will open.

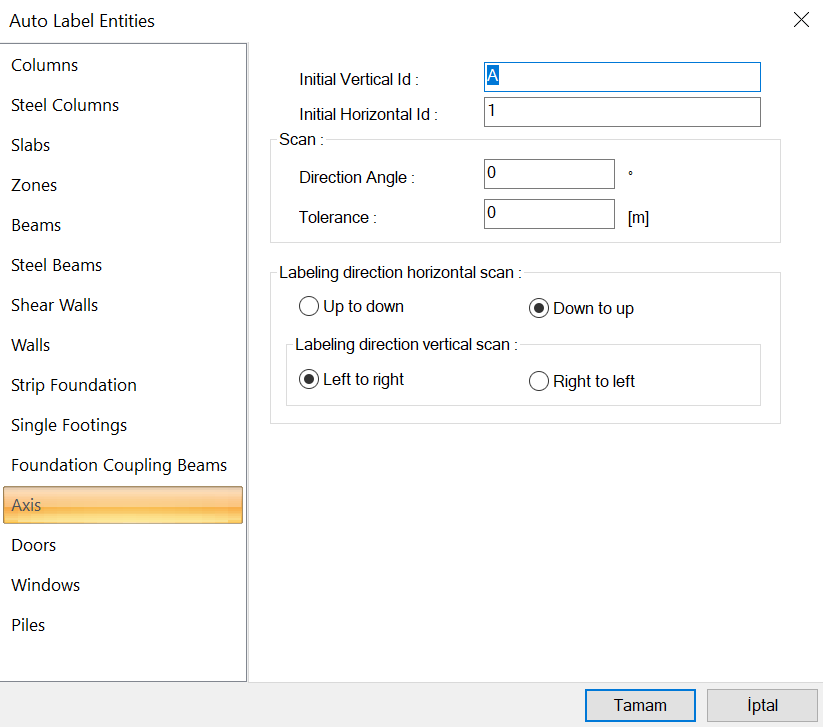

Click on the Axis tab.
Select the Down to up from the Labeling direction horizontal scan.
![](../__attachments/2119696507/image-20211227-150404.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Click the OK button.
Objects will be named automatically and Labelling done information will be given.
Click the OK button to close the window.
Click on the Geometry Check command.
Click OK in the Checklist window with all options active.

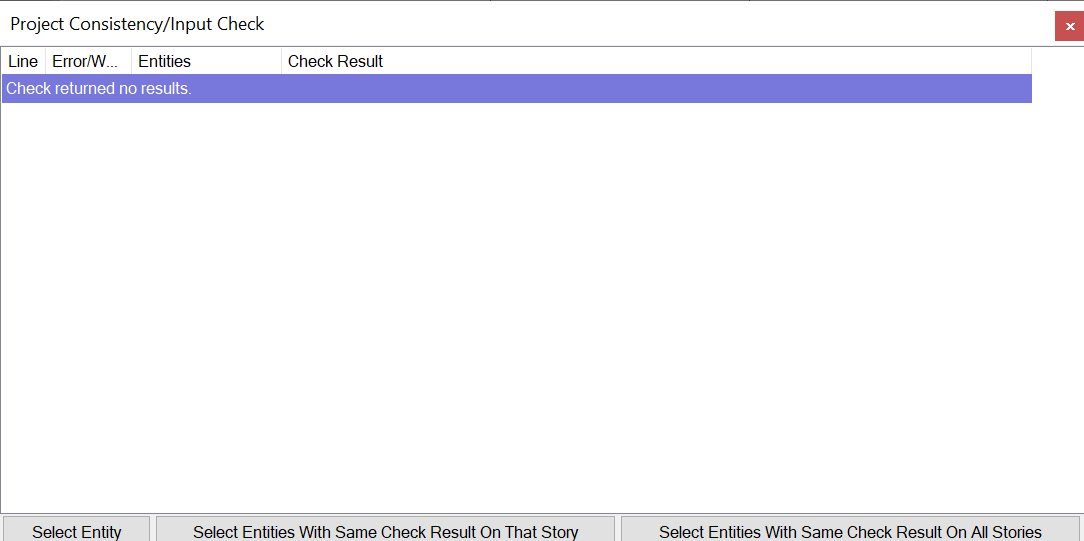

Project Consistency/Input Check window is opened.
Information will be given objects are suitable in the window.
![](../__attachments/2119696507/image-20211229-134255.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Follow the steps of the video below.
