Creating a Line Slab Band

With the line slab band command, constructive beams are created at the idle shearwall ends in tunnel formwork projects. Slab band beams are not used in the analysis.

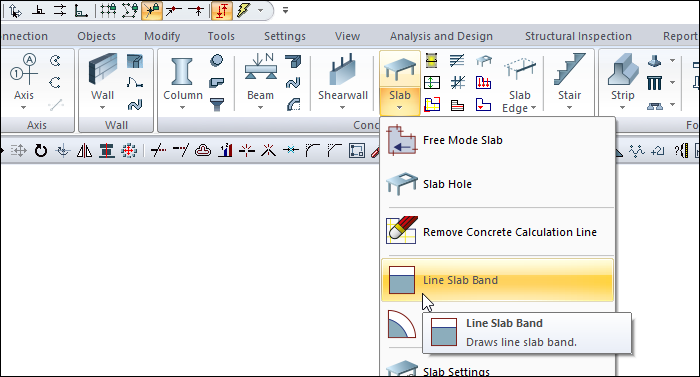

Location of Line Slab Band Command Location

You can reach it under the Concrete tab in the ribbon menu under the Concrete heading.

Usage Steps

  • Click the Line Slab Band icon. The shape of the mouse cursor will change.

  • Determine the first point by moving the mouse and click the left mouse button.

  • After determining the first point of the band, move the cursor to the second point.

  • You can change the offset of the band with the spacebar on the keyboard.

  • Determine the second point of the band by clicking the left mouse button again.

  • The program will create a preview of your next band.

  • Exit the command by pressing the ESC key on the keyboard. Your line slab band will form.

Usage step

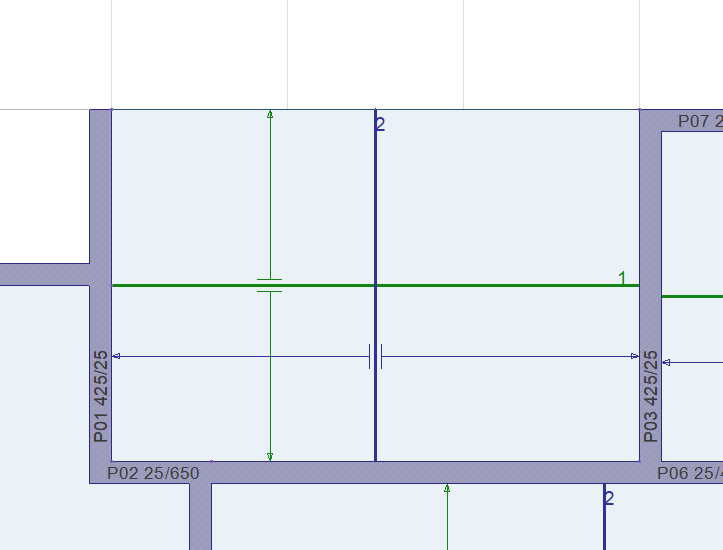

The slab to be formed with line slab band

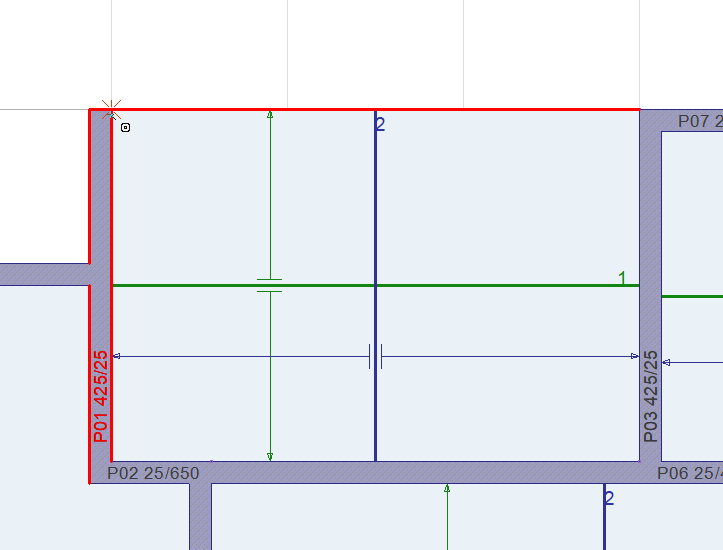

Determination of the first point of the line slab band

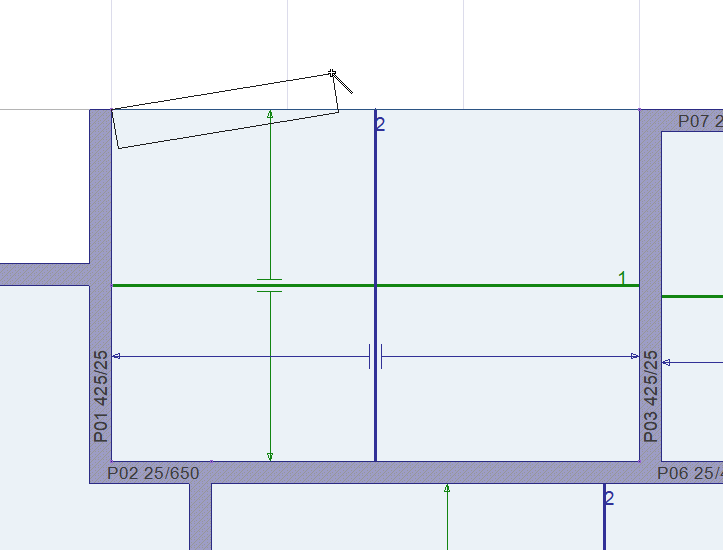

Formation of the projection of the line slab band

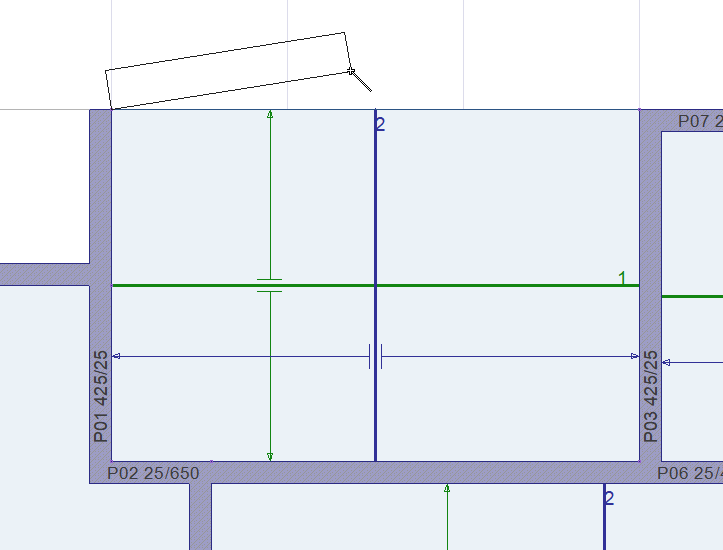

Changing the offset with the spacebar

Determination of the second point of the line slab band

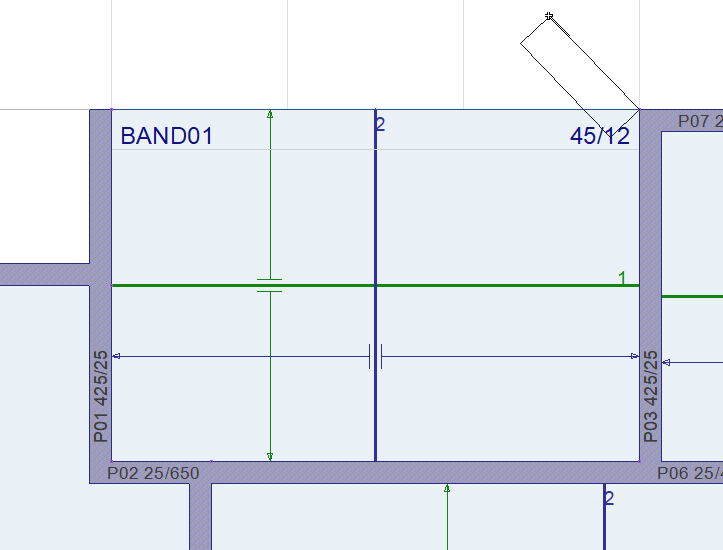

Prediction of the next line slab band

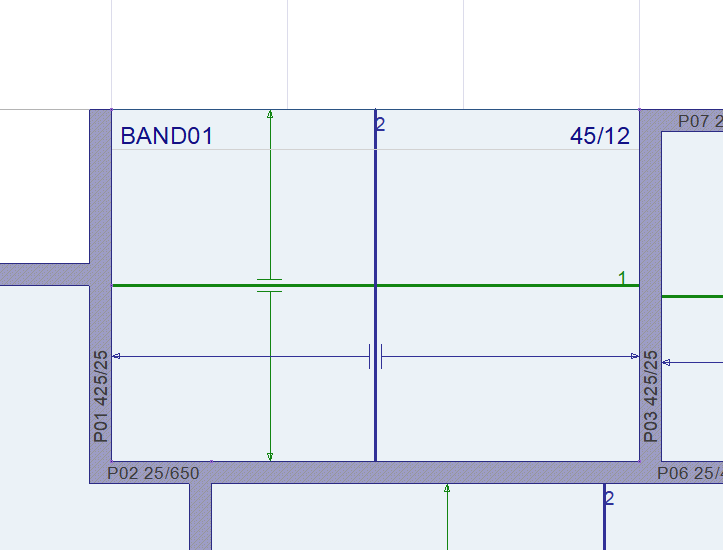

Line slab band formed slab
