Setting Walk Way Width

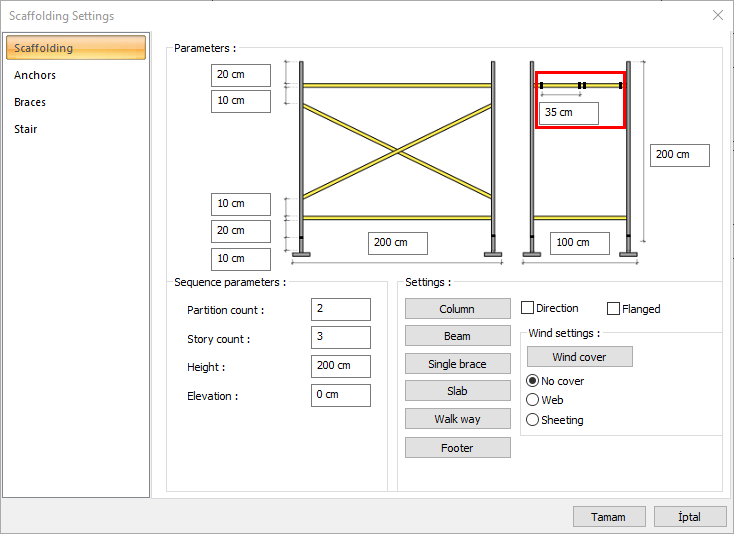

The width of the walk ways in the partition is determined by the walk way width settings. Walk way width settings are accessed from the scaffolding tab of the scaffolding settings dialog.

Location of Walk Way Width Setting

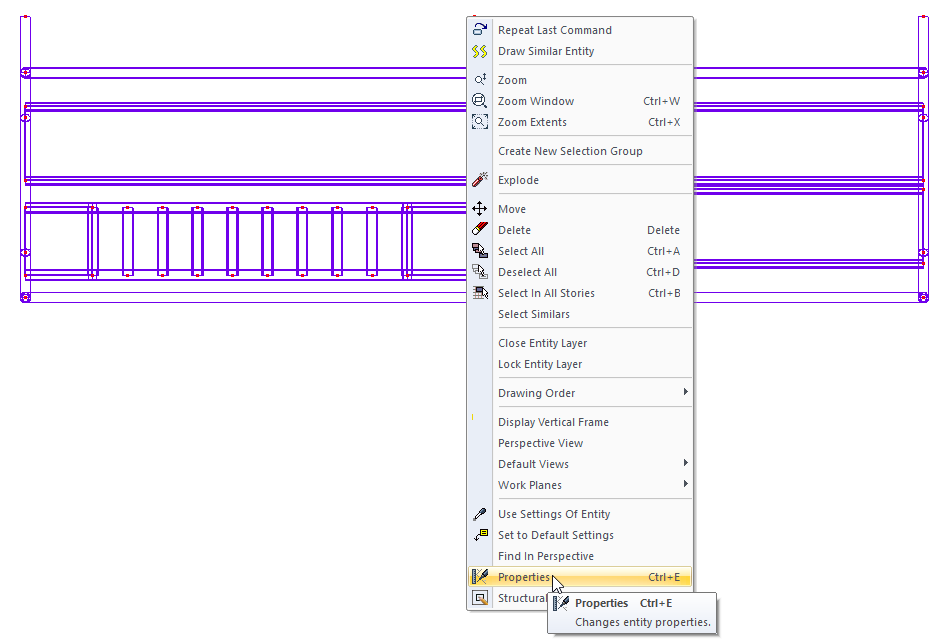

Select the scaffolding for which you want to change the width of the walk way and click the right mouse button. Click Properties from the right-click menu that opens .

You can also access the scaffolding settings dialog by double-clicking on your scaffolding with the left mouse button.

Usage Steps

  • Enter the scaffolding settings dialog.

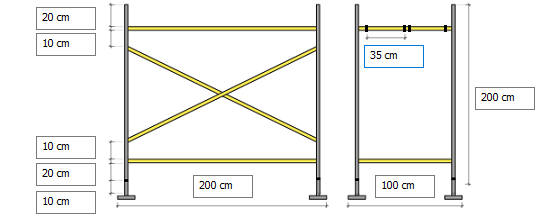

  • In the walk way width box, enter the new width value.

  • Your walking way width will change according to the value you enter.

There is slab for 2 side-by-side walk ways at the scaffolding. The value you enter is the width of one. The program automatically updates the other with the same width.

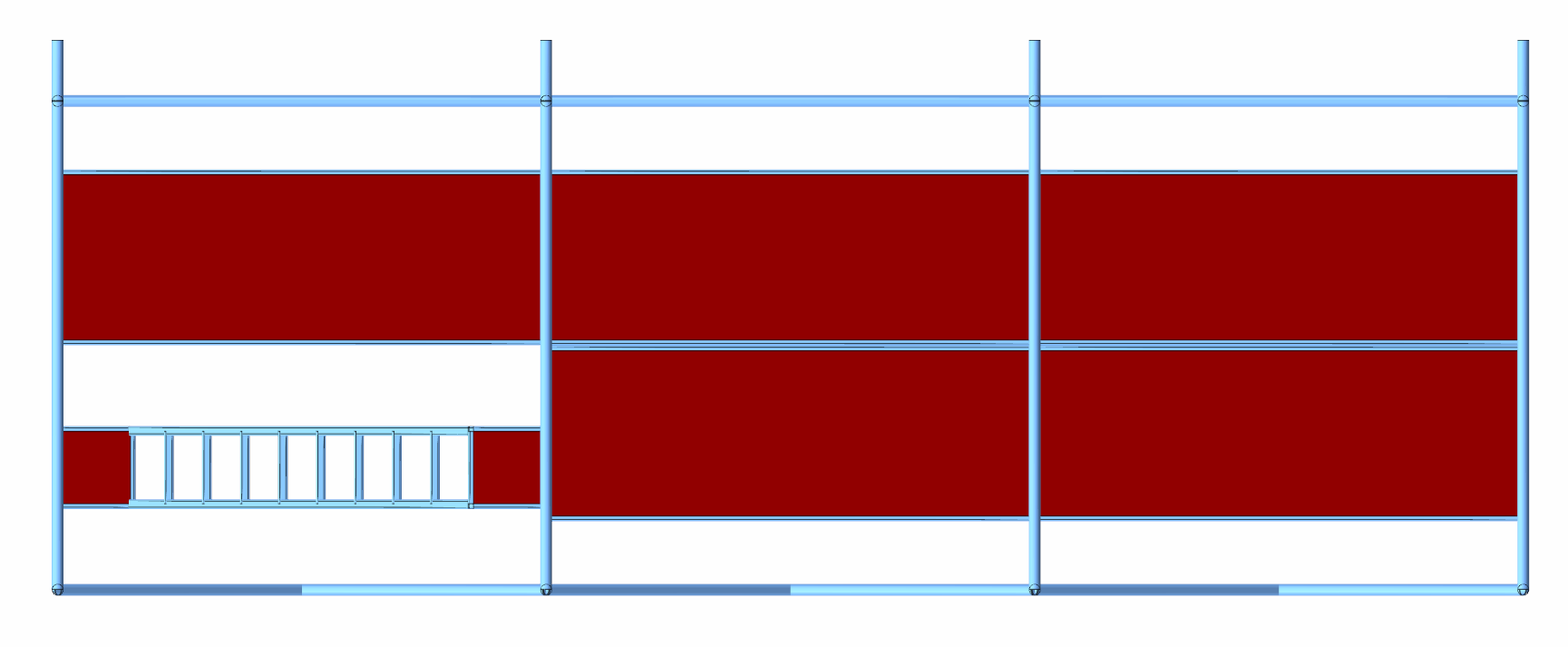

Scaffolding view before changing walk way width

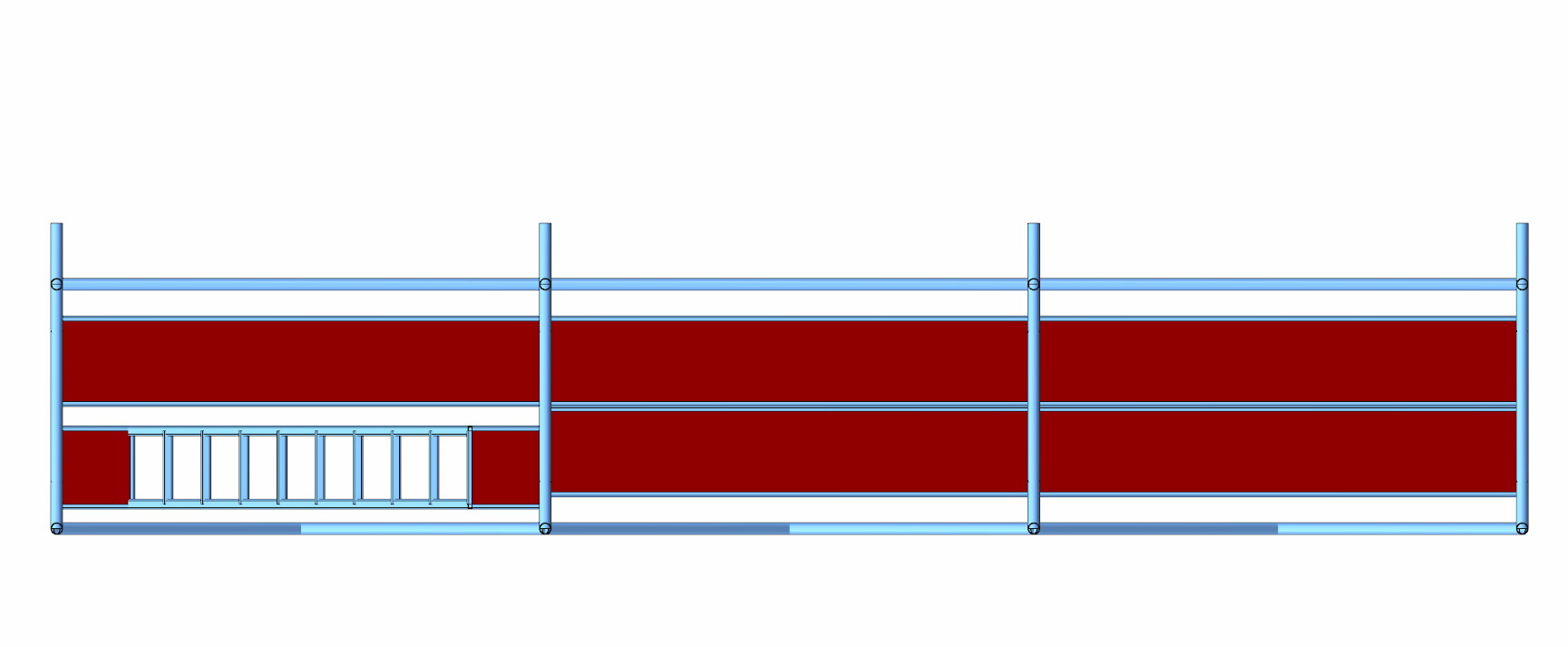

Scaffolding view after changing walkway width to 70 (partition width changed to 200)
