While creating a new layout, the layout settings dialog appears. With the layout settings command, the layout settings dialog of the created layout opens.

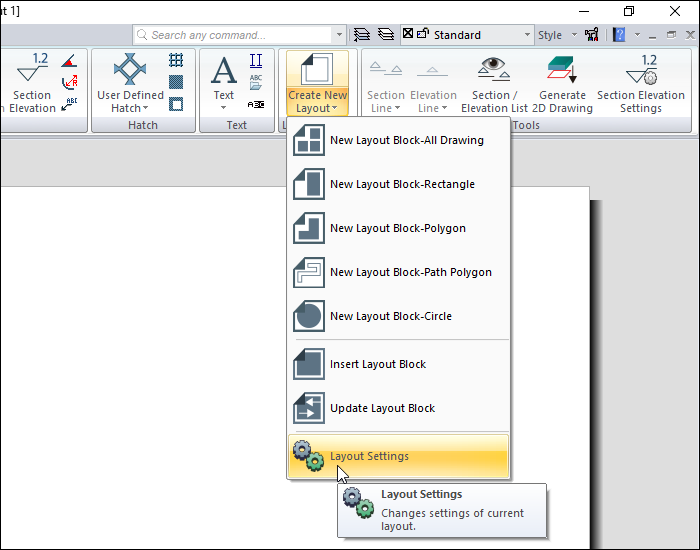

Location of the Layout Settings Command
You can access it under the ribbon menu Drawings tab, Layout Design heading.

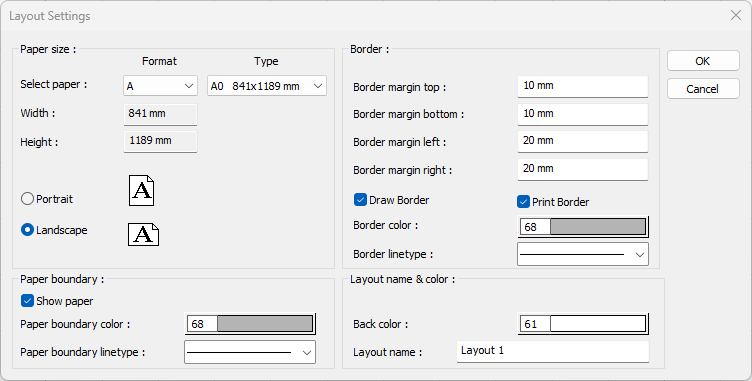

Layout Settings
|
Specifications |
|---|
|
Select paper
One of the A, B, C, US and free formats is selected from the list, and the paper type of the formats is selected from the type list. When paper type is selected, the dimensions of the selected paper appear in the Width and Height rows. |
|
Width
After the free format is selected, the desired width value is entered. |
|
Height
After the free format is selected, the desired height value is entered. |
|
Portrait/Landscape
The position of the paper is determined. |
|
Show paper
It is shown as a white background on the paper drawing area. |
|
Paper boundary color
The color of the paper boundary (the line that borders the paper) drawn around the paper is set. |
|
Paper boundary linetype
The line type of the paper boundary (the line that borders the paper) drawn around the paper is selected from the list. |
|
Border margin Top/Bottom/Left/Right
How much space will be left from the edge of the rectangular line to be drawn in the layout is determined by the values entered in these lines. |
|
Draw border
If checked, the border line drawn in the layout is shown. |
|
Print border
If checked, the border line drawn in the layout will be sent to the printer/plotter. |
|
Border color
The color of the border line drawn in the layout is set. |
|
Border linetype
The line type of the border line drawn in the layout is set. |
|
Back color
The background color of the layout is set. |
|
Layout Name
The name of the layout is entered. |
