Defining a Double Plate Seating Connection

With the Double Plate Seating Connection command, column-beam connection is defined.

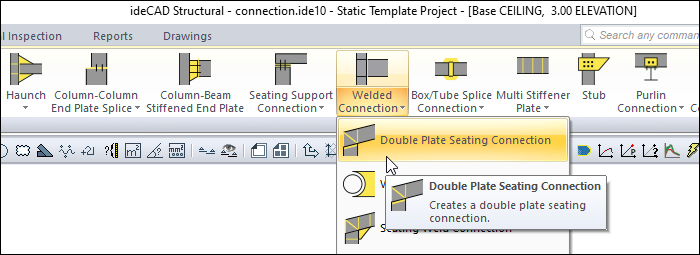

Location of the Double Plate Seating Connection Command

You can access it under the Ribbon menu, Connection tab, Experimentals title.

Usage Steps

If Draw in Fast Mode is Active

  • From the Connection menu, click the Double Plate Seating Connection icon.

  • In 3D perspective view, move the mouse pointer closer to the element, close to the support

  • After this process, the virtual image of the connection will appear.

  • If the connection is suitable, create the connection by clicking the left mouse button.

  • The connection will occur with default settings.

If Draw in Fast Mode is Inactive

  • From the Connection menu, click the Double Plate Seating Connection icon.

  • Click the column then the beam before the 3D perspective view.

  • The double plate seating connection settings dialog will open.

  • The connection will occur when the wanted settings are made and the OK button is clicked.

Location of the Double Plate Seating Connection Settings Dialog

If the draw in fast mode is active, the connection settings will be opened automatically.

If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.

Double Plate Seating Connection Settings Dialog

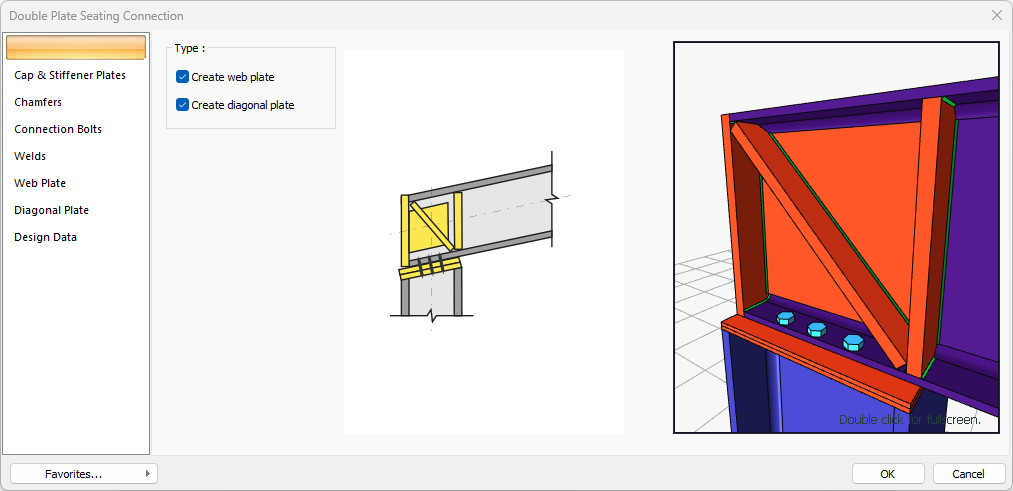

Type Tab


Specifications

Type

For connection, web and dioganal plate selections are made.

Schematic drawing

Connection is shown on the schematic drawing.

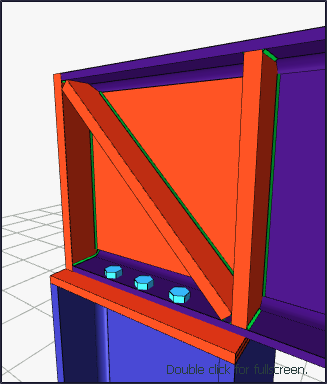

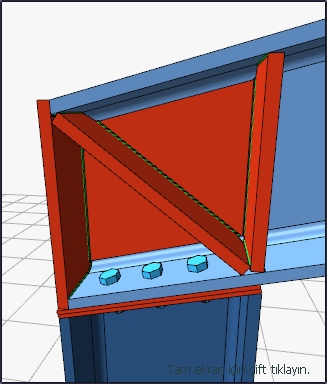

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

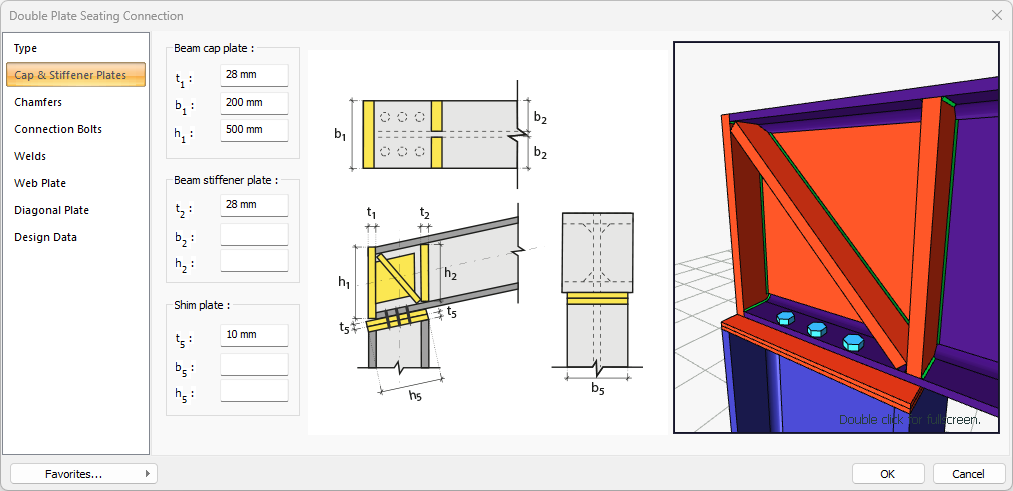

Cap and Stiffener Plates Tab


Specifications

Beam cap plate

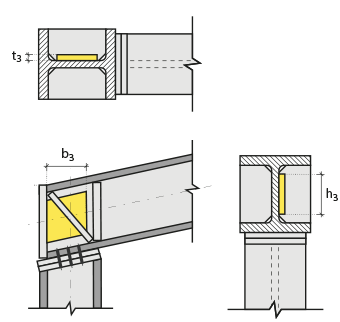

The beam cap plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Beam stiffener plate

Beam stiffener plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Shim plate

Shim is a plate placed between the elements to be connected in bolted connections. If shim is to be made, the option is selected and t2, thickness value is given.

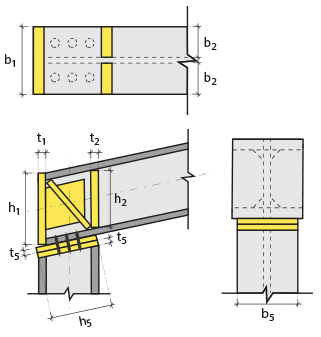

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

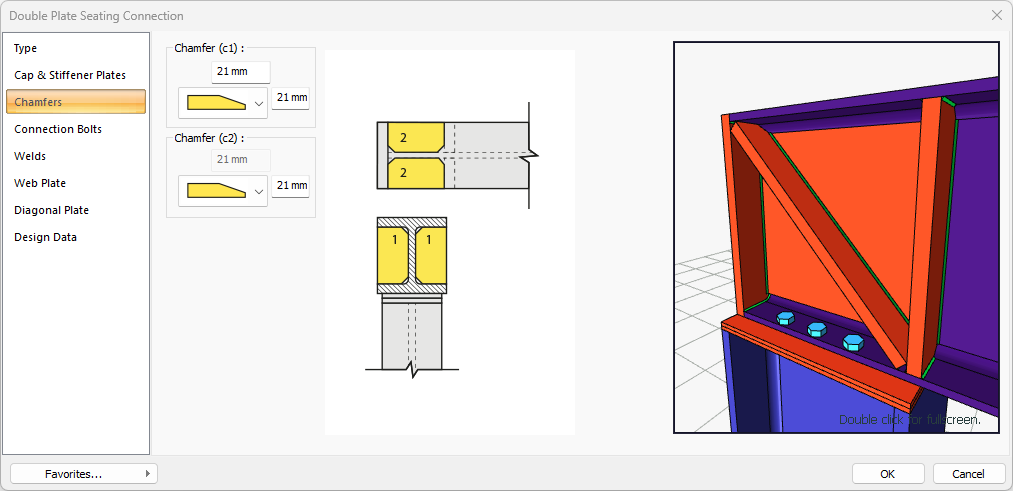

Chamfers Tab


Specifications

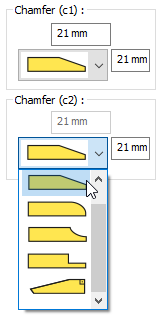

Chamfer (c1, c2)

For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value.

Schematic drawing

Connection, notching and cutting values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

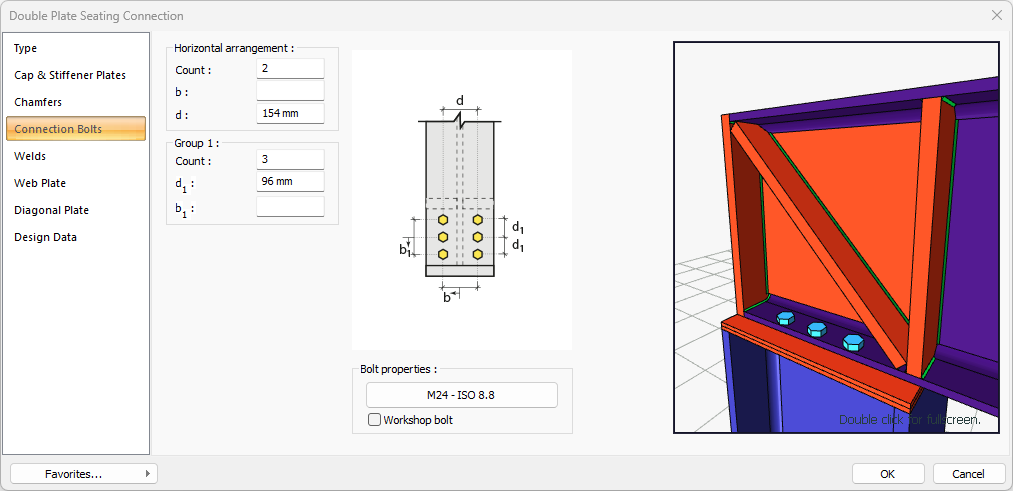

Connection Bolts Tab


Specifications

Horizontal arrangement


The horizontal arrangement distance value of the bolts is entered. The values ​​to be entered are shown in the schematic drawing.

Group 1


Distance values ​​of bolts to beam and other bolts are entered. The values ​​to be entered are shown in the schematic drawing.

Bolt properties

The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog.

Schematic drawing


Connection and bolt arrangement values ​​are shown on the schematic drawing.

Preview


There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

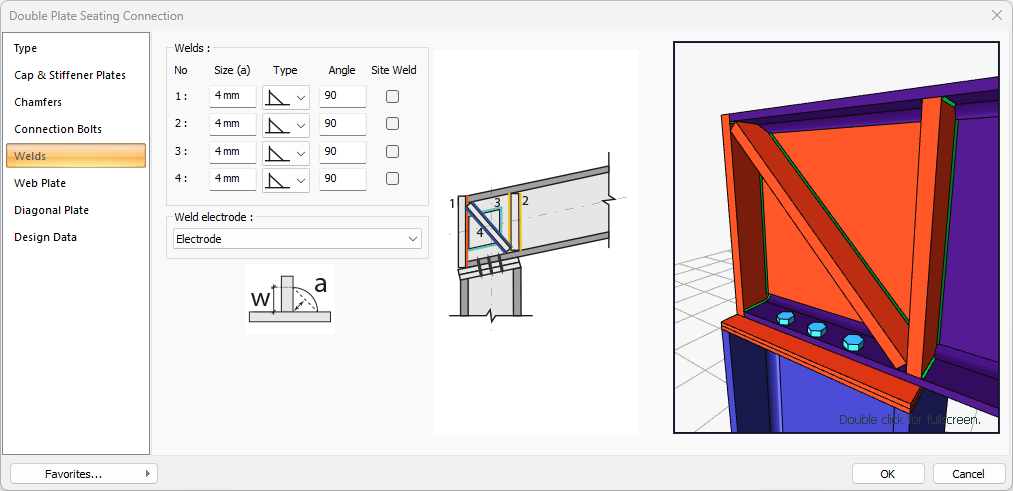

Welds Tab


Specifications

Welds


The thickness, type and angle values ​​of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered.

Weld electrode


The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength.

If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New".

Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC.

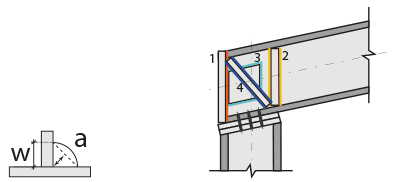

Schematic drawing


Connection and weld values ​​are shown on the schematic drawing.

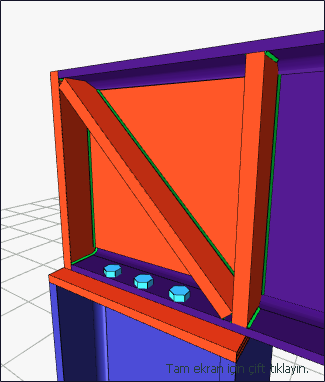

Preview


There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

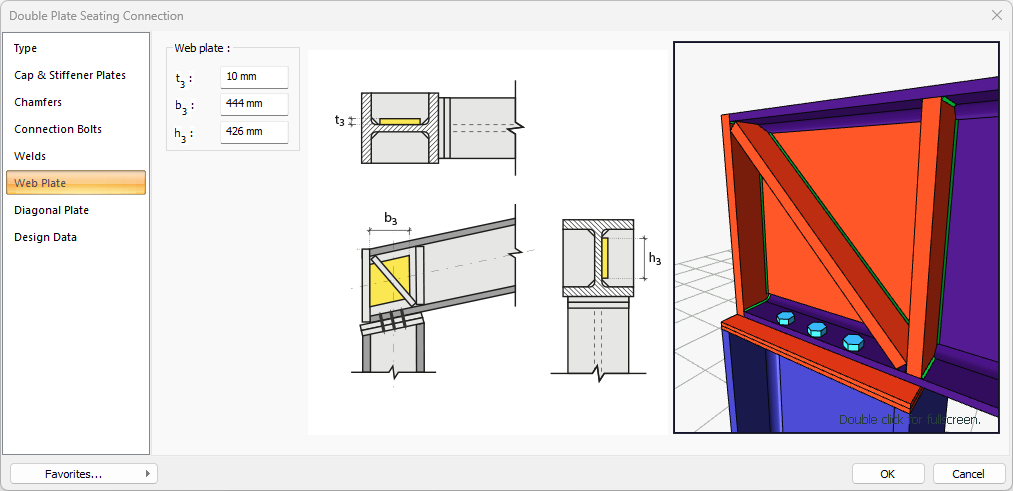

Web Plate Tab


Specifications

Web plate

The web plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

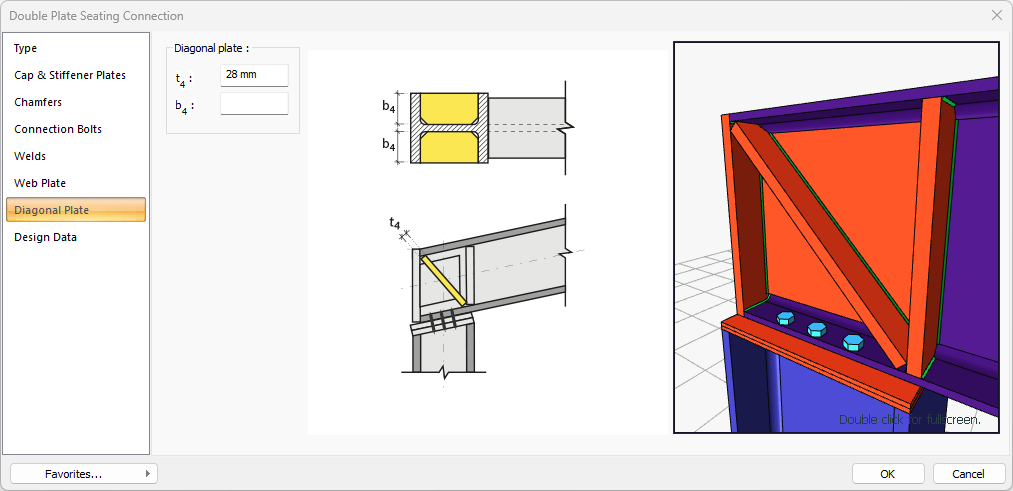

Diagonal Plate Tab


Specifications

Diagonal plate

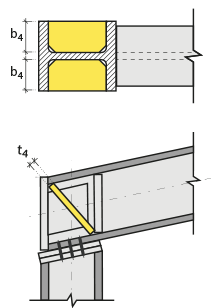

The diagonal plate is determined by entering the value. The values ​​to be entered are shown in the schematic drawing.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

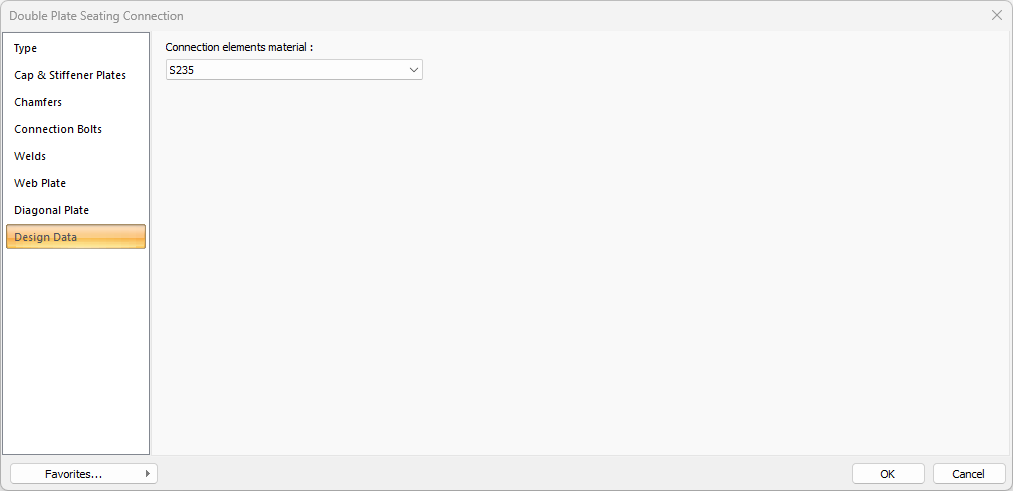

Design Data Tab


In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.


If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
