Width-to-Thickness Ratios for IMF per AISC 341-16 with ideCAD
How does ideCAD control Width-to-Thickness Ratios for intermediate moment frames according to AISC 341-16?
The moment resisting frames and centrally braced frames which contains columns, beams and braces with different cross-sections are controlled and reported.

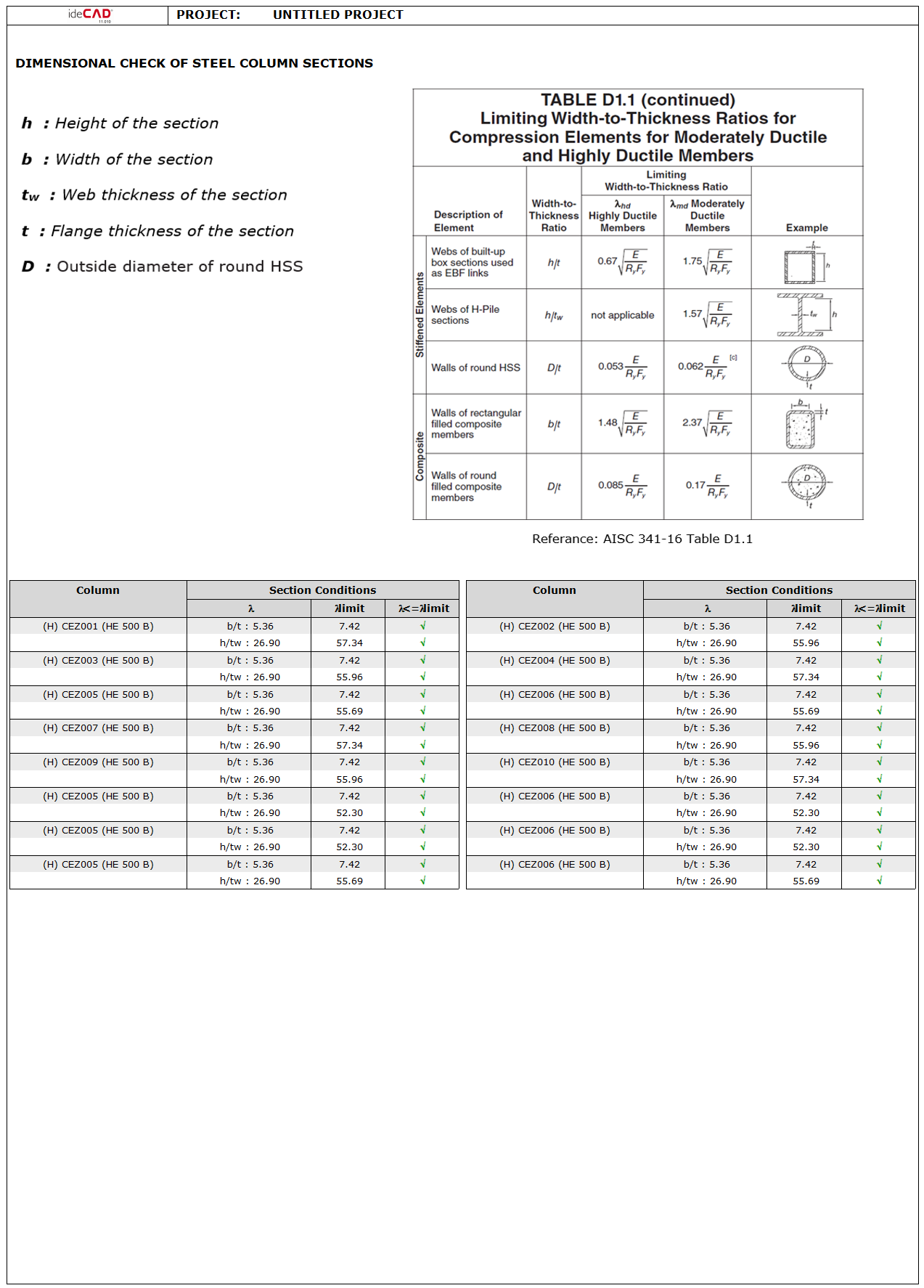

The structural frame members, such as columns and beams with moderate ductility levels, are controlled according to Table D1.1 and are reported in steel column and steel beam reports.
Limiting Width-to-Thickness Ratios for Compression Elements for Moderately Ductile and Highly Ductile Members | ||||
---|---|---|---|---|
Description of Element | Width-to- Thickness Ratio | Limiting Width-to-Thickness Ratio | Example | |
λhd | λmd | |||

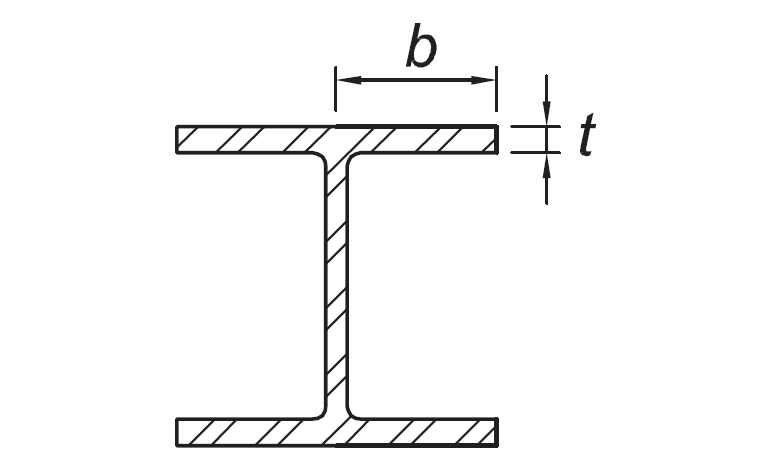

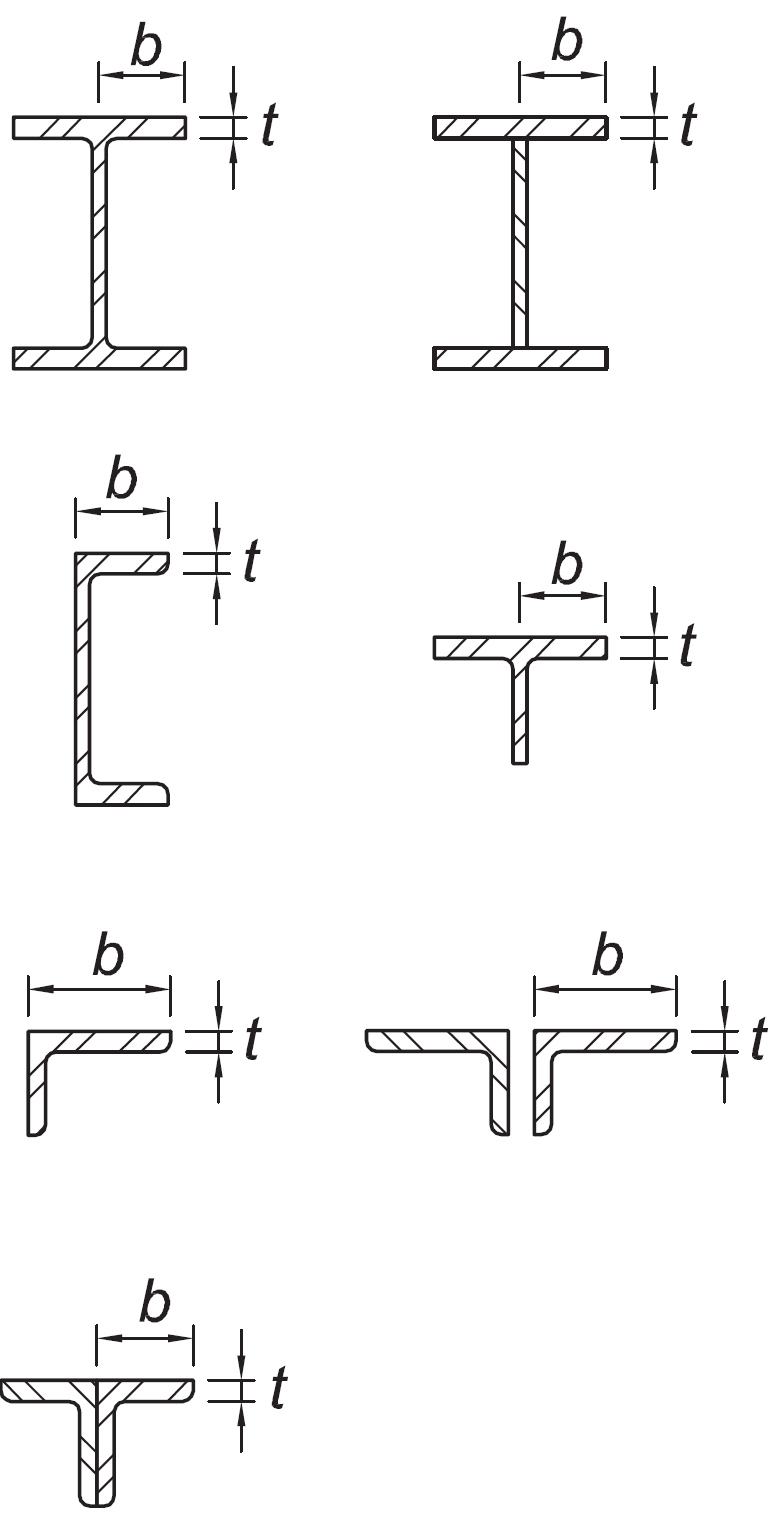

Flanges of rolled or built-up I-shaped sections, channels and tees; legs of single angles or double-angle members with separators; outstanding legs of pairs of angles in continuous contact | b/t |
|
| |
Flanges of H-pile sections per Section D4 | b/t | not applicable |
| |

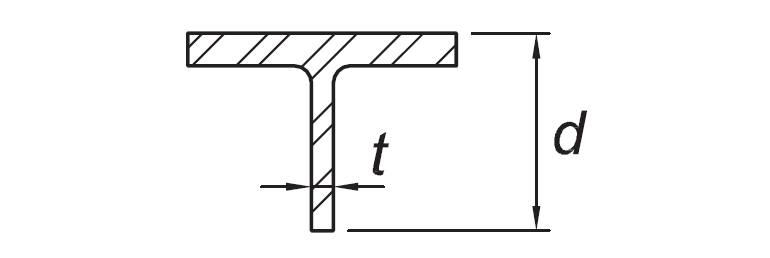

Stems of tees | d/t |
|
| |

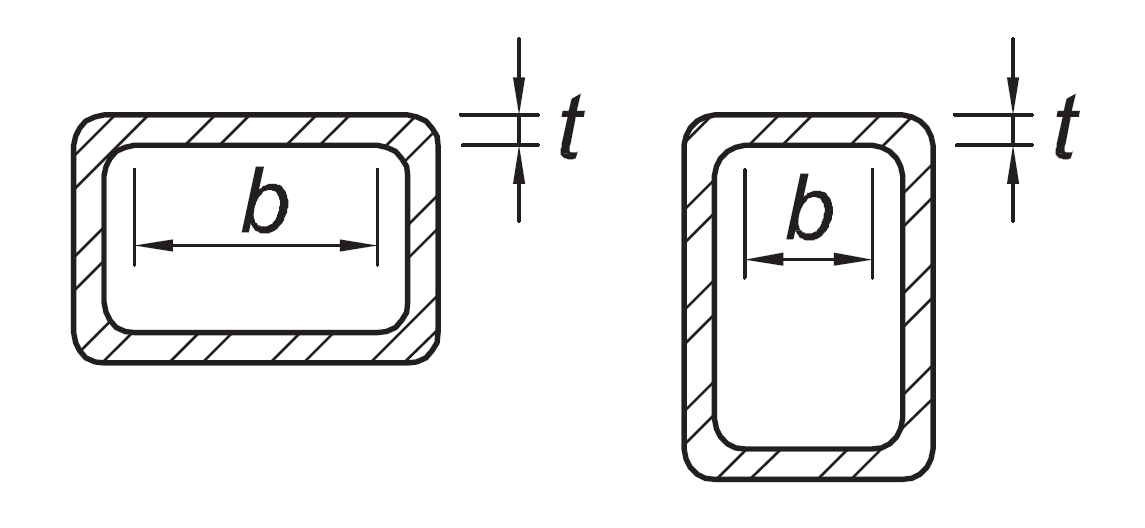

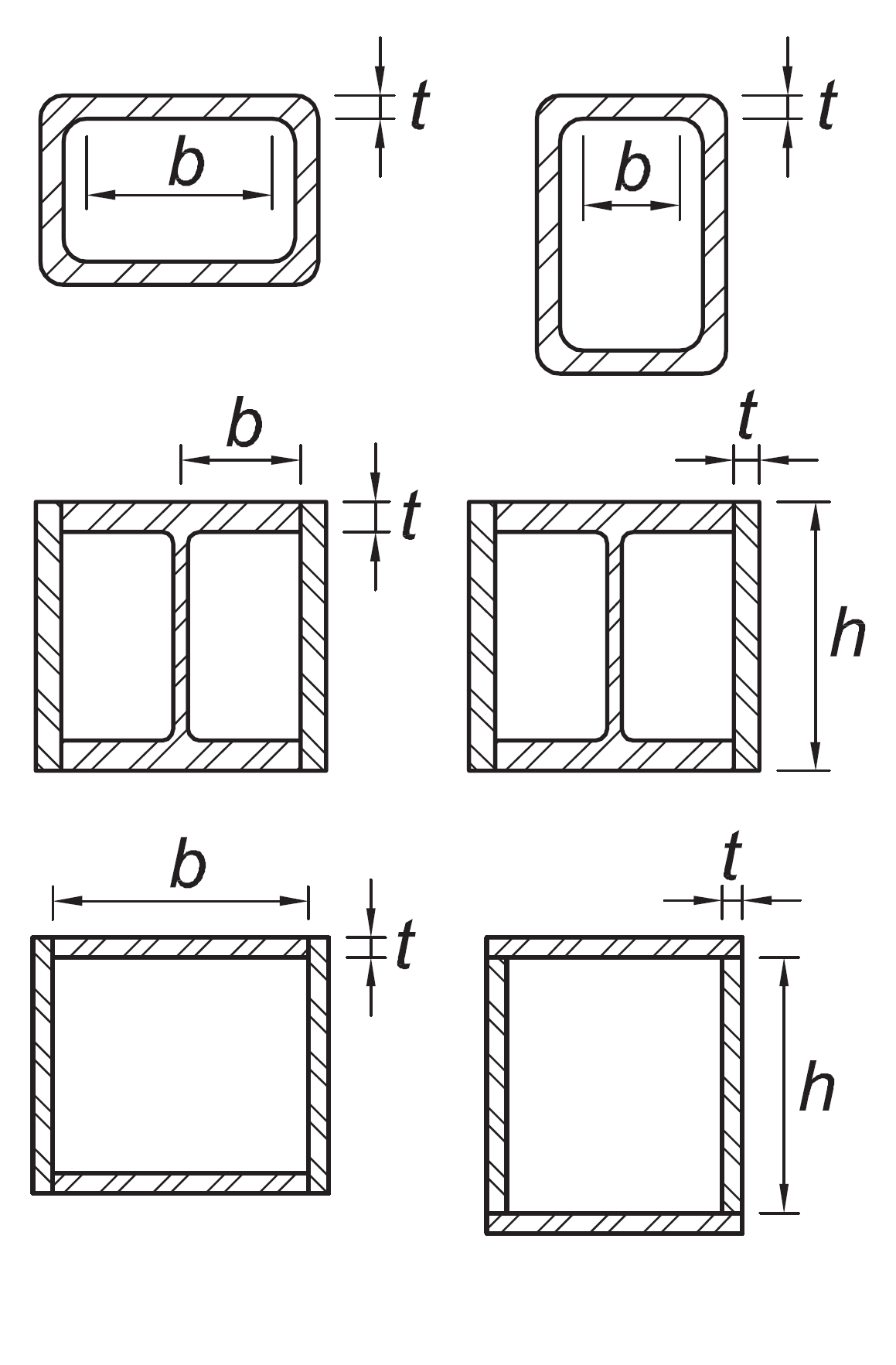

Walls of rectangular HSS used as diagonal braces | b/t |
|
| |

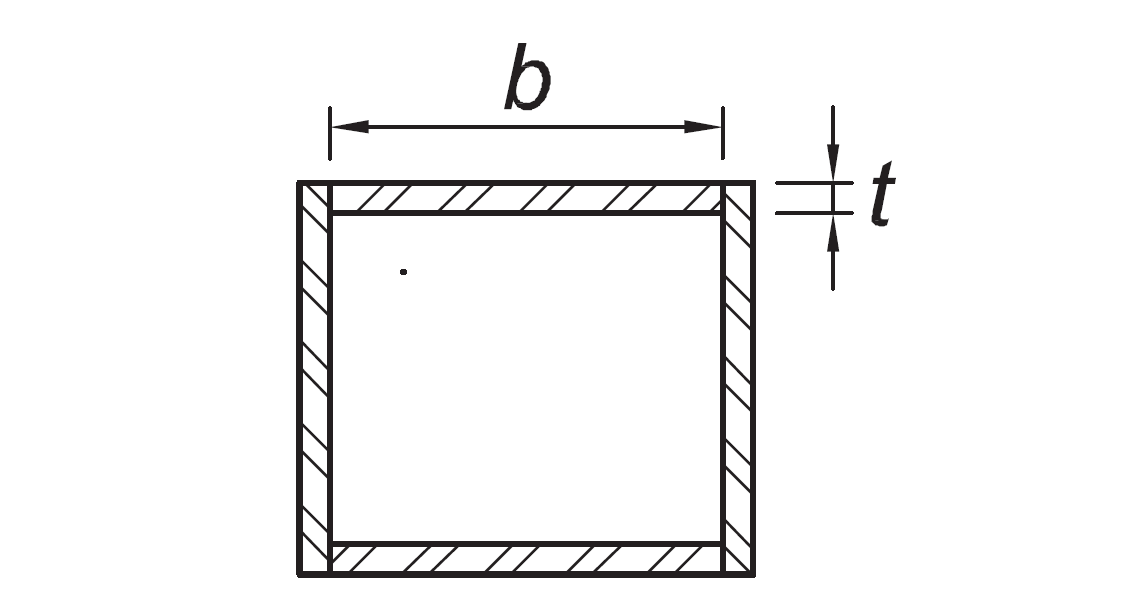

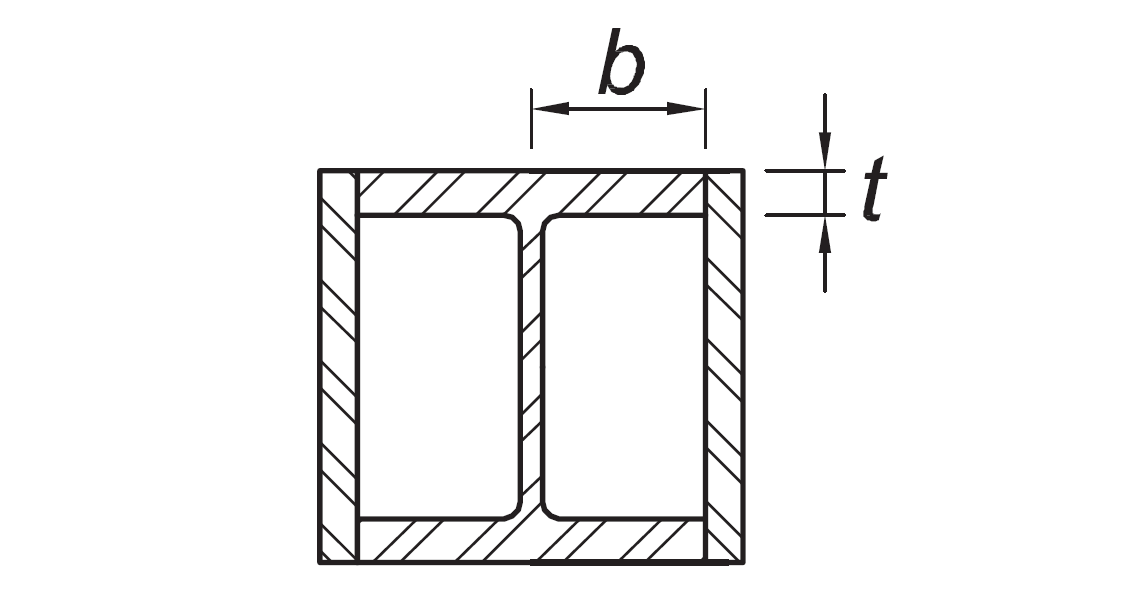

Flanges of boxed I-shaped sections | b/t |
|
| |

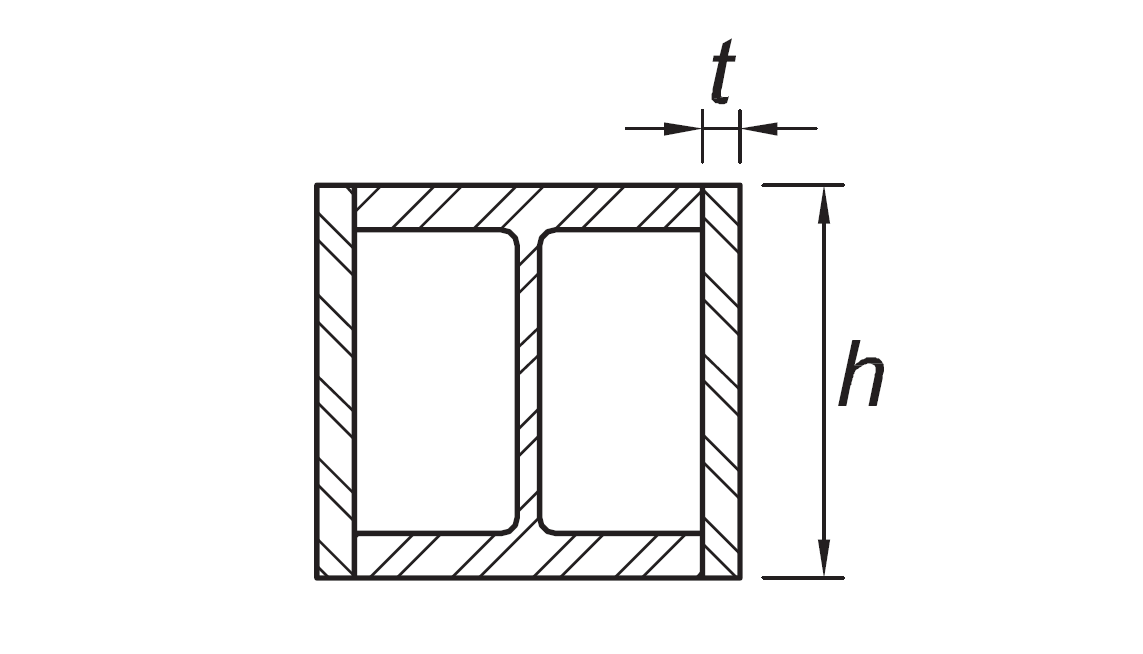

Side plates of boxed I-shaped sections and walls of built-up box shapes used as diagonal braces | h/t |
|
| |
Flanges of built up box shapes used as link beams | b/t |
|
| |

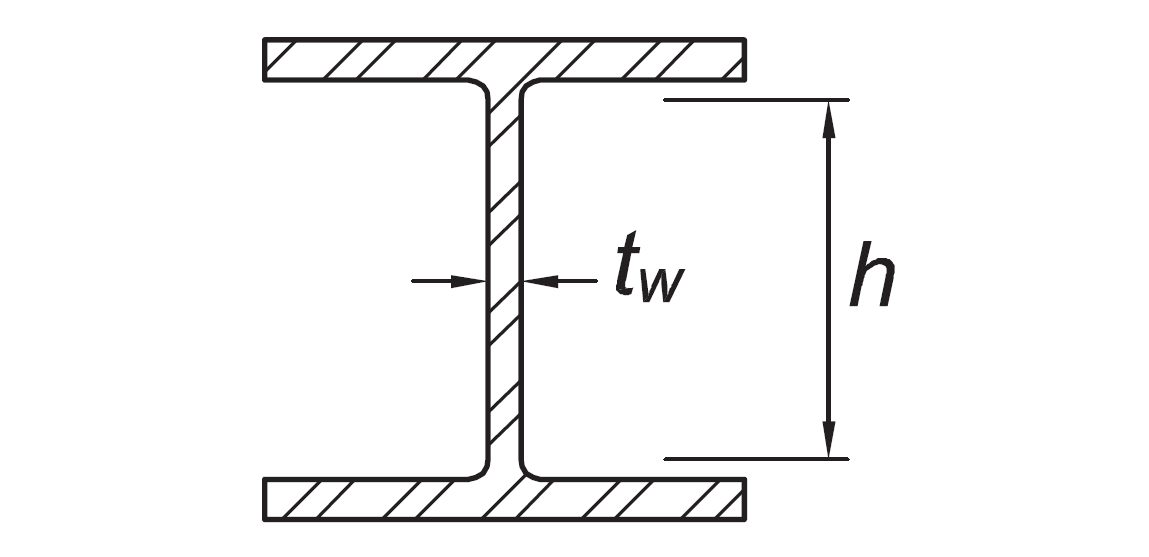

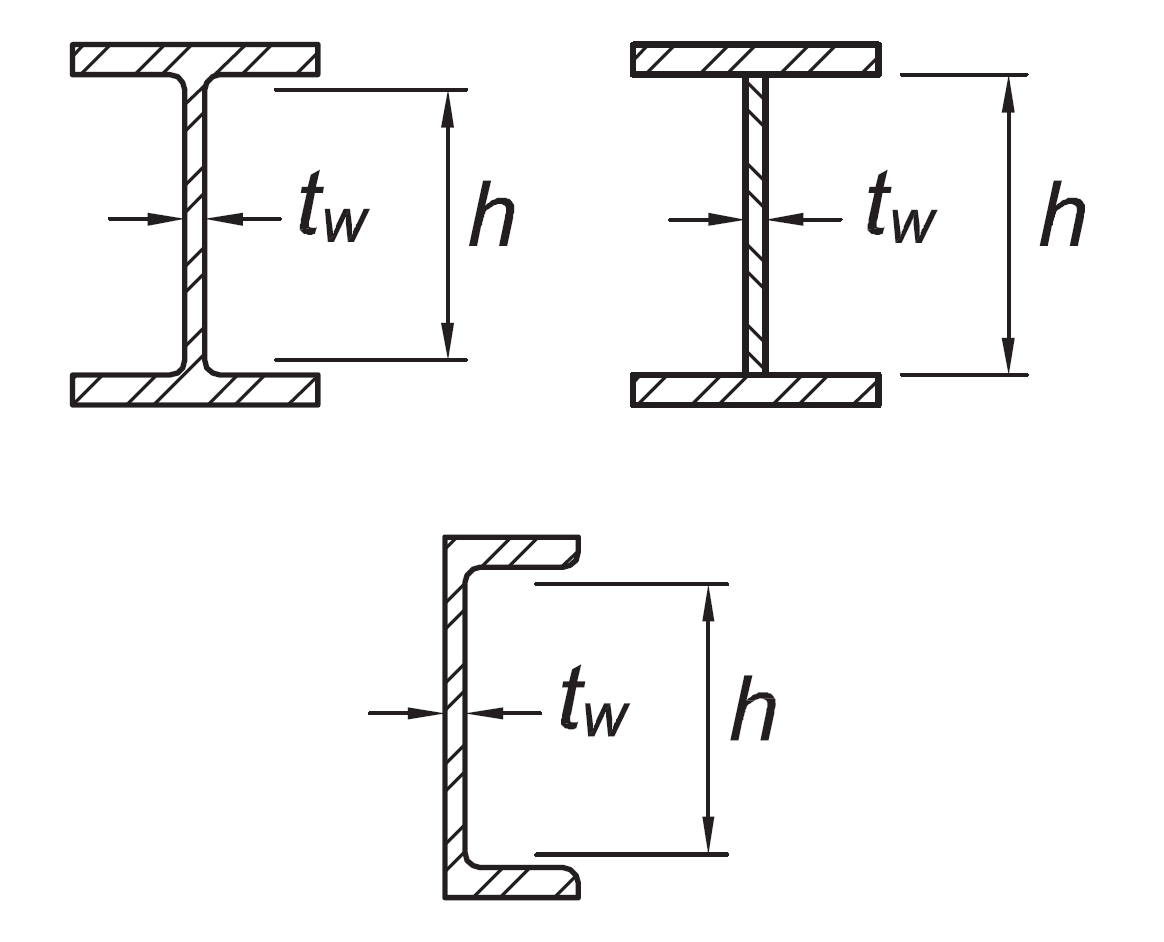

Webs of rolled or built-up I shaped sections and channels used as diagonal braces | hw/t |
|
| |
Where used in beams or columns as flanges in uniform compression due to axial, flexure, or combined axial and flexure:
| b/t h/t |
|
| |

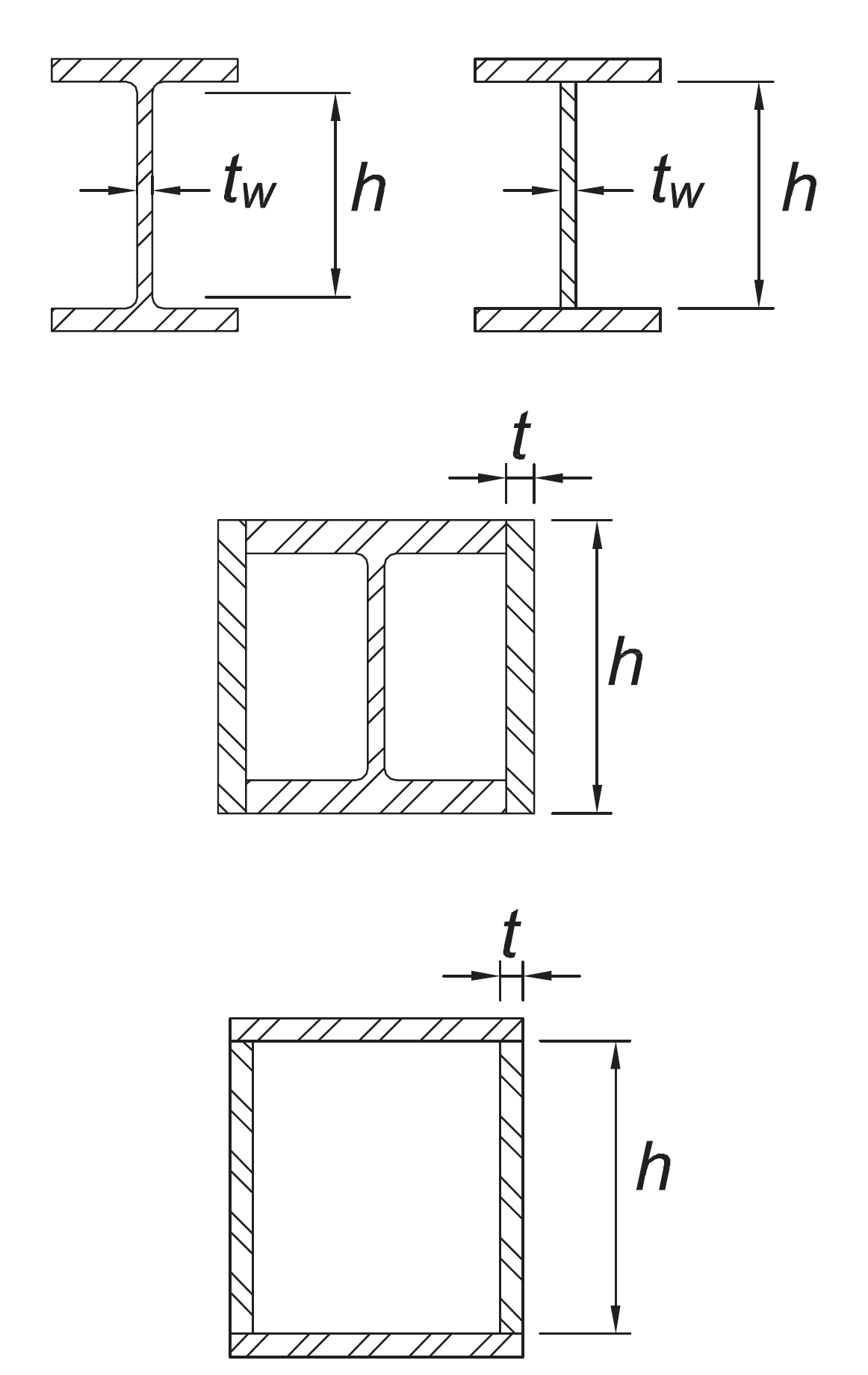

Where used in beams, columns, or links, as webs in flexure, or combined axial and flexure:
| h/tw h/t h/t | For Ca ≤ 0.114 For Ca > 0.114 where | For Ca ≤ 0.114 For Ca > 0.114 where | |

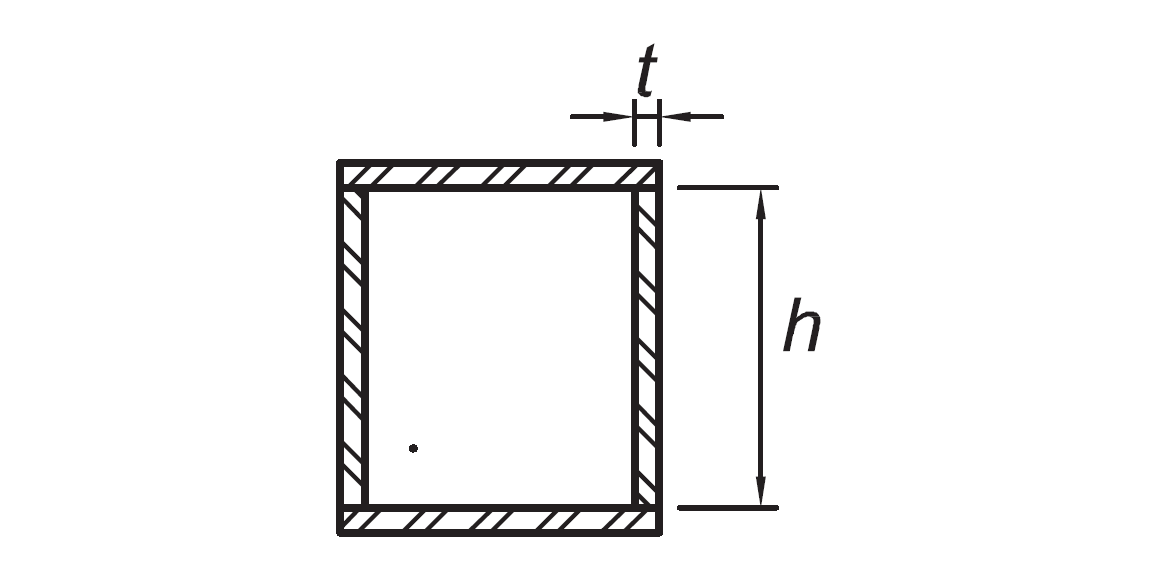

Webs of built-up box sections used as EBF links | h/t |
|
| |
Webs of H-Pile sections | h/tw | not applicable |
| |

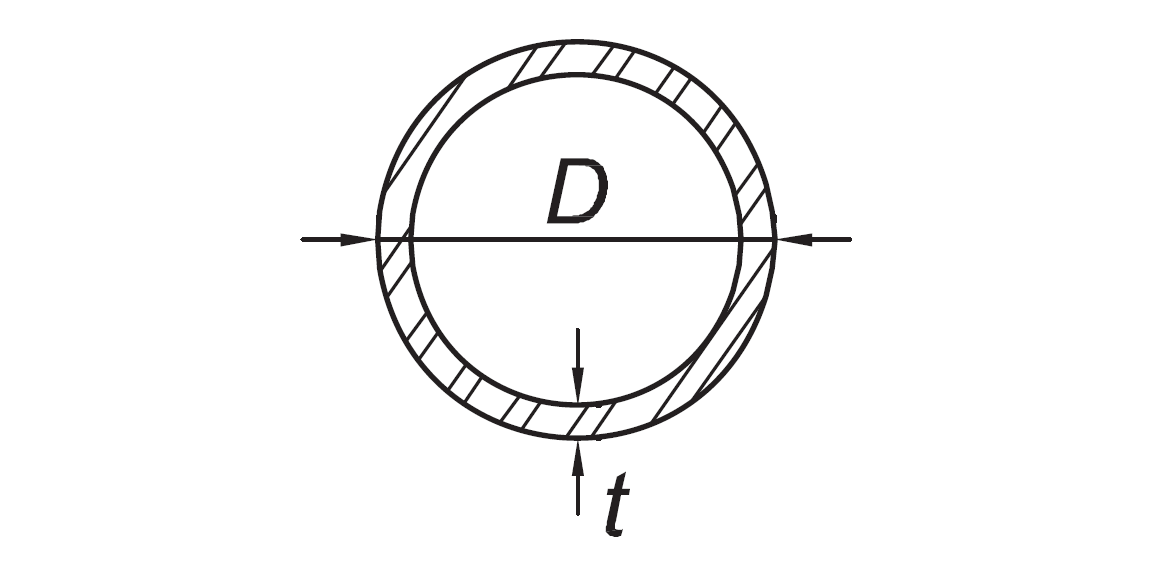

Walls of round HSS | D/t |
|
|
