Creating a Freehand

With the freehand command, lines are drawn on the computer screen as if drawing by hand in architectural and structural project designs.

Location of the Freehand Command

In the Architectural Program

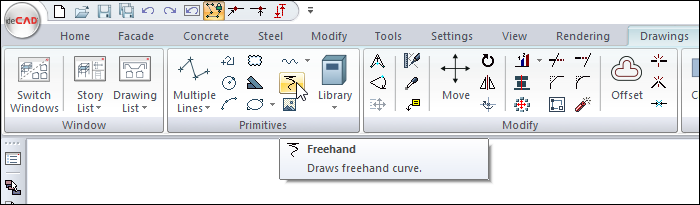

You can access it under the ribbon menu Drawings tab, Primitives title.

In the Structural Program

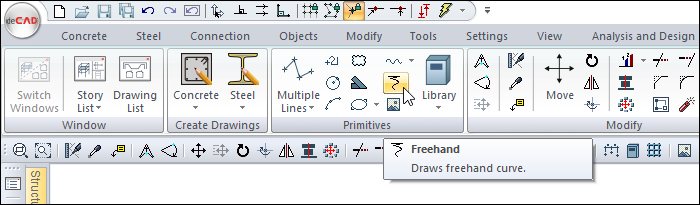

You can access it under the ribbon menu Drawings tab, Primitives title.

Usage Steps

  • Click the Free Line icon in the ribbon menu .

  • In the drawing area, click and hold the left mouse button and drag the mouse.

  • A freehand line will be drawn like a writer with a pen. When you release the mouse the line drawing will be finished.

  • After the free line is drawn, it is not possible to make any shape changes on it.

Usage step

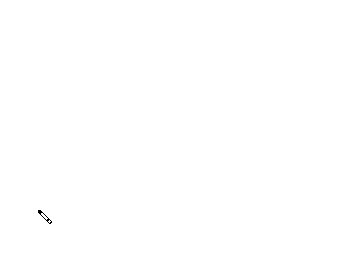

Starting freehand drawing

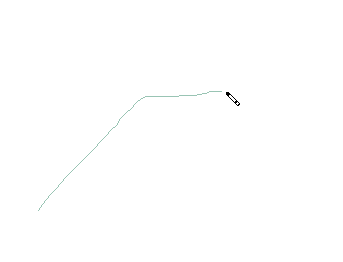

Continuing with mouse movement

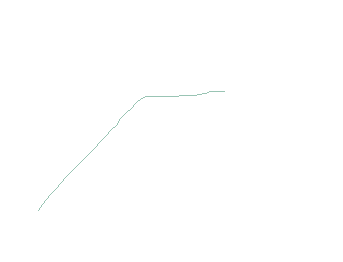

Freehand formation
