Hide/Show Edge command hides or shows an edge of the sweep.

Location of Hide/Show Edge Command

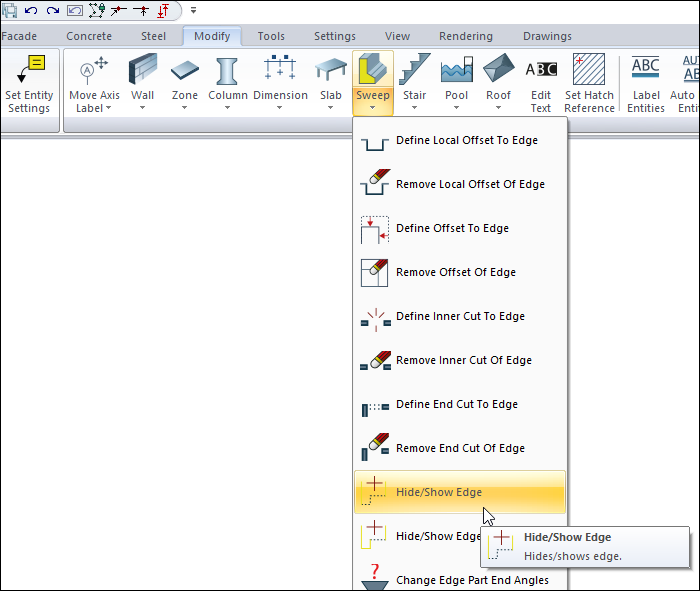

You can access it from the ribbon menu Modify tab under Entity Edit title.

Usage Steps

  • Click the Hide/Show Edge icon.

  • Click the edge you want to keep in the sweep you previously drew.

  • Exit the command by pressing the Esc key, the edge of the sweep will no longer be visible.

  • Repeat the same process to make a hidden edge visible again.

Usage step

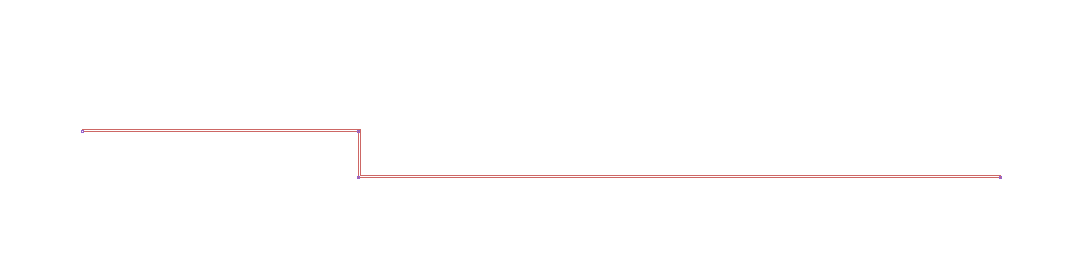

The initial version of the sweep

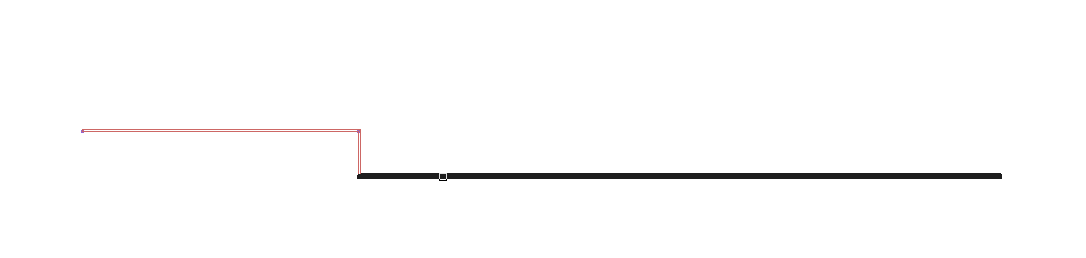

Selecting the edge you want to hide

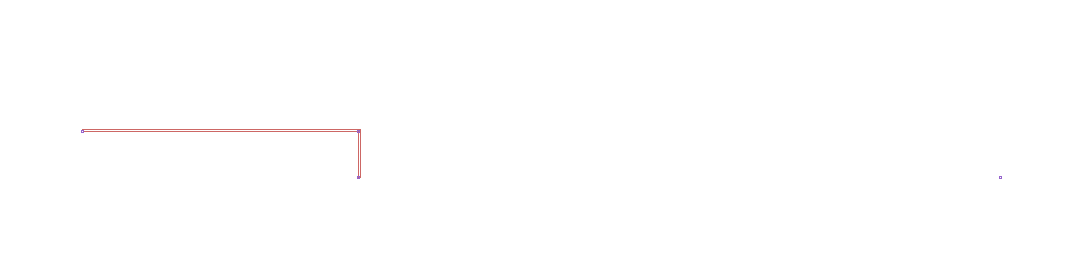

Hiding edge with hide/show edge
