Column - Foundation Connection (Stiffened Base Plate) Report

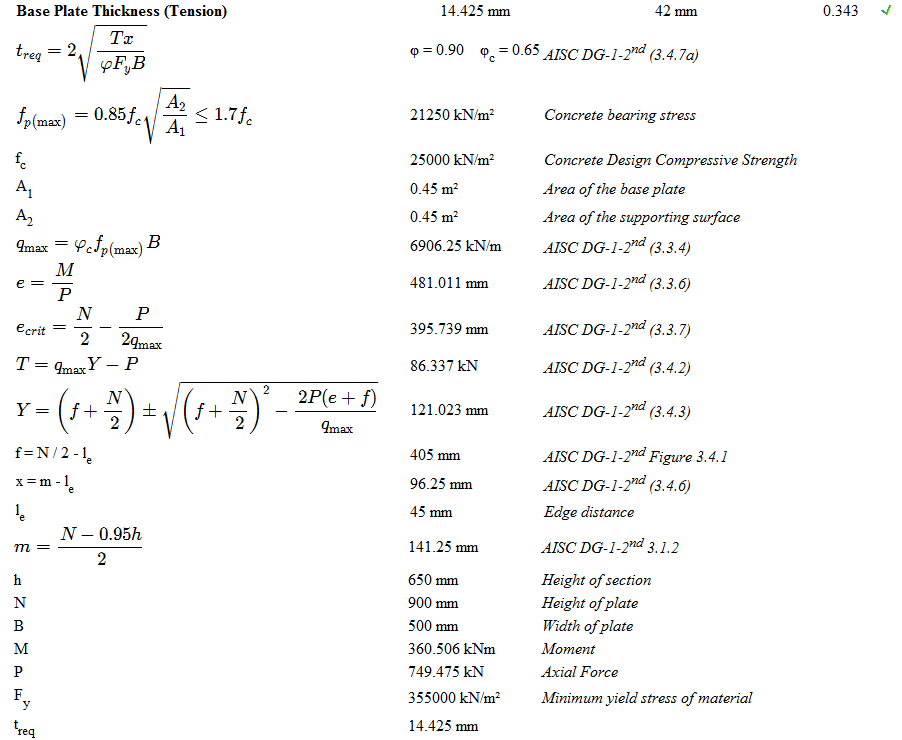

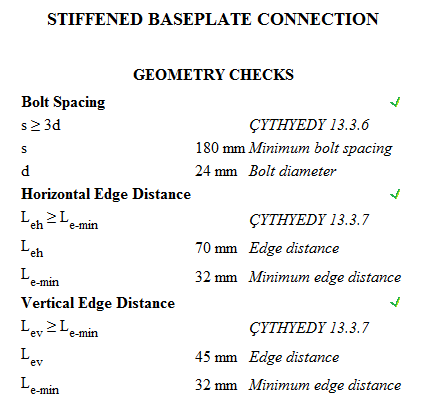

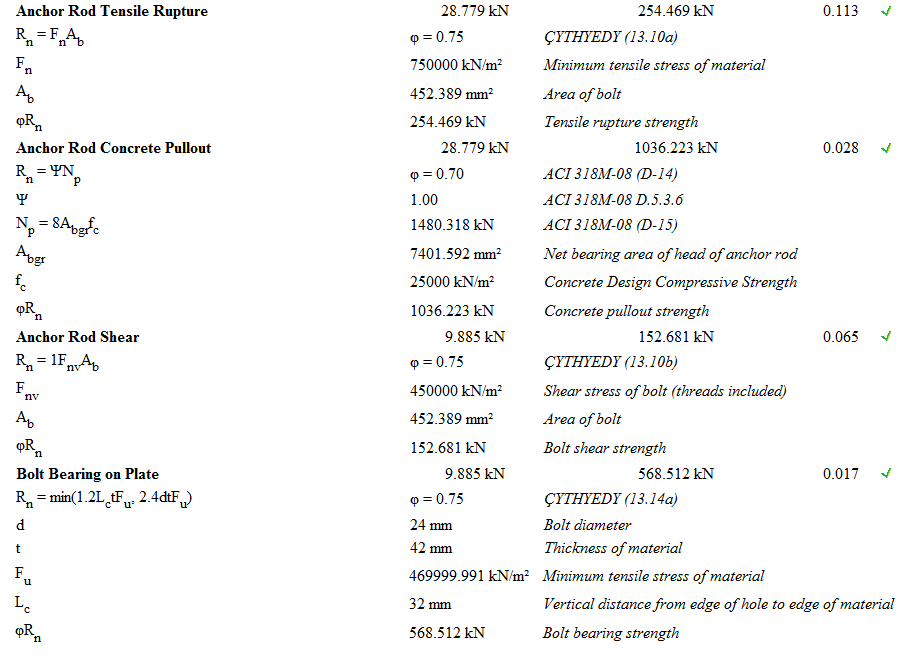

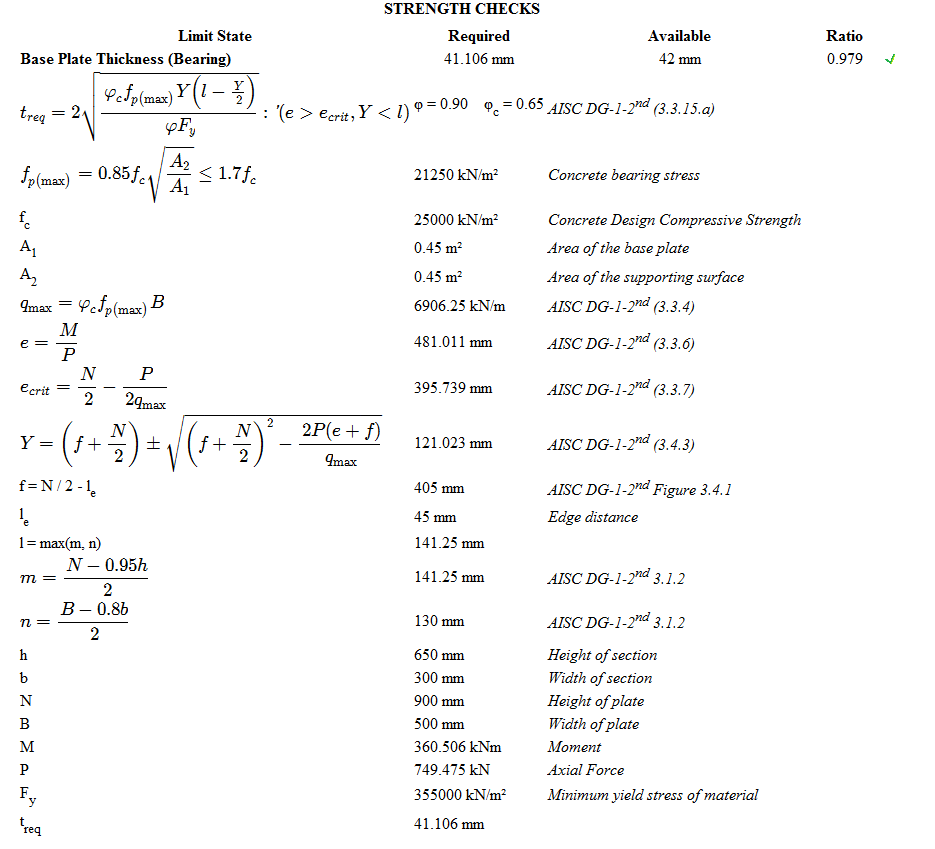

Column-Foundation Connection or Stiffened Base Plate Connection design is made automatically according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) , AISC 360-16, AISC 358-16 and TBDY regulations and a connection report is created.
![](../__attachments/1101562421/col3a.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1101562421/col4a.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1101562421/col5a.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1101562421/col6a.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
