Transforming a Column to a Shearwall
With the Column to Shearwall command, columns are converted to shearwalls. At any stage of architectural and structural projects, the need to transform columns to shearwalls may be felt. With the column to shearwall command, column or columns are converted to shearwalls at once.

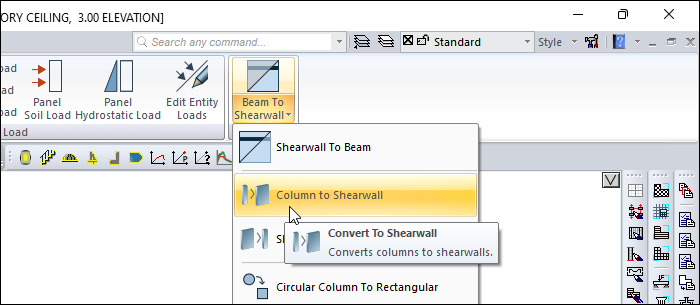

Location of Column to Shearwall Command
You can access it from the ribbon menu Modify tab under the Transform heading.
Usage Steps
Click the Column to Shearwall icon.
Select the column or columns to be transformed into shearwalls.
Click the right mouse button.
The column or columns will be transformed to shearwall automatically without corrupting the existing data input.
Usage step |
|---|

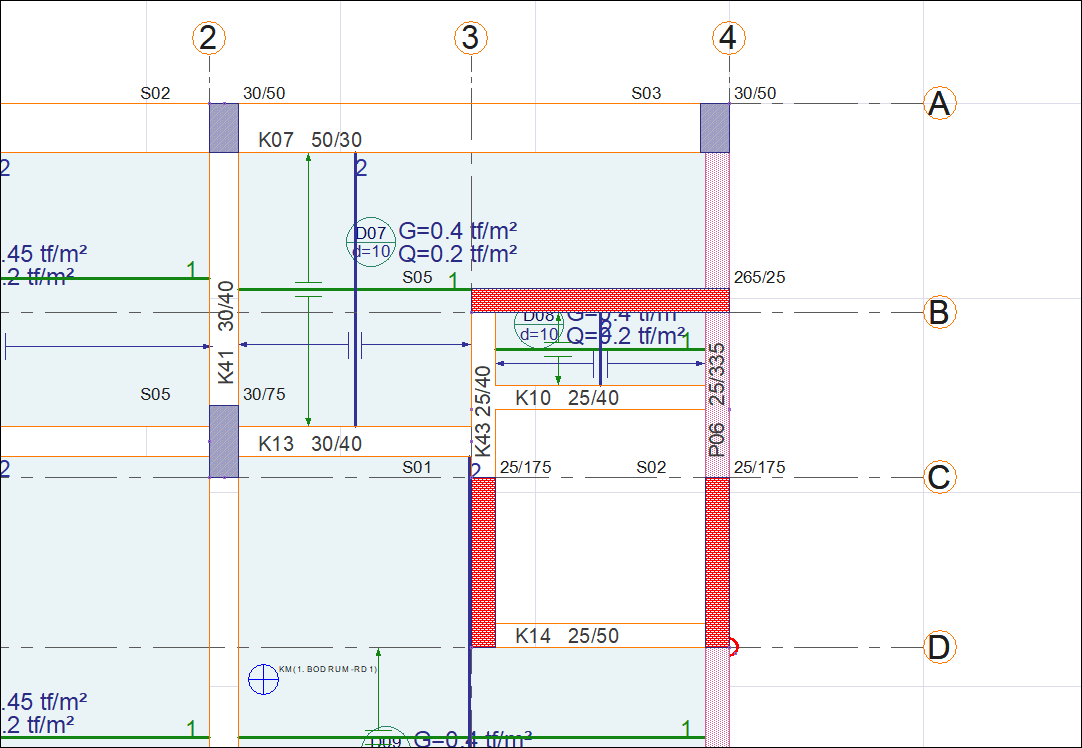

Columns to be transformed into shearwalls  |

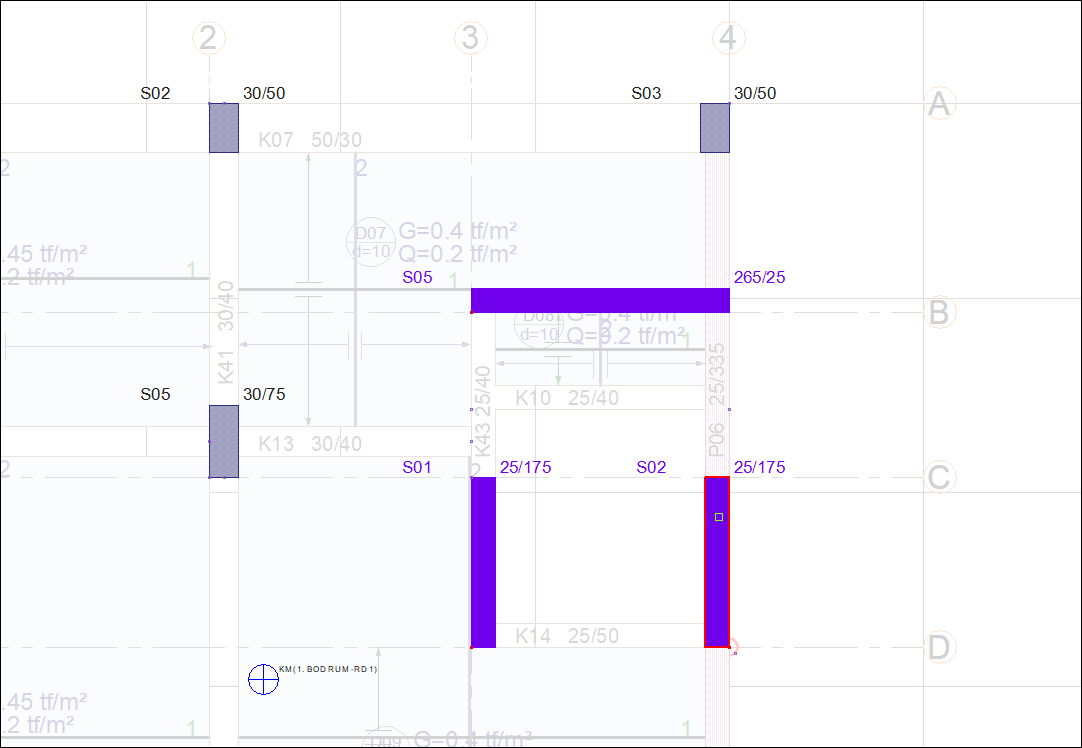

Choosing the columns  |

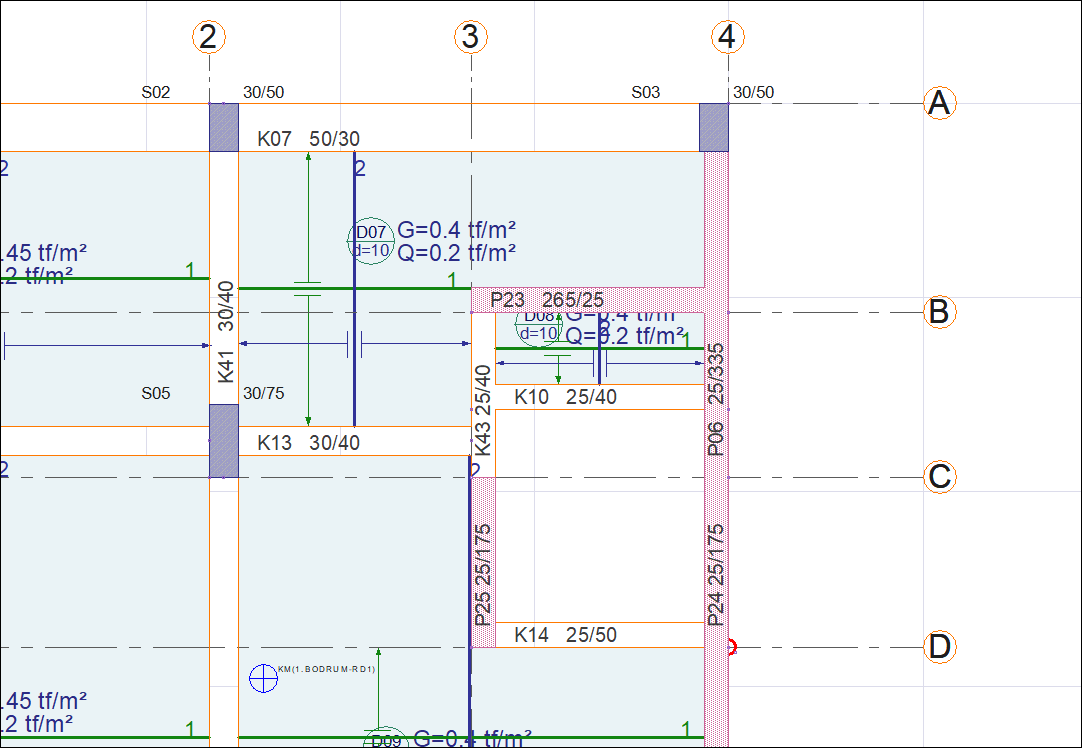

Transforming columns into shearwalls  |
