Show/Hide Railing
With the Show/Hide Railing command, the railings on the stairs are hidden or the hidden railings are shown. Stairs taken from the stair library have railings on both sides. After the stair is placed in the drawing area, the railings on the sides of the stairs where there should be no railing are removed.
Location of Show/Hide Railing
In Architectural Program

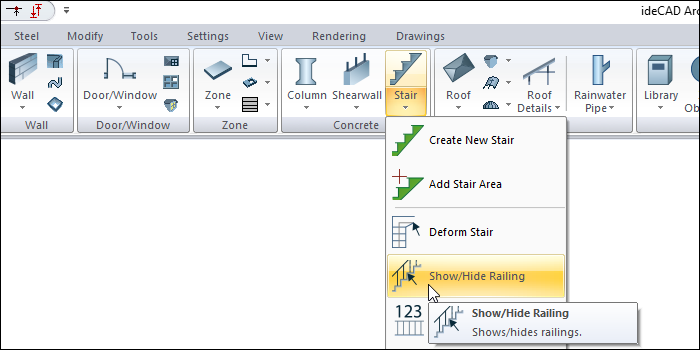

You can access it under the ribbon menu Home tab, Concrete title.
In Structural Program

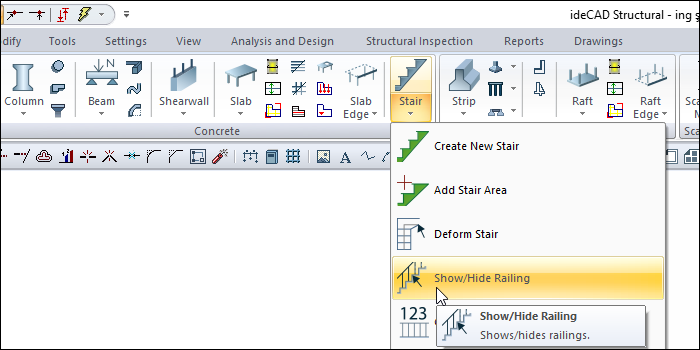

You can reach it under the ribbon menu Concrete tab, Concrete title
Usage Steps
Click the Show/Hide Railing icon from the ribbon menu .

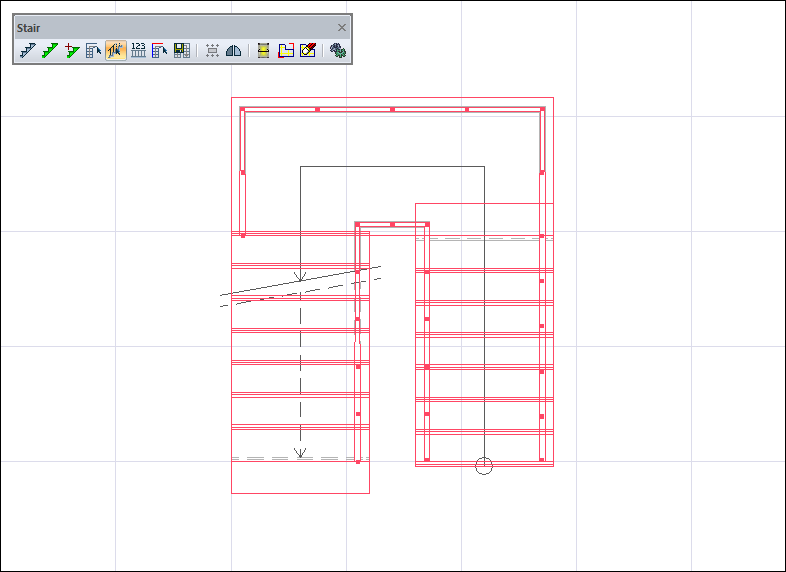

The stair toolbar will open.
Move the mouse cursor over the railing you want to remove and click the left button. The railing will be lifted.
You can keep the railings you want by repeating this process.
If you want to redraw the removed railing, click the stair edge again. The railing will come back.
Usage step |
|---|

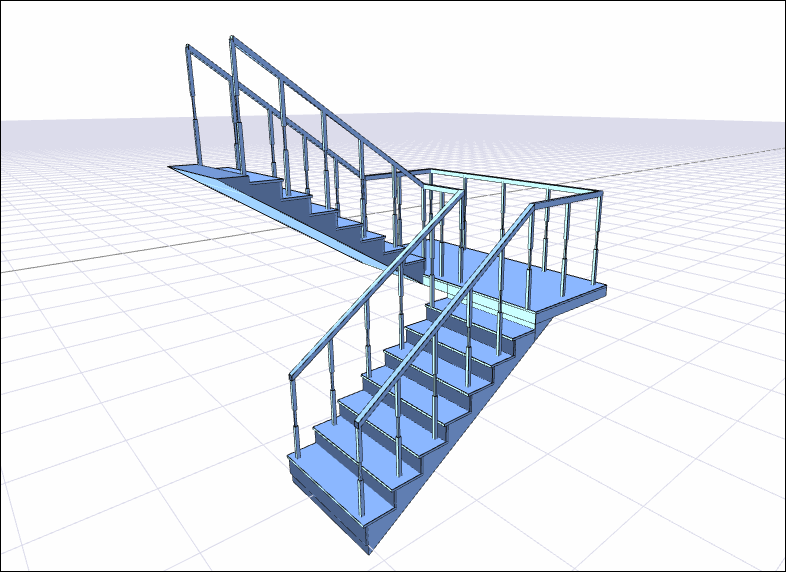

Stairs before the guardrails are hidden  |

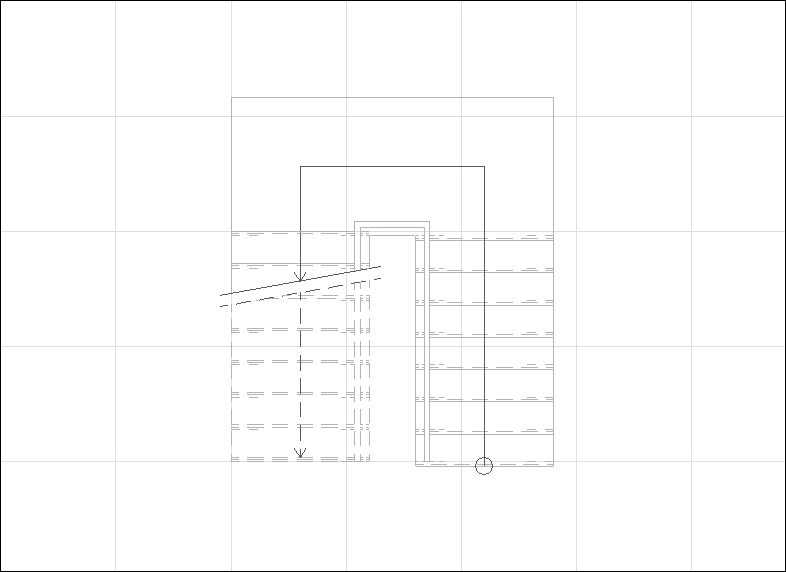

Clicking on the railing you want to hide with the left mouse button  |

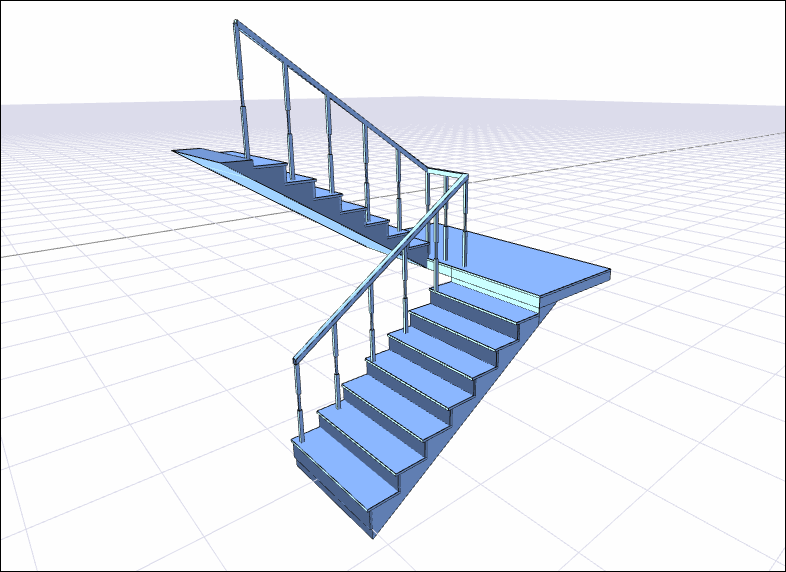

Stairs after hiding the handrails   |
