Creating Steel Purlin

Steel purlins of steel design are created with the Steel Purlin command. Steel purlins are steel elements drawn between beams.

Location of Steel Purlin Command

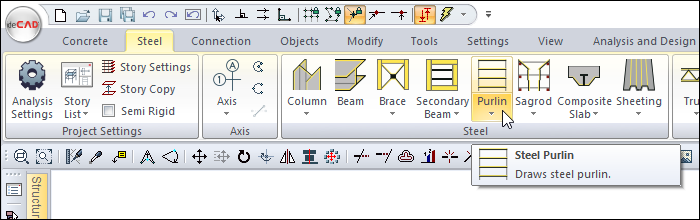

You can access it under the ribbon menu, Steel tab, Steel heading.

Usage Steps

  • Click on the Purlin icon from the ribbon menu .

  • The steel purlin toolbar will open.

  • Click the profile list in the steel purlin toolbar and select a profile from the list.

  • Choose the first of the steel beams that will form between the steel purlins.

  • Once you have selected your second steel beam, the steel purlin settings dialog will open.

  • The dialogue includes parameters such as the number of purlins, layout, joint features, etc. Click the OK button after making the settings.

  • Purlins will be formed.

Usage step

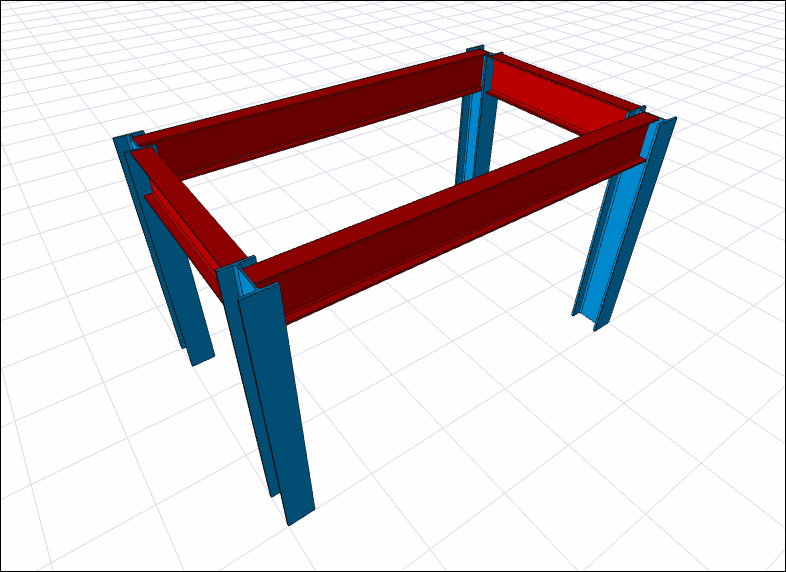

Area to be created with a steel purlin

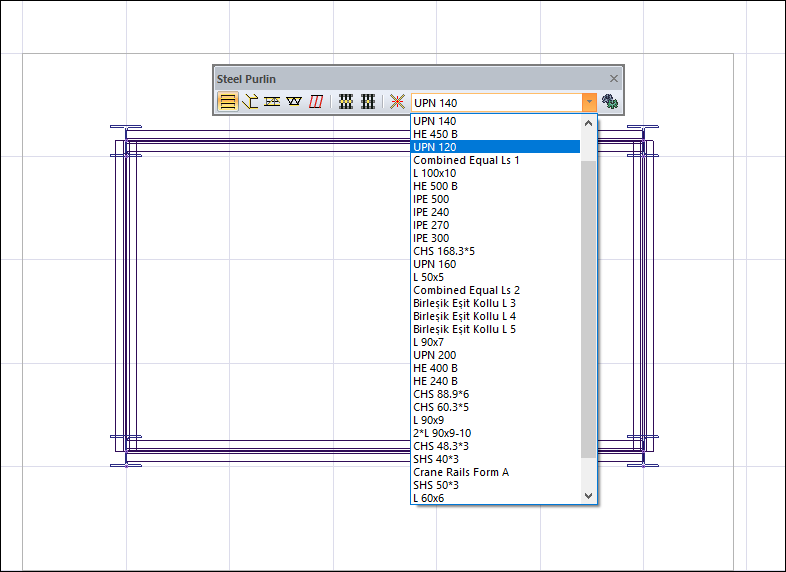

Selecting a profile from the profile list

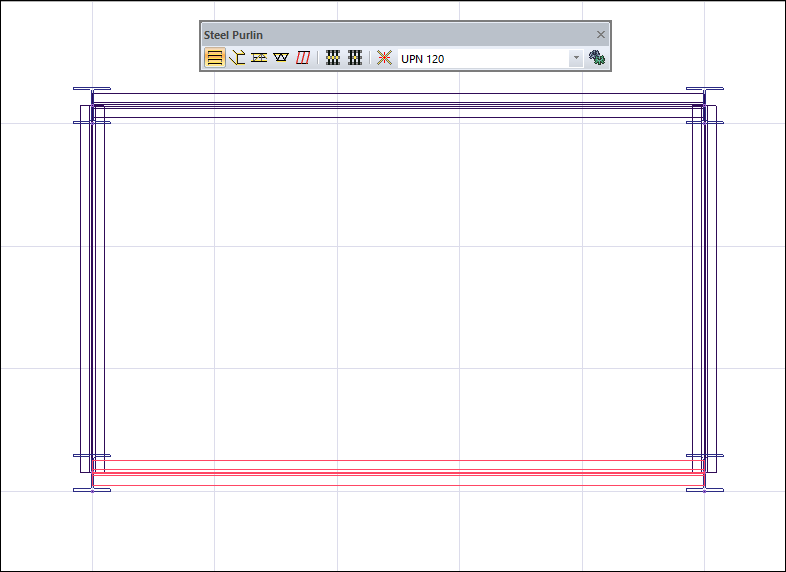

Choosing the first steel beam to be formed between steel purlins.

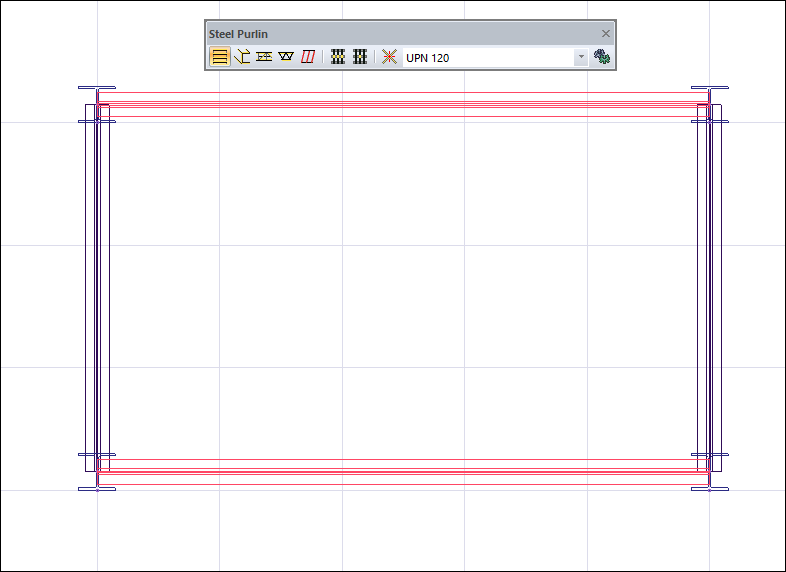

Choosing the second steel beam among the steel purlins.

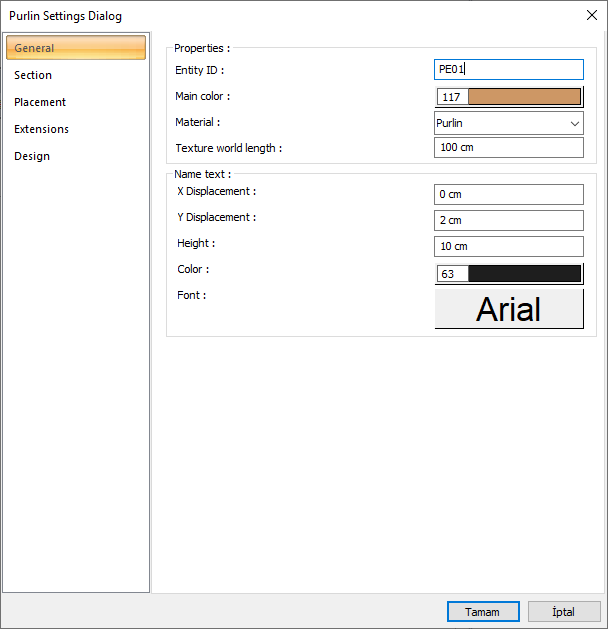

Making settings

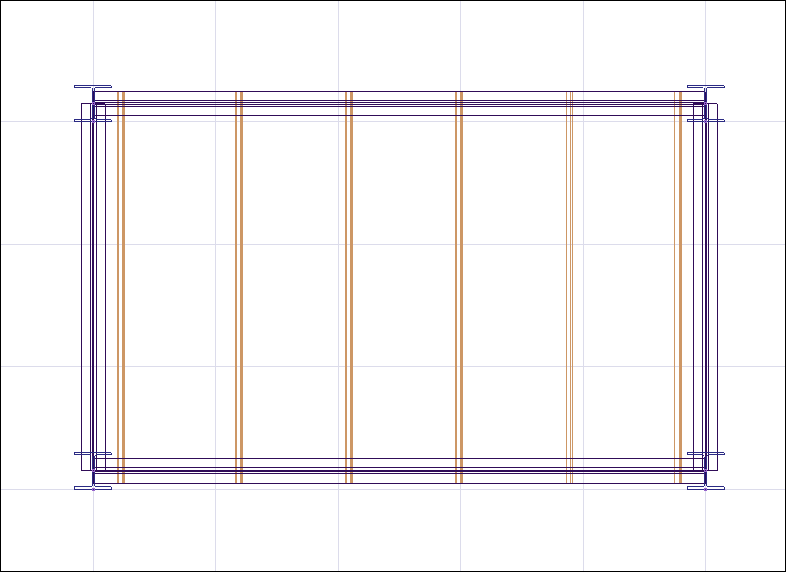

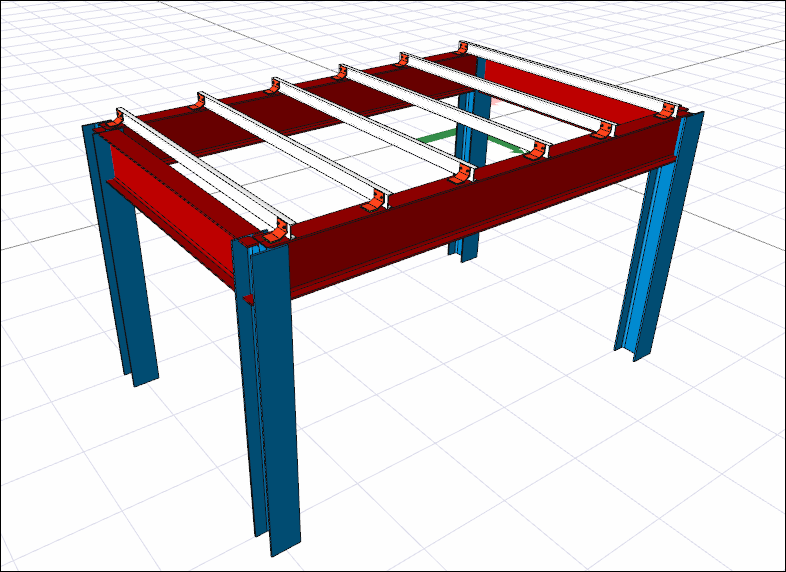

Formation of steel purlins
