Composite Solid Slab Settings

With the Composite Solid Slab Settings command, settings such as slab thickness, sheet/metal thickness, drawing, structural material selection, load selection are accessed.

Location of the Composite Solid Slab Settings Dialog

It is available in the Slab for Steel auxiliary toolbar that appears on the screen after the composite solid slab command is run.

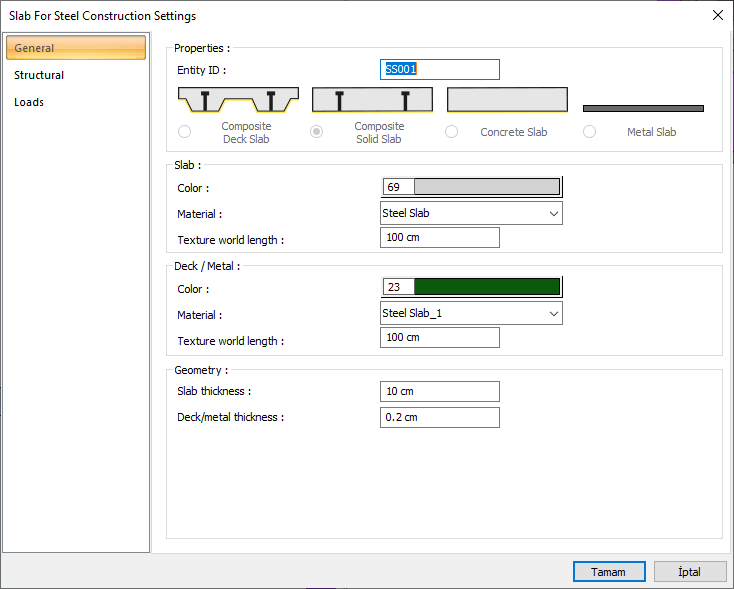

General Tab

Specifications

Entity ID

The name of the slab is entered

Slab type

Composite Deck, Composite Solid, Concrete or Metal Slab options are available. Type selection can be made by entering the settings of an existing slab.

Color

It is the color of the slab or deck/metal lines. The selection is made on the color palette that is opened by clicking with the left mouse button and holding the button down.

Material

The material to be covered on the slab or deck/metal in solid model is selected. It is coated with the selected material and displayed as such in the solid model.

Texture world length

Texture length is entered. For example; If 1 meter is entered, the selected material texture is taken as 1 meter and covered on the selected object. If the texture is considered to be in the form of a square, the object surfaces are covered with 1x1 textures arranged side by side.

Slab thickness

The thickness of the slab on the deck/metal sheet is entered.

Deck/metal thickness

The thickness of the deck/metal material is entered.

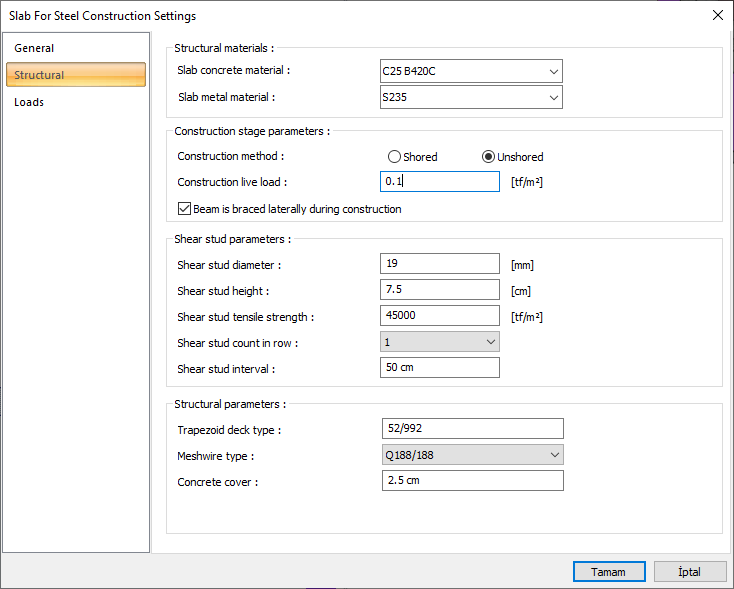

Structural Tab

Specifications

Slab concrete material

Select the structural material to be used in the element from the list. Structural material can be defined as aconcrete element under Materials in Structure Tree .

Slab metal material

Select the Metal slab material to be used in the element.

Construction method

If the beams are to be supported vertically during the manufacturing process, select the option with shored, if not, unshored.

Construction live load

The construction live load value that will occur during manufacturing is determined from the box.

Beam is braced laterally during construction

Check the option if the beams are to be supported laterally.

Shear stud diameter

Enter the diameter of theshear stud to be used in the box.

Shear stud height

Enter the height of the shear stud to be used in the box.

Shear stud tensile strength

Enter the material tensile strength of the shear stud in the box.

Shear stud count in row

Select the count of shear stud to be in a row from the list.

Shear stud interval

Enter the interval to be left in the plan between the two shear stud in the box.

Trapezoid dect type

Type information of the trapezoid dect is entered.

Meshwire type

The cement of the meshwire type required for the concrete part is selected.

Concrete cover

The concrete cover thickness is entered.

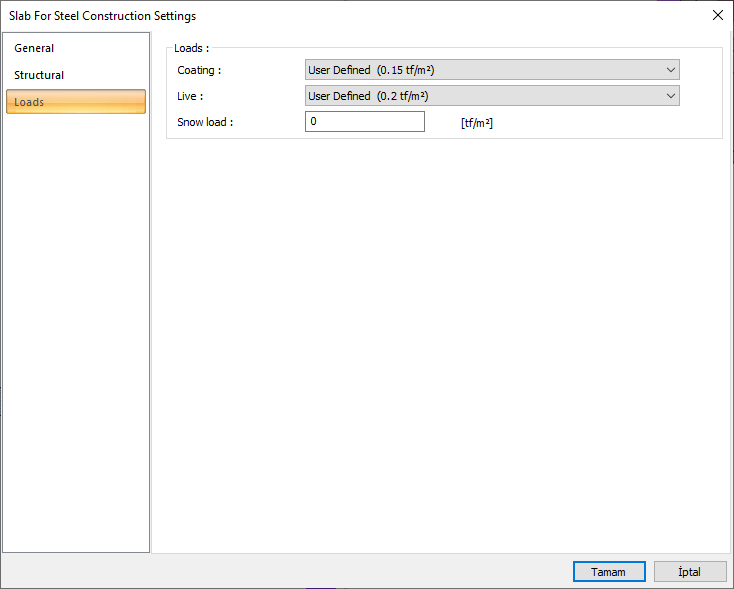

Loads Tab

Specifications

Coating

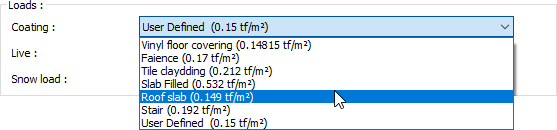

Select the appropriate value for the coating load from the list. The values ​​listed in the list are the values ​​defined in the slab load library and are prepared only for the slab weight. The reinforced concrete weight of the slab will be added automatically during analysis. If you are going to use another value instead of using one value from the list, select "user-defined" from the list and enter a value. In ribbed and cassette slabs, concrete weight is added automatically during analysis.

Live

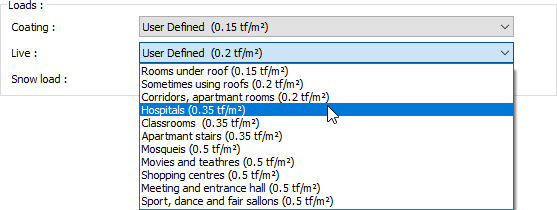

Select the appropriate value for live load from the list. The values ​​that appear in the list are the values ​​defined in the slab load library. If you are going to use another value instead of using one value from the list, select "user-defined" from the list and enter a value.

Snow load

The snow load on the slabs is entered by the user in the box.
