Transforming Circular Column to Rectangular
With the Circular Column to Rectangular command, created circular column are transformed into rectangular column.
Location of Circular Column to Rectangular Command

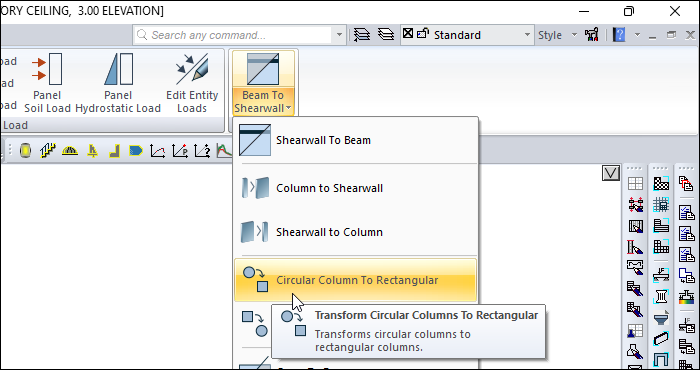

You can access it from the ribbon menu Modify tab under the Transform heading.
Usage Steps
Click the Circular Column to Rectangular icon.
Select the circular column to be transformed into rectangular column.
Click the right mouse button.
The circular column will be transformed to rectangular column automatically without corrupting the existing data input.
Usage step |
|---|

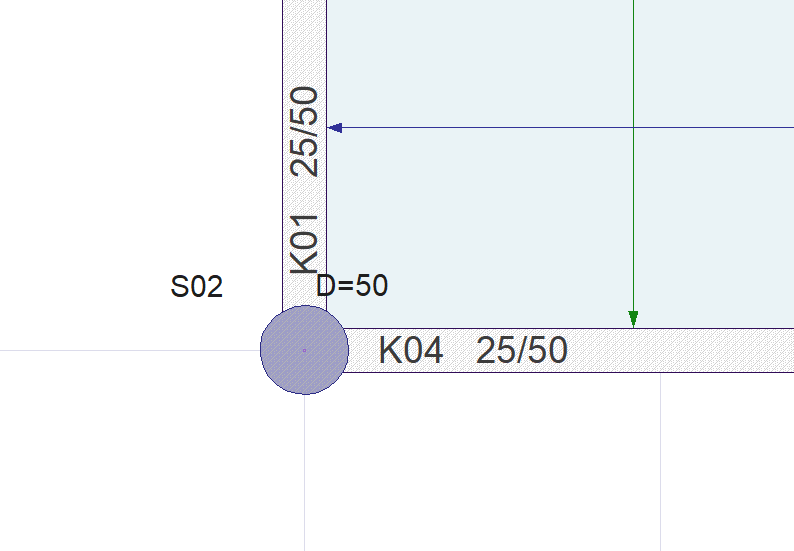

Circular column to be transformed into rectangular column  |

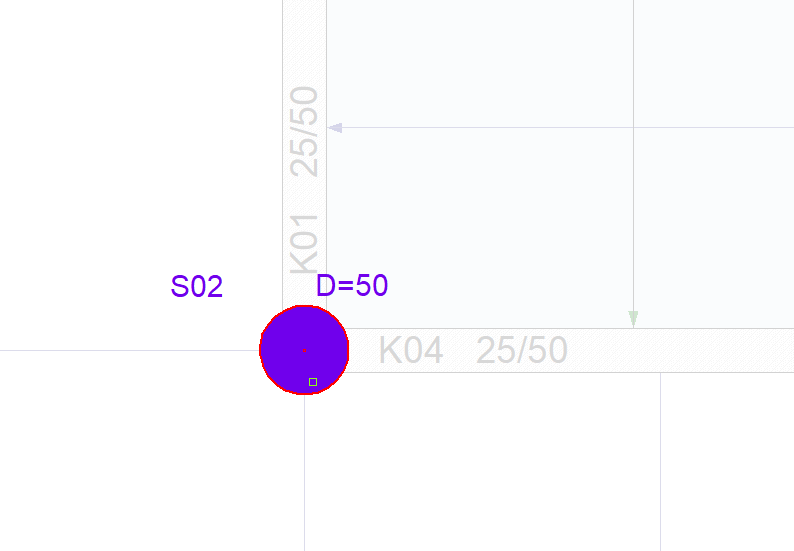

Choosing the column  |

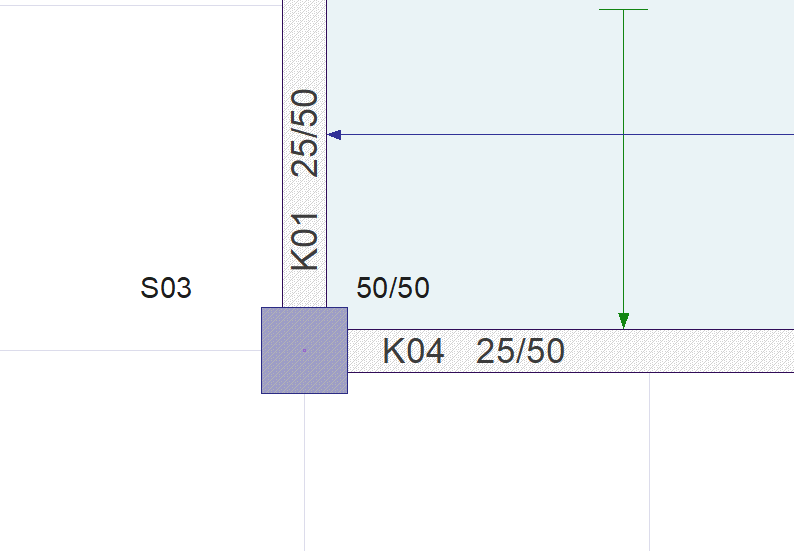

Transforming circular column into rectangular column  |
During the transformation, the angle used when creating the circular column is taken as the reference for the angle of the rectangular column.
