Changing Baluster Count
Changing Baluster Count command has been developed to adjust the count of baluster. The count of handrails can be set separately for each railing string on the stairs in the drawing area.
Location of Changing Baluster Count

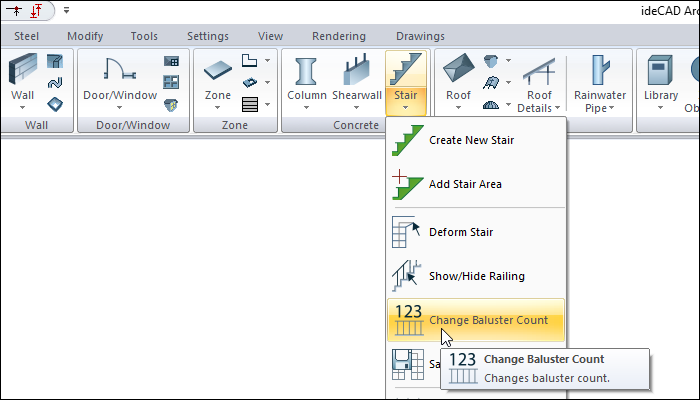

In Architectural Program
You can access it under the ribbon menu Home tab, Concrete title.

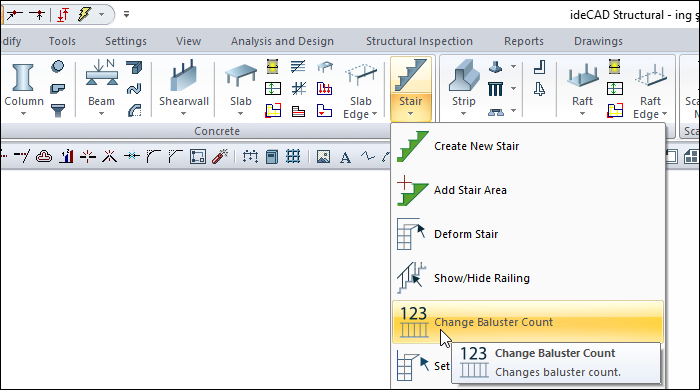

In Structural Program
You can reach it under the ribbon menu Concrete tab, Concrete title
Usage Steps
Click the Change Baluster Count icon in the ribbon menu .
The stair toolbar will open.
Click with the left mouse button on the railing row on which you want to change the count of balusters on the stair.
In the dialog that opens, enter the new baluster count and click the OK button.
The count of balusters will change.
Usage step |
|---|

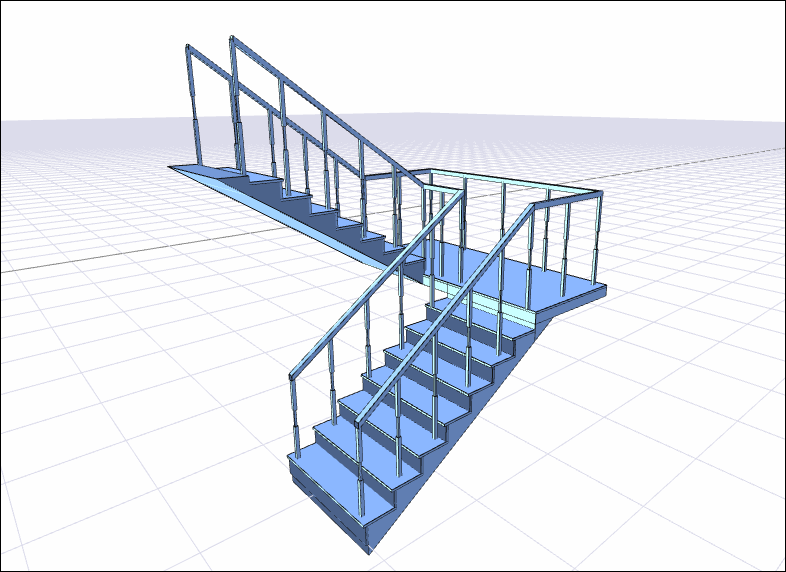

Stair before changing the baluster count  |

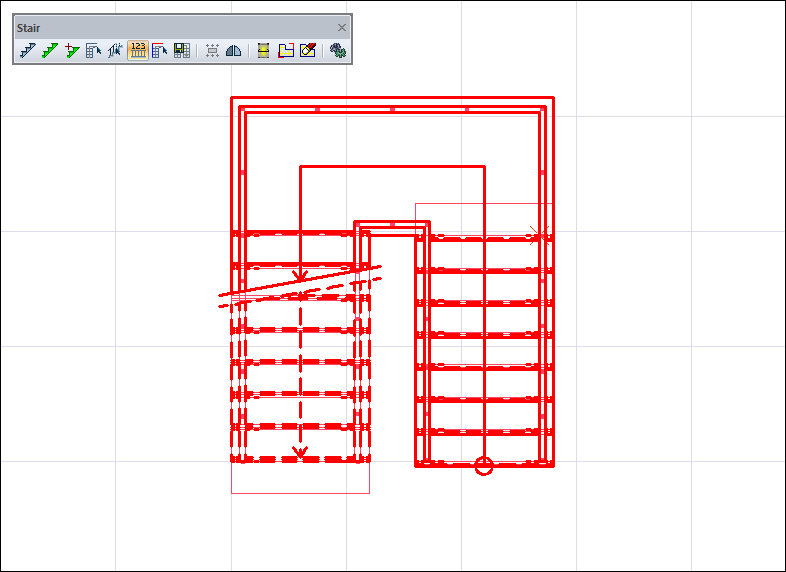

Choosing the railing to be changed on the stair  |

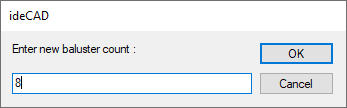

Giving the new balustrade number 8  |

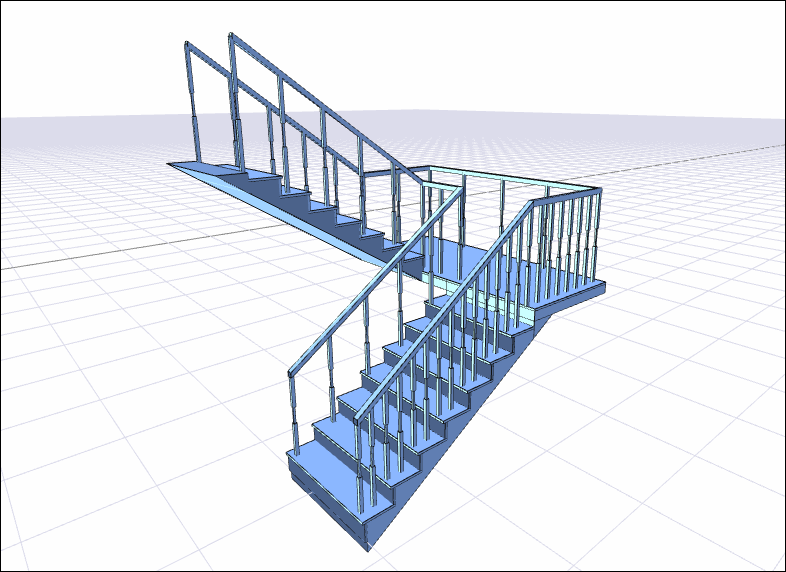

Stair after changing the baluster count  |
