Formwork Drawings

With the Formwork Drawings command, the Formwork Scaffolding Drawings Dialog is opened. Formwork scaffolding drawings are created by choosing one of the scaffolding plan drawings, selected axis view drawings, selected detail drawings and 3D isometric drawings.

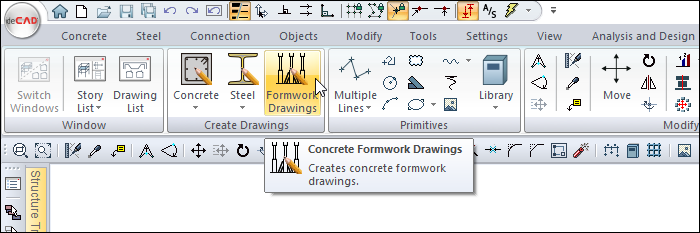

Location of the Formwork Drawings Command

You can access it from the Drawings tab under the Create Drawing heading.

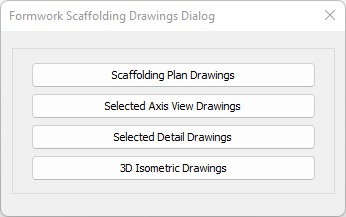

Formwork Scaffolding Drawings Dialog


Scaffolding plan drawings

Plan drawings of the formwork scaffolding of the active story are created.

Selected axis view drawings

View drawings of the elements on the selected axis of the formwork scaffoldings are created.

Selected detail drawings

Plan, view and 3D isometric view drawings of the selected element are created.

3D isometric drawings

3D isometric view drawings of the active story are created.
