Selected Axis View Drawings
With the Selected Axis View Drawings command, column/wall, beam and slab view drawings of the formwork scaffolding on the selected axis are created.
Location of the Selected Axis View Drawings Command
You can access it from the Formwork Scaffolding Drawing Dialog that opens when the Formwork Drawings command is clicked.
Usage Steps

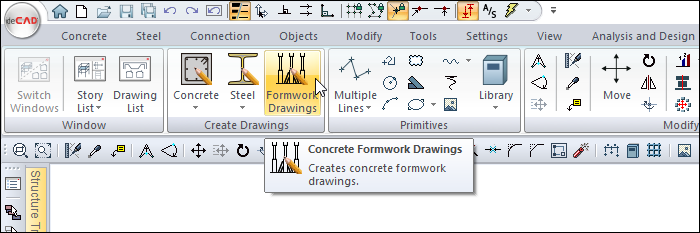

Click the formwork drawings icon. The formwork scaffolding drawings dialog will open.

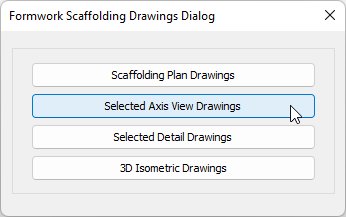

In the dialog that opens, click the Selected Axis View Drawings button.
Column/wall, beam and slab view drawings of the formwork scaffolding on the selected axis will be created.
Example selected C axis view drawings |

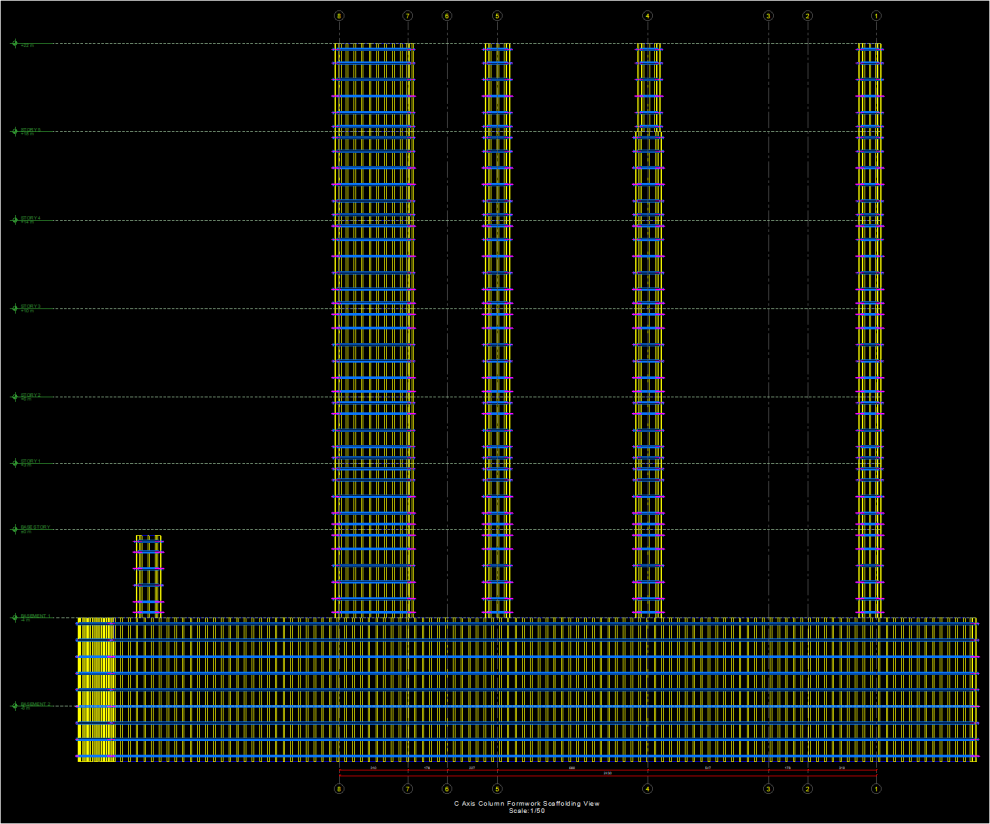

C axis column formwork scaffolding view  |

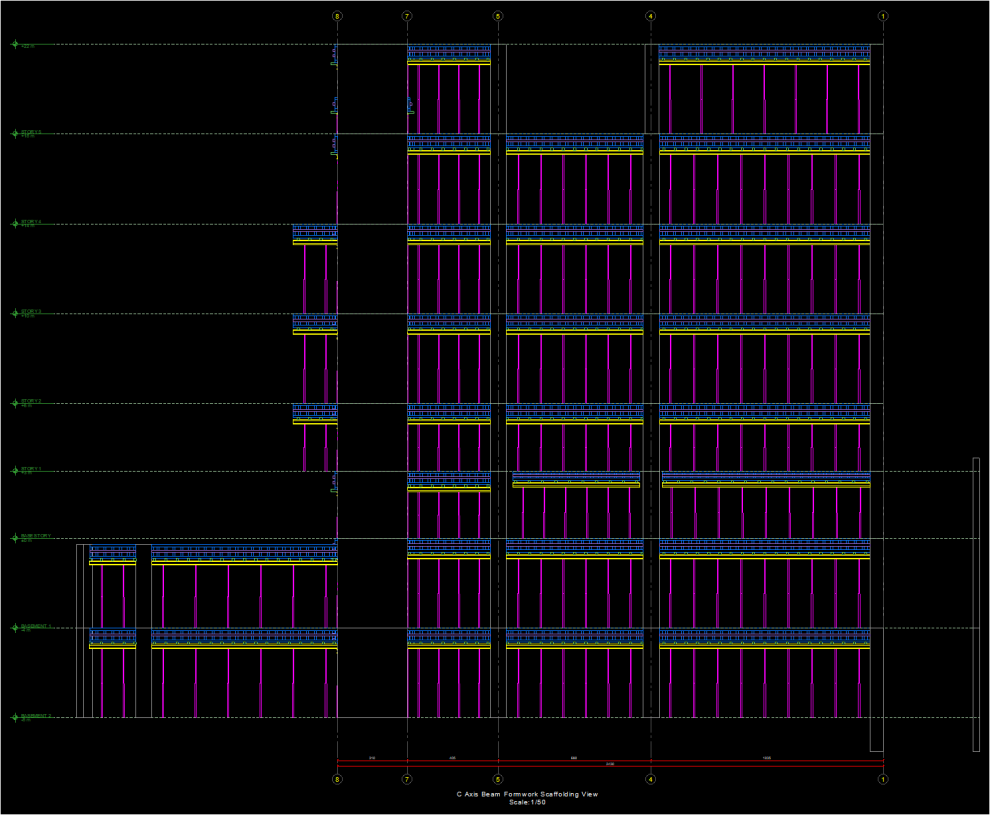

C axis beam formwork scaffolding view  |

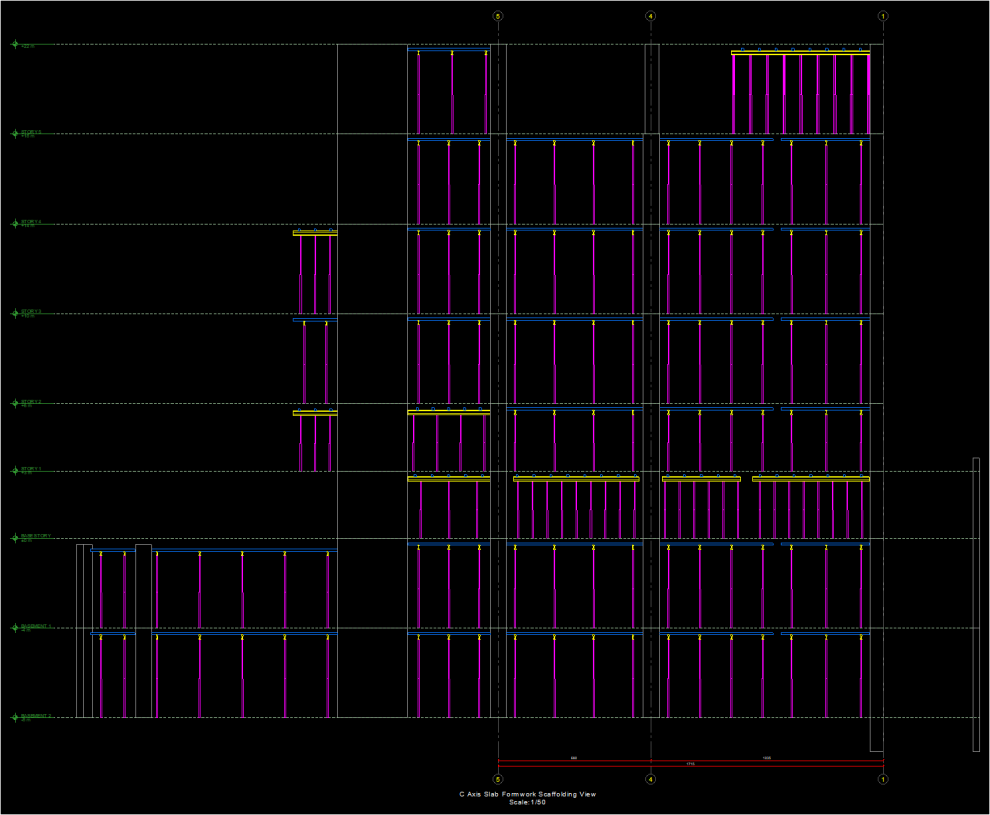

C axis slab formwork scaffolding view  |
