Application Plan Drawings

The Application Plan Drawings command is used to prepare the application plan drawings.

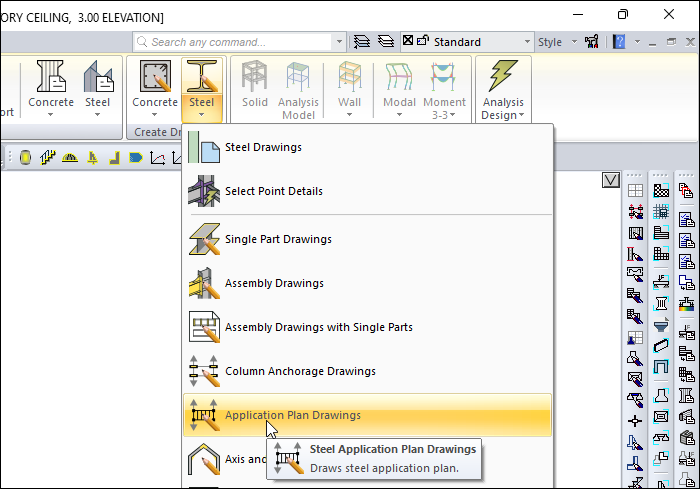

Location of the Application Plan Drawings Command

You can access it under the Steel tab, Create Drawings heading.

Usage Steps

  • Click on the Application Plan Drawings icon.

  • Application plan drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

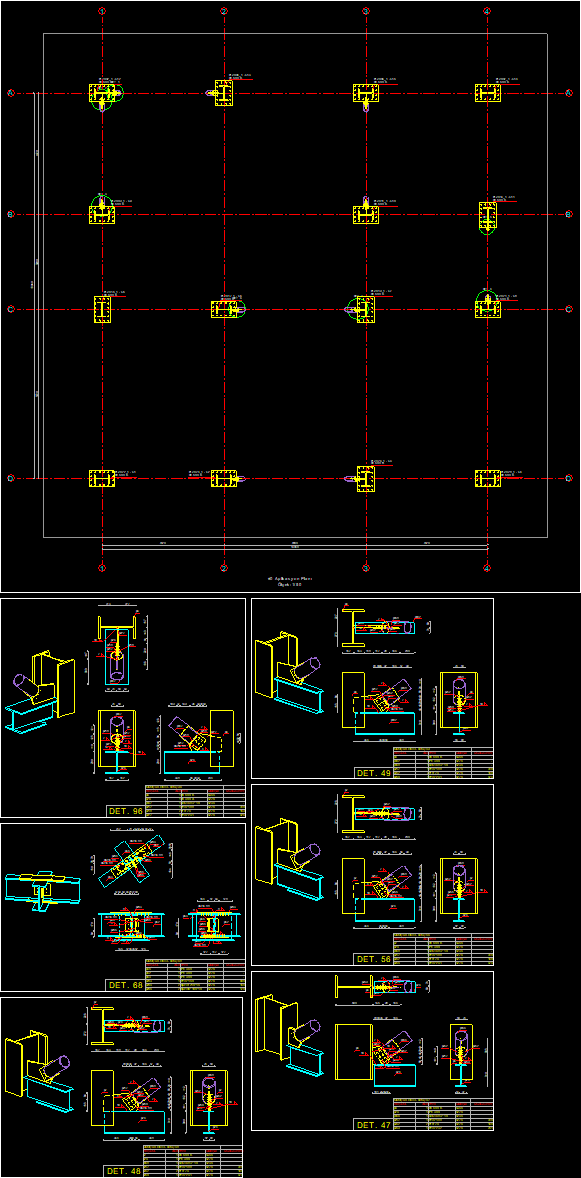

Sample application plan drawing
