8 Bolts Stiffened End Plate Connection Report 2
8 Bolts Stiffened End Plate Connection is made automatically according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) , AISC 360-16, AISC 358-16 and TBDY regulations and a connection report is created.

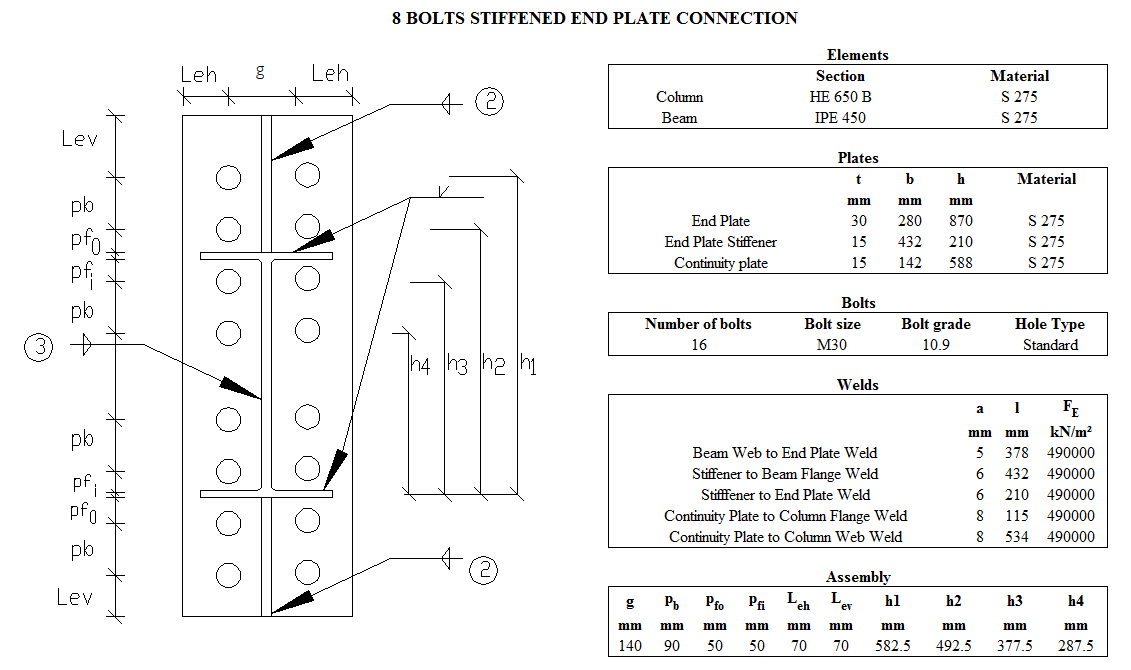

![](../__attachments/1101725697/8send2.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

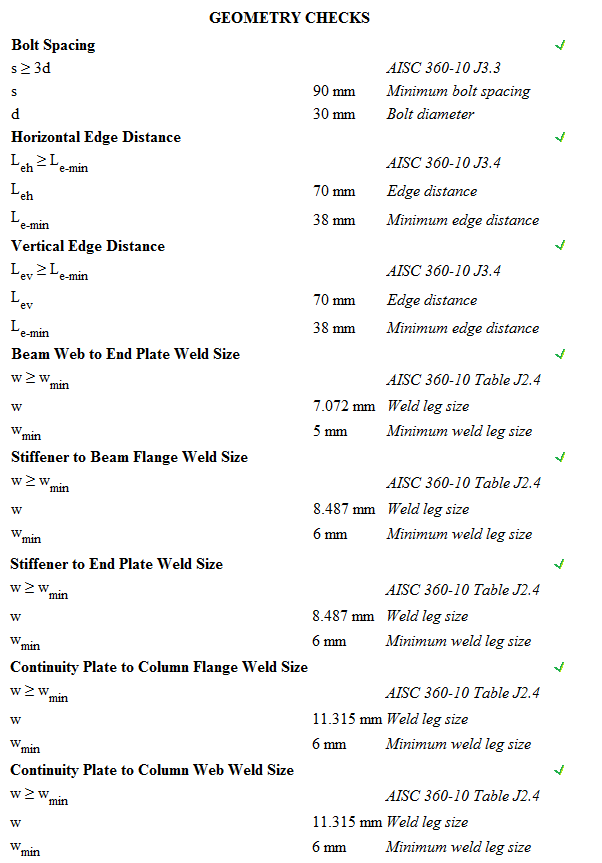

![](../__attachments/1101725697/8asend3.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

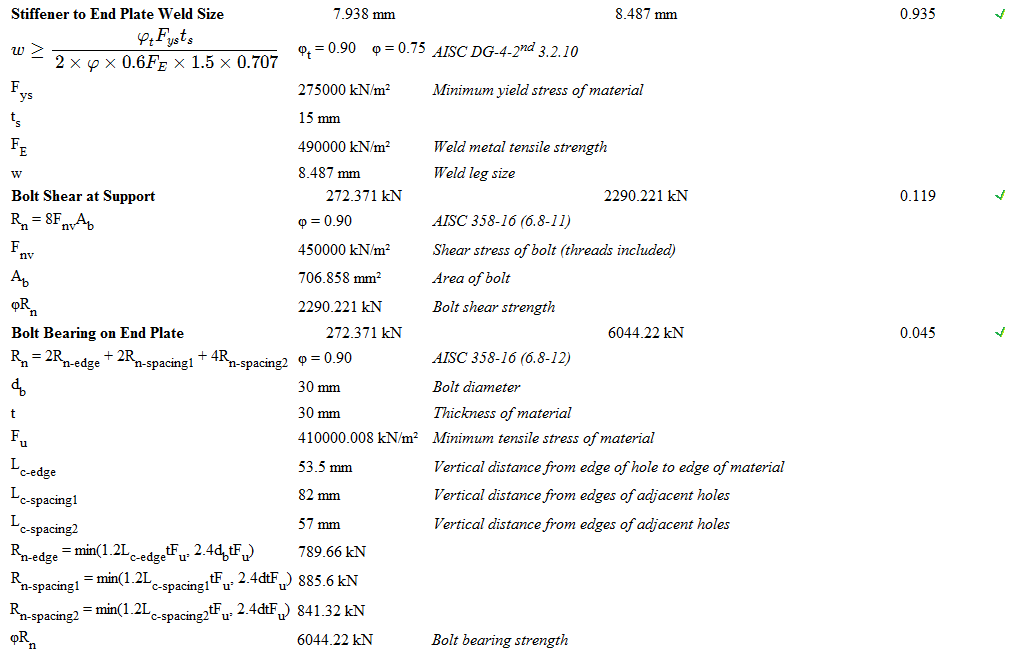

![](../__attachments/1101725697/8asend7.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
