Select Entity in All Stories (Ctrl+B)
You can select any object (wall, column, slab, etc.) in plan or perspective view on all stories at once with the Select Entity in All Stories command or by pressing the Crtl + B keys on the keyboard .

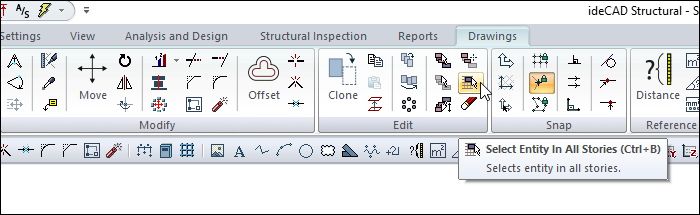

Location of the Select Entity in All Stories Command
You can access it from the ribbon menu, Drawings tab, Edit title.
You can also access it by pressing the Ctrl+B keys on the keyboard .
Usage Steps
Hover your mouse over the object you want to select on all stories and select it.
Click the Select Entity in All Stories command.
The object you selected will be selected on all stories.
Usage step |

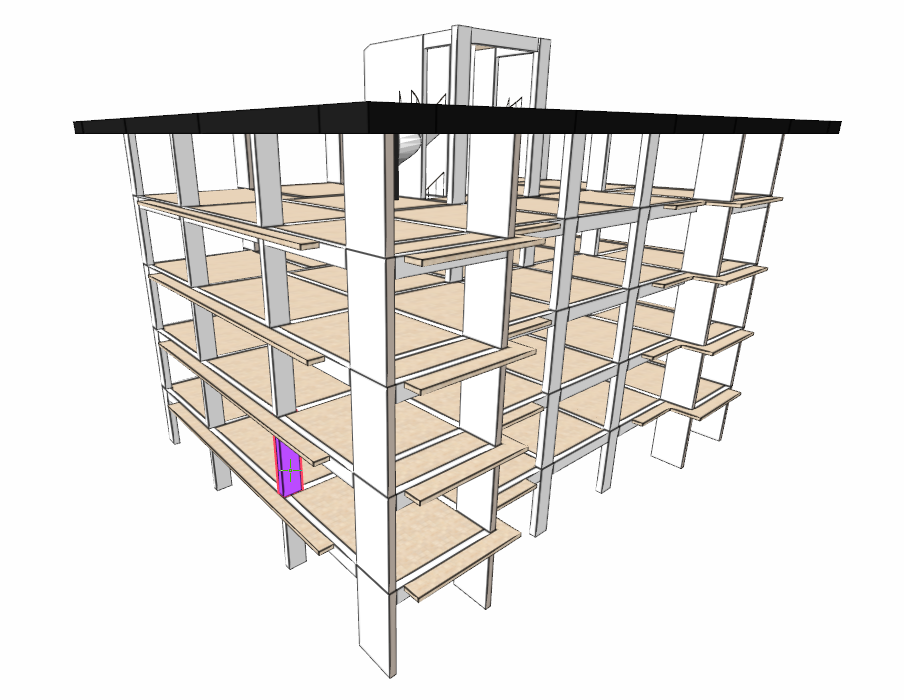

Selecting the object  |

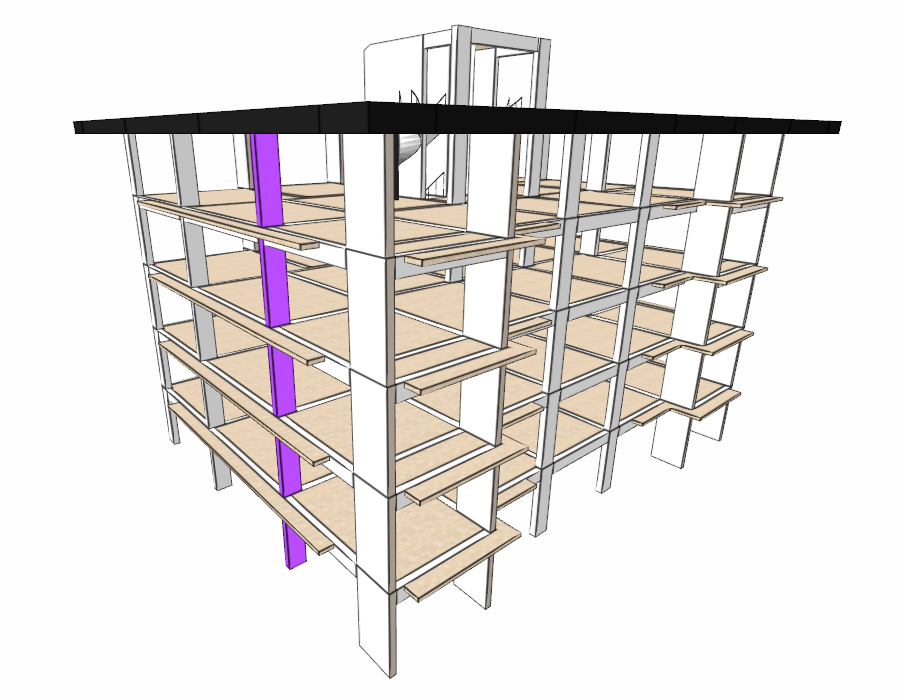

Selection of the selected object on all stories  |
