Single Angle Connection
A single angle connection is a type of connection that connects two profiles to each other with one angle bracket (cornier or L profile). Bolt control, weld control and plate control are performed automatically according to the placement of the elements of the connection. Single angle connection design is made automatically according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) (GKT and YDKT) or AISC 360-16 (ASD and LRFD) regulations and the connection report is created.
In the calculation of the connection with single angle plate, the distance control between the bolts, horizontal and vertical edge distance control, weld thickness control, mounting stability controls are made as geometry control. Angle shear yielding, beam and angle shear failure, block slip in beam and angle iron, crushing in beam and angle bolt holes, shear in beam bolts, welding strength are checked as strength control.

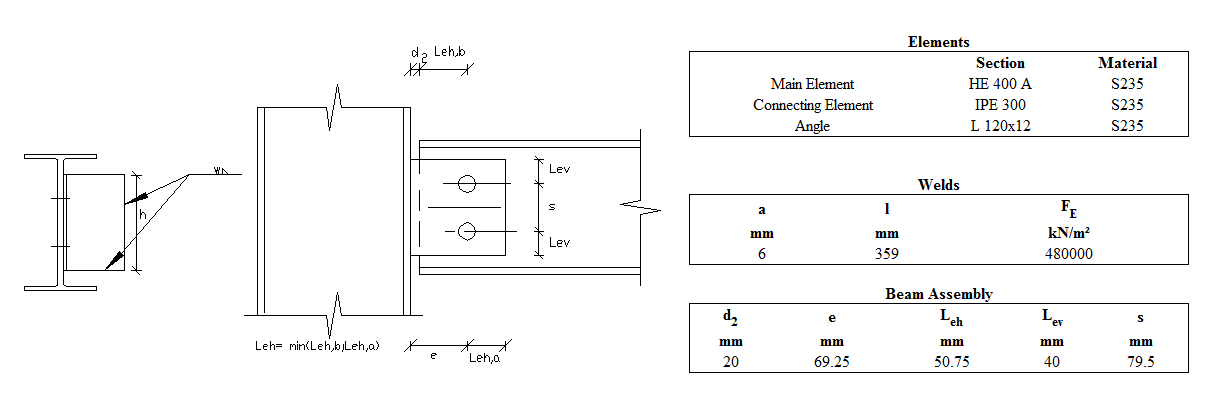

Connection Geometry
Geometry Checks

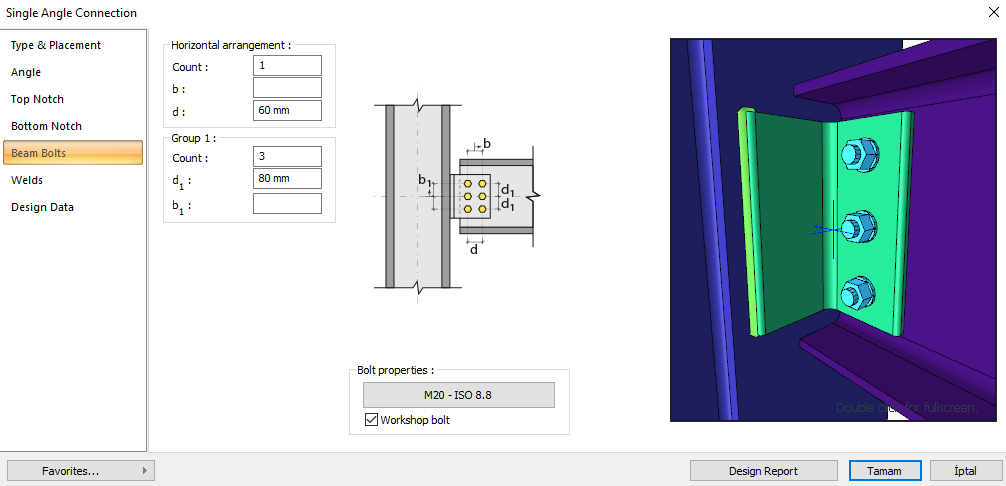

Bolt Spacing
smin ≥ 3d | ÇYTHYEDY 13.3.6 |
|
|
s | 79.5 mm |
|
|
d | 20 mm | s =79.5 mm > smin = 3*20=60 mm | √ |
Horizontal Edge Distance
Leh ≥ L e- min | ÇYTHYEDY 13.3.7 |
|
|
Leh | 50.75 mm | L eh ≥ 2d = 2 * 20 = 40 mm conformity check for application | √ |
Le- min | 26 mm | Minimum distance check according to Table 13.9 | √ |
Vertical Edge Distance
Lev ≥ Le- min | ÇYTHYEDY 13.3.7 |
|
|
Lev | 40 mm | L eh ≥ 2d = 2 * 20 = 40 mm conformity check for application | √ |
Le- min | 26 mm | Minimum distance check according to Table 13.9 | √ |
Weld Thickness
a ≥ amin | ÇYTHYEDY 13.3.7 |
|
|
a | 6 mm |
| √ |
amin | 3.5 mm | Table 13.4 | √ |

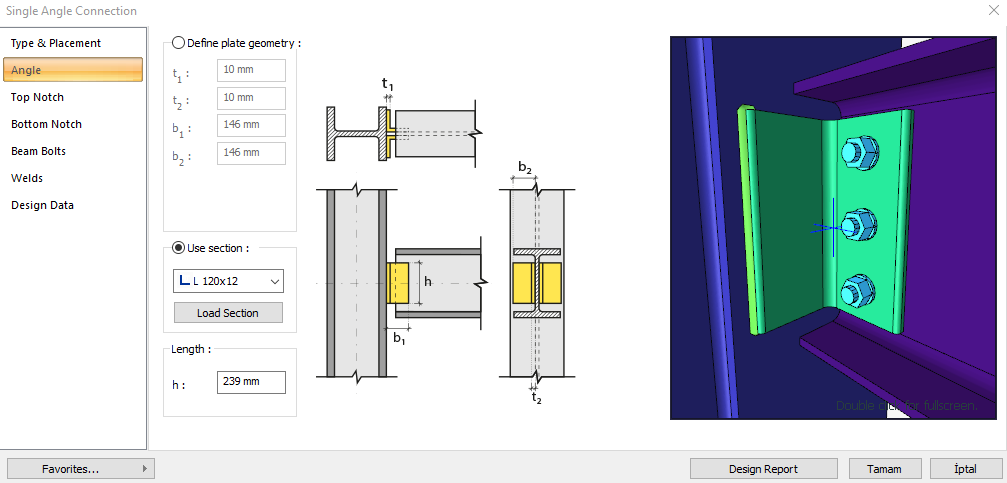

Erection Stability
L ≥ hb / 2 | ÇYTHYEDY 13.3.7 |
|
|
L | 239 mm |
|
|
hb | 248.6 mm | L=239 > 248.6/2=124.3 mm | √ |
Strength Checks
Angle Shear Yield
Ag |  |
|
Fy | 235.359 N/mm2 |
|
Rn |  | ÇYTHYEDY 13.17 |
Rn / Ω |  |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 270 kN | 0.347 | √ |
Beam Shear Rupture
Anv |  |
|
Fu | 362.846 N/mm2 |
|
Rn |  | ÇYTHYEDY 13.18 |
Rn / Ω |  |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 176.213 kN | 0.532 | √ |
Angle Shear Rupture at Beam
Anv |  |
|
Fu | 362.846 N/mm2 |
|
Rn | | ÇYTHYEDY 13.18 |
Rn / Ω | |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 218.143 kN | 0.43 | √ |

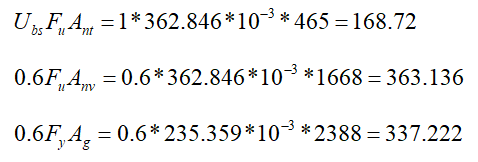

Angle Block Shear at Beam
Ag |  |
|
Anv |  |
|
Ae.g. |  |
|
Fy | 235.359 N/mm2 |
|
Fu | 362.846 N/mm2 |
|
Ubs | one |
|
|  |
|
Rn |  | ÇYTHYEDY 13.19 |
Rn / Ω |  |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 252,971 kN | 0.371 | √ |

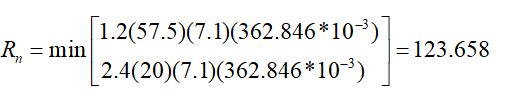

Bolt Bearing on Beam
dh | 20+2=22 mm |
|
Lc,edge |  |
|
Rn |  | ÇYTHYEDY 13.3.13 Equation 13.14a and13.14b |
Rn-edge |  |
|
Lc,spacing |  |
|
Rn-spacing |  |
|
Rn |
 |
|
Rn / Ω |  |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 185,487 kN | 0.506 | √ |

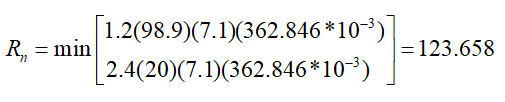

Bolt Bearing on Angle at Beam
dh | 20+2=22 mm |
|
Lc,edge |  |
|
Rn | | ÇYTHYEDY 13.3.13 Equation 13.14a and13.14b |
Rn-edge |  |
|
Lc,spacing |  |
|
Rn-spacing |  |
|
Rn |  |
|
Rn / Ω |  |
|
Required | Available | Ratio | Control |
|---|---|---|---|
93.805 kN | 284.75 kN | 0.329 | √ |
Bolt Shear at Beam
Ab |  |
Fn |
|
Rn |
|
Rn / Ω |
|
Required | Available | Ratio | Control |
|---|---|---|---|
51.448 kN | 56,549 kN | 0.910 | √ |
Weld Strength at Support
Fe | 480000 kN/m2 |
in | The weld thickness taken from the combination menu is 0.707 * w value. 6 / 0.707 = 8.487 mm |
Fu | 362.846 N/mm2 |
t | 12 mm |
Rnw |  |
RnBM |  |
Rn |  |
Rn / Ω |  |
Required | Available | Ratio | Control |
|---|---|---|---|
342.216 kN/m | 864 kN/m | 0.396 | √ |
