Creating a Steel Hand Rail
With the Steel Hand Rail Macro command, steel hand rails are created by reference to steel beams. With the steel hand rail macro command, steel hand rails are also created on steel stairs.
Location of the Steel Hand Rail Macro Command

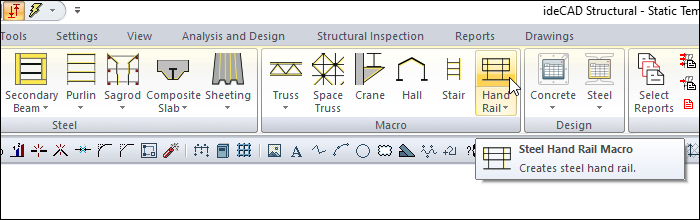

You can access it under the Ribbon menu Steel tab Macro .
Usage Steps
Click the steel hand rail macro command.
Move the mouse cursor over the steel beams and a green arrow will appear. The green arrow shows the direction of your hand rail.
Determine the hand rail direction.
Repeat the process by selecting the beams where the hand rail will continue.
Complete the selection process by clicking the right mouse button.
Your hand rail will be created.
Usage step |
|---|
Area to create steel hand rail  |

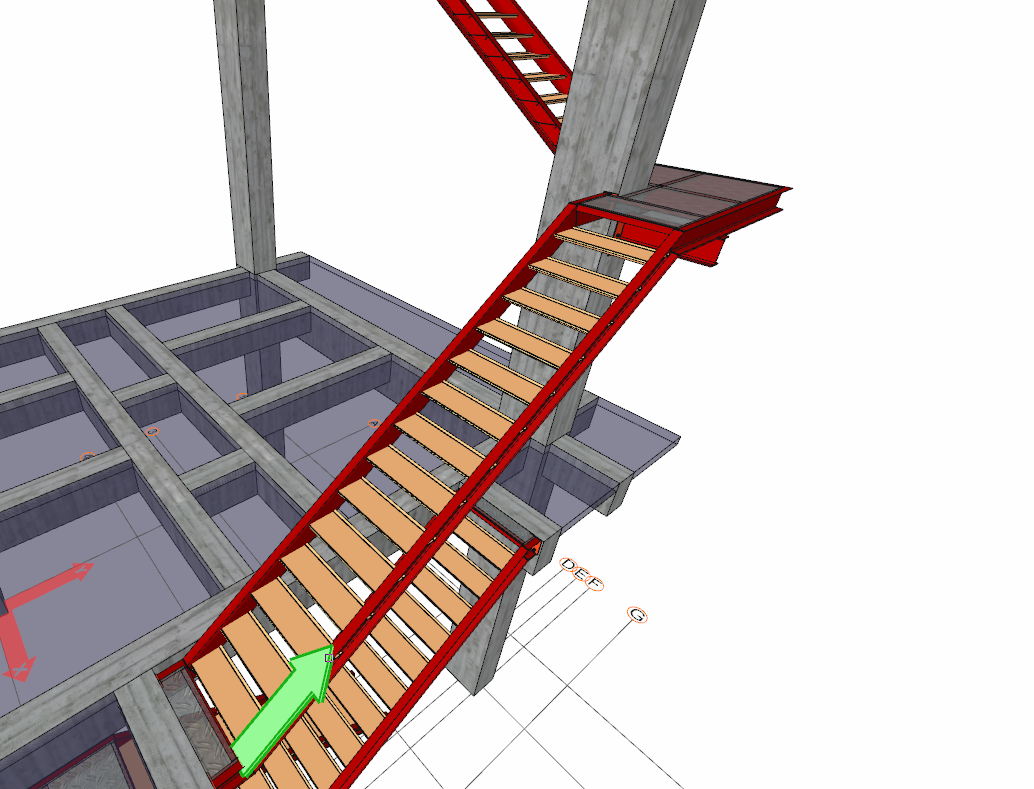

Selecting the stair beam to be created with a steel hand rail  |
Choosing the beams to be formed steel hand rail   |
After completing the selection process, clicking the right mouse button  |

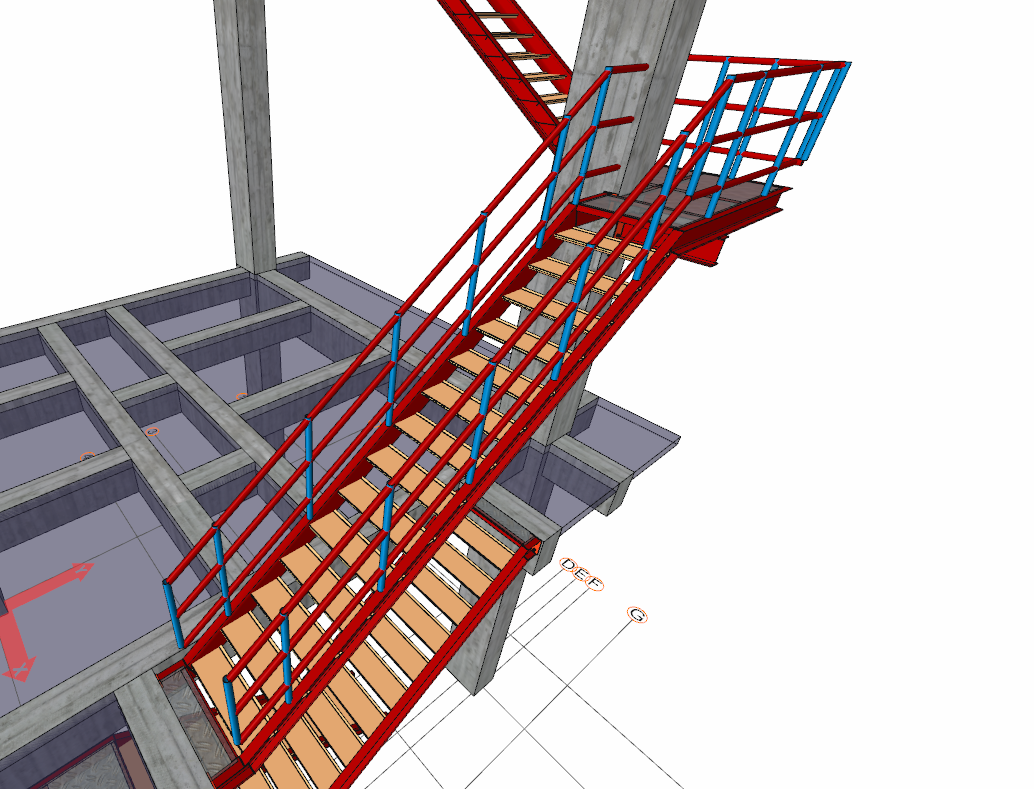

Formation of steel hand rails  |
