Defining a Column-Column End Plate Splice Connection
With the Column-Column End Plate Splice command, additions are defined in columns.

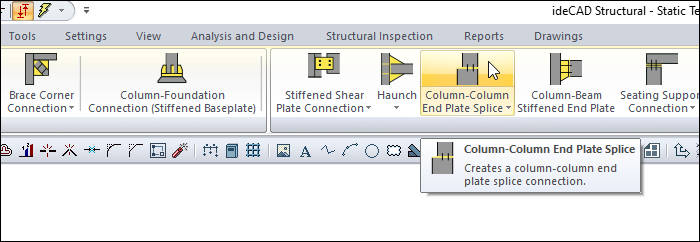

Location of the Column-Column End Plate Splice Command
You can access it under the Ribbon menu, Connection tab, Experimentals title.
Usage Steps
If Draw in Fast Mode is Active
From the Connection menu, click on the Column-Column End Plate Splice icon.
In 3D perspective view, move the mouse pointer closer to the element, close to the support

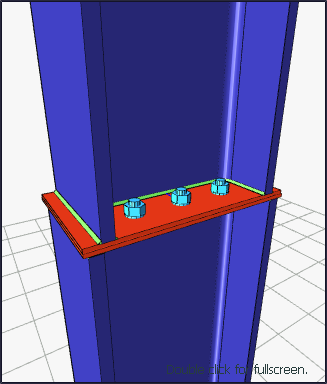

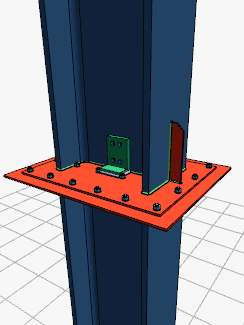

After this process, the virtual image of the connection will appear.
If the connection is suitable, create the connection by clicking the left mouse button.
The connection will occur with default settings.
If Draw in Fast Mode is Inactive
From the Connection menu, click on the Column-Column End Plate Splice icon.
Click the column then the beam before the 3D perspective view.
The connection will occur with default settings.
Location of the Column-Column End Plate Splice Settings Dialog
If the draw in fast mode is active, the connection settings will be opened automatically.
If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.
Column-Column End Plate Splice Settings Dialog

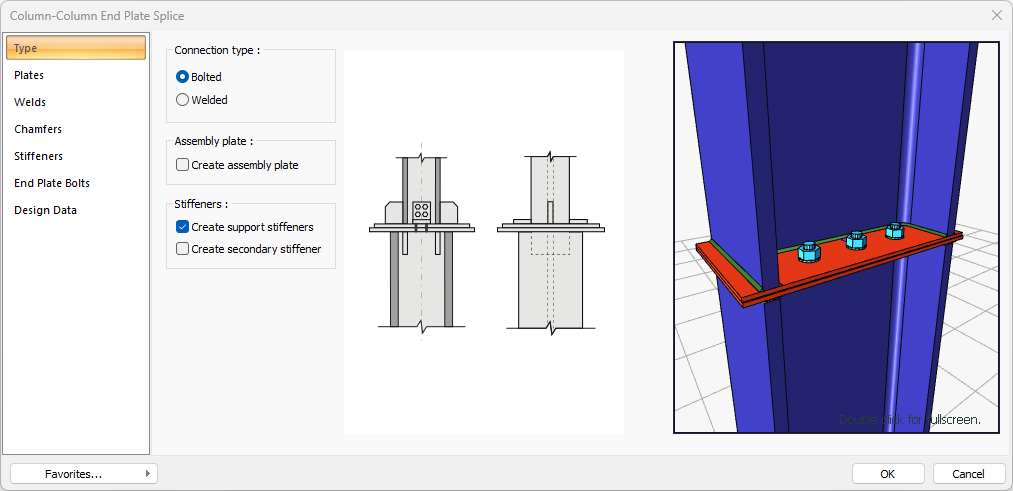

Type Tab
Specifications |
|---|
Connection type  Bolted or welded connection types are selected. |
Assembly plate  The assembly plate can be added to the joint by checking the option. |
Stiffeners  By checking the options, support and secondary plate can be added to the connection. |
Schematic drawing  Connection and placement values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

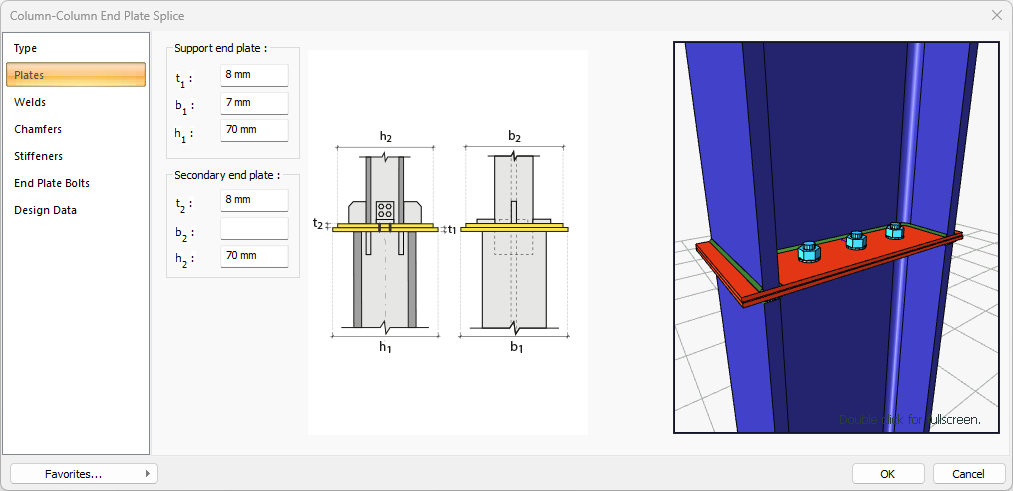

Plates Tab
Specifications |
|---|
Support end plate  The support end plate is determined by entering the value. The values to be entered are shown in the schematic drawing. |
Secondary end plate  The secondary end plate is determined by entering the value. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

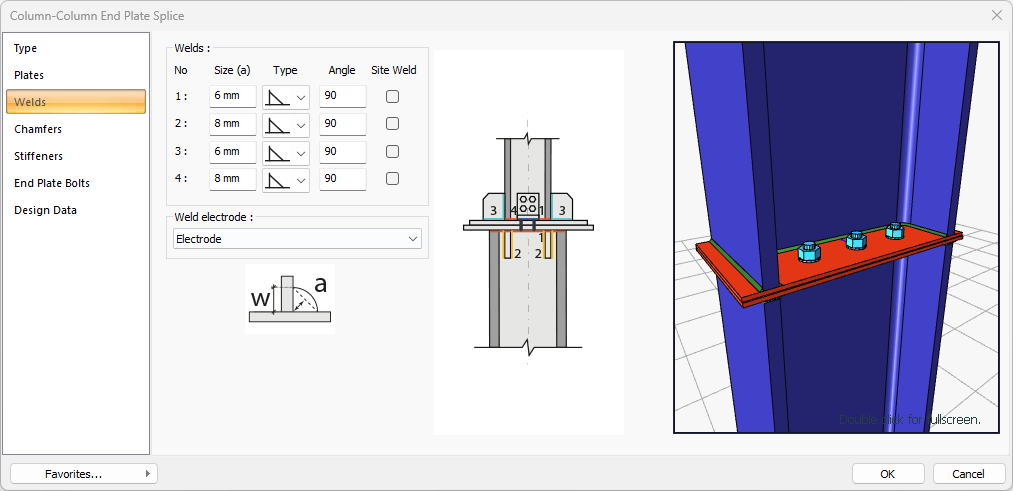

Welds Tab
Specifications |
|---|
Welds  The thickness, type and angle values of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered. |
Weld electrode  The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength. If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New". Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC. |

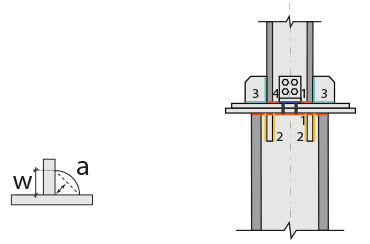

Schematic drawing  Connection and weld values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

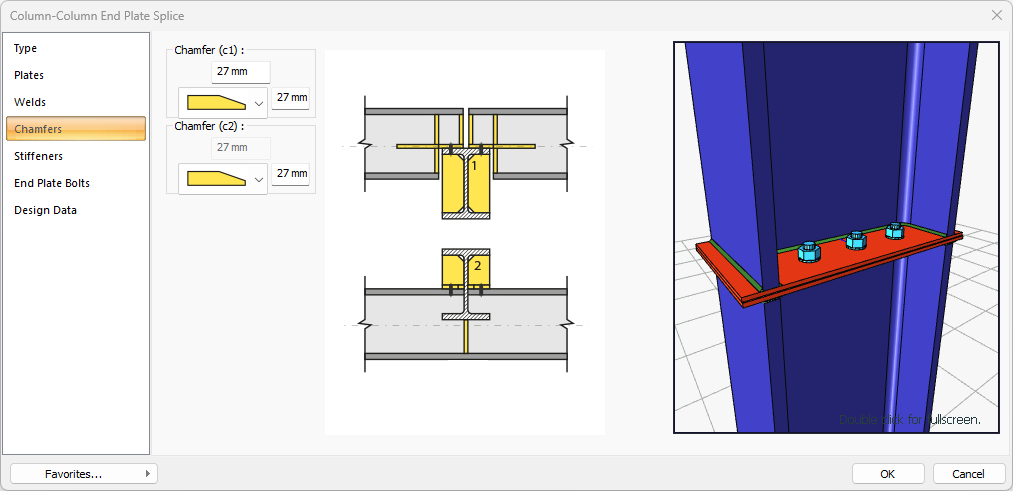

Chamfers Tab
Specifications |
|---|

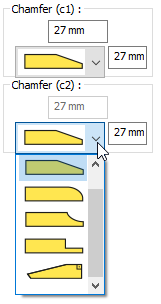

Chamfer (c1, c2)  For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value. |

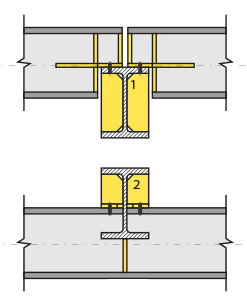

Schematic drawing  Connection, notching and cutting values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

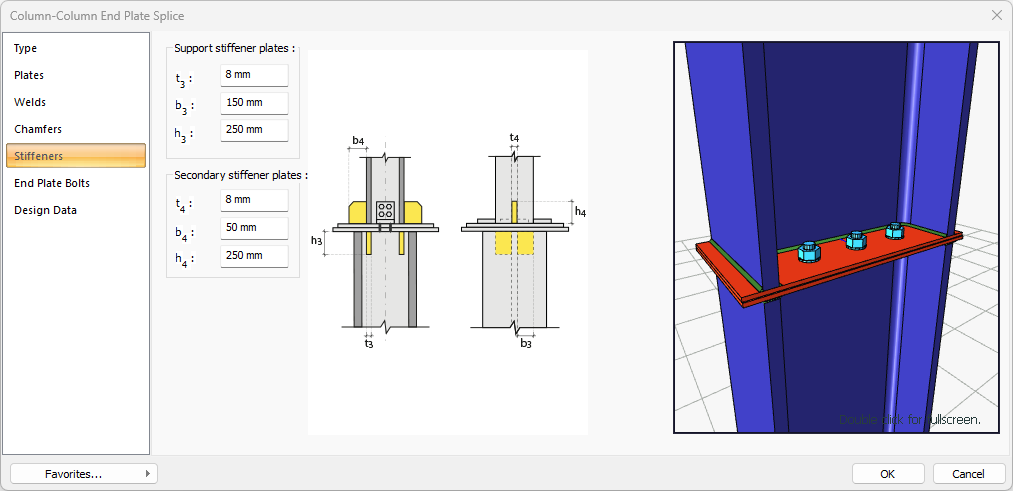

Stiffeners Tab
Specifications |
|---|
Support stiffener plates  Support stiffener plates are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Secondary stiffener plates  The secondary stiffener plates are determined by entering the value. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

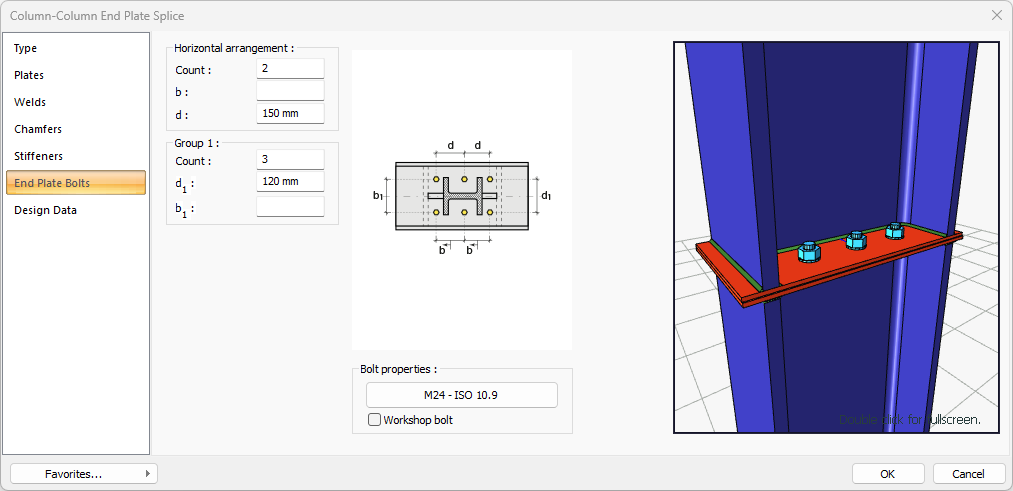

End Plate Bolts Tab
Specifications |
|---|
Horizontal arrangement  The horizontal arrangement distance value of the bolts is entered. The values to be entered are shown in the schematic drawing. |
Group 1  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Bolt properties  The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
Schematic drawing  Connection and bolt arrangement values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

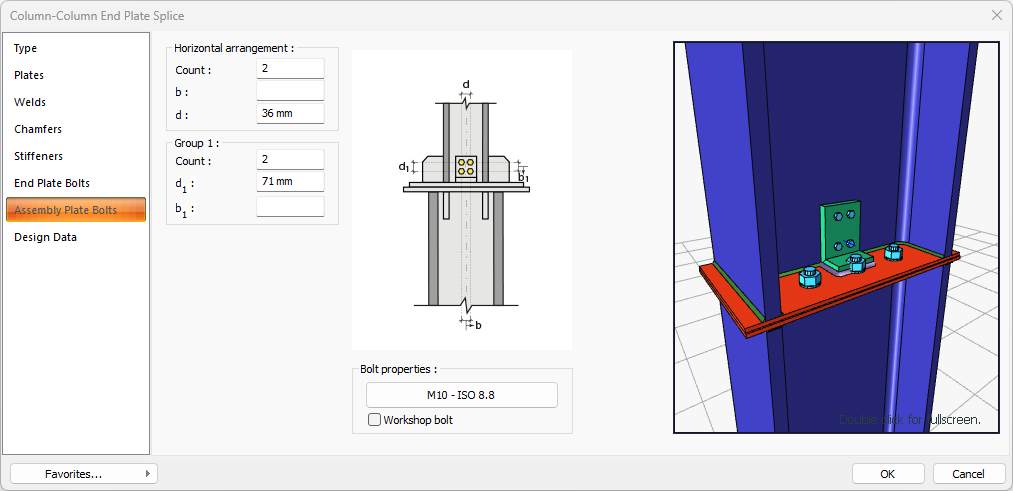

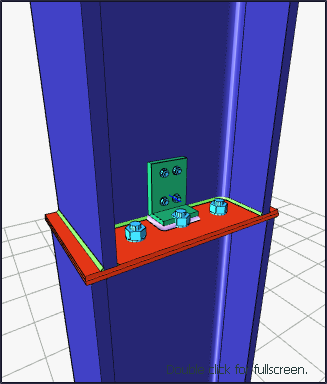

Assembly Plate Bolts Tab
This tab appears when the assembly plate is marked in type tab..
Specifications |
|---|
Horizontal arrangement  The horizontal arrangement distance value of the bolts is entered. The values to be entered are shown in the schematic drawing. |
Group 1  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Bolt properties  The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
Schematic drawing  Connection and bolt placement values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

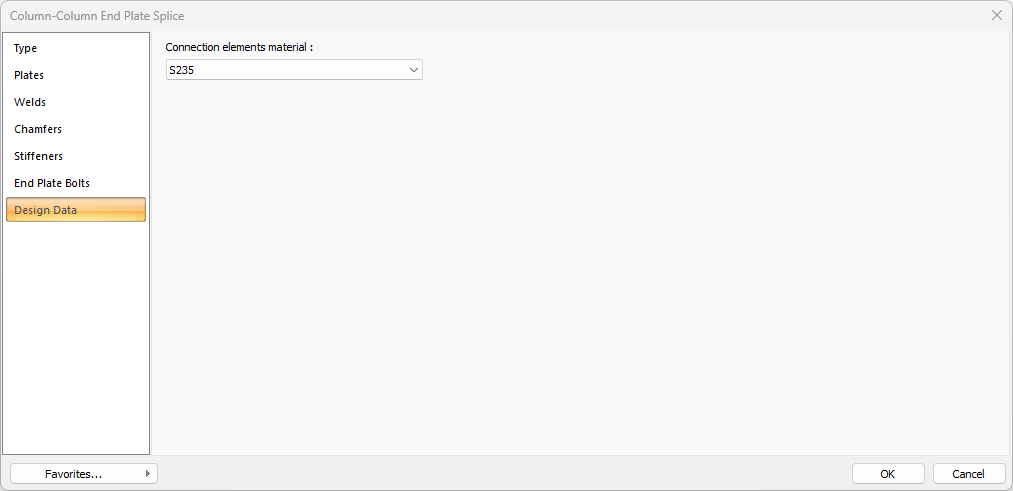

Design Data Tab
In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.
If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
