Creating a Polygonal Sheeting

With the Polygonal Sheeting command, a sheeting element is created on plane which continuous objects are defined in. Sheetings are load transfer elements.

Polygonal Sheeting Command Location

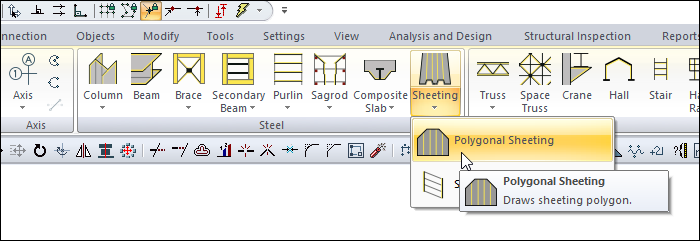

You can access it under the ribbon menu, Steel tab, Steel heading.

Usage Steps

  • Click the Polygonal Sheeting icon.

  • Select the steel element surface to determine the plane on which to create the sheeting on the perspective screen.

  • Select the elements to be sheeting to create a closed area.

  • After the selections are completed, the drawing is completed by clicking the right button of the mouse.

Usage step

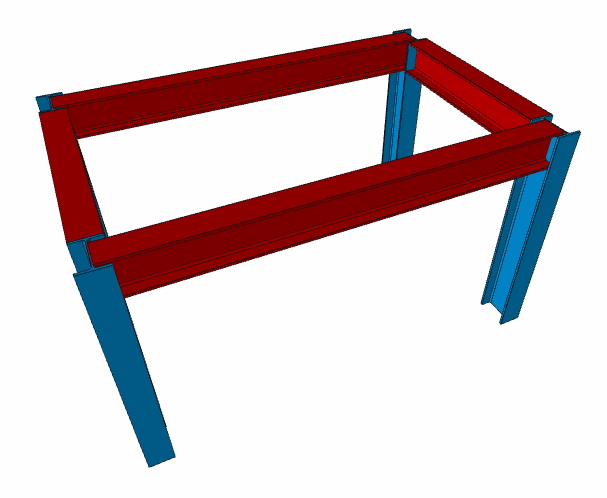

Before creating a polygonal sheeting

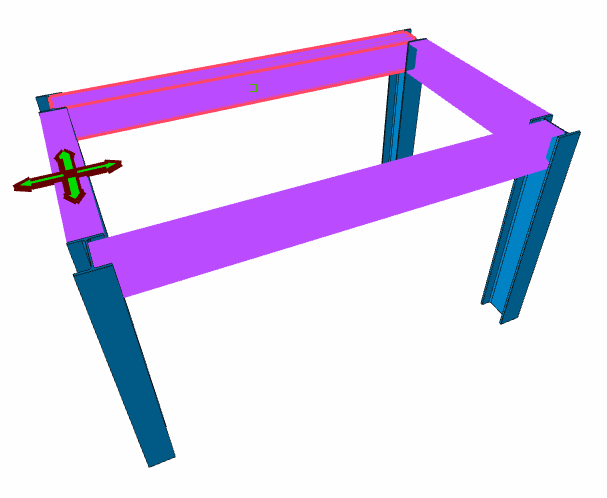

Determination of the sheeting plane

Selecting the elements to be defined on the sheeting to form the closed one

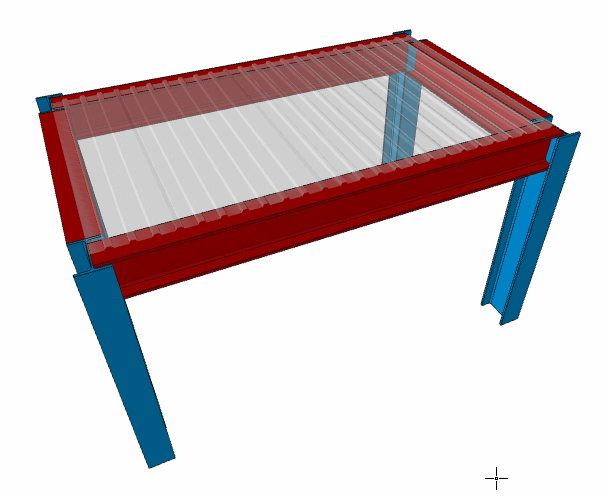

After creating a polygonal sheeting
