Determination of Unit Dimensions of Lap Siding

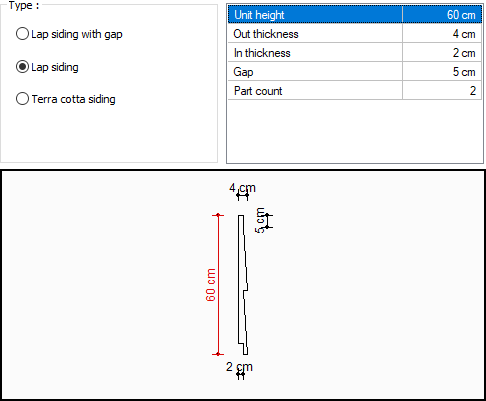

Different views are obtained by arranging the unit dimensions of the lap siding. The dimensions of the unit element appear in the table in the siding settings dialog. While giving the dimensions, the change of the shape according to the entered dimensions is followed from the front view below. Clicked size line is displayed in red in the preview.

Location of the Lap Siding Unit Dimensions

You can access the unit dimensions by entering the settings of the exterior veneer command.

Specifications

Unit height

The height of the unit part is entered. Each unit forms the entire exterior veneer by overlapping and side by side.

Out thickness

It determines the thickness of the part of the overlap (the thickest point) in the lap siding.

In thickness

It determines the thickness of the coating (the thinnest point) to be superimposed on the lap siding.

Gap

It determines the amount of gap in a lap siding.

Part count

It determines how many pieces will be in the unit.

Sample Settings

Sample Settings
