Creating a Steel Hand Rail on Arc

With the Steel Hand Rail Macro on Arc command, arc steel hand rails are created.

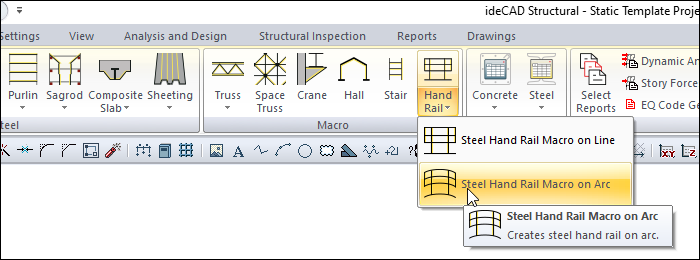

Location of Steel Hand Rail Macro on Arc Command

You can access it under the ribbon menu Steel tab Macro.

Usage Steps

  • Click the steel hand rail macro on arc command.

  • Create the starting point of the hand rail by clicking with the left mouse button.

  • Specify the end point and click the left mouse button.

  • Determine the diameter of the arc by moving the mouse and click the left button.

  • Your hand rail will be created.

Usage step

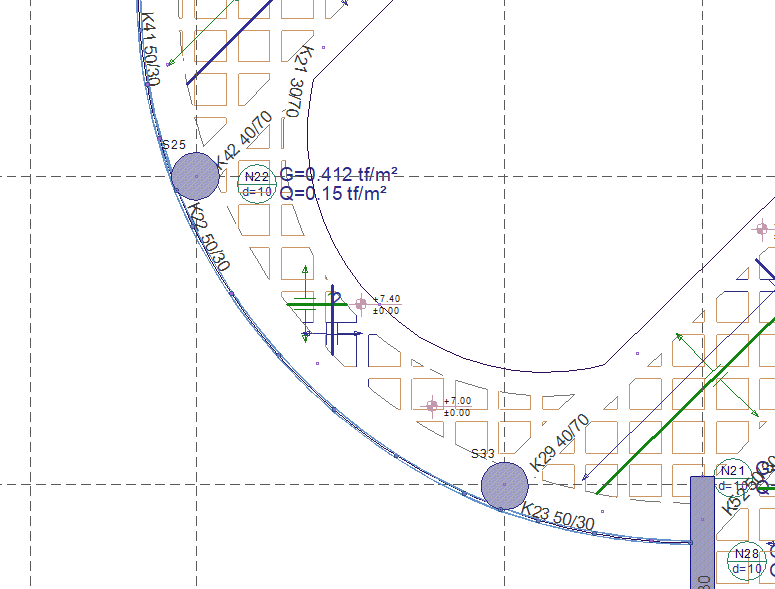

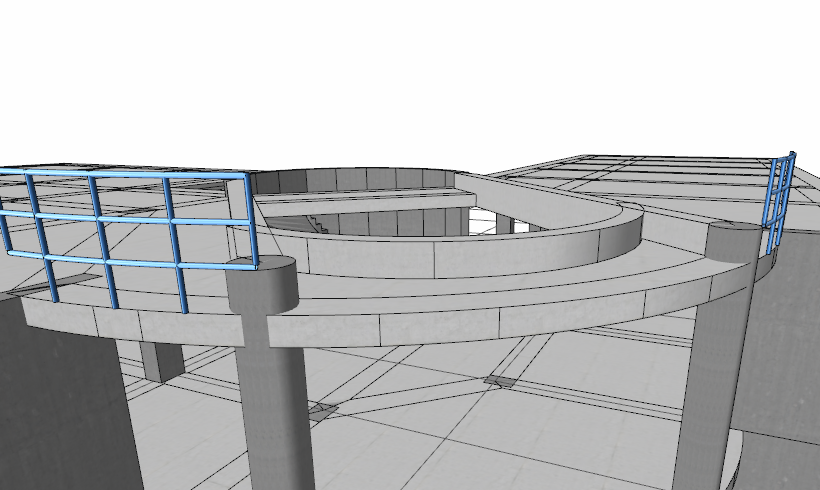

The facade to be formed with arc steel hand rail

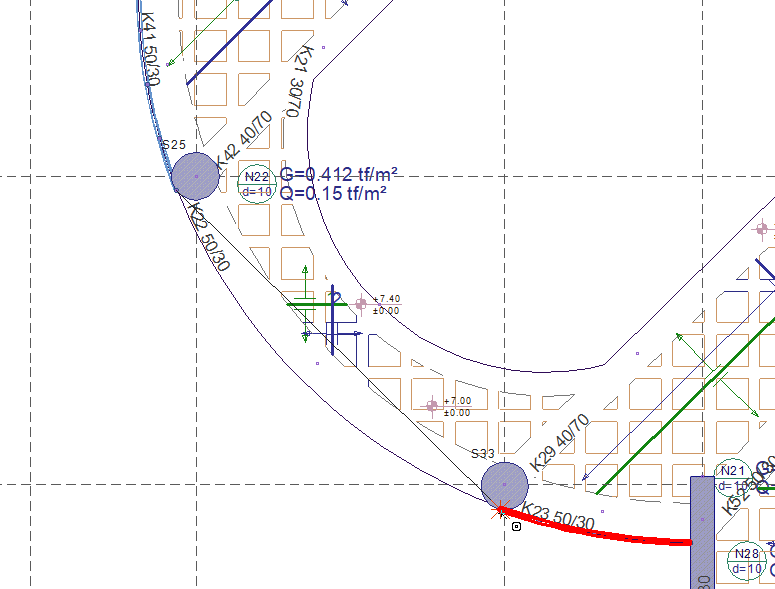

Determining the starting point of the hand rail

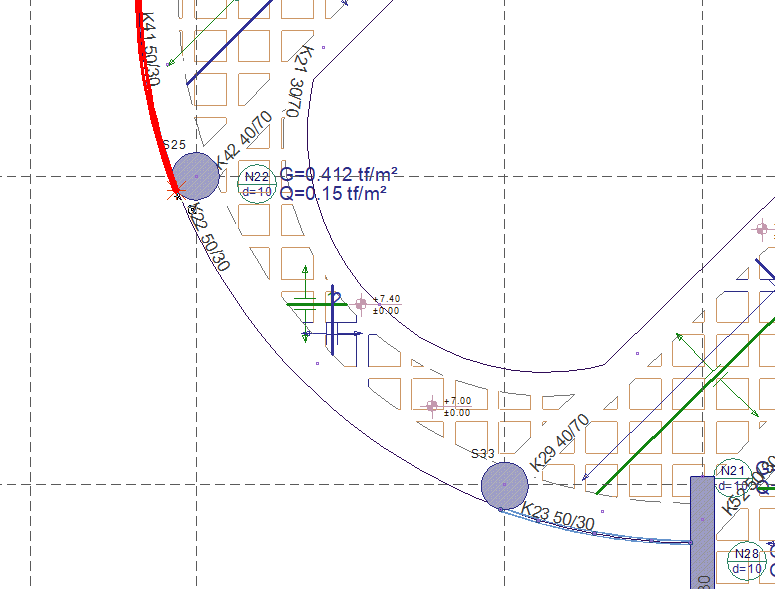

Determining the end point of the hand rail

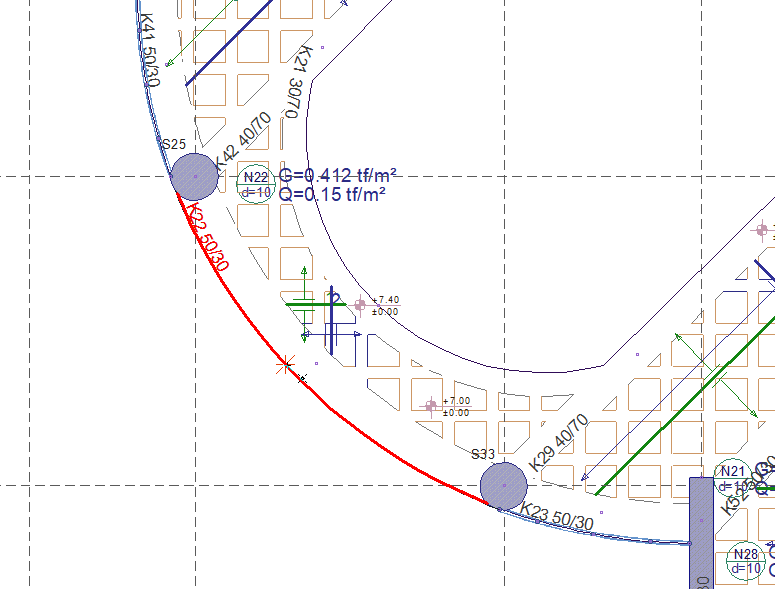

Formation of the preview of the arc steel hand rail

Determination of the diameter of the arc steel hand rail

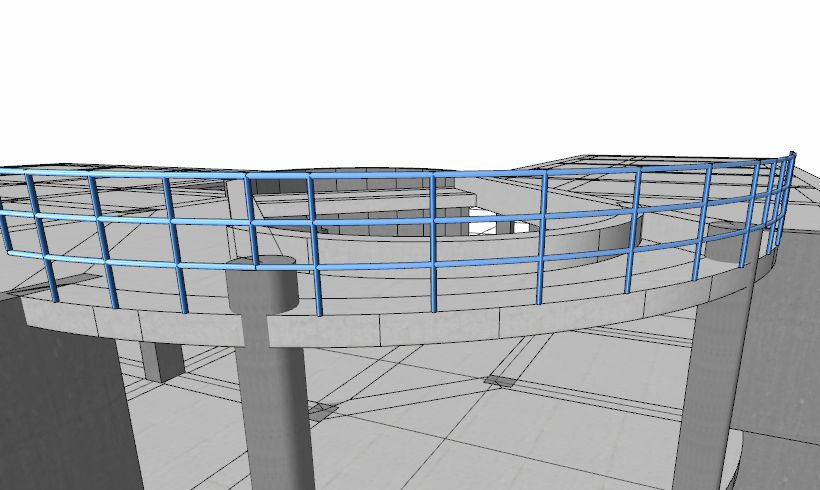

Formation of arc steel hand rail
