Locating Riser Numbers
With the riser numbers settings, the step numbers are placed anywhere on the stair. This setting is made separately for each stair area.
Location of Digit Numbers Settings

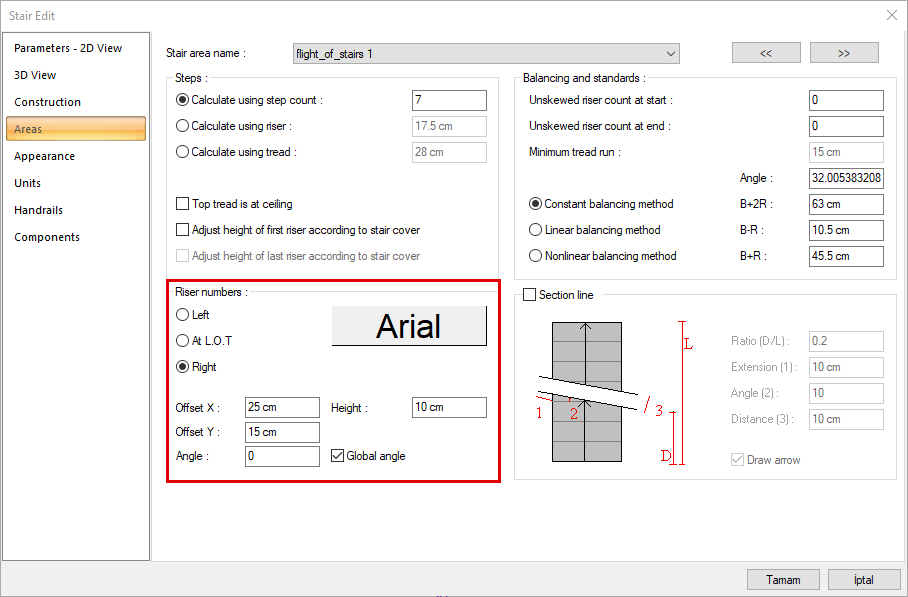

You can access the step number settings from the stair edit dialog areas tab .
Specifications |
|---|
Left  If the option is checked, the riser numbers are placed aligned to the left according to the x-y offset and angle value. |
At L.O.T  If the option is checked, the riser numbers are placed adjacent to the line of travel according to the x-y offset and angle value. |
Right  If the option is checked, the riser numbers are placed right aligned according to the x-y offset and angle value. |
Font  When the button is clicked, the Font Settings dialog appears. From this dialog, the font and text effect are selected for the step texts. |
X/Y offset  The X offset is used to move the digits horizontally, and the Y Offset vertically. Values can be positive or negative. |
Angle  The angle of the riser is entered. When the angle is zero, the letters are parallel to the risers. If the stair is rotated, the writings rotate with the stair. However, if the Global Angle option is checked, global angles are taken into account. Regardless of the angle of the stair, the angle of the inscriptions will be the angle written here. |
Height  It is the height of the riser texts. |
Riser Numbers Location Examples for the First Flight of Stair

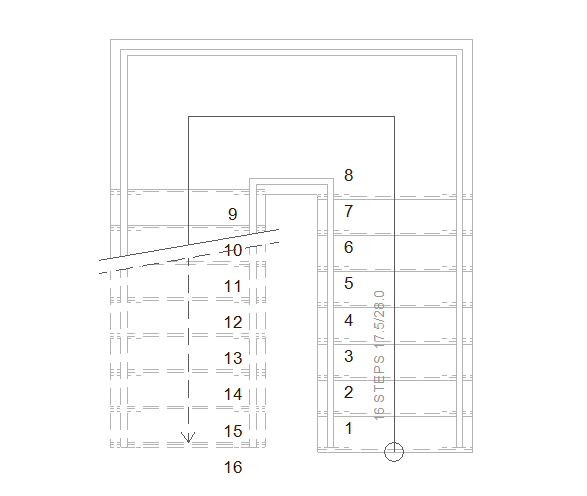

Left |
 |

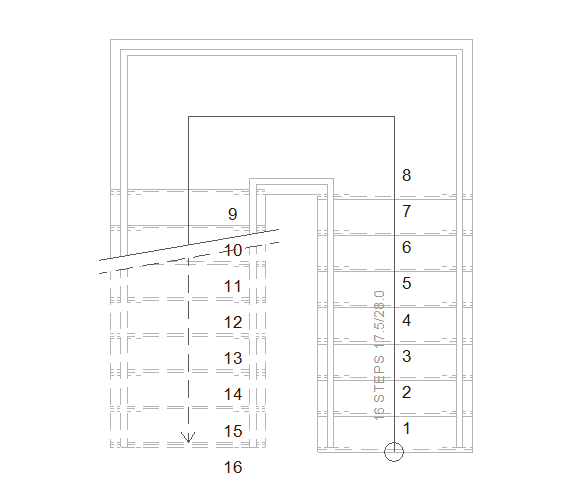

At L.O.T |
 |

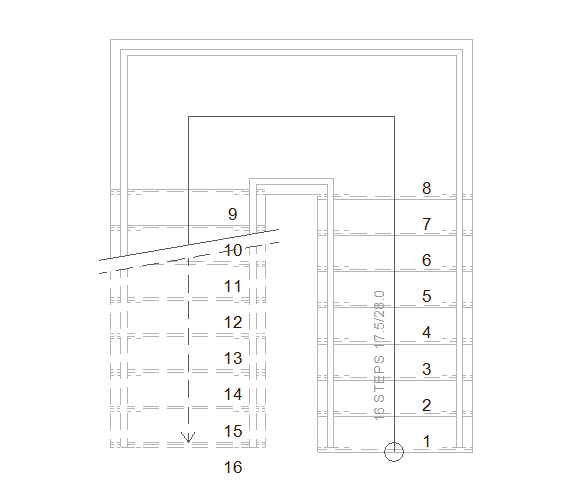

Right |
 |
When X offset value is 35, Y offset value is 5 |
 |

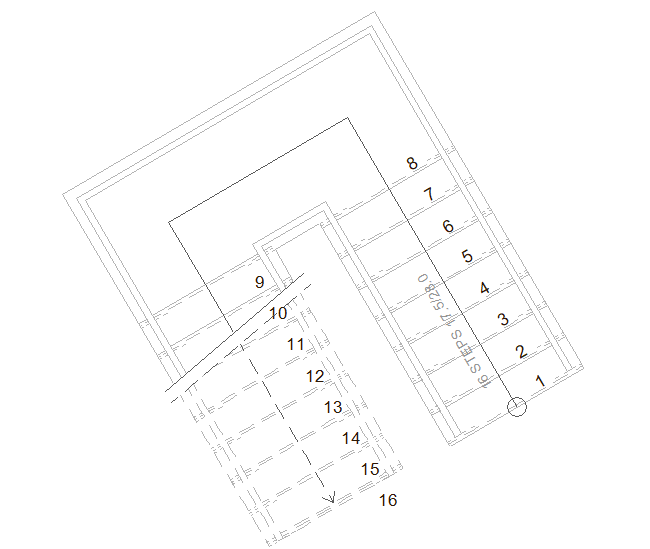

When the angle value is 30 |
 |
When the angle value is 0, the global angle is active. |
 |
When the angle value is 0, the global angle is not active. |
 |
