Hall Steel Tie Settings

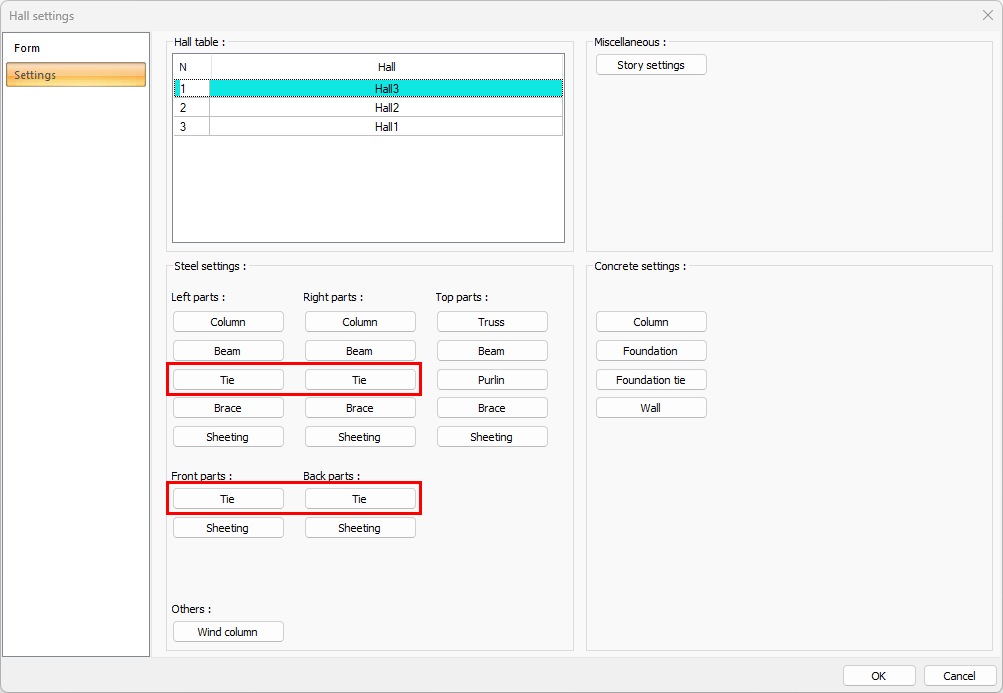

The hall steel tie settings are changed by clicking the Steel Tie button from the hall settings dialog settings tab. Tie settings are made separately for the right, left, front and back parts of the hall.

Location of Steel Tie Settings

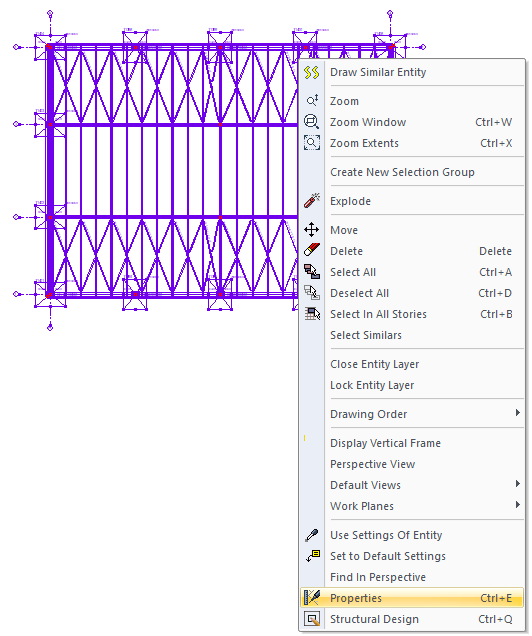

Select the hall where you want to change the steel tie settings and click the right mouse button. Click the Properties line from the right click menu that opens.


General Tab


Specifications

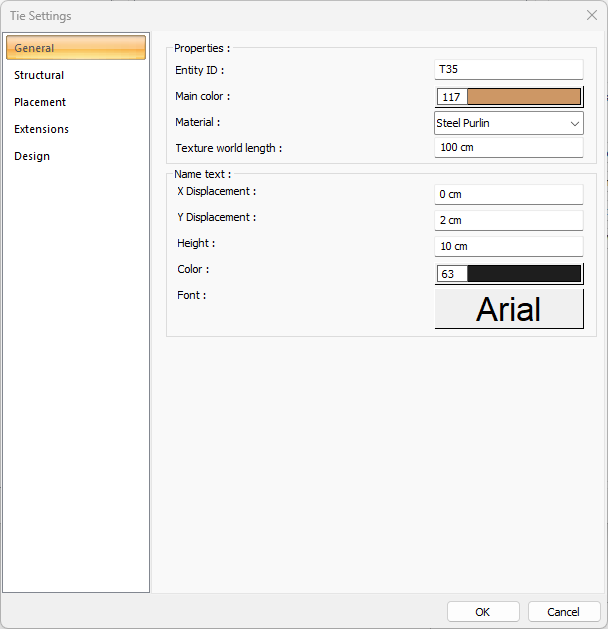

Entity ID


It is the name of the steel purlin that will appear in the plan, drawing and report.

Color


It is the color of the purlin. It scrolls on the color palette that is opened by clicking and holding down the left mouse button. The button is released when the desired color is reached. The color box turns into the selected color.

Material


In the solid model, the material to be covered can be selected. The element is covered with the selected material and displayed as such in the solid model. Click on the down arrow button with the left mouse button. The appropriate material is selected from the opened material list.

Texture world length


Texture length is entered. For example; If 1 meter is entered, the selected material texture is taken as 1 meter and covered on the selected object. If the texture is thought to be in the form of a square, the object surfaces are covered with 1x1 textures arranged side by side.

Name text - X displacement/Y displacement


The X and Y coordinates of the purlin size text are entered. If the size X value is positive, the text moves from the edge to the left, if negative, the text moves to the right. If the Y value is positive, the text will scroll up, and if it is negative, the text will scroll down. The directions specified here should be considered according to the viewing direction.

Name text - Height


Size text height is entered.

Name text - Color


Size is the color of the font height. It scrolls on the color palette that is opened by clicking and holding down the left mouse button. The button is released when the desired color is reached. The color box turns into the selected color. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted.

Name text - Font


Size text font is selected from the dialog that opens when clicked.

Structural Tab


Specifications

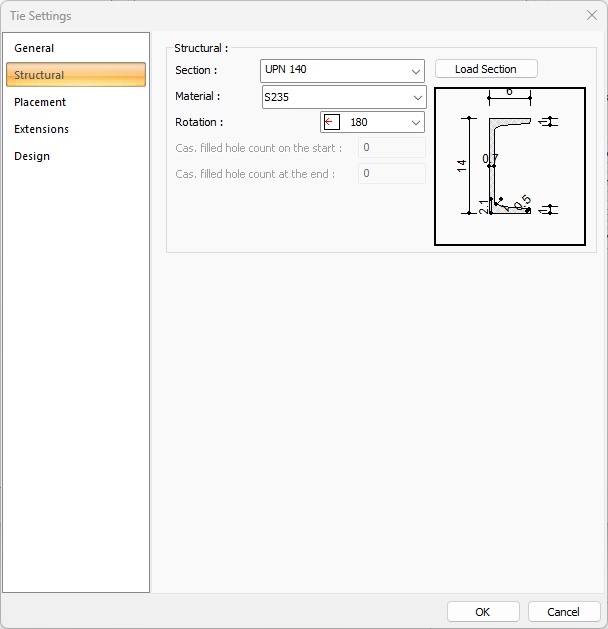

Section


It is the list in which the profile to be used for the steel tie is selected. The list includes steel profiles previously added from the profile library. Click the Load Section icon to add a new profile.

Load section


When clicked, the steel profile library is displayed. Select the profile you want to use from the list.

Material

The material for the steel tie is selected.

Rotation


The profile is created by rotating it around its own axis according to a value selected as 0, 90, 180, 270.

Cas. filled hole count on the start/at the end


For honeycomb profiles, it is the number that determines how many holes the honeycomb spaces will start from the beginning and the end. The honeycomb ties will be full up to the given number.

Schematic drawing


The schematic drawing and dimensions of the selected section are shown.

Placement Tab


Specifications

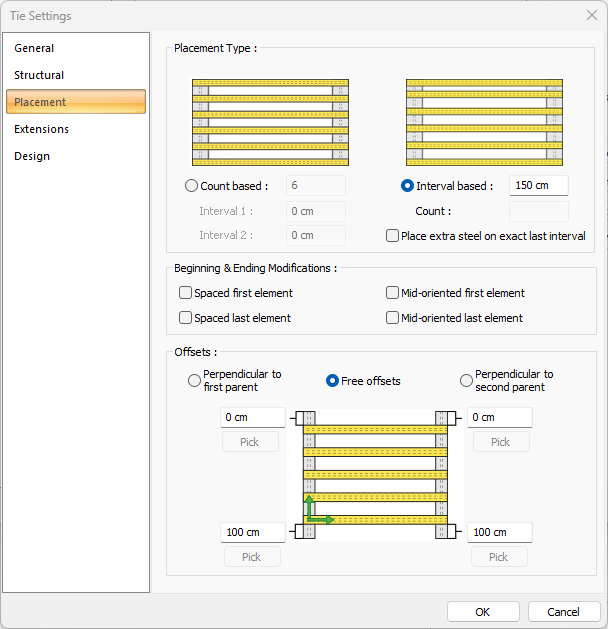

Count based


The ties can be drawn by entering a number.

Interval 1/Interval 2


It shows the distance between the ties.

Interval based


ties can be drawn by entering the distance between the ties.

Count


Shows the count of ties.

Place extra steel on exact last interval


If selected, place extra steel on exact last interval.

Spaced first element/Spaced last element


Since the first and last tie/secondary beam usually coincide on the element, they are options that can be used to eliminate this situation. If marked, ties/secondary beams found at the beginning and ending are not drawn.

Mid-oriented first element/Mid-oriented last element

When placing the first and last elements, alignment is made according to the midpoint of the element. When the Spaced first element/Spaced last element options are activated, these options become inactive.

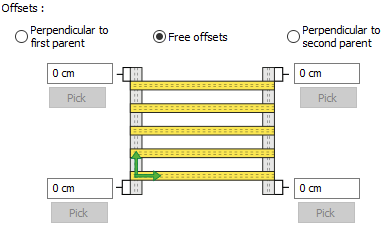

Offsets


The start and end distances of the ties can be entered.

If the options perpendicular to the first/second main part are marked, offset distances can be adjusted by keeping the perpendicularity condition constant to one of the main beams.

If the free offsets option is selected, offset distances can be edited independently of the main beam parts.

Extensions Tab


Specifications

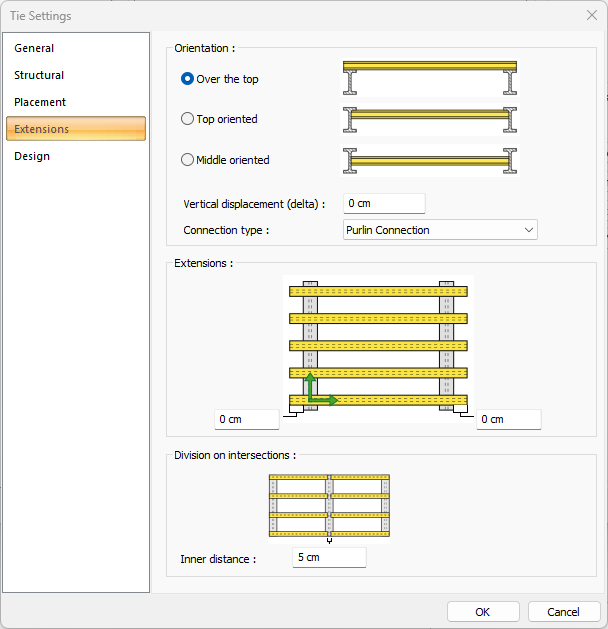

Over the top


It enables the main elements, on which the ties are modeled, to be modeled to sit on the upper head.

Top oriented


It ensures that the upper head of the tie is aligned with the upper head of the main steel elements.

Middle oriented


It ensures that the middle point of the ties and the middle of the main steel elements are aligned.

Vertical displacement (delta)


The distance entered in the box allows modeling of the tie under the main steel element top head.

Connection type


Select from the drop-down list for automatically generated slip joints between main steel element and ties.

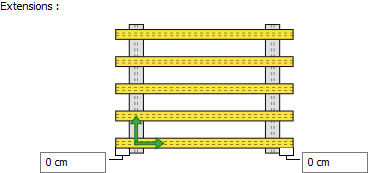

Extensions


It determines how long the ties will be extended from the main elements.

Inner distance


If the upper header option is used, the distance between the two tie ends should be entered at the point where the sties touch the main elements.

Design Tab

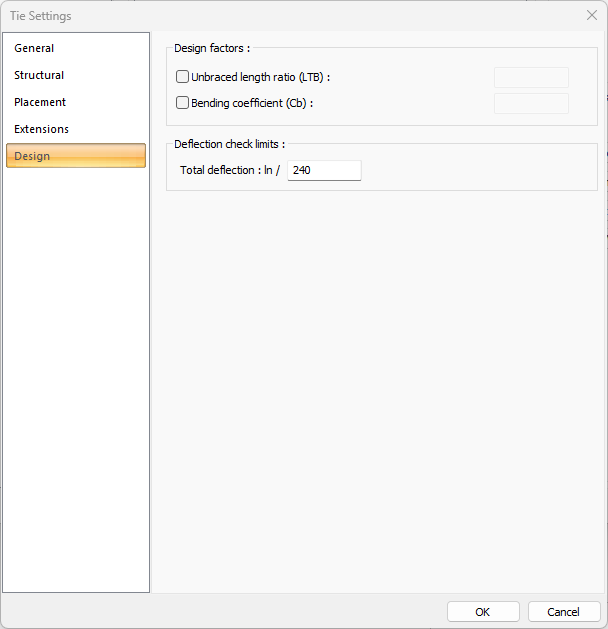

You can find detailed information on Steel Tie Design Settings title.
