Create patio railings in this section.

Previous steps have been followed in the project file Create the Patio Railings. You can download the file and follow the steps given in this title on the project.

Create the Patio Railings.cde

  • Enter the railing command.

  • Click on the D-1 axis intersection as your starting point.

  • Click on the E-1 axis intersection.

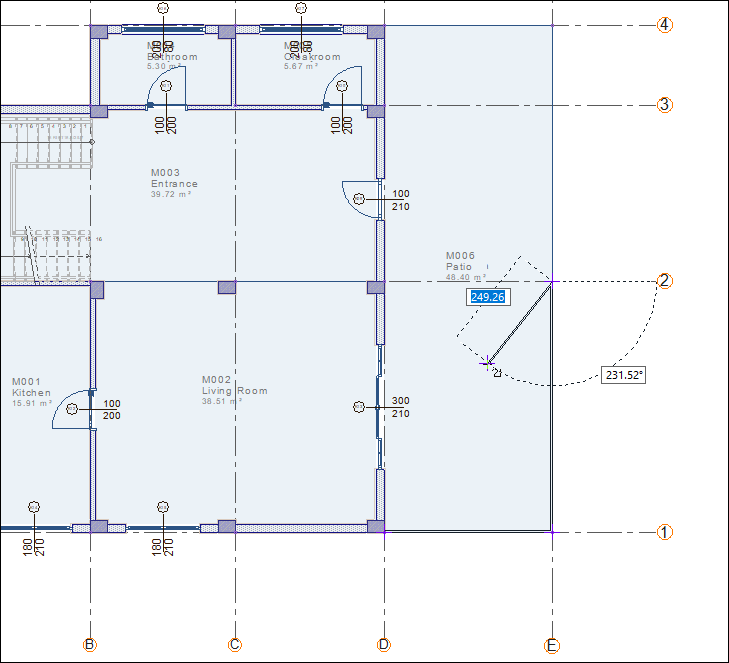

  • Press the spacebar and slide the railing to the other side of the axis. Click on the E-2 axis intersection.

  • Click the right mouse button to end the command. Railings will be formed.

  • Enter the railing command.

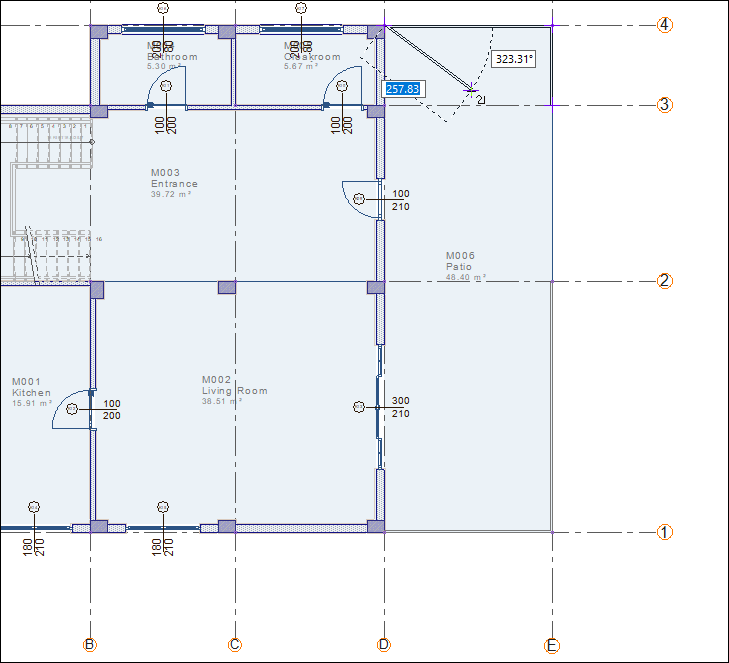

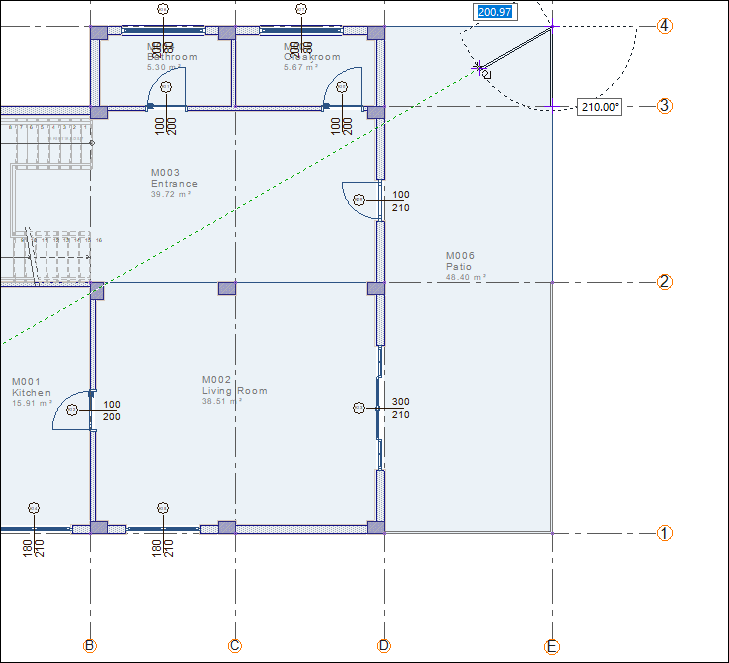

  • Click on the E-3 axis intersection then click on the E-4 axis intersection.

  • Click on the D-4 axis intersection.

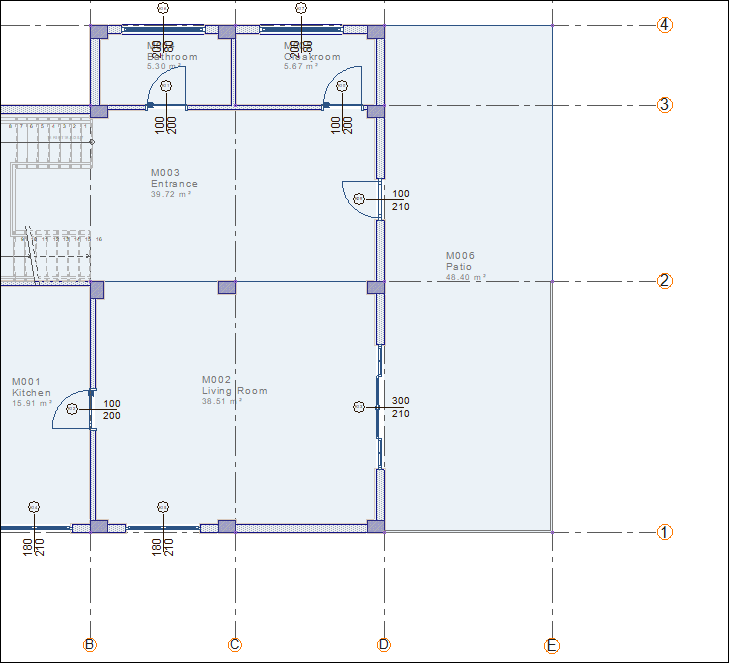

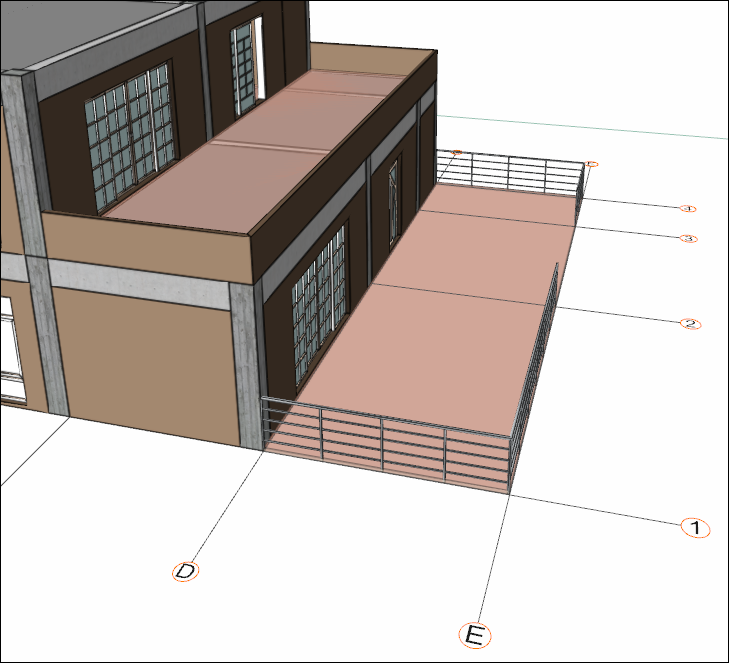

  • Click the right mouse button to end the command. Railings will be formed.


Follow the steps of the video below.
