Creating an Ellipse Corners
Ellipse Corners command is one of three ellipse drawing techniques. An ellipse is created by determining two corner points.
Location of the Ellipse Corners Command
In the Architectural Program

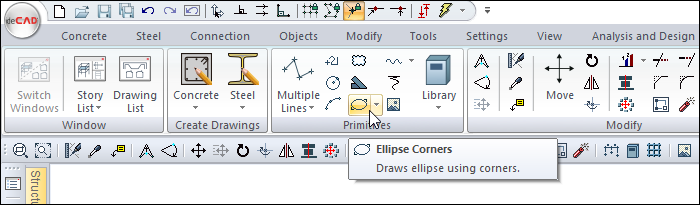

You can access it under the ribbon menu Drawings tab, Primitives title
In the Structural Program

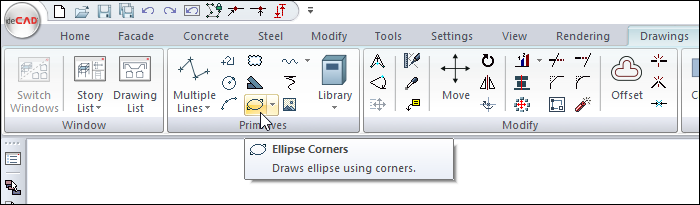

You can access it under the ribbon menu Drawings tab, Primitives title
Usage Steps
Draws an ellipse with two corner points. To draw an ellipse using this command:
Click the Ellipse Corners icon in the ribbon menu .
Click any point in the drawing area with the left mouse button. This point will be the first end of the ellipse to be drawn.
Drag the mouse. Depending on the movement of your mouse, a preview of your ellipse will be created.
Select a second point by clicking the left mouse button.
An ellipse will be drawn.
Usage step |
|---|

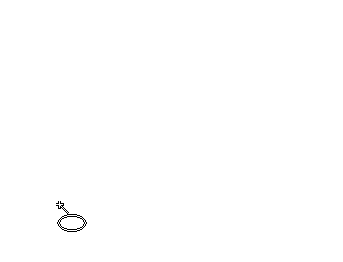

Determining the first point of the ellipse  |

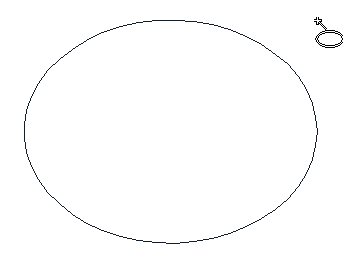

Previews due to mouse movement  |

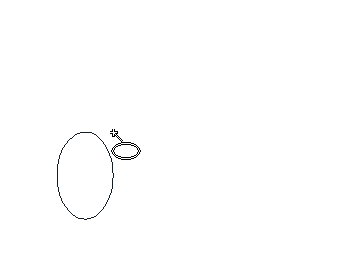

Determining the second point of the ellipse  |

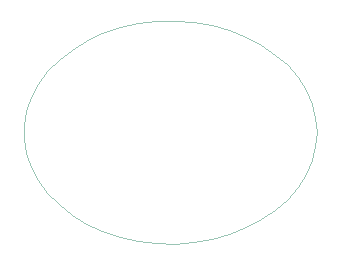

Creation of the ellipse  |
