Moving a Slab Text

With the move slab text command, slab texts are moved. Text blocks written on slabs cannot be moved with the move command.

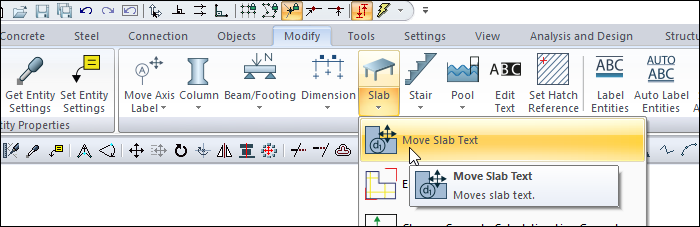

Location of Move Slab Text

You can access it under the Modify tab Entity Edit title in the ribbon menu .

Usage Steps

To move a slab text:

  • Click the Move Slab Text icon in the ribbon menu .

  • The slab toolbar will open.

  • When you click on the move slab text icon, the objects other than the slabs will be blurred.

  • When you click on the slab with the left mouse button, the slab text block preview will appear, it will move with your mouse.

  • When you come to the point where you want to place the text and click the left mouse button, the slab text will be moved.

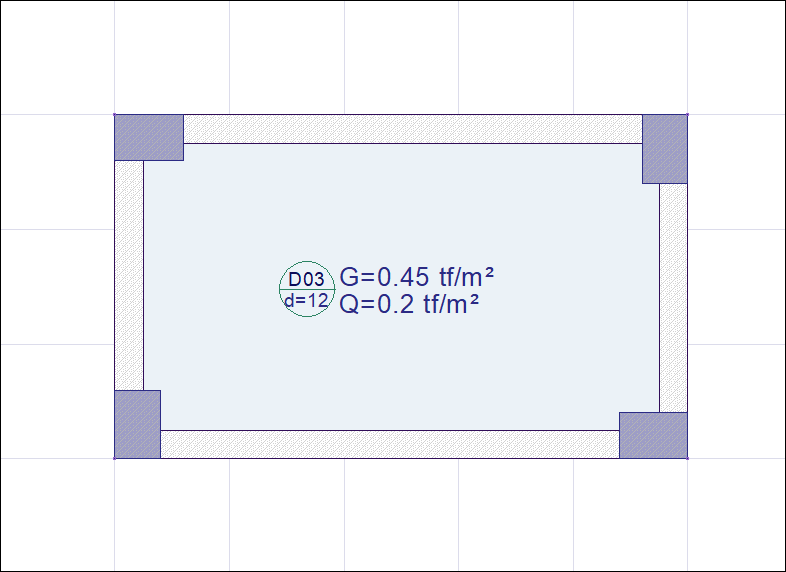

Usage step

Fading objects outside of the slab

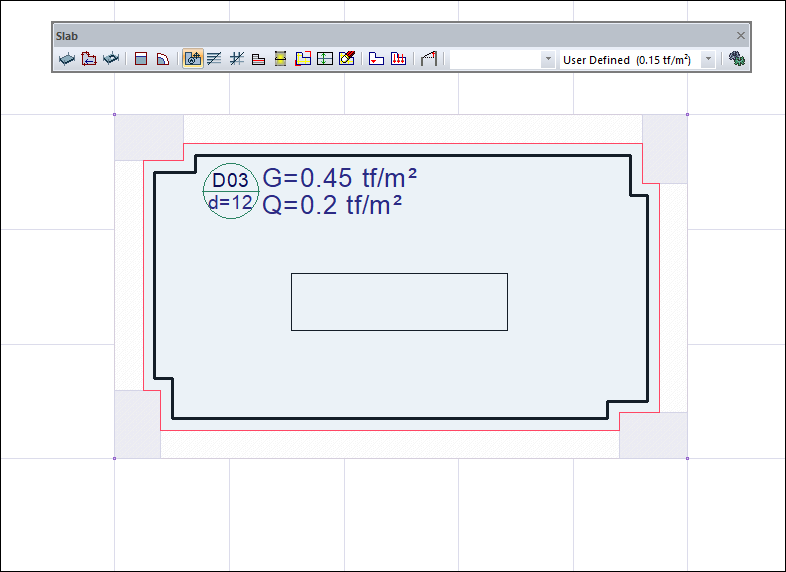

Slab text block preview display and move with mouse movement

Move the slab text
