Defining a Stub
With the Stub command, stubs are defined to steel column.
Location of the Stub Command

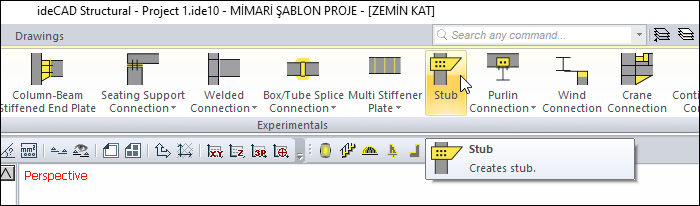

You can access it under the Ribbon menu, Connection tab, Experimentals title.
Usage Steps
If Draw in Fast Mode is Active
Click on the Stub icon from the Connection menu.
In 3D perspective view, move the mouse pointer closer to the element, close to the support

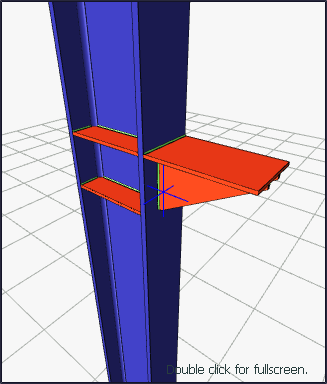

After this process, the virtual image of the connection will appear.
If the connection is suitable, create the connection by clicking the left mouse button.
The connection will occur with default settings.
If Draw in Fast Mode is Inactive
Click on the Stub icon from the Connection menu.
Click the column from the 3D perspective view.
The stub settings dialog will open.
The connection will occur when the wanted settings are made and the OK button is clicked.
Location of the Stub Settings Dialog
If the draw in fast mode is active, the connection settings will be opened automatically.
If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.
Stub Settings Dialog
Plates Tab
Specifications |
|---|

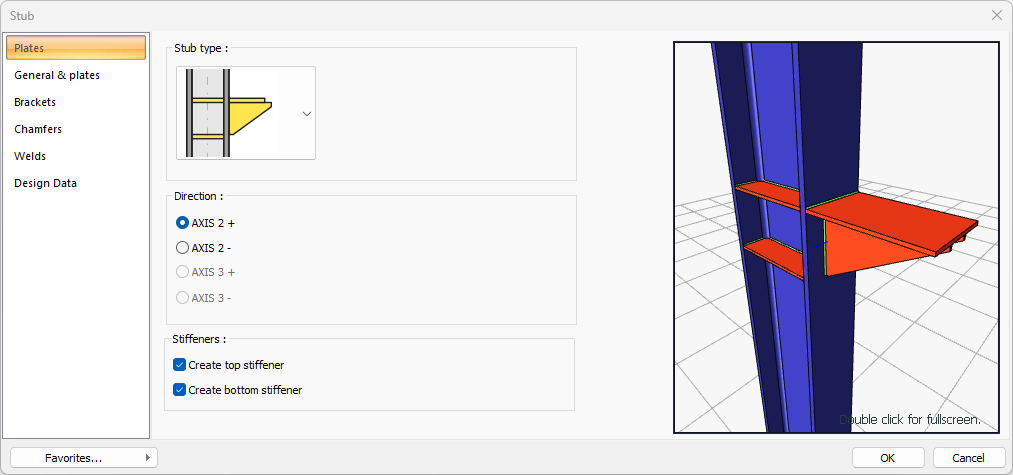

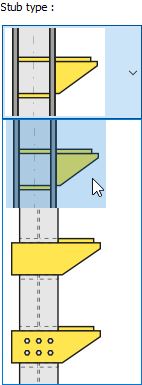

Stub type  One of the stub type is selected from the list. |
Direction  It shows the placement of the stub element relative to the column axis. The direction of the stub on the column changes according to the selected axis. |

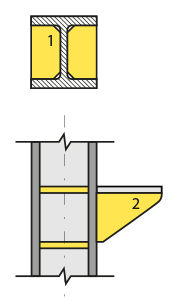

Stiffeners  The top and bottom stiffeners are marked and stiffener plates are formed in the column at the level of the element. |

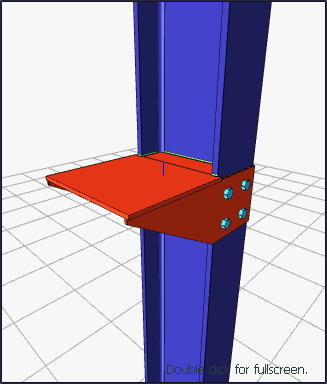

Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
General and Plates Tab
Specifications |
|---|

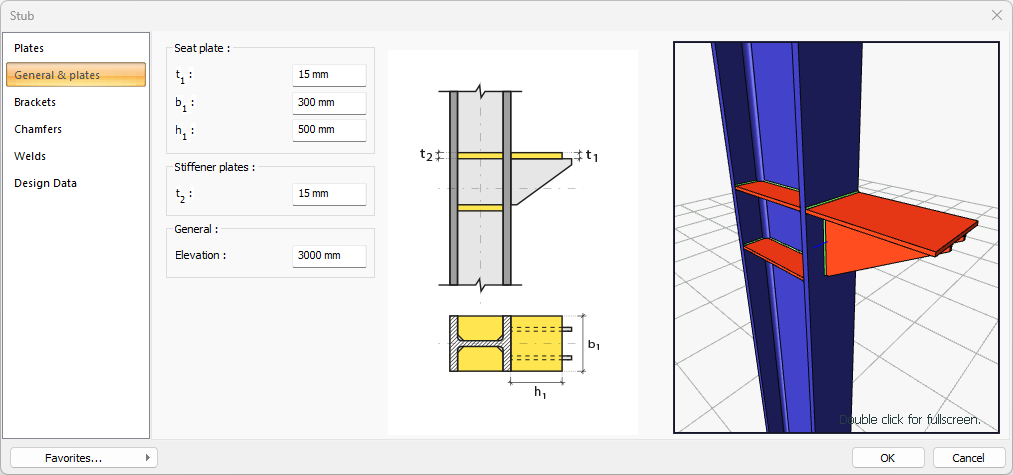

Seat plate  Seat plate dimensions are determined by entering values. The values to be entered are shown in the schematic drawing. |
Stiffener plates  The dimensions of the stiffener plate are determined by entering the values. The values to be entered are shown in the schematic drawing. |
General  The elevation of the stub is determined. |

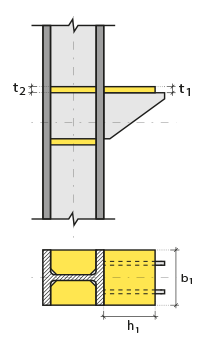

Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Brackets Tab

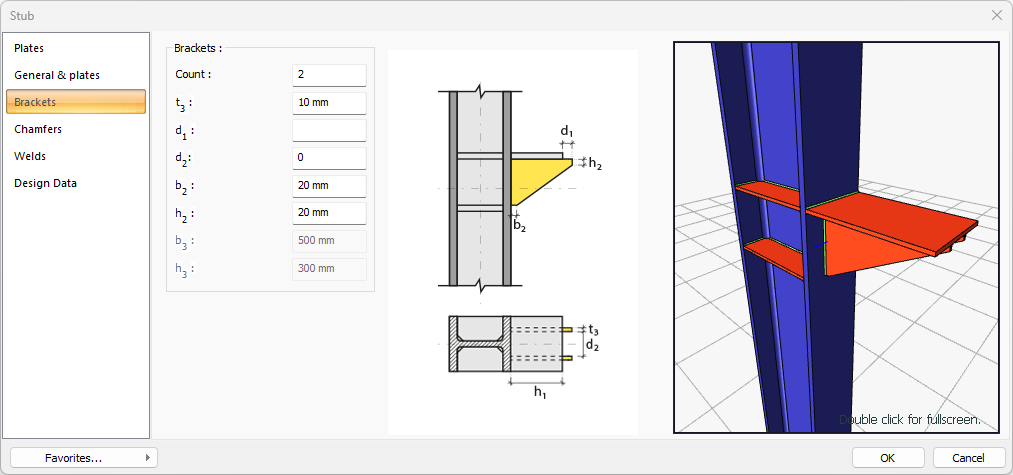

The values on this tab vary according to the selected stub type. Enter data according to the schematic representation.
Specifications |
|---|

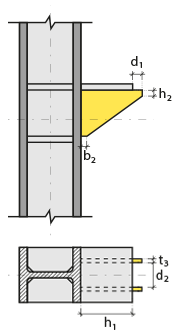

Brackets  Bracekt plate dimensions are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Chamfers Tab
Specifications |
|---|

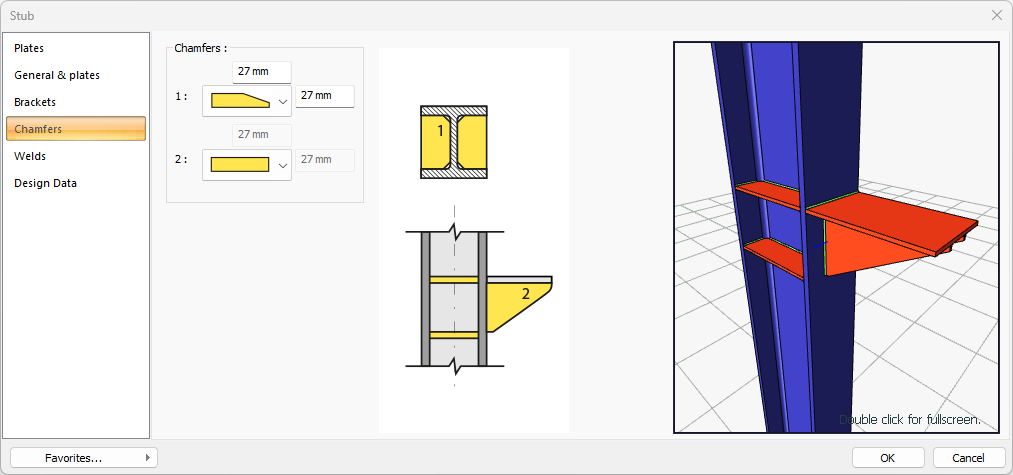

Chamfers  For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value. |
Schematic drawing  Connection, notching and cutting values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Welds Tab
Specifications |
|---|

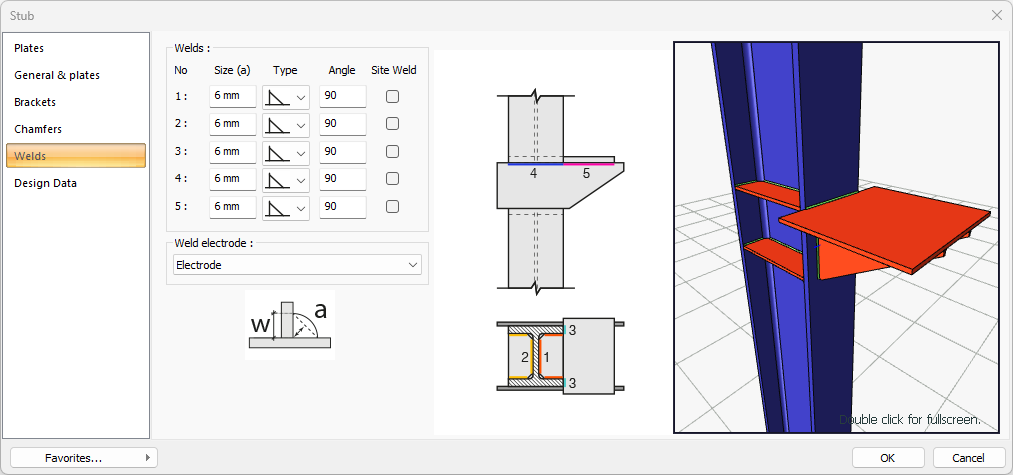

Welds  The thickness, type and angle values of the welds to be made at the joints are given. The information on whether it will be done on the construction site or not is entered. |
Weld electrode  The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength. If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New". Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC.  |

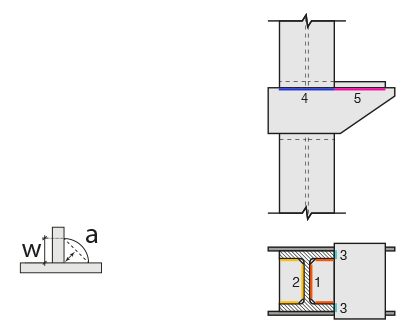

Schematic drawing  Connection and weld values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Bolts Tab
This tab appears when the 3rd type, bolted console is selected.
Specifications |
|---|

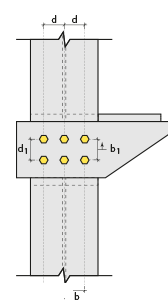

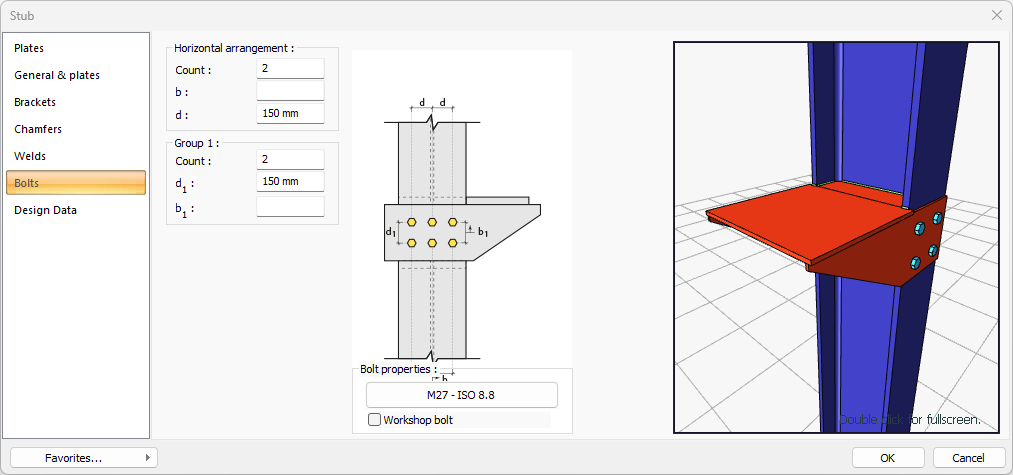

Horizontal arrangement  The horizontal arrangement distance value of the bolts is entered. The values to be entered are shown in the schematic drawing. |
Group 1  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Bolt properties  The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
Schematic drawing  Connection and bolt placement values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Design Data Tab

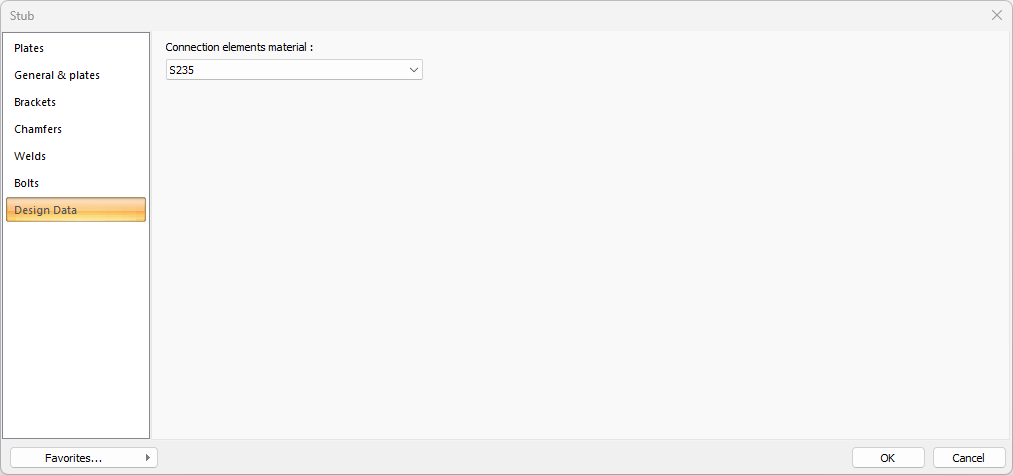

In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.
If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
