Scaffolding Slab Settings
The slab settings are made from the scaffolding tab of the scaffolding settings dialog.
Location of Slab Settings

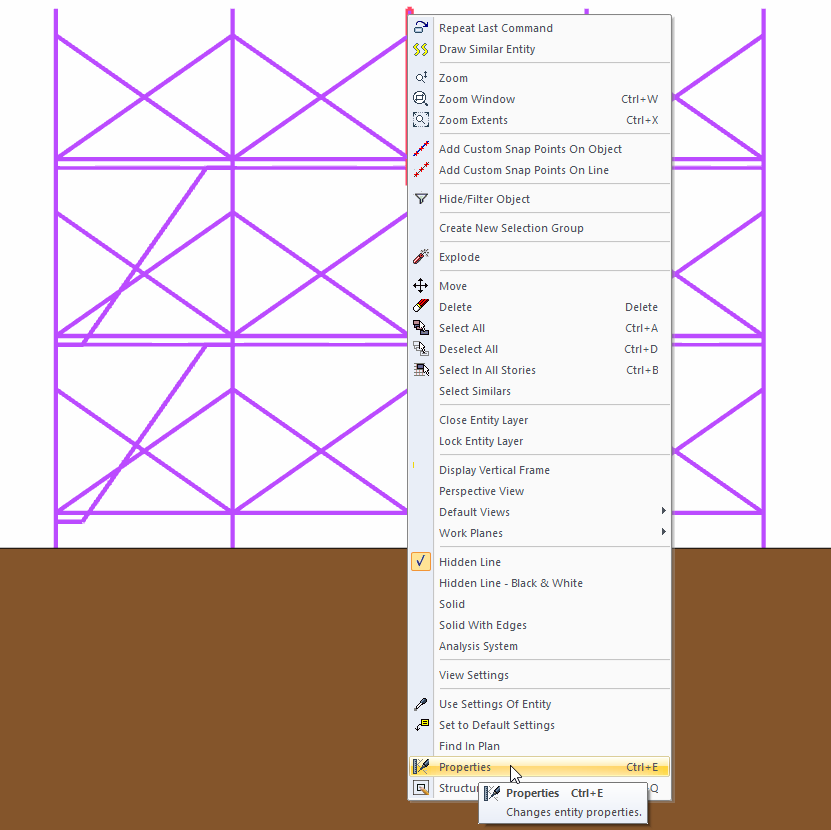

Select the scaffolding for which you want to change the slab settings and click the right mouse button. Click Properties from the right-click menu that opens .
![](../__attachments/1937998845/image-20210702-060556.png?inst-v=71acd188-e6cb-47d7-9f88-082d28461df3)

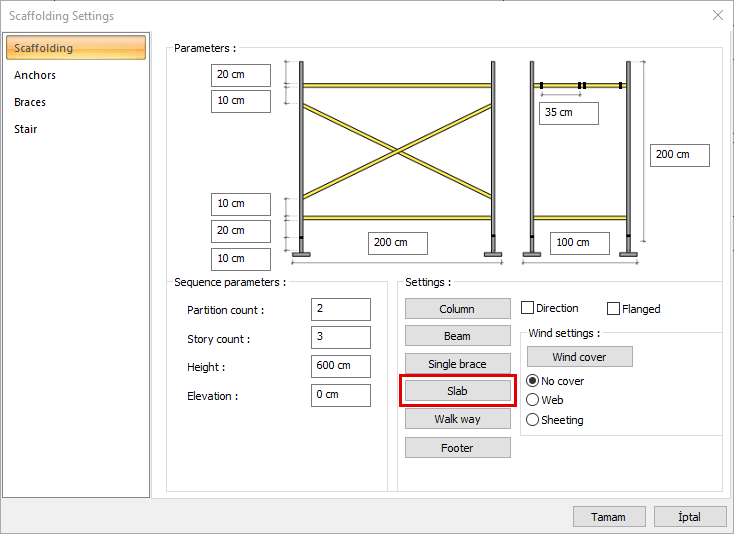

![](../__attachments/1937998845/image-20210702-084921.png?inst-v=71acd188-e6cb-47d7-9f88-082d28461df3)
General Tab

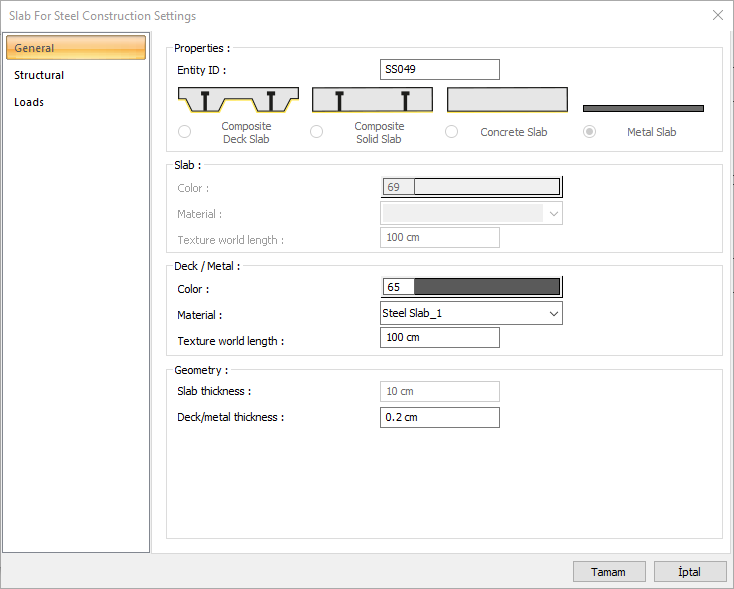

![](../__attachments/1937998845/image-20210702-085039.png?inst-v=71acd188-e6cb-47d7-9f88-082d28461df3)
Specifications |
---|
Entity ID ![]() The name of the slab is entered |
Slab type ![]() Composite Deck, Composite Solid, Concrete or Metal Slab options are available. Type selection can be made by entering the settings of an existing slab. |
Color ![]() It is the color of the deck/metal lines. The selection is made on the color palette that is opened by clicking with the left mouse button and holding the button down. |
Material ![]() The material to be covered on the deck/metal in solid model is selected. It is coated with the selected material and displayed as such in the solid model. |
Texture world length ![]() Texture length is entered. For example; If 1 meter is entered, the selected material texture is taken as 1 meter and covered on the selected object. If the texture is considered to be in the form of a square, the object surfaces are covered with 1x1 textures arranged side by side. |
Deck/metal thickness ![]() The thickness of the deck/metal material is entered. |
Structural Tab

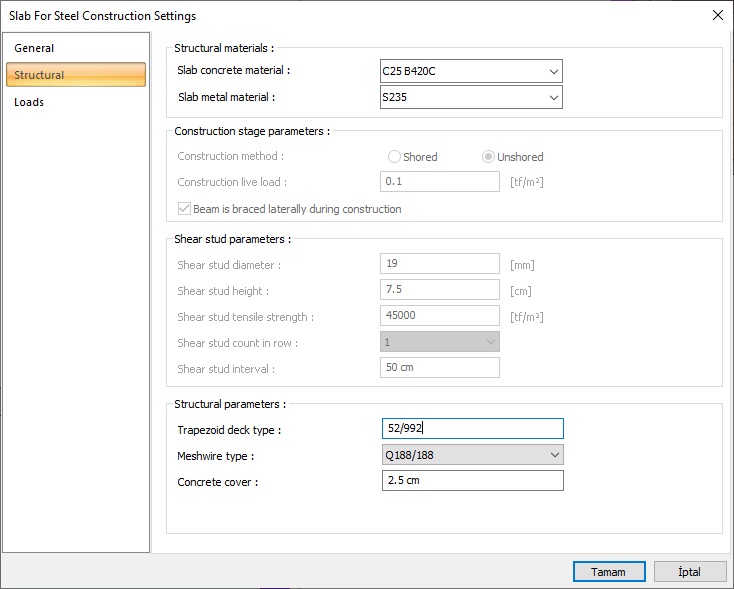

![](../__attachments/1937998845/image-20200918-085723.png?inst-v=71acd188-e6cb-47d7-9f88-082d28461df3)
Specifications |
---|
Slab concrete material ![]() Select the structural material to be used in the element from the list. Structural material can be defined as aconcrete element under Materials in Structure Tree . |
Slab metal material ![]() Select the Metal slab material to be used in the element. |
Trapezoid dect type ![]() Type information of the trapezoid dect is entered. |
Meshwire type ![]() The cement of the meshwire type required for the concrete part is selected. |
Concrete cover ![]() The concrete cover thickness is entered. |
Loads Tab

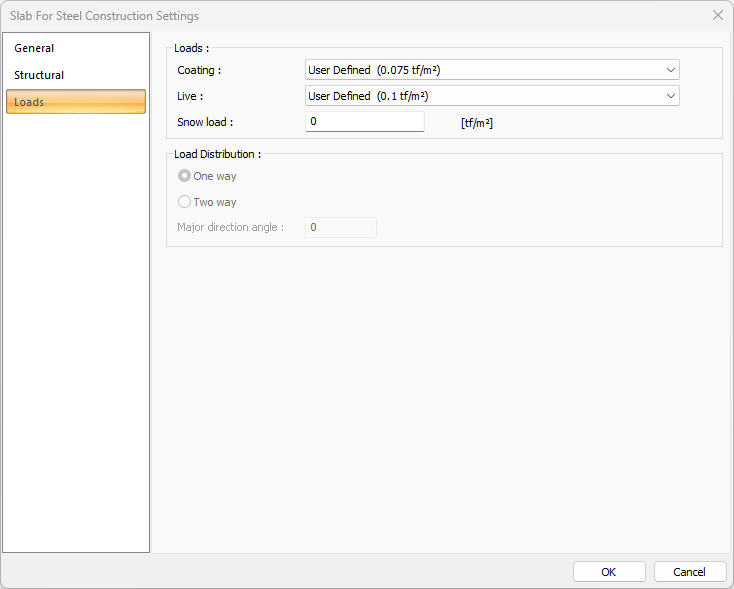

![image-20240221-143003.png](../__attachments/1937998845/image-20240221-143003.png?inst-v=71acd188-e6cb-47d7-9f88-082d28461df3)
Specifications |
---|

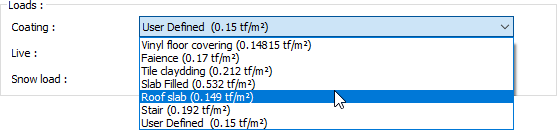

Coating ![]() Select the appropriate value for the coating load from the list. The values listed in the list are the values defined in the slab load library and are prepared only for the slab weight. The reinforced concrete weight of the slab will be added automatically during analysis. If you are going to use another value instead of using one value from the list, select "user-defined" from the list and enter a value. In ribbed and cassette slabs, concrete weight is added automatically during analysis. |

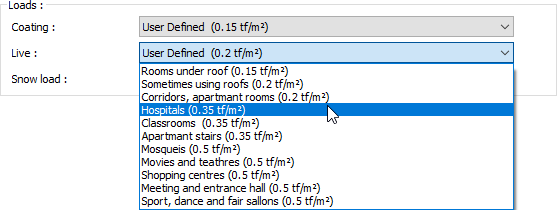

Live ![]() Select the appropriate value for live load from the list. The values that appear in the list are the values defined in the slab load library. If you are going to use another value instead of using one value from the list, select "user-defined" from the list and enter a value. |
Snow load ![]() The snow load on the slabs is entered by the user in the box. |
Load distribution ![]() The direction and the major direction angle are determined for the load distribution. |
