Creating a Arc Slab Band

With the arc slab band command, arc-shaped constructive beams are created at the idle shearwall ends in tunnel formwork projects. Slab band beams are not used in the analysis.

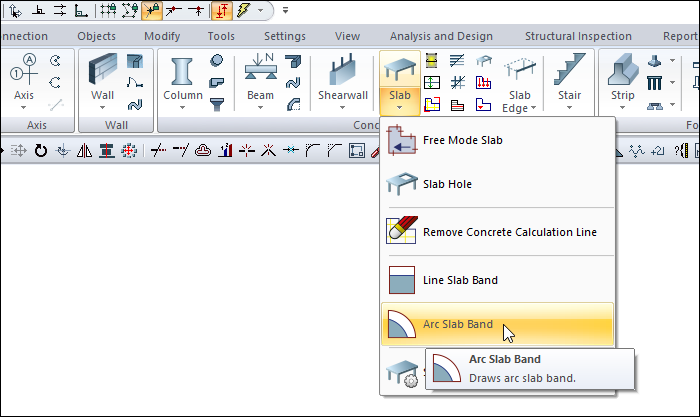

Location of Arc Slab Band Command

You can reach it under the Concrete tab in the ribbon menu under the Concrete heading.

Usage Steps

  • Click the Arc Slab Band icon. The shape of the mouse cursor will change.

  • By moving the mouse, determine the first point and click the left mouse button.

  • Move the cursor to the intended point and create the second point of the arc slab band by clicking the left mouse button.

  • When you move the mouse, the cursor will take a curved form.

  • Create the third point of your arc slab band by clicking the left mouse button.

  • Your arc slab band will form.

Usage step

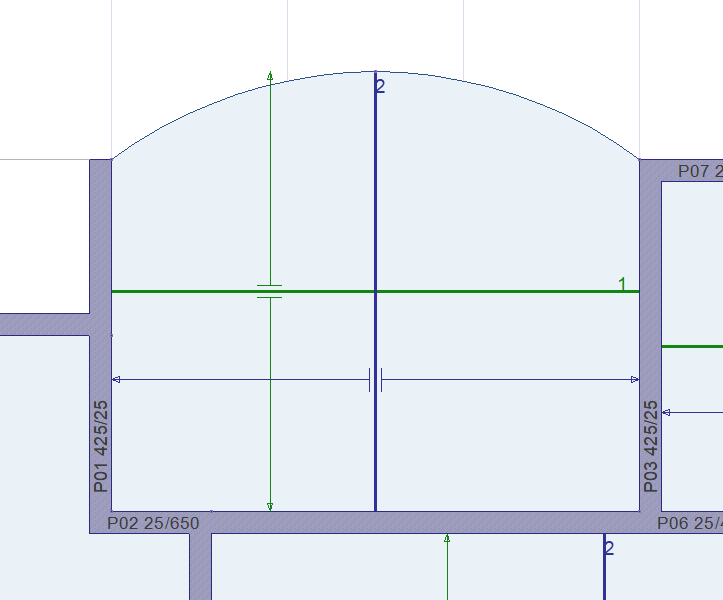

The slab to be formed as a arc slab band

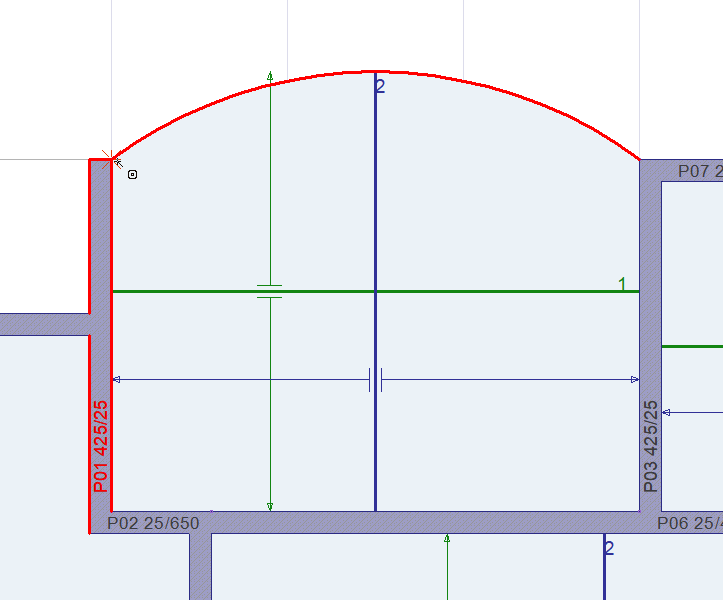

Determination of the first point of the arc slab band

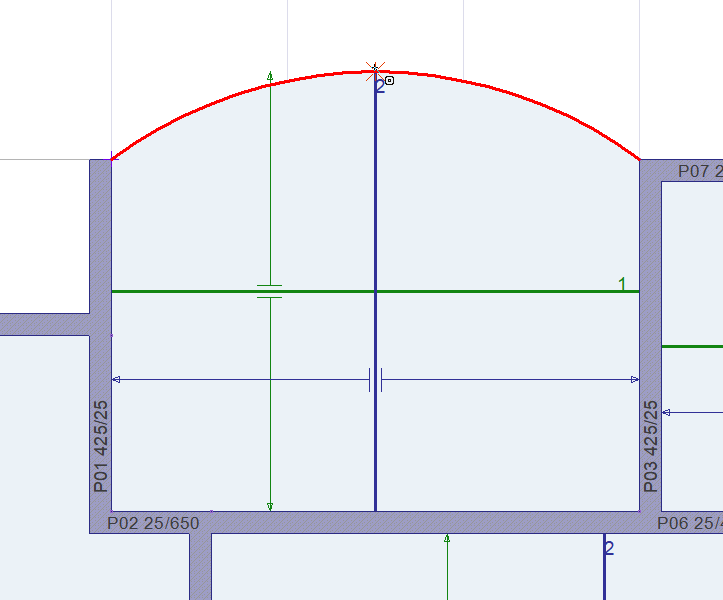

Determination of the second point of the arc slab band

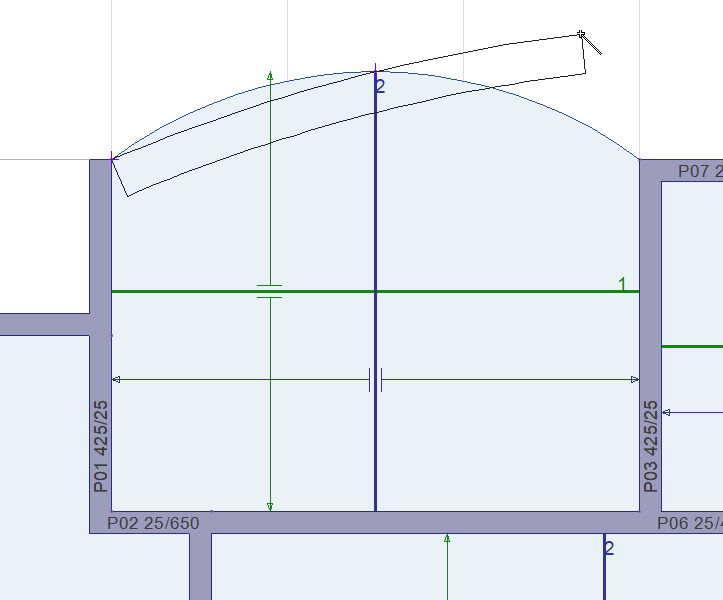

Formation of the projection of the arc slab band

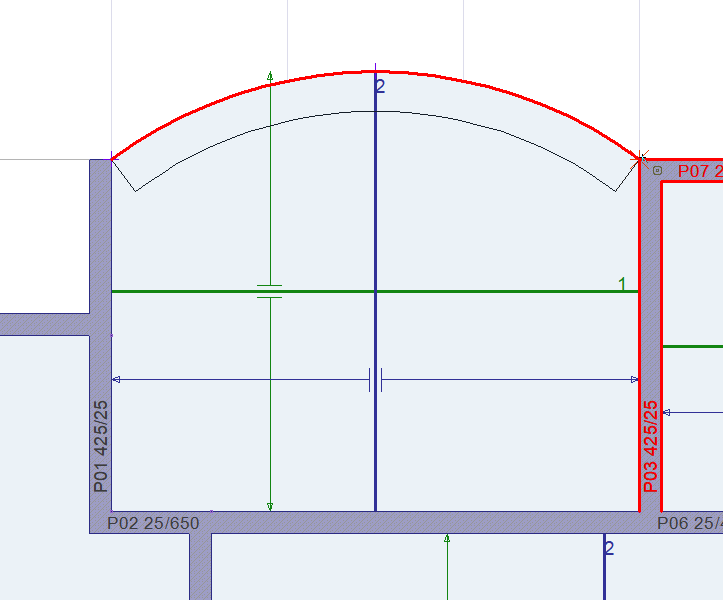

Determination of the third point of the arc slab band

Arc slab band formed slab


Next Topic

Slab Band Settings
