Axis Border

Axis Border defines the distance between the contour line and the axis label. The lengths of the drawn axes are automatically adjusted with the Axis Border command.

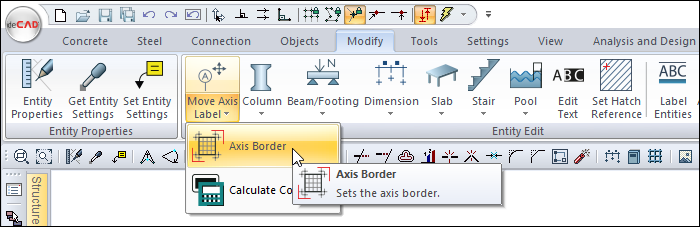

Location of Axis Border Command

It is located under the Move Axis Label command list under the Modify Tab.

Axis Border Margins

Specifications

Left

Enter the distance between the left side of the axis border and the contour line.

Right

The distance between the right side of the axis border and the contour line is entered.

Top

Enter the distance between the upper side of the axis border and the contour line.

Bottom

Enter the distance between the underside of the axis border and the contour line.

Apply to all drwaings

If the option is selected, the values ​​entered are applied to the axis borders in all drawings.

Usage Steps

You can change the axis borders at any time. For this;

  • Click on the axis border icon.

  • The axis border settings dialog will be displayed. Here you can see your distance between the current axis border contour line.

  • When the axis border are 0 cm, the axis borders are as follows.

  • Change the border values ​​to 50 cm by clicking the axis borders icon again.

  • When you click the OK button, your axis borders will change.

Usage step

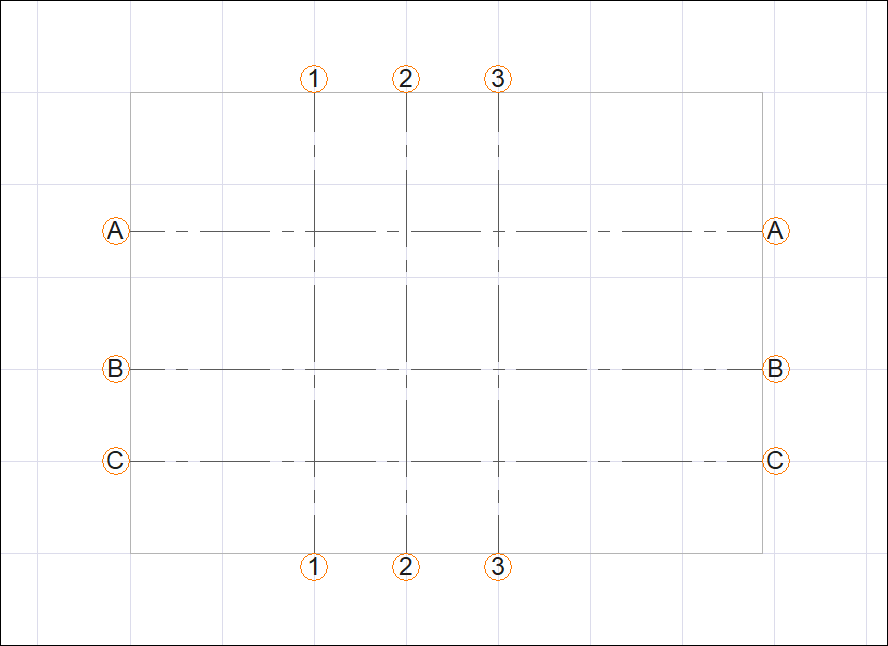

Axis borders when border values ​​are 0 cm

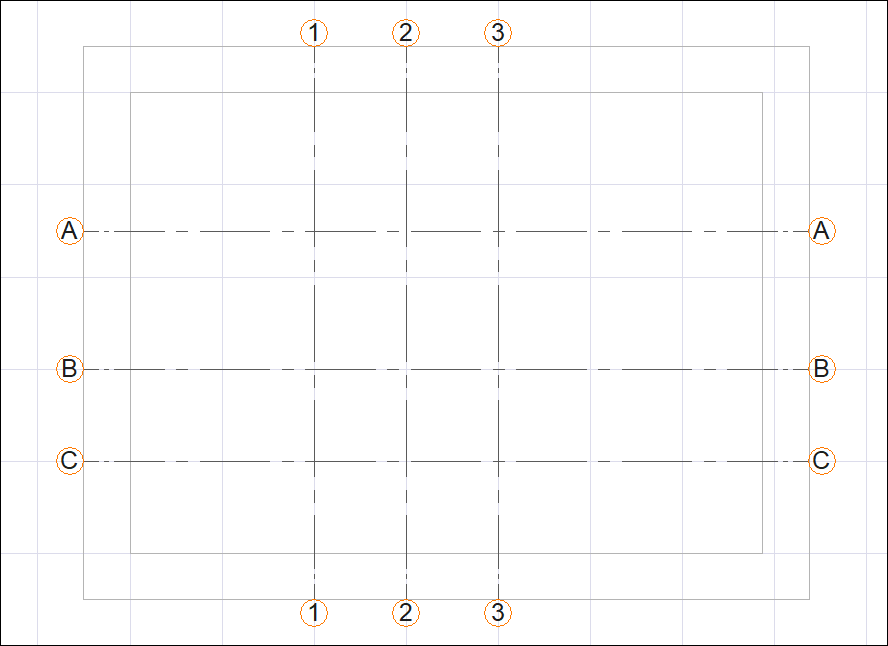

Axis borders when border values ​​are 50 cm
