Foundation Plan Section

The foundation plan section will be prepared automatically while creating the foundation plan, or after the foundation plan is created, the section line can be created in the wanted number. Automatic creation of the foundation plan section while receiving the foundation plan depends on the Add structural sections option in the Drawing Properties dialog.

With the foundation plan drawing, even if the foundation plan sections are prepared automatically, new section lines can be defined in the wanted number and direction. By using the section lines, the sections can be placed at any wanted location in the drawing. Foundation plan section lines are used in the foundation plan window.

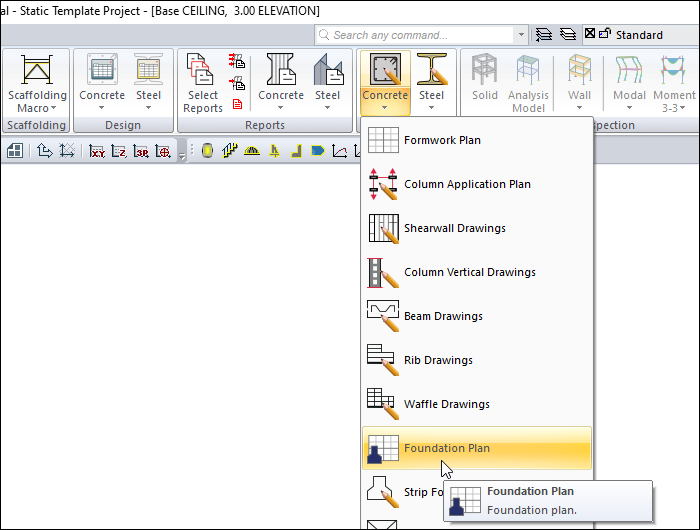

Location of the Formwork Plan Command

You can access it under the ribbon menu Concrete tab, Create Drawing heading.

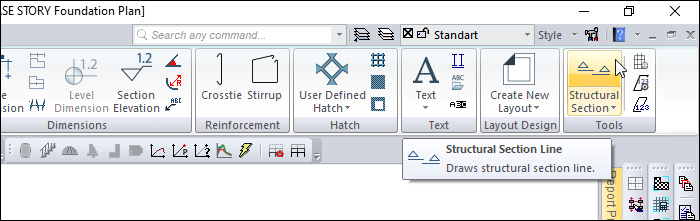

Location of the Structural Section Command

You can access it under the Drawings tab, Tools heading.

Usage Steps

  • Click the Formwork Plan command to create the foundation plan .

  • The Drawing Properties dialog will open.

  • Click the Advanced Settings tab.

  • Check the option Add structural section .

  • If you do not want the structural section to be created automatically, uncheck it.

  • When you click the OK button, your choice will be processed and your foundation plan will be created.

  • Click on the line Structural Section Line under the tools heading of the Drawings tab .

  • Move the cursor to the location you want to section and click any point with the left mouse button.

  • The first point of the section line will appear. Slide the cursor at a specific angle. Click the left button again at a sufficient distance.

  • At this stage, you can create a stepped section line by clicking the left button again.

  • After the section line is drawn, press the Enter key on the keyboard. (The mouse cursor will become an eye)

  • To specify the viewing direction of the section line, move the cursor above or below the section line and left click.

  • The preview of the section will appear. The preview moves perpendicular to the drawn section line.

  • Move the preview to the appropriate position and click the left mouse button.

  • The section will be formed.

Usage step

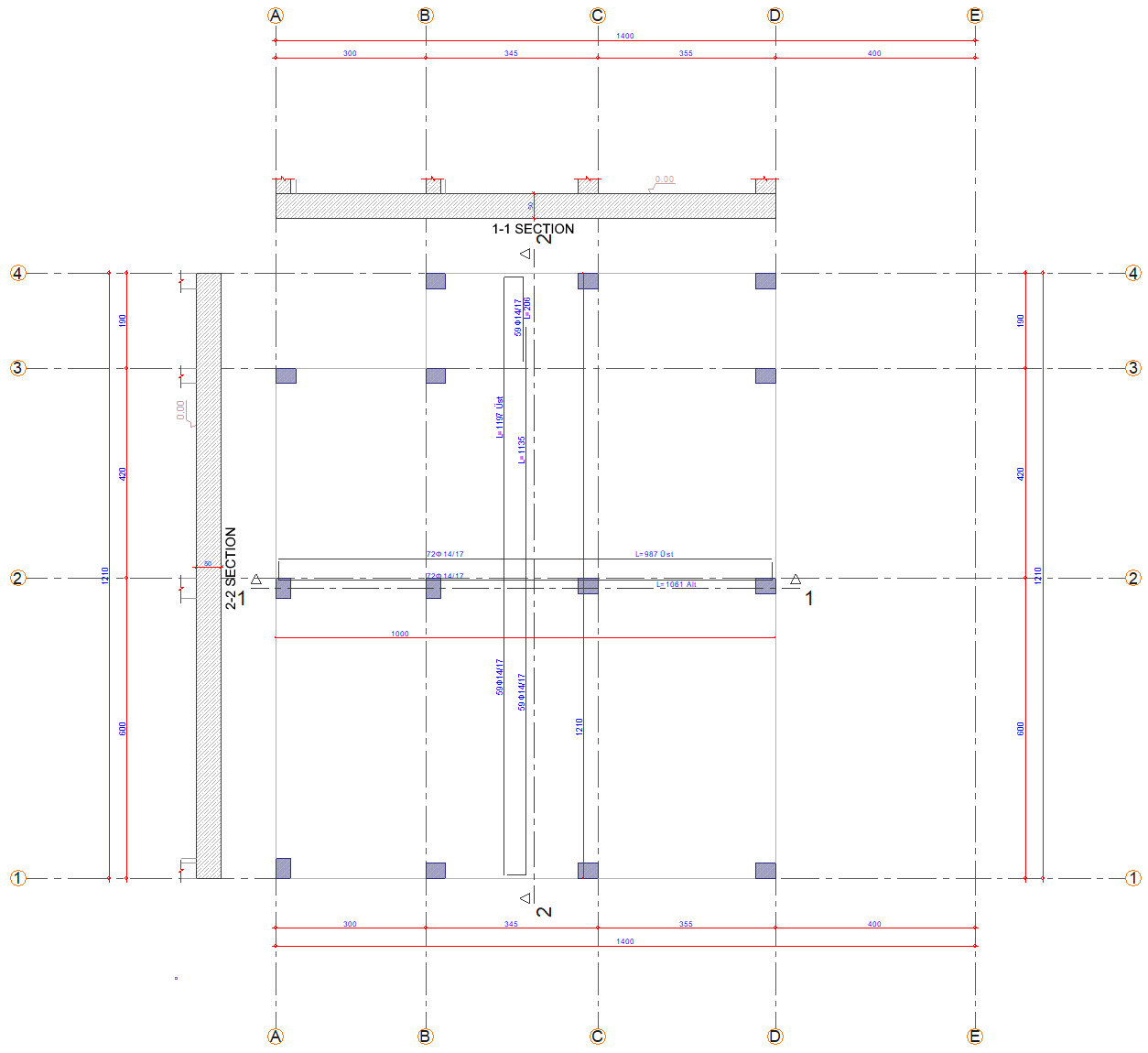

Foundation plan

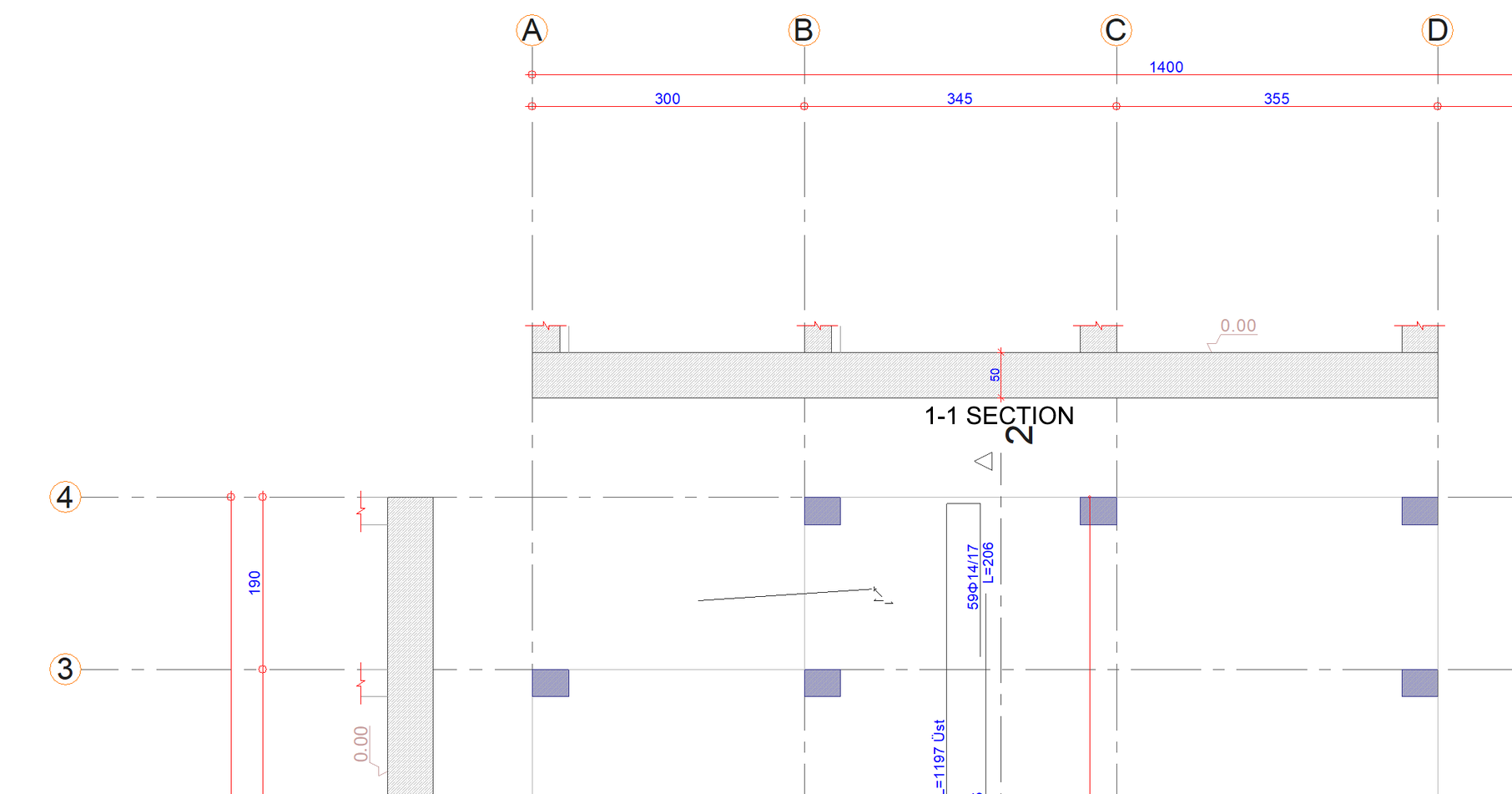

Determining the first point for the new section line

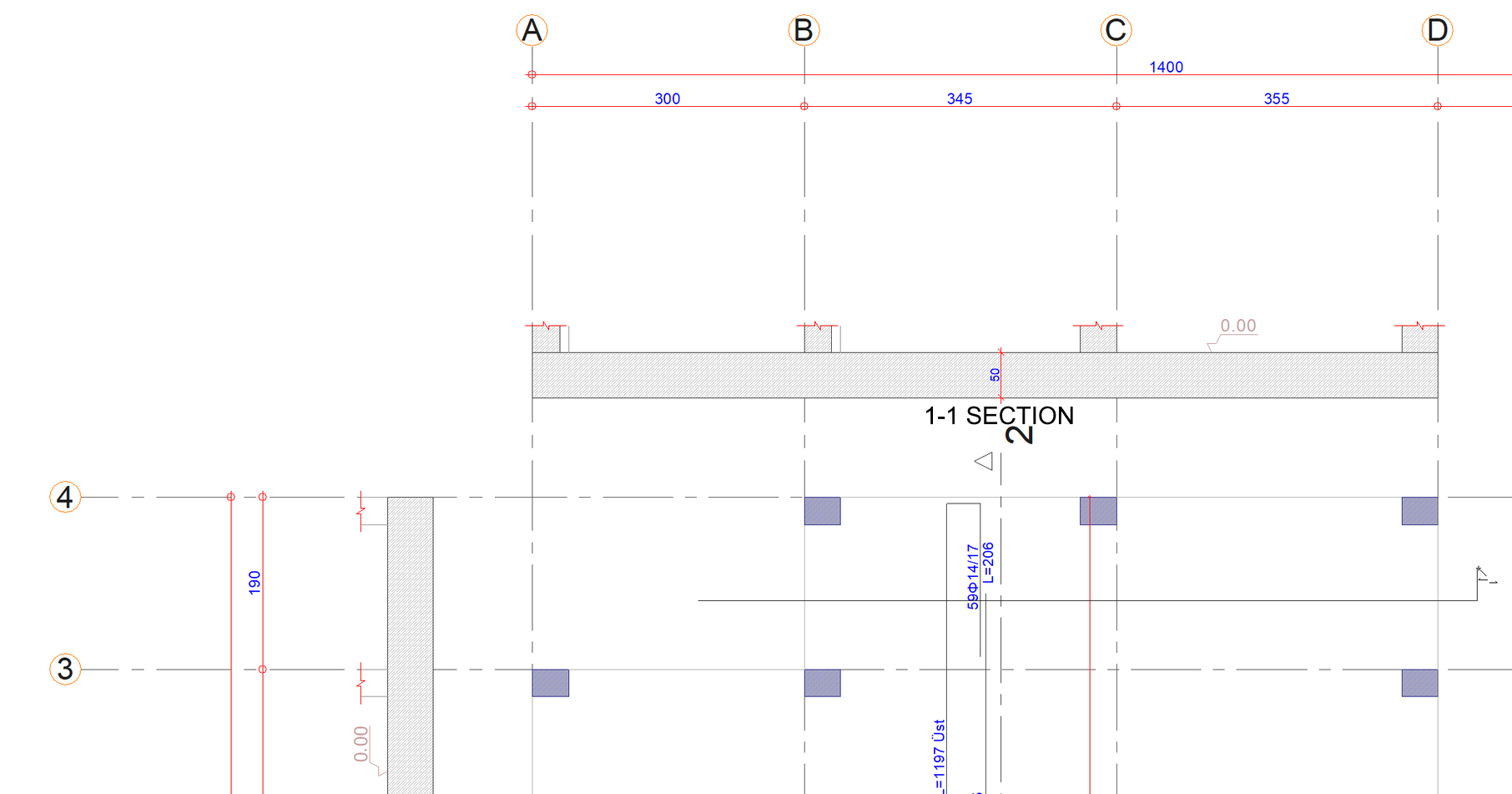

Determination of the second point

Determining the viewing direction

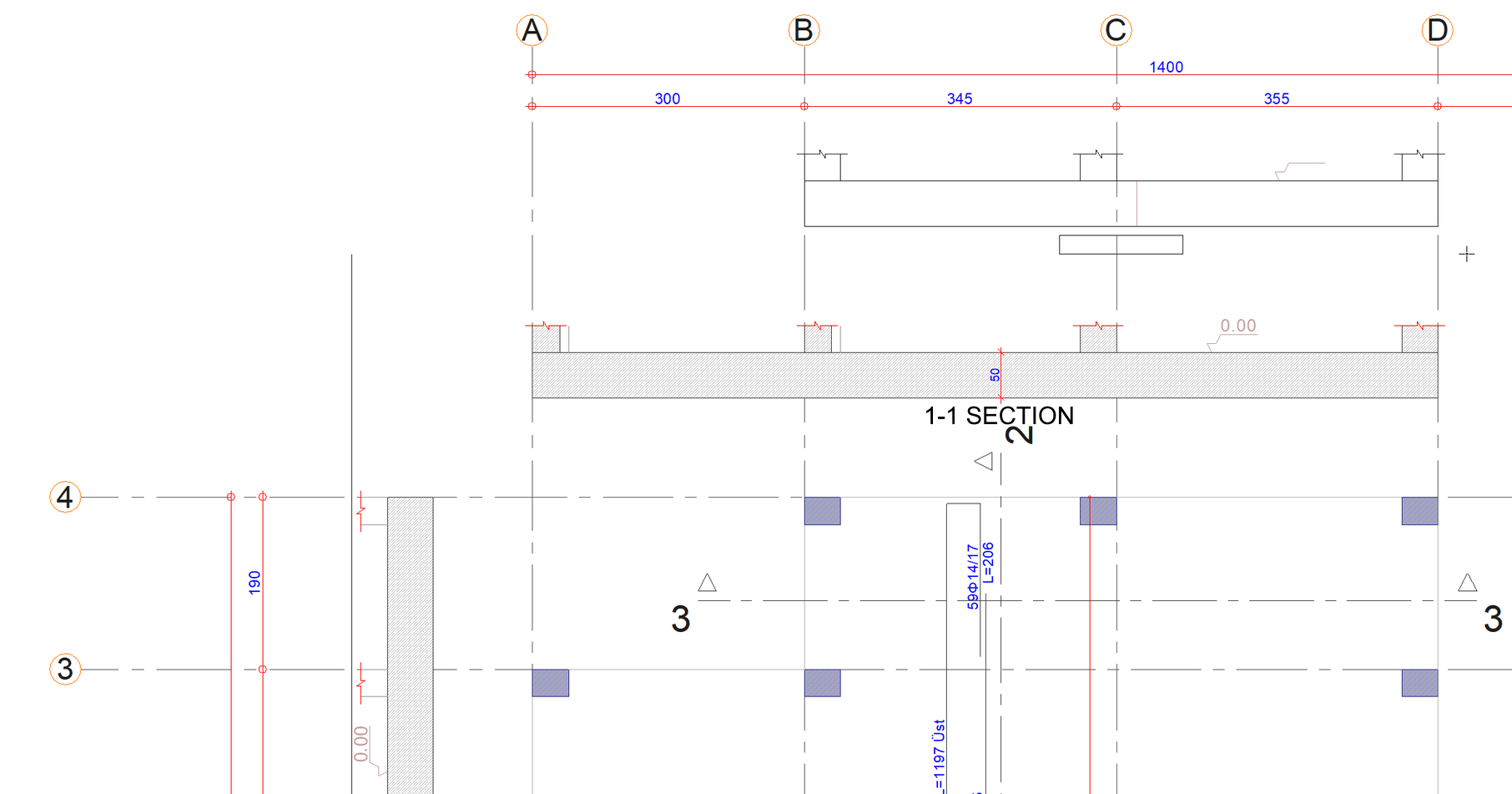

Previewing the new section, determining the data location

Creation of new section

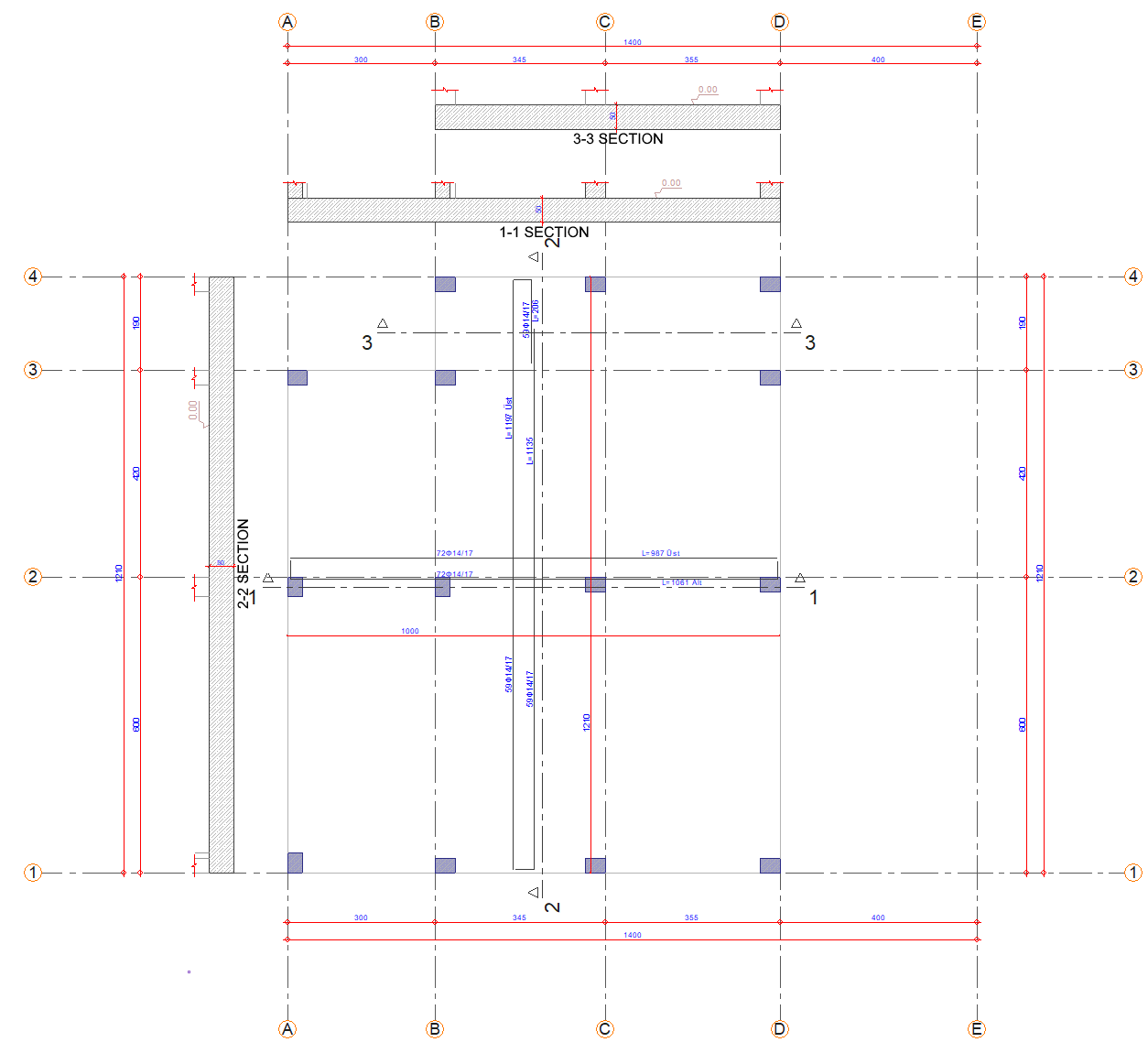

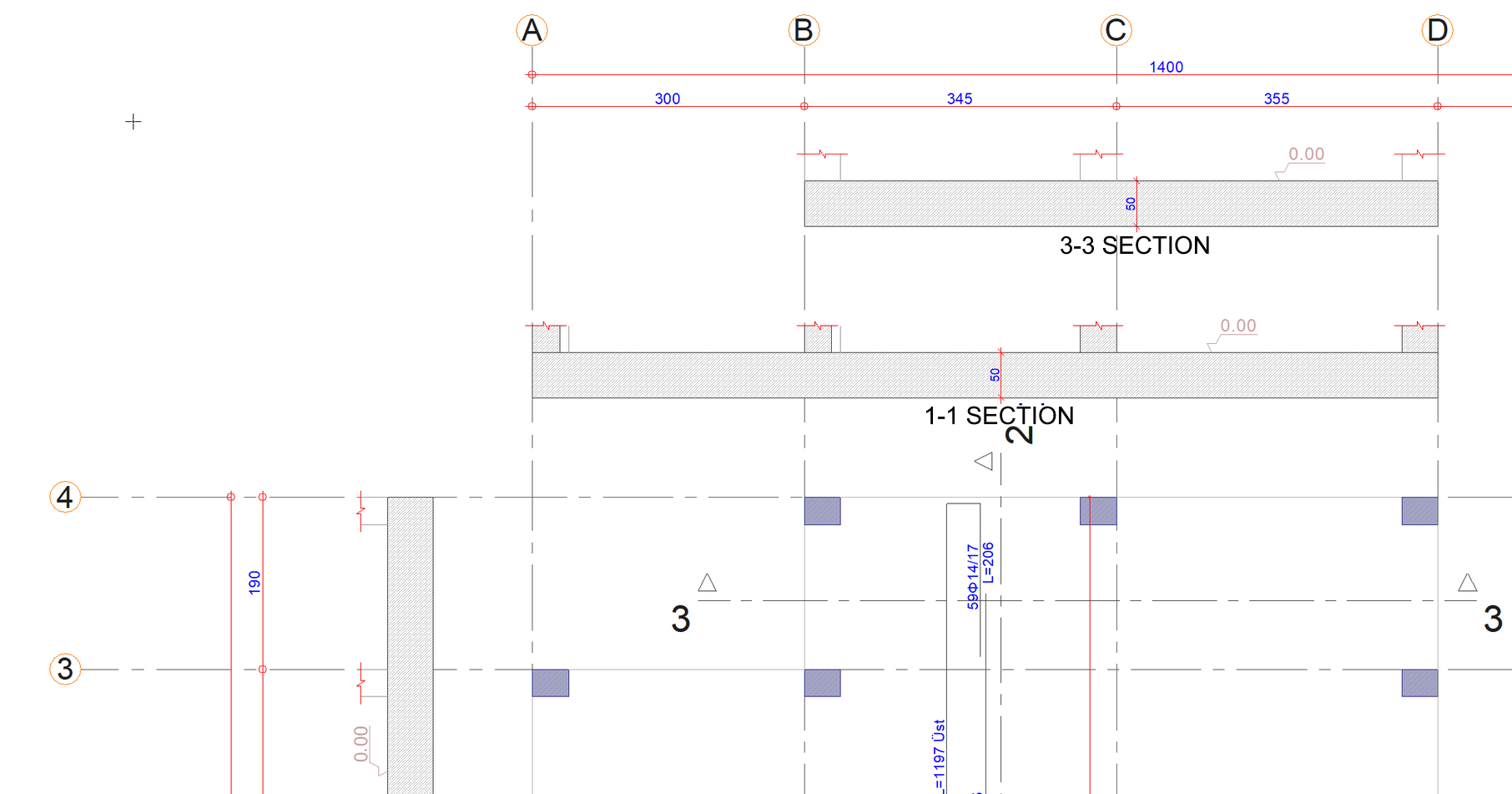

Foundation plan with section added

Static Section Properties

The properties of the prepared sections are determined with the information given in the Static Section Properties dialog. In order to transfer the changes made in the static section properties to the existing section, the section must be relocated.

You can access the section properties by double clicking the section line with the left mouse button.

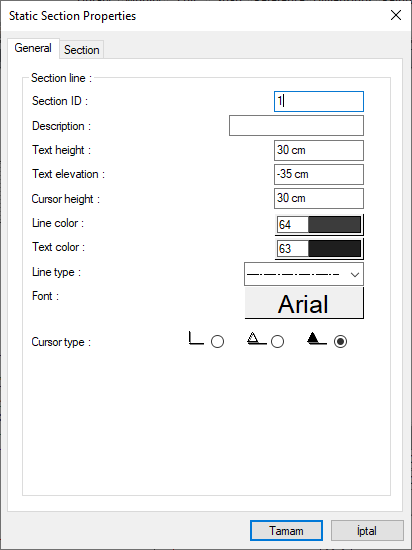

General Tab

Specifications

Section ID

It is the name of the section shown in the plan. For example, if 4 is written, 4 is written at the beginning and end of the section line.

Description

It is the description written under the section drawing. (A - A SECTION etc.) If the description line is left blank, an automatic definition is created with the name written in the section ID line. For example, if 1 is written in the section ID line, the definition of that section is automatically seen as 1-1 SECTION. If any definition is written on the definition line, that definition written under the section drawing is displayed.

Text height

It is the text height of the section ID text written at the beginning and end of the section line.

Text elevation

It is the distance from the section line of the section ID written at the beginning and end of the section line.

Cursor height

It is the size of the cursor sign placed at the beginning and end of the section line. What will be the cursor sign is available as an option at the bottom of the dialog. The larger the value written on this line, the larger the height of the sign, and thus the larger the sign is drawn.

Line color

It is the color of the section line and section line visible in the plan. The color palette is opened by clicking the box and a color is selected from the list.

Text color

It is the color of the section ID text written at the beginning and end of the section line. By clicking the box, the color palette is opened and a color is selected from the list.

Line type

It is the line type of the section line. The section line is drawn according to the selected type.

Font

It is the font of the section ID text written at the beginning and end of the section line. The font dialog opens by clicking the font box. The appropriate font is selected in the dialog.

Cursor type

The type of direction marker placed at the beginning and end of the section line. The wanted mark to be used is selected by clicking the left mouse button while the mouse cursor is on it.

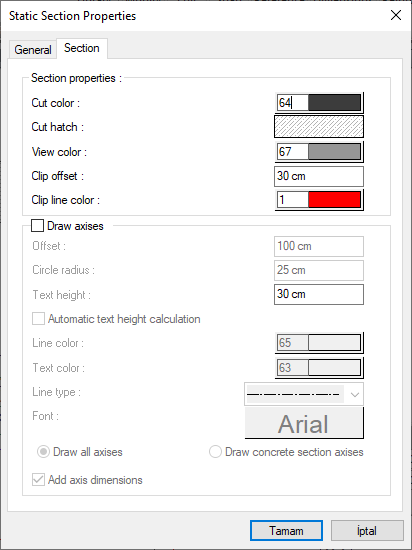

Section Tab

Specifications

Cut colors

Select the color of the cut objects from the color palette that appears when clicked.

Cut hatch

Select the hatch of cut objects by selecting one of the hatch options that open when clicked.

View color

Select the color of visible objects from the color palette that opens when clicked.

Clip offset

It is the value that determines the total height of the prepared section. The higher the value, the higher the height of the section plane.

Clip line color

It is the color of the line showing the cut of visible objects at the level where the section plane ends. Select the appropriate color from the color palette that opens when clicked.

Draw axises

It is the option that determines whether the axes that cut the section plane are shown in the section. When the option is selected, the axes are shown in section.

Offset

Indicates the remaining distance between the axis circles of the axes shown in the section and the section plane. The higher the value, the farther the axis circles are from the section.

Circle radius

The radius of the axis circles shown in the section. Axis circles surround the axis names. The larger the value, the larger the axis circles.

Text height

It is the text height of the axis names shown in the section. The higher the value, the larger the names are written. If the "automatic text height calculation" option just below is selected, the "text height" will be disabled and the axis text will be automatically fitted inside the axis circles.

Automatic text height calculation

If the "Automatic text height calculation" option is selected, the "Text height" value just above will be inactive and the axis text will automatically fit inside the axis circles.

Line color

The line color of the axis circles shown in the section. Select the appropriate color from the color palette that opens when the color box is clicked.

Text color

It is the font color of the axis texts shown in the section. Select the appropriate color from the color palette that opens when the color box is clicked.

Line type

It is the line type of the line drawn between axis circles and the section plane. Select the appropriate linetype from the list.

Font

The font of the axis texts shown in the section. Select the appropriate font from the font list that opens when the font box is clicked.

Draw all axises

When the option is checked, it shows all the axises defined during data entry, in their respective positions in the section.

Draw concrete section axises

When the option is checked, it shows the axises defined at the time of data entry but only intersecting the columns, in their positions in the section.

Add axis dimensions

If the option is selected, the spacing of the axises shown in the section is dimensioned. If not checked, it will not be dimensioned.
