Defining a Multi Stiffener Plate Connection

With the Multi Stiffener Plate command, stiffening plates are created as much as the number given to the steel column or steel beam element selected.

Location of the Multi Stiffener Plate Connection Command

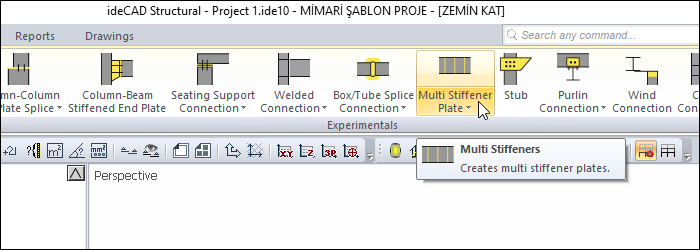

You can access it under the Ribbon menu, Connection tab, Experimentals title.

Usage Steps

If Draw in Fast Mode is Active

  • From the Connection menu, click the Multi Stiffener Plate Connection icon.

  • In 3D perspective view, move the mouse pointer closer to the element, close to the support

  • After this process, the virtual image of the connection will appear.

  • If the connection is suitable, create the connection by clicking the left mouse button.

  • The connection will occur with default settings.

If Draw in Fast Mode is Inactive

  • From the Connection menu, click the Multi Stiffener Plate Connection icon.

  • Click the column then the beam before the 3D perspective view.

  • The multi stiffener plate connection settings dialog will open.

  • The connection will occur when the wanted settings are made and the OK button is clicked.

Location of the Multi Stiffener Plate Connection Settings Dialog

If the draw in fast mode is active, the connection settings will be opened automatically.

If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.

Multi Stiffener Plate Connection Settings Dialog

General Tab


Specifications

Stiffeners

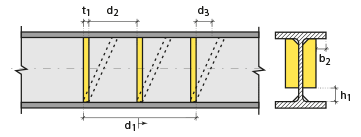

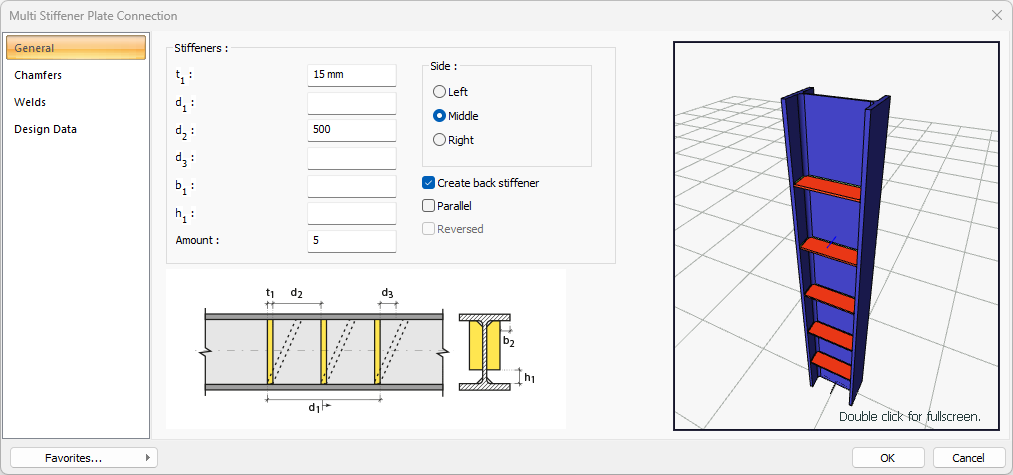

 The number and properties of the stiffeners are determined by entering the values. The values ​​to be entered are shown in the schematic drawing.

Side

Stiffners are made for the placement of the side.

If the back stiffener plate is marked, for example I profiles, plates are formed on both sides. If not marked, a plate is created on one side.

Schematic drawing

Connection and plate values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Chamfers Tab


Specifications

Chamfer (c1)

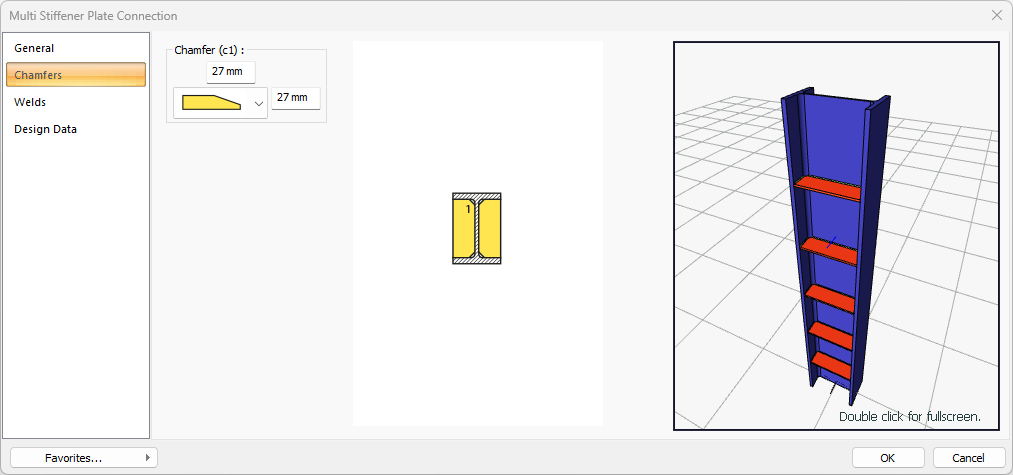

For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value.

Schematic drawing

Connection, notching and cutting values ​​are shown on the schematic drawing.

Preview

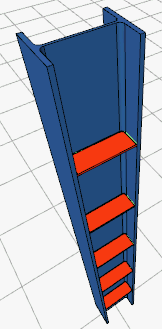

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Welds Tab


Specifications

Welds

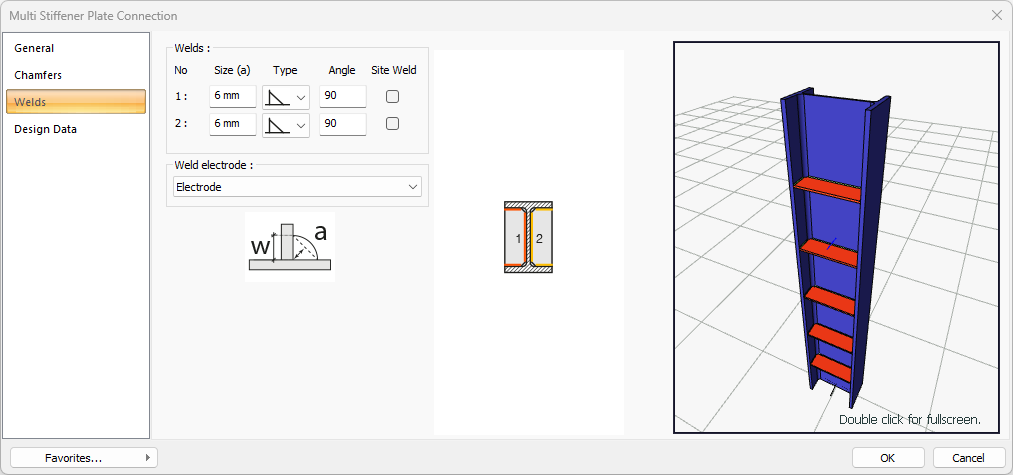

The thickness, type and angle values ​​of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered.

Weld electrode

The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld connection is controlled under the condition that it has less strength than the weld strength.

To create the welding electrode, provide the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New".

Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC.

Schematic drawing

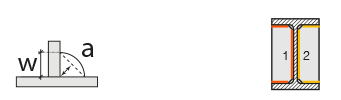

Connection and weld values ​​are shown on the schematic drawing.

Preview

There is a preview of the connection. The selection made and the entered values ​​can be followed simultaneously in the preview.

Design Data Tab

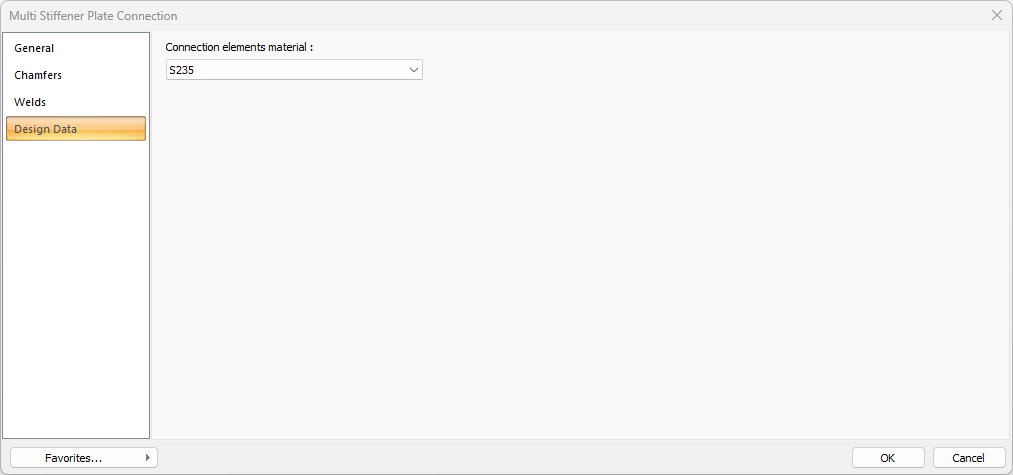

In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.


If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
