3D Isometric View Drawings

The 3D Isometric View Drawings command is used to prepare 3D isometric view drawings.

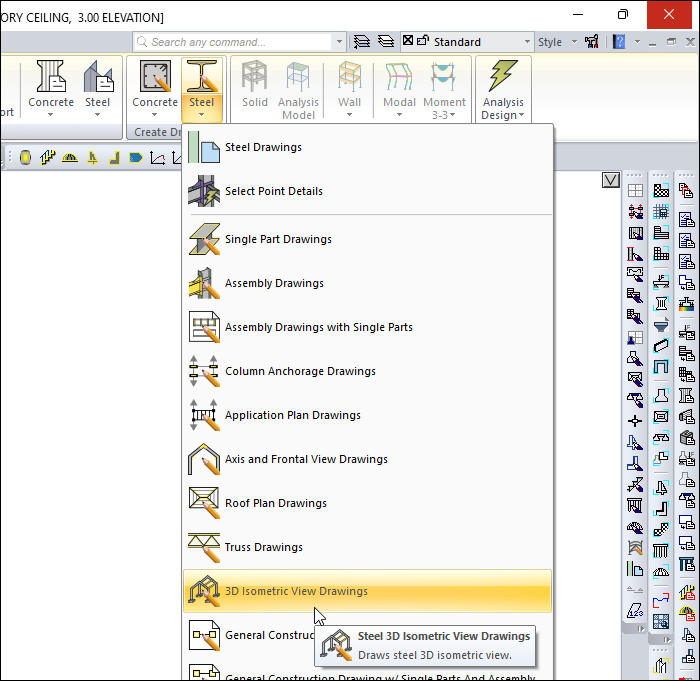

Location of the 3D Isometric View Drawings Command

You can access it under the Steel tab, Create Drawings heading.


Usage Steps

  • Click the 3D Isometric View Drawings icon.

  • Isometric view drawing will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

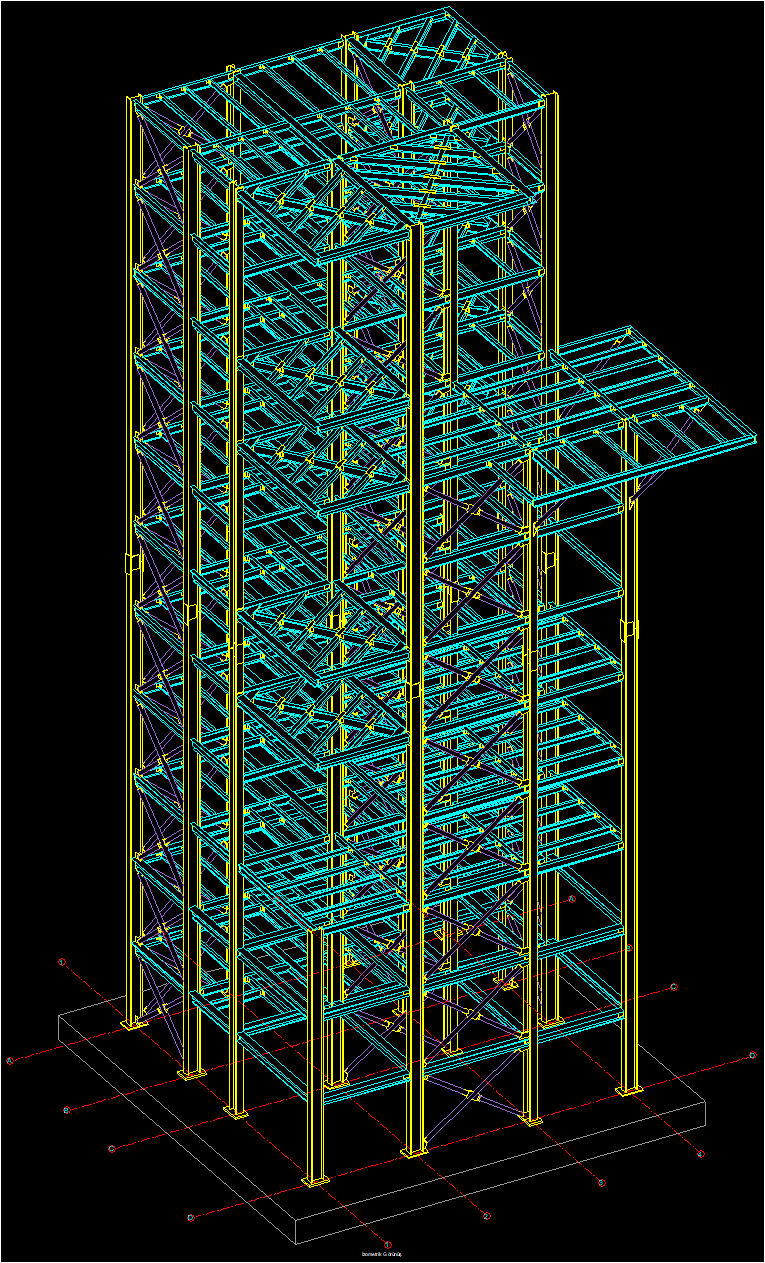

Sample 3D isometric view drawing
