Creating a Zone Hole

The Zone Hole command is used to open hole on the created zones, in other words gap the zones.

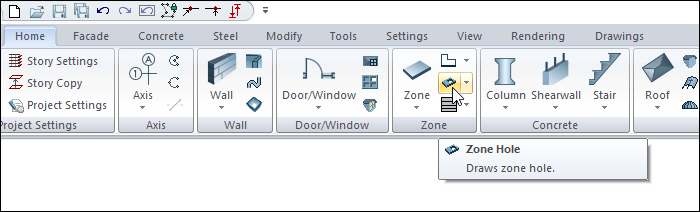

Location of Zone Hole Command

You can access it under the ribbon menu Home tab, Zone title

Usage Steps

  • Click the Zone Hole icon in the ribbon menu .

  • Move the mouse cursor over the zone you want to open a gap. Click the left mouse button to determine the first point of your gap boundary.

  • Create the zone gap boundaries by creating the second, third and fourth points by clicking the left mouse button.

  • When you close the border, your gap will be created and the gap will change.

Usage step

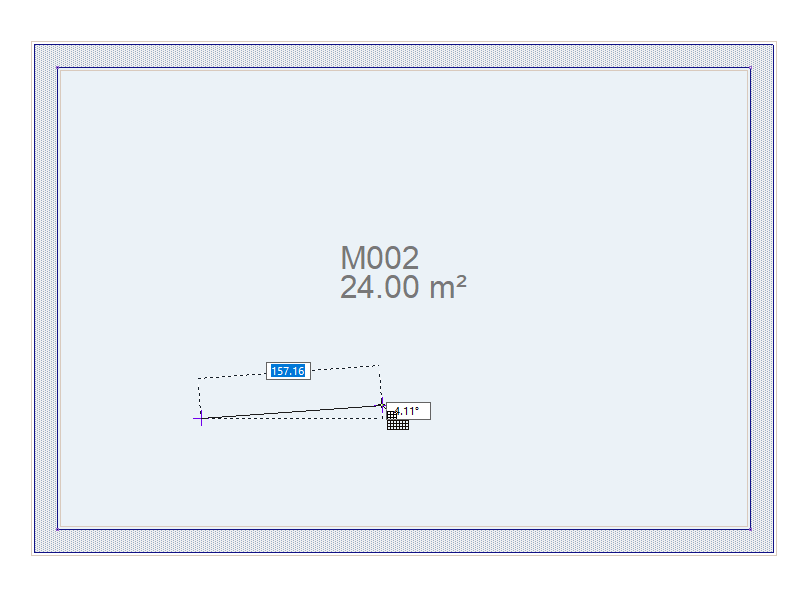

Determining the first point for the gap boundary on the zone to be opened

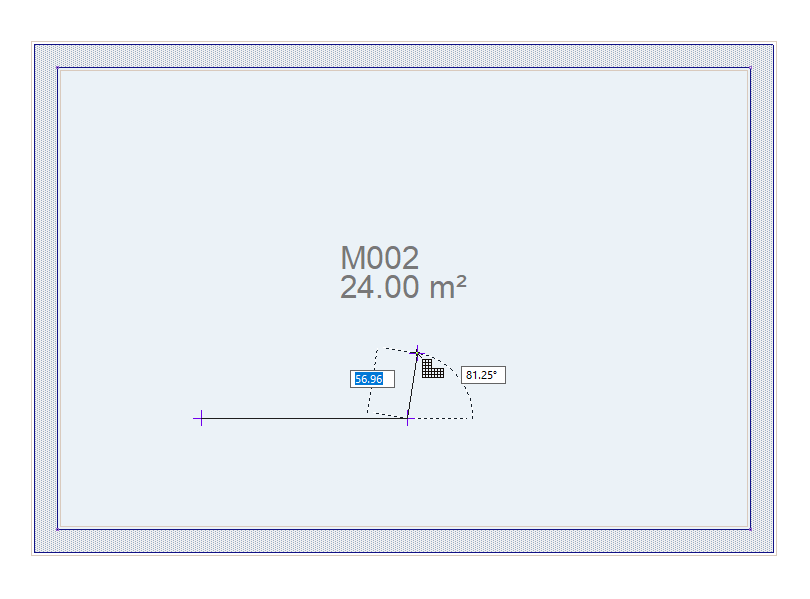

Determination of the second point

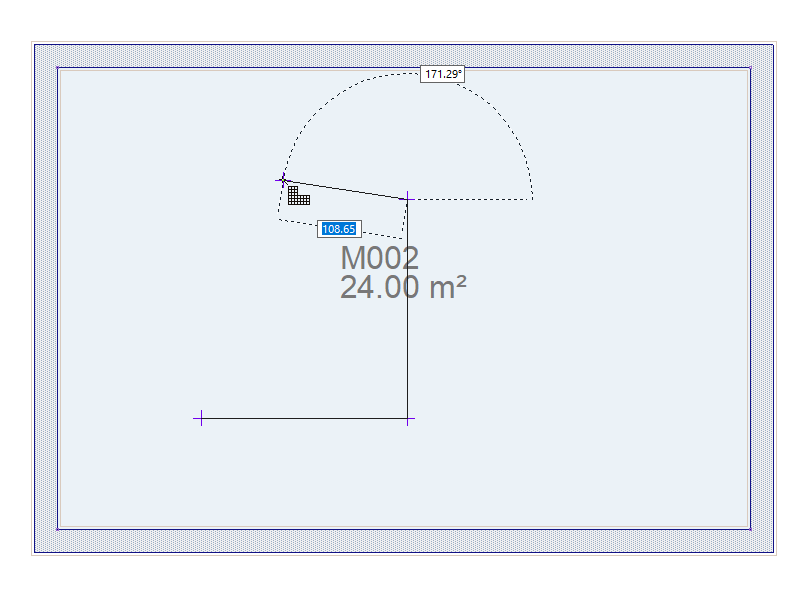

Determination of the third point

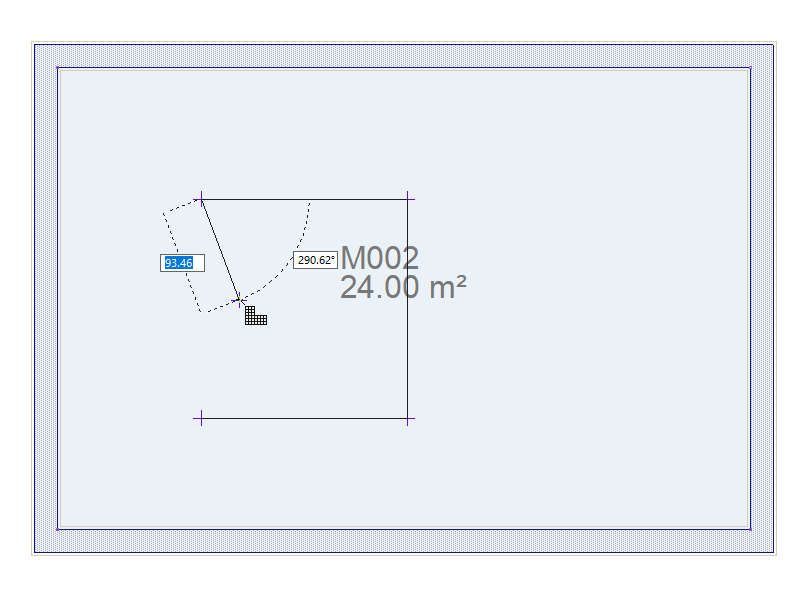

Determination of the fourth point

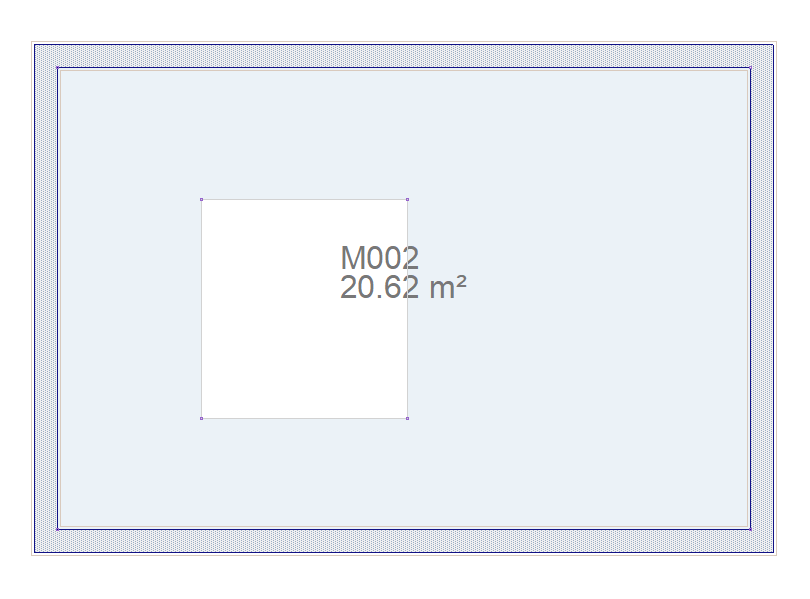

Closing the border and creating a zone gap
