Zone Hole Settings
With the Zone Hole Settings command, the Settings - Path dialog is accessed. Color and line settings are made.
Location of the Zone Hole Settings Command

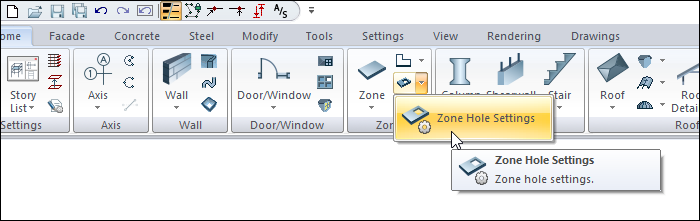

You can access it under the ribbon menu Home tab, Zone title.
![](../__attachments/2084372668/image-20210928-124116.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

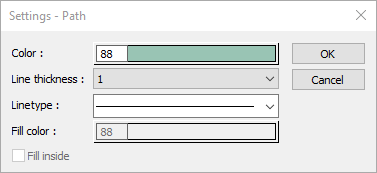

Settings - Path Dialog
![](../__attachments/2084372668/image-20210928-124146.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Specifications |
---|
Color ![]() Sets the color of the line. When the color box is clicked, the appropriate color is selected from the window that opens. |
Line thickness ![]() Line thickness is selected. The appropriate thickness is selected from the drop-down list when the down arrow button next to the box is clicked. The thickness selected here is only valid on the screen. It does not affect drawing printouts. |
Linetype ![]() Line type is selected. When the down arrow button next to the box is clicked, the appropriate line type is selected from the drop-down list. |
