General Construction Drawings w/Single Parts and Assembly

The General Construction Drawings - w/Single Parts and Assembly command is used to prepare general construction drawings, including single parts and assembly drawings . General construction drawings - w/single parts and assembly include axis and frontal view drawings, 3D isometric view drawings, single parts and assembly drawings.

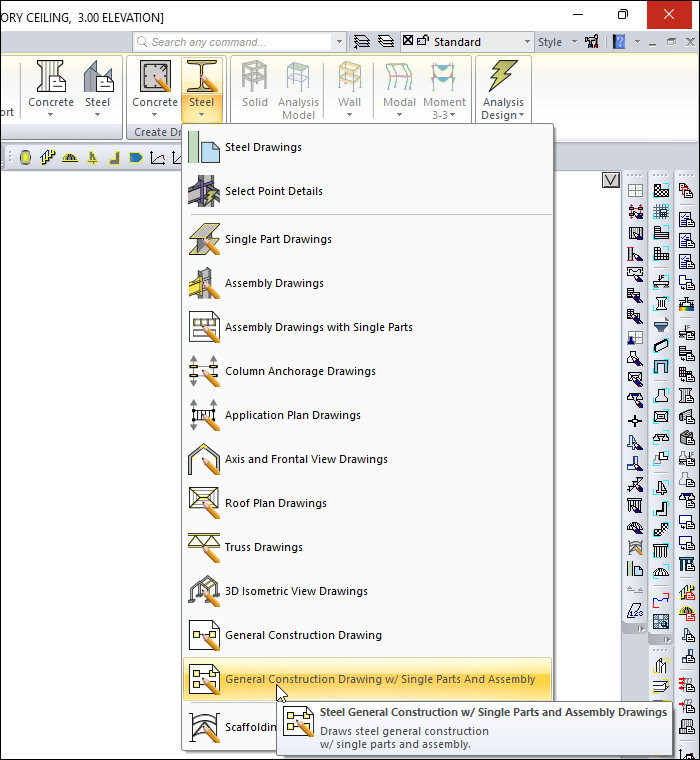

Location of the General Construction Drawings w/Single Parts and Assembly Command

You can access it under the Steel tab, Create Drawings heading.

Usage Steps

  • General Construction Drawings - w/Single Parts and Assembly click on the icon.

  • Drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

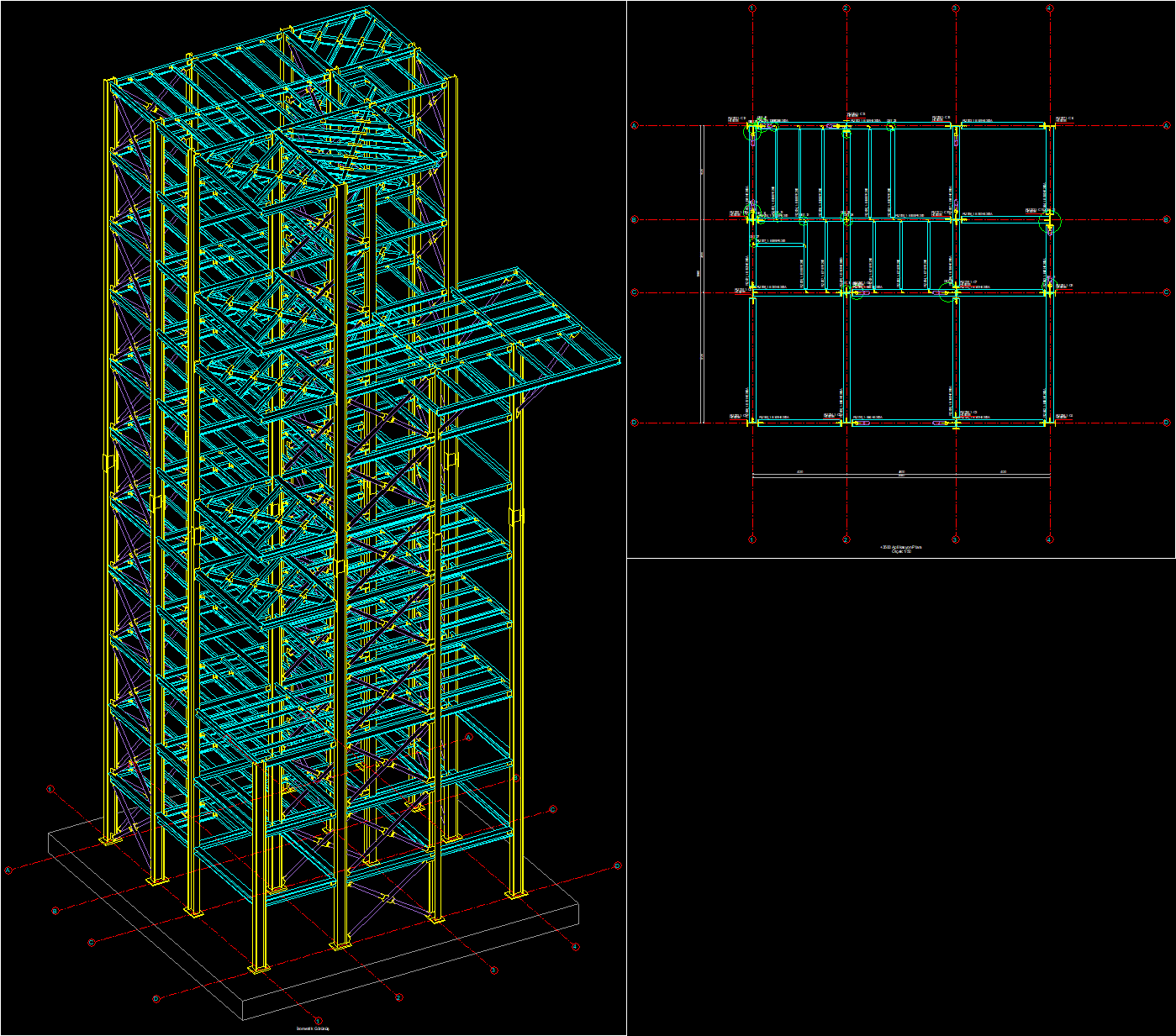

Sample general construction drawing
