Shearwall Moment-Curvature Report
Prepares the Moment-Curvature Report of the shearwall .
Location of Shearwall Moment-Curvature Report

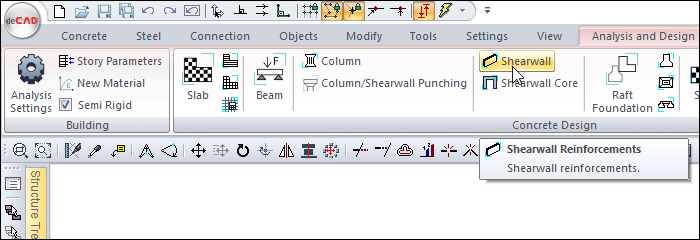

You can access it from the Moment-Curvature tab of the Shearwall Reinforcements dialog that opens when the Shearwall command in the ribbon menu Analysis and Design tab Concrete Design title is clicked .
![](../__attachments/2058387581/image-20210127-062318.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/2058387581/image-20210910-083001.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Usage Steps
Click the shearwall command in the concrete design title of the analysis and design tab.

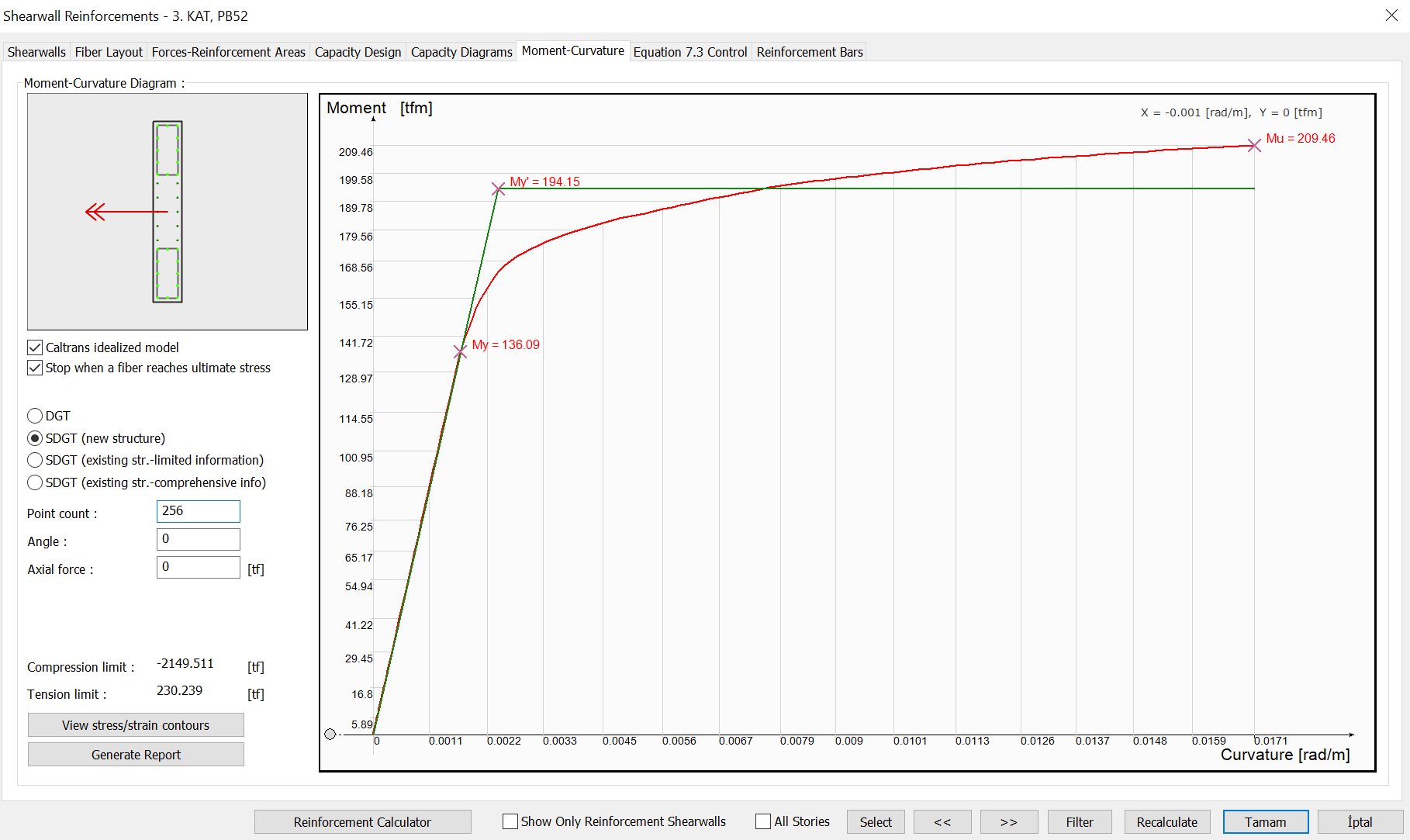

Click the Generate Report button from the moment-curvature tab of the shearwall reinforcements dialog .
The shearwall moment-curvature report will be displayed.

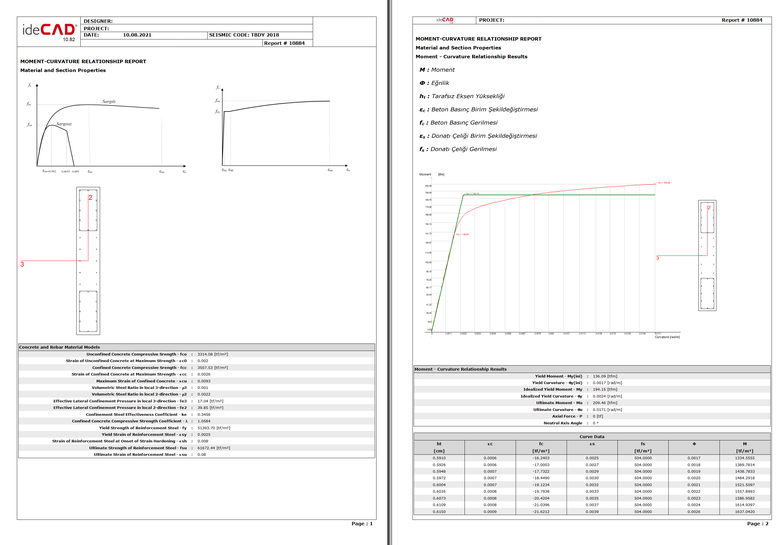

Example shearwall moment-curvature report pages ![]() |
You can find detailed information about moment-curvature at 15.5.4.3 .
