Change Edge Part End Angles

Change Edge Part End Angles command arranges the end parts of the sweep according to a given angle.

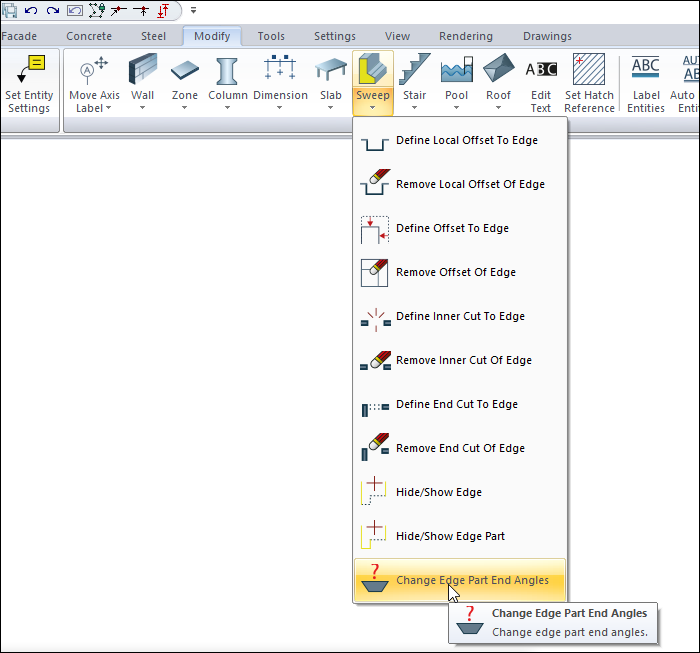

Location of Change Edge Part End Angles Command

You can access it from the ribbon menu Modify tab under Entity Edit title.

Usage Steps

  • Click the Change Edge Part End Angles icon.

  • Click the desired edge on the sweep you previously drew. It will be processed at the end close to the point you clicked.

  • The cursor at the end of the sweep will wait for you to specify the angle. Simultaneously give the Angle value in the coordinate box and lock the value by pressing the Enter key.

  • Press the left mouse button. The ending angle will change according to the value you entered.

Usage step

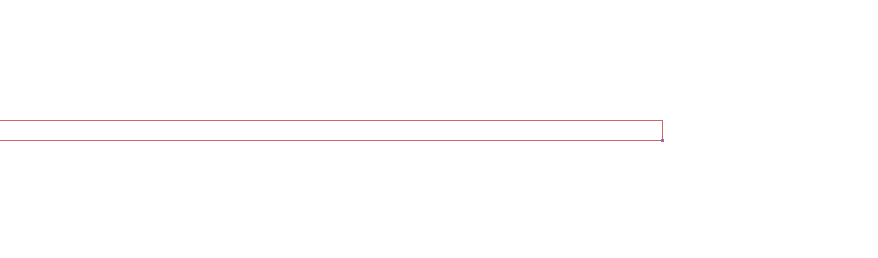

The initial version of the sweep

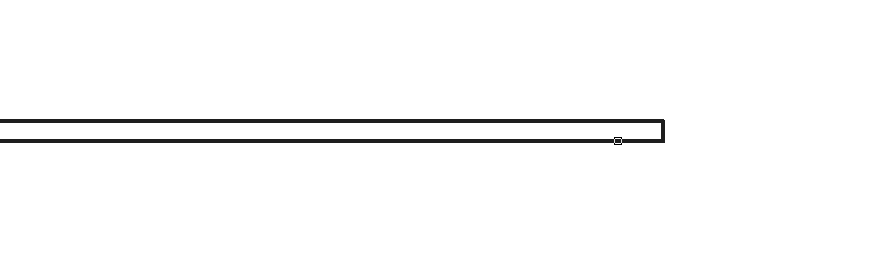

Selecting the edge to change the end angle

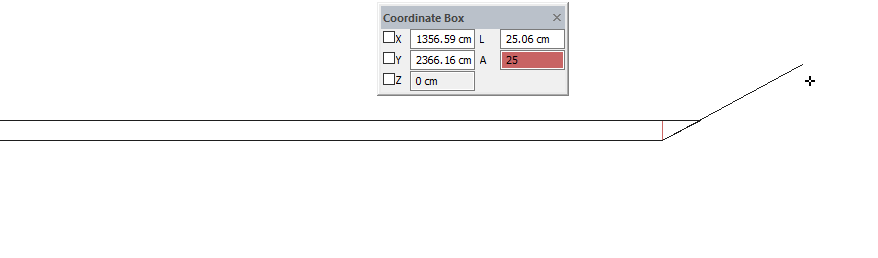

Entering the angle value

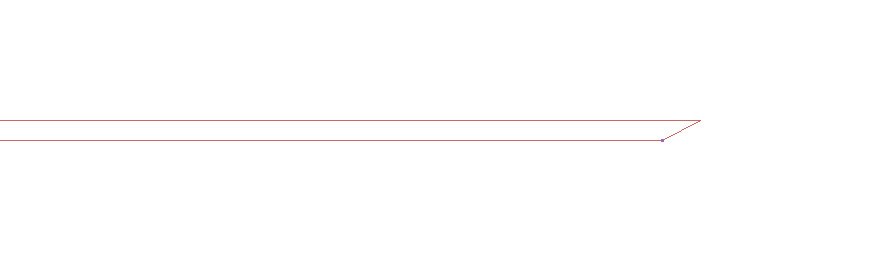

Final version of the sweep
