Point Detail Editing
In steel drawings, it allows editing of the selected point detail in the point detail list by adding a new connection or removing connection from the selection with Edit Point Detail command.

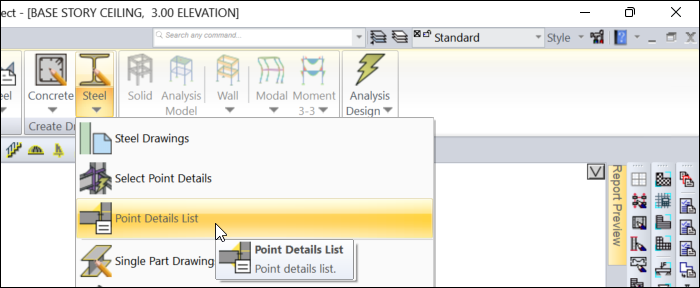

Location of Edit Point Detail Command
After clicking the Point Detail List command, you can access the Edit Point Detail command from the point details dialog that opens.

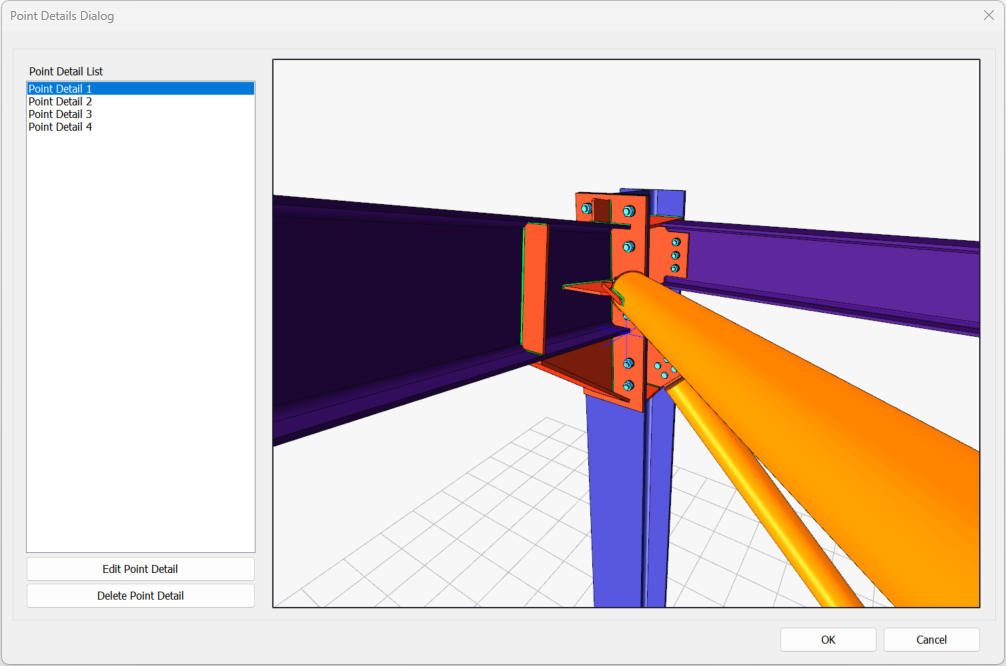

Point Details Dialog
Features |
Point detail list  The point details selected for drawing are listed. |
Preview  The selected point detail, connections and related elements are displayed in the list. |
Edit point detail  It allows editing by adding a new connection to the selected point detail in the list or removing connections from the selection. |
Delete point detail  The selected point detail in the list is deleted. |
Usage Steps
Open the point detail dialog by clicking the Point detail list command.
Select the point detail you want to edit from the list.
Click the Edit point detail button.

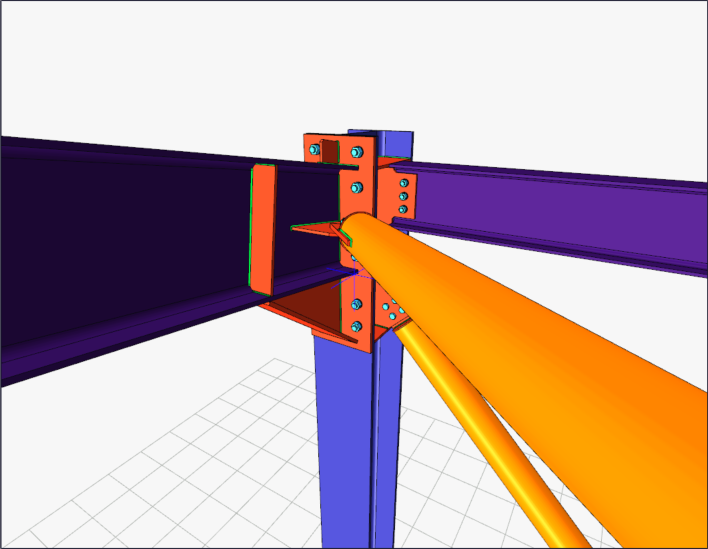

On the perspective screen, the relevant point detail will be selected and the image will focus on it.
Select the join(s) you want to remove or add from the detail.
When you're done editing, right-click the mouse.
The point details dialog will open, and the changes you make will be reflected in the preview.
Usage step |

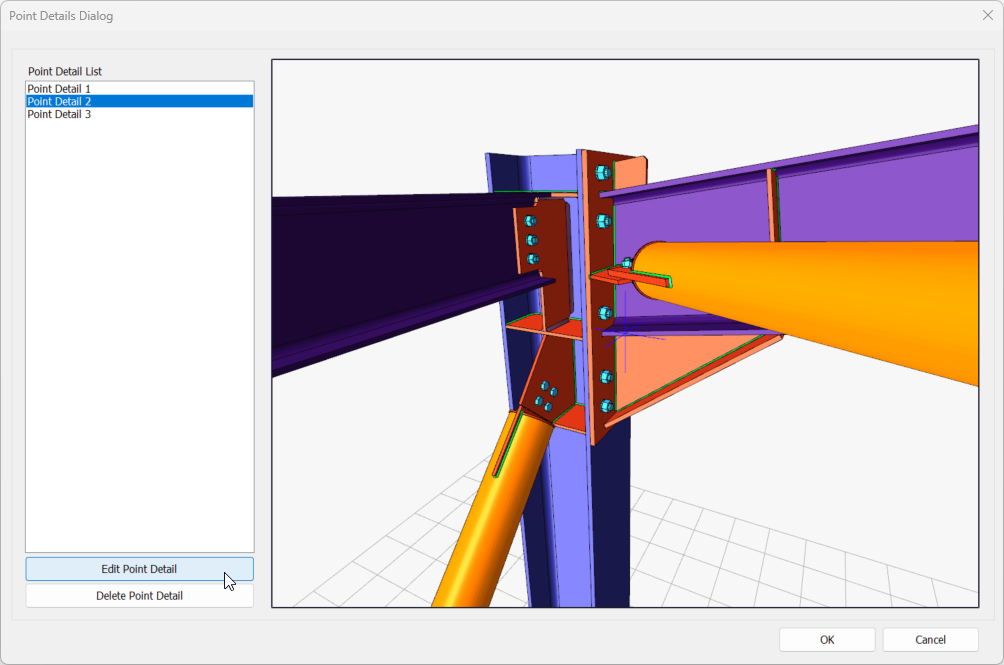

Selecting the detail to be edited from the list and clicking the edit point detail button  |

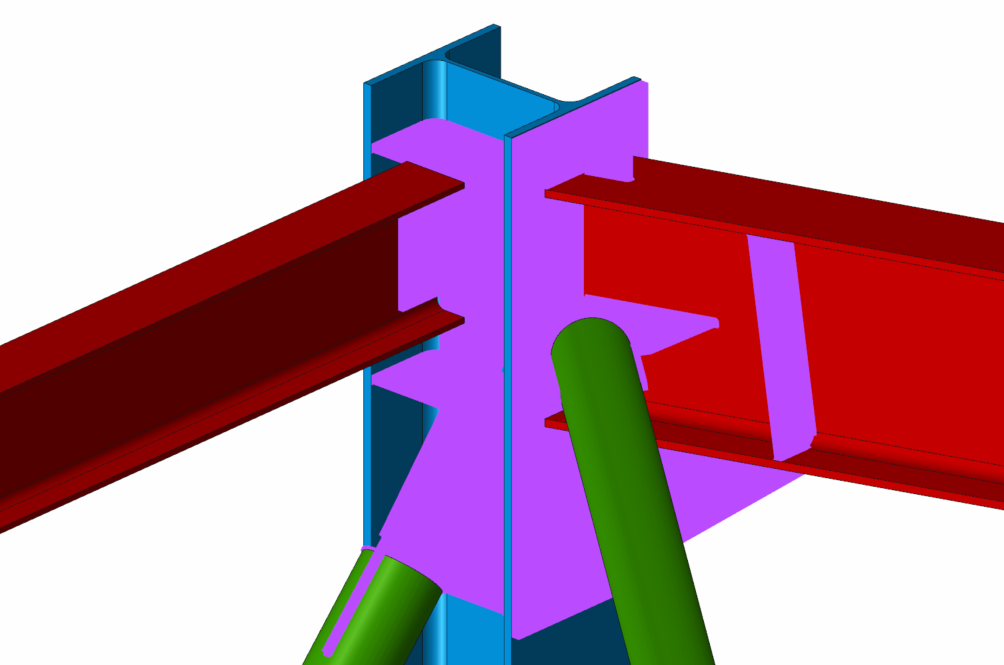

Before editing in point detail  |

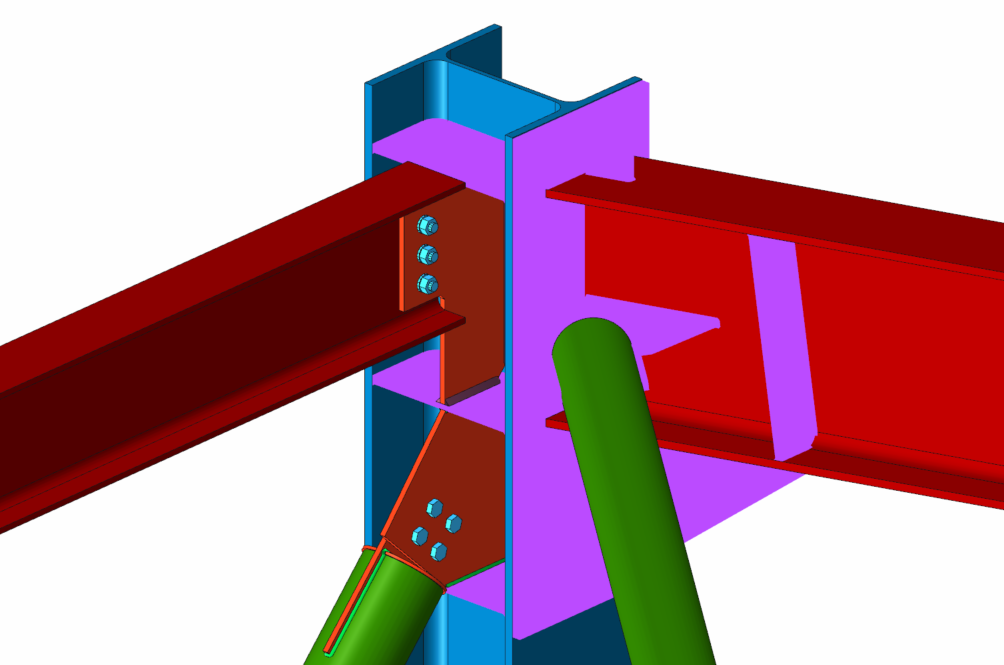

After editing in point detail  |

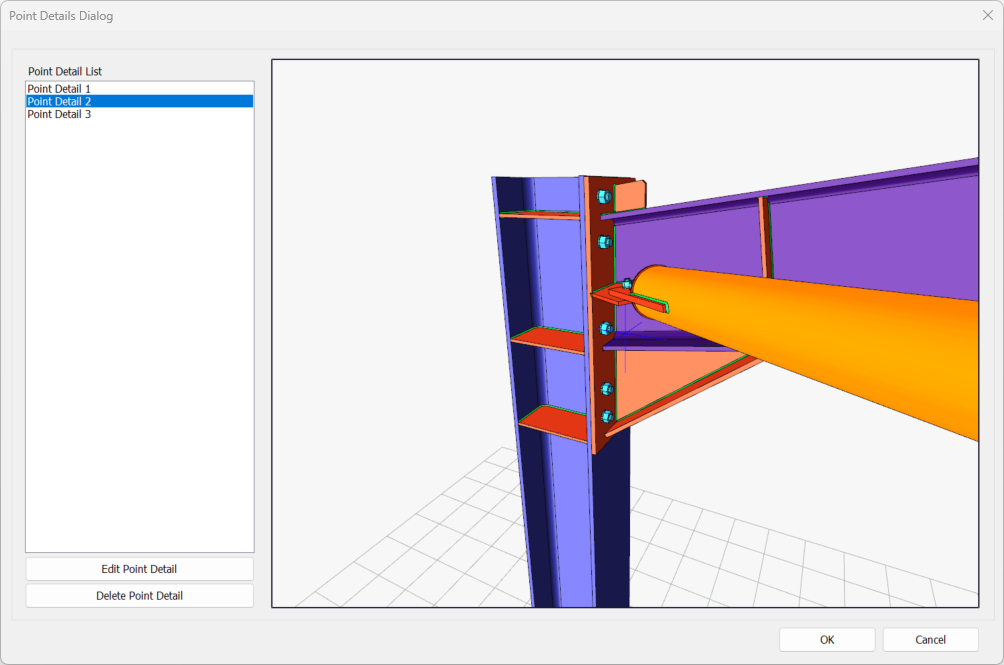

Reflection of the edit made in the point details dialog in the preview  |
