Well Foundation Drawings

Drawings of the well foundation can be prepared with the Well Foundation Drawings command.

Location of the Well Foundation Drawings Command

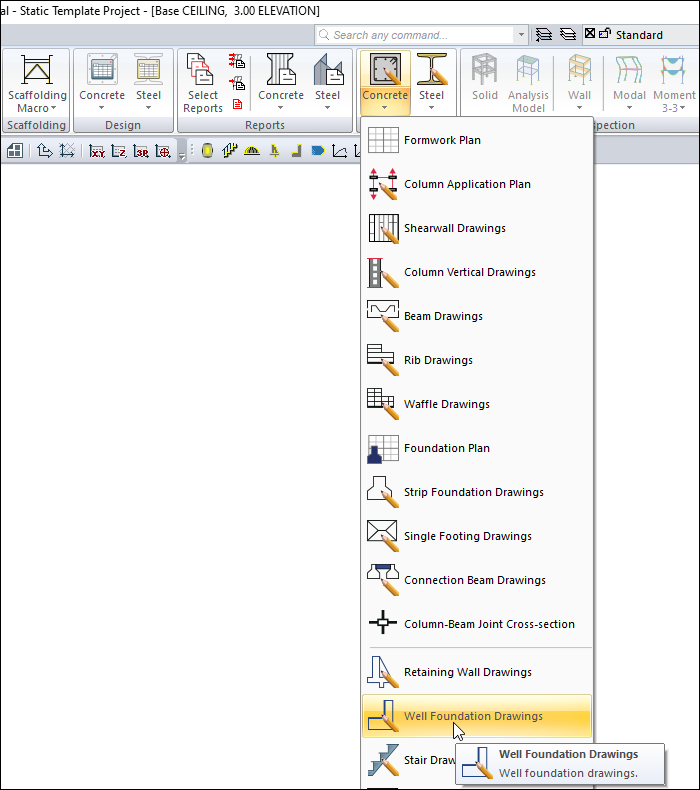

You can access it under the ribbon menu Concrete tab, Create Drawing heading.

Usage Steps

  • Click on the Well Foundation Drawings icon.

  • The drawing properties dialog will open. If there is a different situation in this dialog, change the parameters related to the drawing.

  • When you click the OK button, the well foundation drawing will be created.

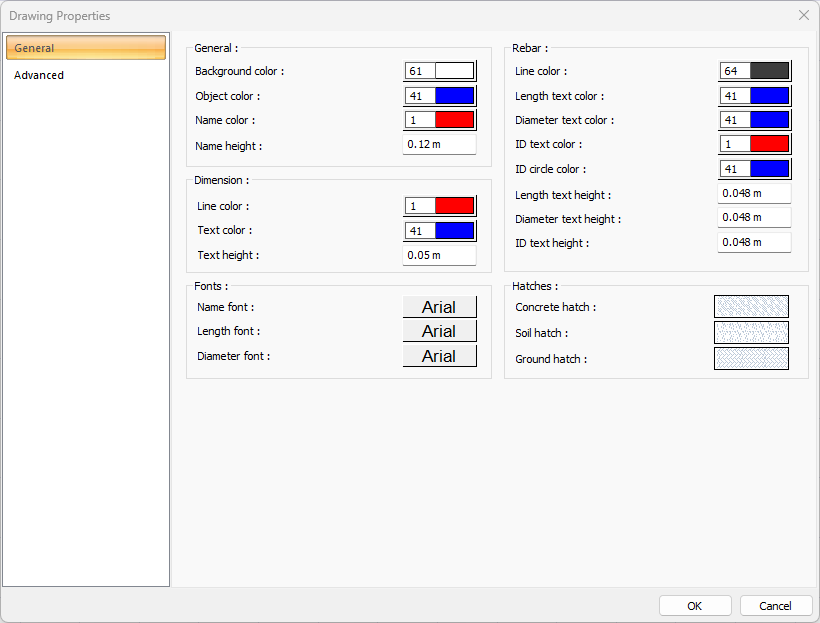

General Tab

Specifications - General

Background color

Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens.

Object color

Sets the object color. When the color box is clicked, the appropriate color is selected from the window that opens.

Name color

Sets the name color. When the color box is clicked, the appropriate color is selected from the window that opens.

Name height

Name height is entered.

Specifications - Dimensions

Line color

Sets the measure line color. When the color box is clicked, the appropriate color is selected from the window that opens.

Text color

Sets the color of the dimension text. When the color box is clicked, the appropriate color is selected from the window that opens.

Text height

Size text height is entered.

Specifications - Fonts

Name font

Name font is selected.

Length font

The font of the length fonts is selected.

Diameter font

Diameter font is selected.

Specifications - Rebar

Line color

Sets the color of rebar lines. When the color box is clicked, the appropriate color is selected from the window that opens.

Length text color

Sets the color of the length text. When the color box is clicked, the appropriate color is selected from the window that opens.

Diameter text color

Sets the color of the diameter text. When the color box is clicked, the appropriate color is selected from the window that opens.

ID text color

Sets the color of the ID text. When the color box is clicked, the appropriate color is selected from the window that opens.

ID circle color

ID sets the color of the circle. When the color box is clicked, the appropriate color is selected from the window that opens.

Length text height

Text height is entered.

Diameter text height

Diameter text height is entered.

ID text height

ID text height is entered.

Specifications - Hatches

Concrete hatch

It is the hatch type that is valid for concrete. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the lookup table in this dialog.

Soil hatch

It is the hatch type that is valid for the soil. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the lookup table in this dialog.

Ground hatch

It is the hatch type that is valid for the ground. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the look-up table in this dialog.

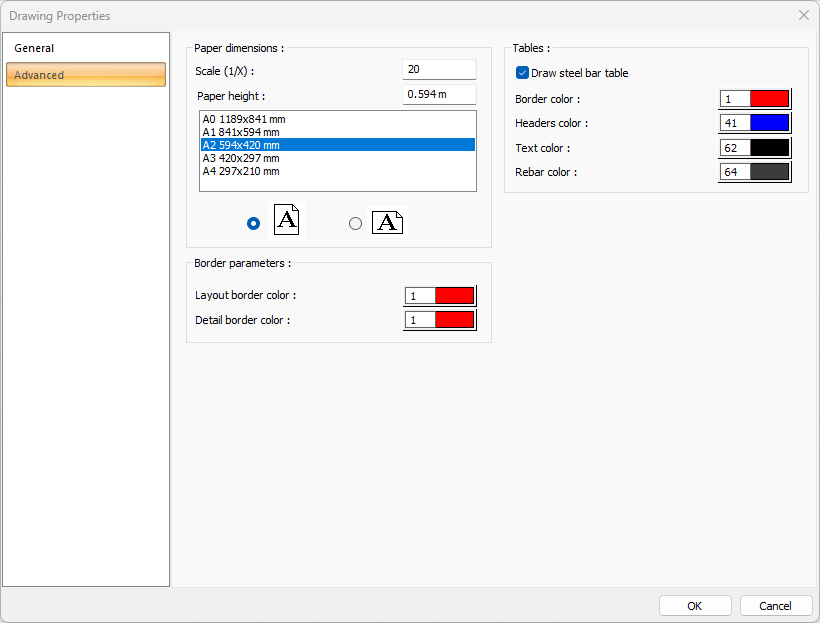

Advanced Tab

Specifications

Scale (1/X)

In what scale the drawings will be drawn, that value is entered.

Paper height

Standard paper sizes can also be selected, and any paper size value can be entered.

Standard paper sizes

Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values.

Vertical/Horizontal use

It is determined whether the layout will be used horizontally or vertically.

Layout border color

You can select the layout border color from the color palette that appears when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers.

Detail border color

You can select the detail border color from the color palette that appears on the screen when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers.

Draw steel bar table

If checked, steel bar tables are added to the drawing.

Border color

Sets the color of the border lines. When the color box is clicked, the appropriate color is selected from the window that opens.

Headers color

Sets the table header color. When the color box is clicked, the appropriate color is selected from the window that opens.

Text color

Sets the color of text. When the color box is clicked, the appropriate color is selected from the window that opens.

Rebar color

Sets the color of the rebar. When the color box is clicked, the appropriate color is selected from the window that opens.
