Setting Brace Corner Points
With the Brace Corner Point Location settings, the location of the corner points of the scaffolding braces are determined. The brace corner point location setting is accessed from the scaffolding tab of the scaffolding settings dialog.
Location of Brace Corner Point Location Settings

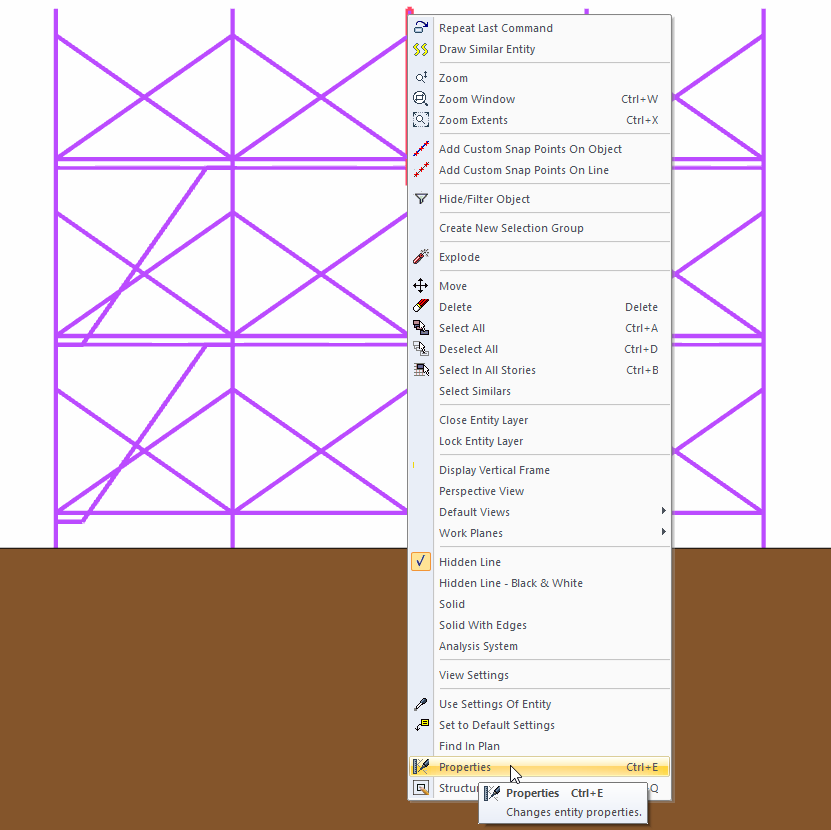

Select the scaffolding for which you want to change the brace corner points and click the right mouse button. Click Properties from the right-click menu that opens .
You can also access the scaffolding settings dialog by double-clicking on your scaffolding with the left mouse button.
Usage Steps

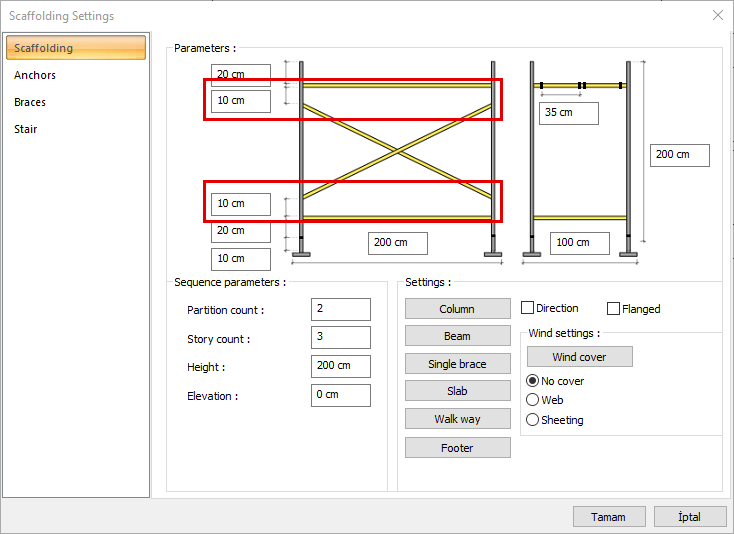

Enter the scaffolding settings dialog.

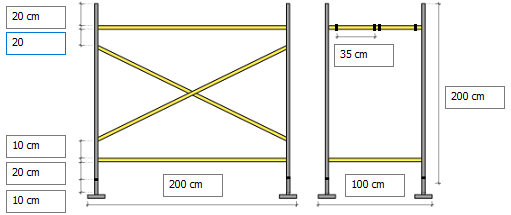

In the brace upper corner point box, enter the distance to the top beam.
In the brace lower corner point box, enter the distance value to the bottom beam (walkway).
According to the value you enter, the location of the lower and upper corner points of the brace will change.

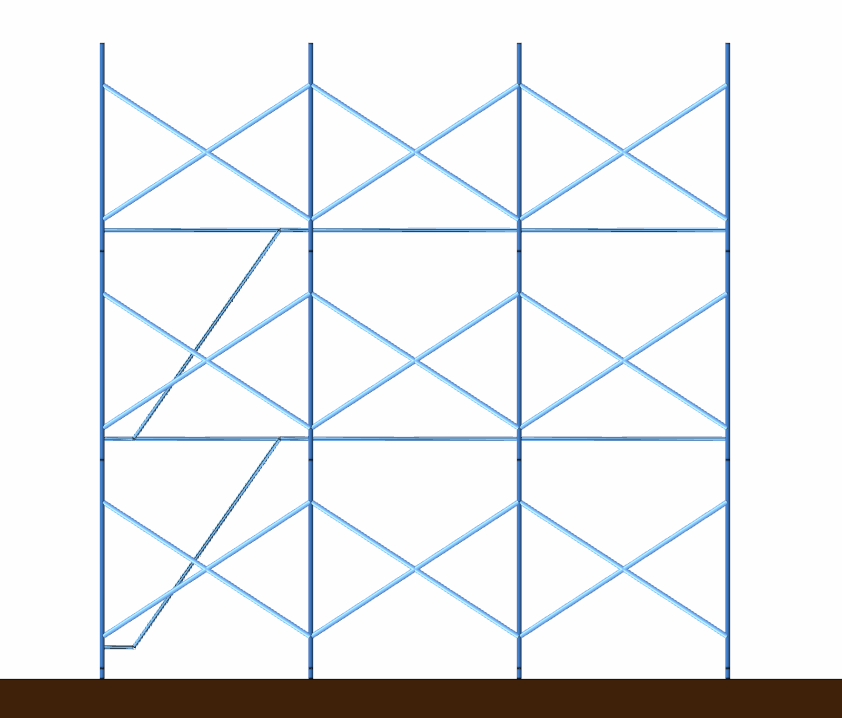

Scaffolding view before relocating brace corner points |
 |
 |
Scaffolding view after changing brace upper corner point location value to 20 cm |
 |
 |
Scaffolding view after changing brace corner point location value to 20 cm |
 |
 |
