Keyboard Shortcuts and Toolbars in Ribbon Menu

The user can reflect his own menu to the ideCAD with customization. Commands and sub-commands included in menus, sections and sections are fixed and cannot be changed. Customization can only be done on the vertical toolbar on the left side of the screen and the customizable toolbar on the top edge.

Customizing the Vertical Toolbar

To customize the vertical toolbar, right-click on any point of the vertical toolbar. Click the Customize line from the menu that opens.

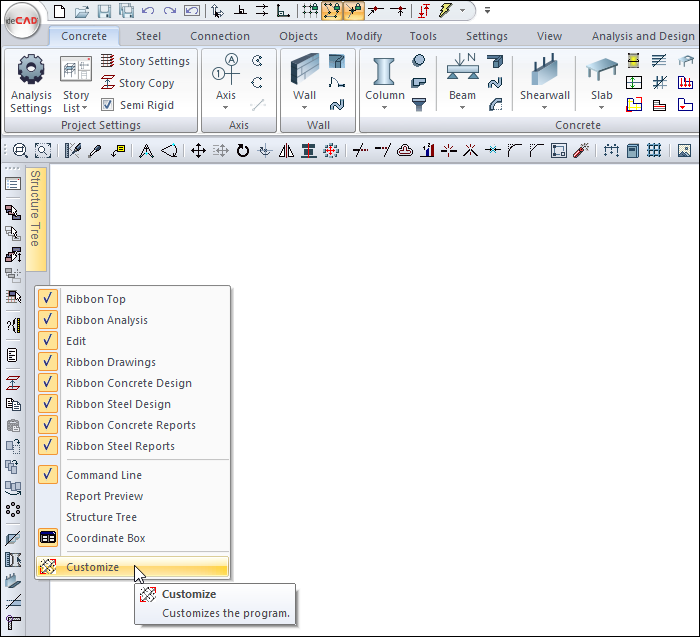

Location of Customize Command

You can access the Customize command by clicking the right button of the mouse on any command in the vertical toolbar.

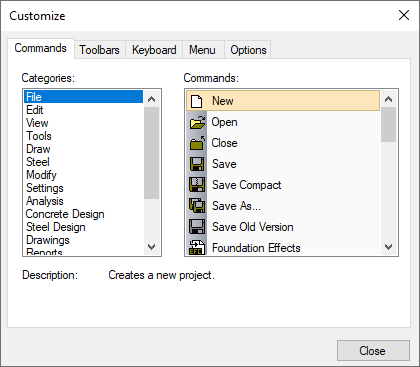

Commands Tab

You can drag any icon from the commands listed by category and drop it on the new/existing toolbar.

Specifications
Categories Commands are categorized according to the menu order.
Commands It contains commands in the selected category.
Description Provides information about the selected command.

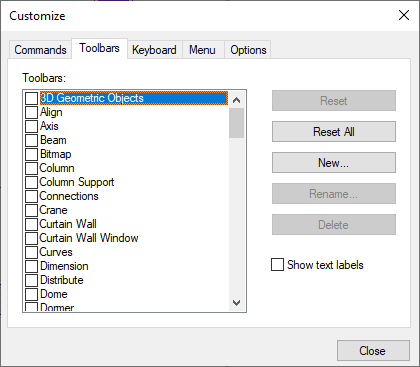

Toolbars Tab

Toolbars are listed on this tab. Some toolbars are highlighted in the list. Checked toolbars appear in the program. Otherwise, it will not appear.

In addition, the program includes automatic toolbar management. Floating toolbars appear automatically, some are not, depending on the command being studied. For example, while in column command, the column floating toolbar is opened by the program. It is closed after exiting the command.

The user opens the toolbars whenever they want and closes them whenever they want.

Specifications
Toolbars Available toolbars are listed.
Reset Resets the changes made in the menu.
Reset all Resets all toolbars and menus.
New Creates a new toolbar.
Rename It changes the name of the newly added toolbar.
Delete Deletes the selected toolbar.
Show text labels The help that occurs when waiting on an icon in the toolbar for a while appears.

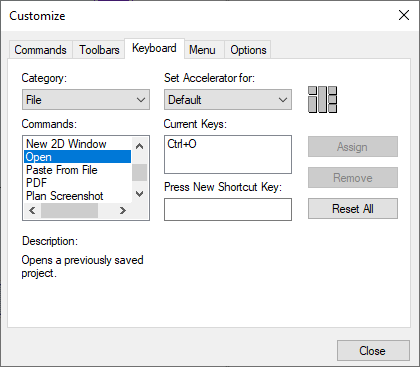

Keyboard Tab

The list of all commands appears in categories on the Keyboard tab. The user chooses the command they want. It gives information about the command in the description part. Shown if there are any shortcuts defined under available keys. The key or keys that they want to assign from the keyboard are pressed. Information on whether the assigned shortcut key is defined in another command is given under the Press new shortcut key section.

Specifications
Category Commands are categorized according to the menu order.
Commands It contains commands in the selected category.
Current keys Displayed if there are any shortcuts defined.
Press new shortcut key The shortcut to be newly defined is entered.
Description Provides information about the selected command.
Assign The new shortcut entered is assigned.
Remove Cancels an assigned shortcut.
Reset all Cancels all assigned shortcuts.

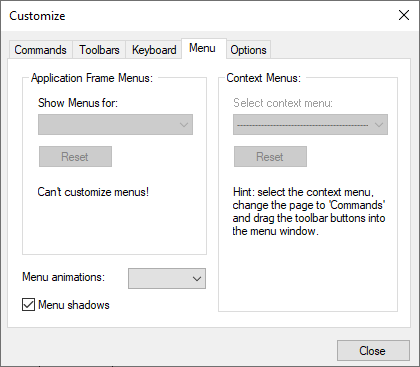

Menu Tab

Features of the display styles of the menus are included.

Specifications
Menu shadows Provides a shaded image when hovering over lists.

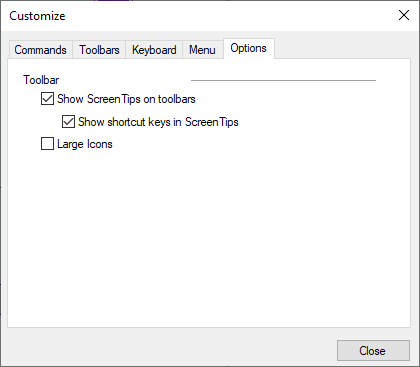

Options Tab

There are properties of the way they display toolbars.

Specifications
Show screen tips on toolbars An explanation box appears when the icon is hovered.
Show shortcut keys in screen tips An explanation box appears when the icon is hovered.
Large icon The icons grow larger.

Customizing the Quick Toolbar

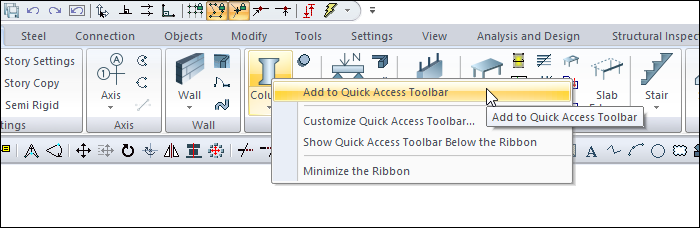

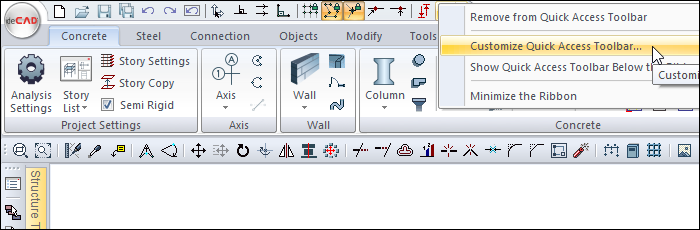

Location of Customize Quick Access Toolbar Command

You can access any command in the quick entry toolbar or ribbon menu by clicking the right button of the mouse.

In addition, that command can be added to a customizable toolbar quickly by clicking the Add Quick Entry Toolbar line.

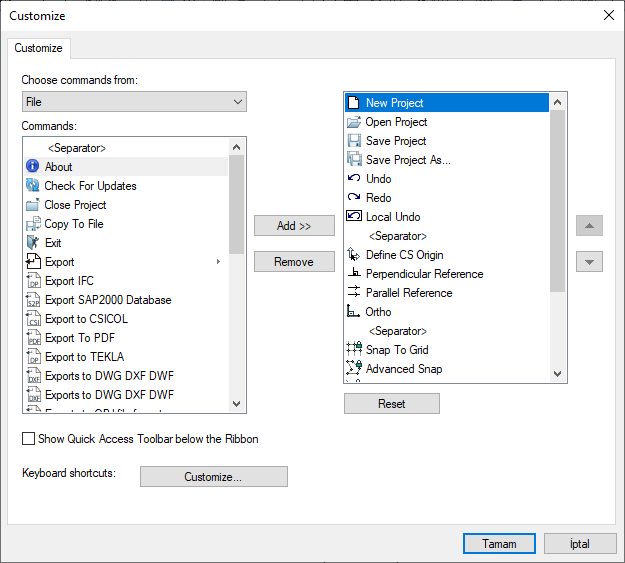

Customize Tab

Specifications
Choose commands from The menus are listed.
Commands The commands in the selected menu are listed.
Add The selected command is added to the toolbar.
Remove The selected command is deleted from the toolbar.
Toolbar commands The commands in the toolbar are listed. The location of the selected command can be changed with the arrow keys.
Reset Initializes the toolbar.
Show quick access toolbar below the ribbon It takes the toolbar under the menus as a horizontal toolbar.
Keyboard shortcuts Opens the customize keyboard dialog for customizing keyboard shortcuts.

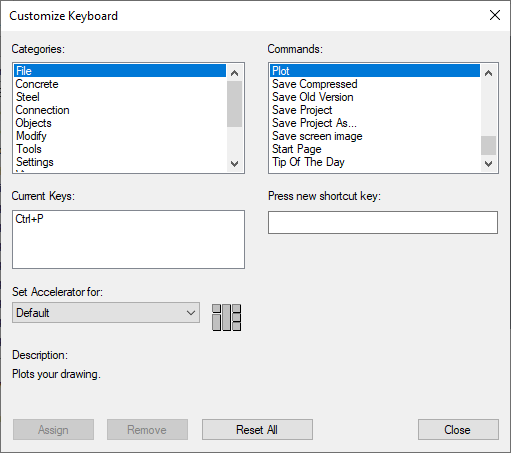

Customize Keyboard Dialog

Specifications
Categories Commands are categorized according to the menu order.
Commands It contains commands in the selected category.
Current keys Displayed if there are any shortcuts defined.
Press new shortcut key The shortcut to be newly defined is entered.
Description Provides information about the selected command.
Assign The new shortcut entered is assigned.
Delete Cancels an assigned shortcut.
Reset all Cancels all assigned shortcuts.
