Creating a Purlin Sheeting

With the Purlin Sheeting command, a sheeting element is created on purlin elements. Sheetings are load transfer elements.

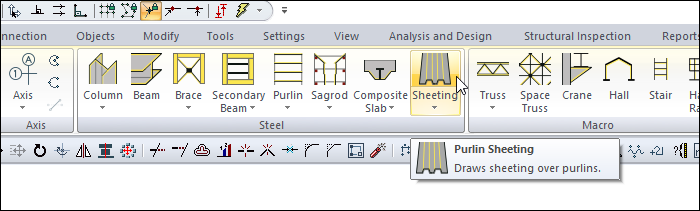

Location of the Purlin Sheeting Command

You can access it under the ribbon menu, Steel tab, Steel heading.

Usage Steps

  • Click the Sheeting icon from the ribbon menu.

  • Click on the Purlin Element group.

  • Edit your sheeting settings in the window that opens.

  • Press the OK button.

Usage step

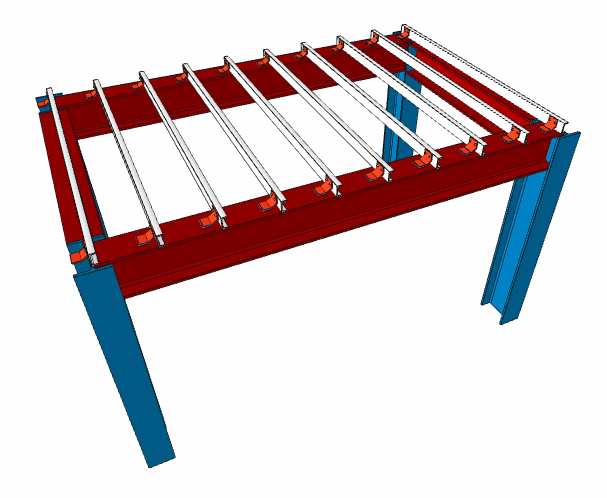

Before creating the purlin sheeting

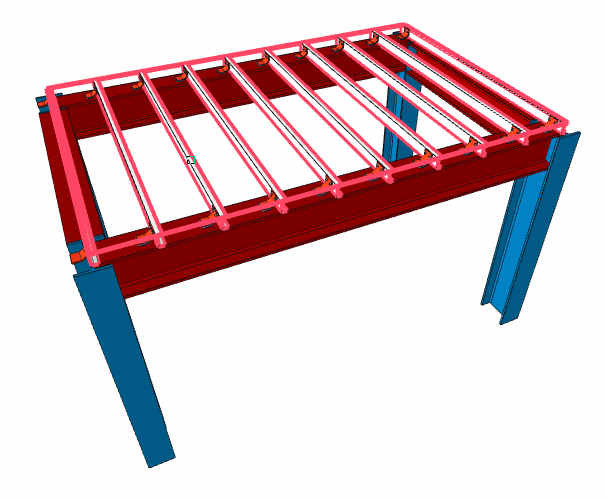

Selection of purlin elements

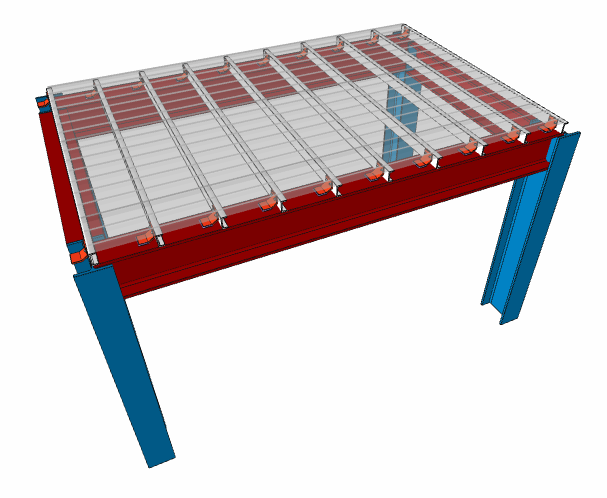

After creating the purlin sheeting
