Truss Drawing

The Truss Drawing command is used to prepare the truss drawings.

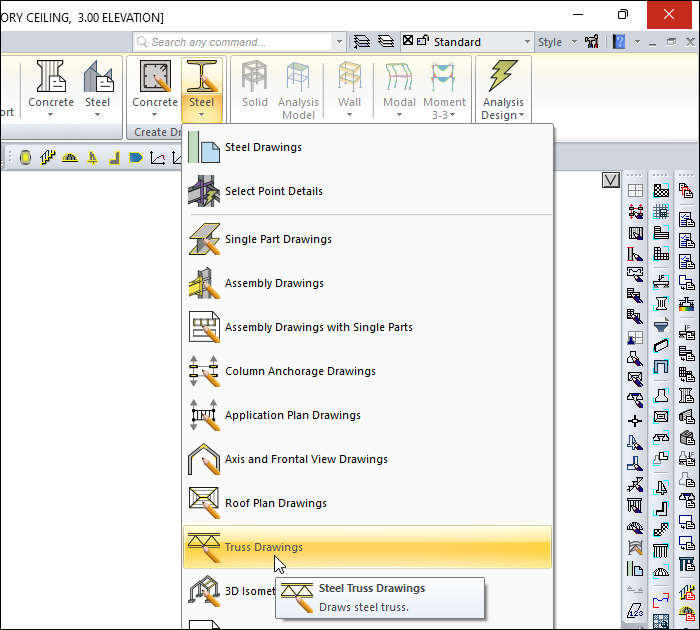

Location of the Truss Drawing Command

You can access it under the Steel tab, Create Drawings heading.

Usage Steps

  • Click on the Truss Drawings icon.

  • Scissors drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

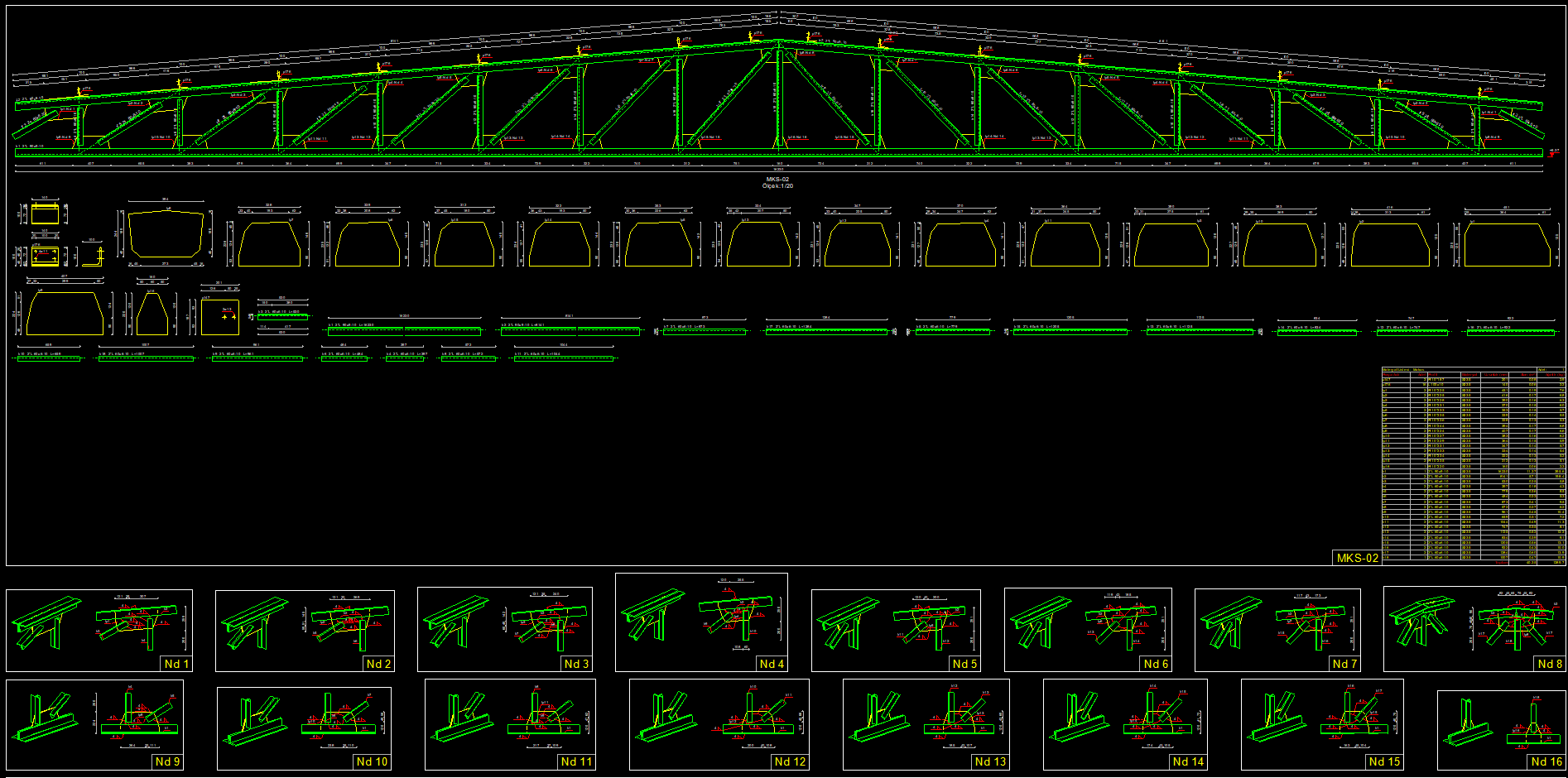

Sample truss drawing
