Section Dimension Group

With the section dimension group command, beam and slab dimensions are made. It becomes active in section windows. There are 3 dimension lines. The number of dimension lines and the information to be given on it are changed from the settings.

Location of Section Dimension Group Command

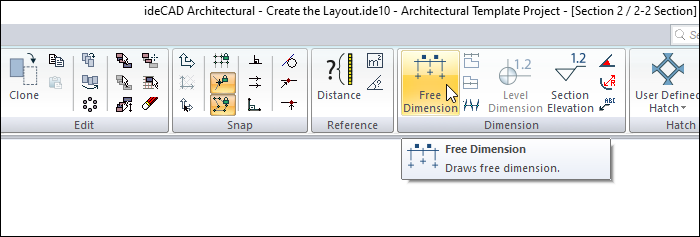

You can access the section dimension group command from the Dimension dialog that opens after you enter the Free Dimension command under the ribbon menu Drawings tab Dimension heading .

Location of Section Dimension Group Settings

Enter the section dimension command from the dimension dialog and click the Settings icon.

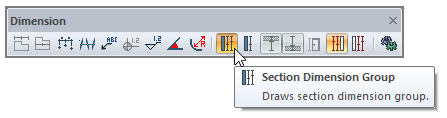

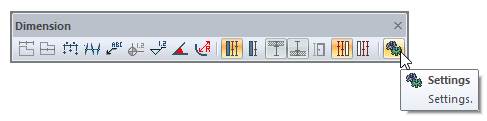

Dimension Toolbar

Icons

Free dimension

The free dimension command works.

Intersection dimension

The intersection dimension command works.

Label

Runs the label command. The dimension label is drawn.

Sectional elevation

It is used to make elevation dimension in section and view windows. It is active only in 2D drawing windows.

Angle dimensioning

Measures the angle between two objects.

Radius dimension

Dimensions objects drawn with a circle or arc and an arc or circle axis as diameter or radius.

Section dimension group

Creates a section dimension group. It is active in section and view windows.

Section dimension

Creates a section dimensio. It is active in section and view windows.

Left side

Places the section dimension group to the left.

Right side

Places the section dimension group on the right.

Settings

When clicked, whichever dimension type is active (inner, outer, intersection, etc.), it opens the dimension settings dialog with parameters related to that dimension.

Section Dimension Group Settings

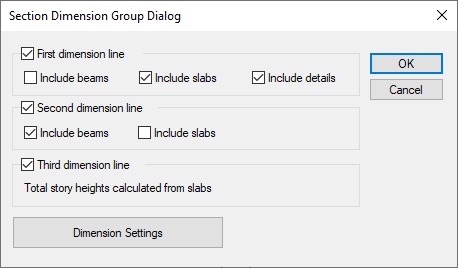

Specifications

First dimension line

The dimensions to be given on the first dimension line are selected

Include beams

If marked, beam dimensions are given on the first dimension line.

Include slabs

If marked, slab dimensions are given on the first dimension line.

Include details

If marked, detail (door, window) dimensions are given on the first dimension line.

Second dimension line

The dimensions to be given on the second dimension line are selected.

Include beams

If marked, beam dimensions are given on the second dimension line.

Include slabs

If marked, slab dimensions are given on the second dimension line.

Third dimension line

The story height is given on the third dimension line.

Dimension settings

When the button is clicked, the Dimension Settings dialog opens.

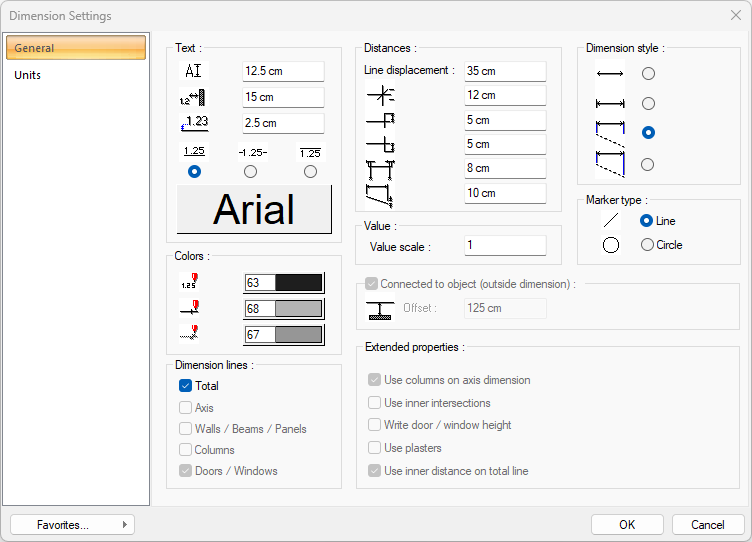

Dimension Settings - General Tab


Specifications

Text Section

The text height of the dimensions is entered.

The distance of the dimension texts from the objects is entered.

The distance of the dimension texts from the dimension line is entered.

The position of the dimension texts according to the dimension line is selected.

When the button is clicked, the “Font Settings” dialog appears. Here you can set the font of the info text.

Distances Section

Line displacement

The distance between the dimension lines is determined.

In the dimension lines, the size of the cross braces is entered.

Enter the upper separator size of the dimension line.

The lower separator size of the dimension line is entered.

Enter how long the dimension line will continue after the left and right end reference points.

The distance of the dimension line from the curved objects that the lower separator takes as a reference is entered.

Dimension style

Display type of dimension lines is selected.

Colors Section

Sets the color of the dimension texts. When the color box is clicked, the appropriate color is selected from the pop-up window.

Sets the color of the dimension lines. When the color box is clicked, the appropriate color is selected from the pop-up window.

Sets the color of the dimension markers. When the color box is clicked, the appropriate color is selected from the pop-up window.

Value scale

The actual length values ​​written on the dimension line are multiplied with the value written here and the value found as a result of the multiplication is used as the measurement value. For example, dimension line values ​​are 120, 200, 350. If 2 is written to the scale value, the lengths 120, 200, 250 will be written as 240, 400, 700 on the dimension line.

Marker type

One of the two marker types that can be used in dimension is selected.

Dimension Lines Section

Total

Returns the total length of all lines.

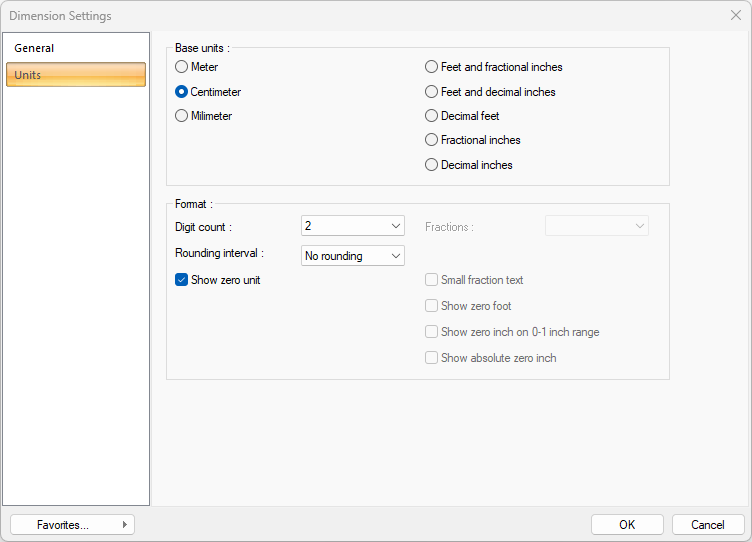

Dimension Settings - Units Tab


Specifications

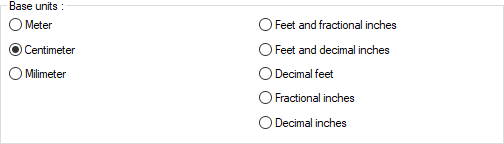

Basic units

One of the selections is activated by clicking the left mouse button on the job.

Meter : If checked, the unit of information text will be meters.
Centimeter : If checked, the unit of the callout will be centimeter.
Millimeter : If checked, the unit of callout will be millimeter.
Feet and fractional inches : If checked, the unit of callout is feet and fractional inches. The unit format is, for example, 15 '-10 3/4 ".
Feet and decimal-digit inches : If checked, the unit of callout is feet and decimal-digit inches. Unit format is, for example, 15' -10.7".
Decimal place fit: If checked, the unit of callout will be decimal place fit. The unit format is for example 15.89 '.
Fractional inch: If checked, callout unit will be fractional inch. The unit format is, for example, 1901/2 ".
Inch with decimal places : If checked, the unit of callout is inches with decimal places. The unit format is for example 190.7".

Digit count

It determines how many digits will be shown after the comma. The desired number is selected from the list. For example, if 2 is selected, units will be shown as two digits after the comma. If 0 is selected, units will not be shown after the comma.

Fractions

It determines the precision of the dimension to be made in fractional inch format. In the list, there are options with a sensitivity of 1/2, ¼, 1/8, 1/16, 1/32, 1/34. If "no fraction" is selected, units will appear without fractions.

Rounding interval

It determines the rounding range of the measurement to be made in meters, centimeters or millimeters. If No rounding is selected, the dimensioning is done at exact value. As the range gets larger, the dimensioning is rounded up to the selected range.

Show zero unit

If it is not checked, it does not show the zero and point on the left in dimensioning. For example, it measures 0.20 as 20. If marked, the value 0.20 is scaled as 0.20.

Show zero foot

Determines whether 0 is displayed in the 0-foot gauge (less than 1 foot gauge). For example, if it is not checked, it will show a measure of 0 '- 15 "as -15". If marked, it shows as 0'-15 ".

Show zero inch on 0-1 inch range

For example, a dimension inch with a value of 8'-0 1/6 "is in the range 0-1. If the option is not ticked, the value 8'-0 1/6" will be displayed as 8'-. In other words, inch values ​​in the 0-1 range will not be displayed.

Show absolute zero inch

Determines whether to show zero inches in the dimension value where inches is absolute zero. For example, a dimension of exactly 10 'will be displayed as 10'-0 "if this option is selected. If not checked, it will be displayed as 10" -.

Small fraction text

When fractional inch format is selected, determines the fractional part to display in upper / lower case. If it is checked, the fraction is slightly above the integer and small, if not, the fraction is shown the same size next to the integer.

Usage Steps

  • Enter the section dimension group command.

  • Create the first point of the section dimension group line by clicking the left mouse button.

  • End your section dimension group line by clicking the left mouse button at the point where the dimensioning will end.

  • The section dimension group will be created automatically.

Usage step

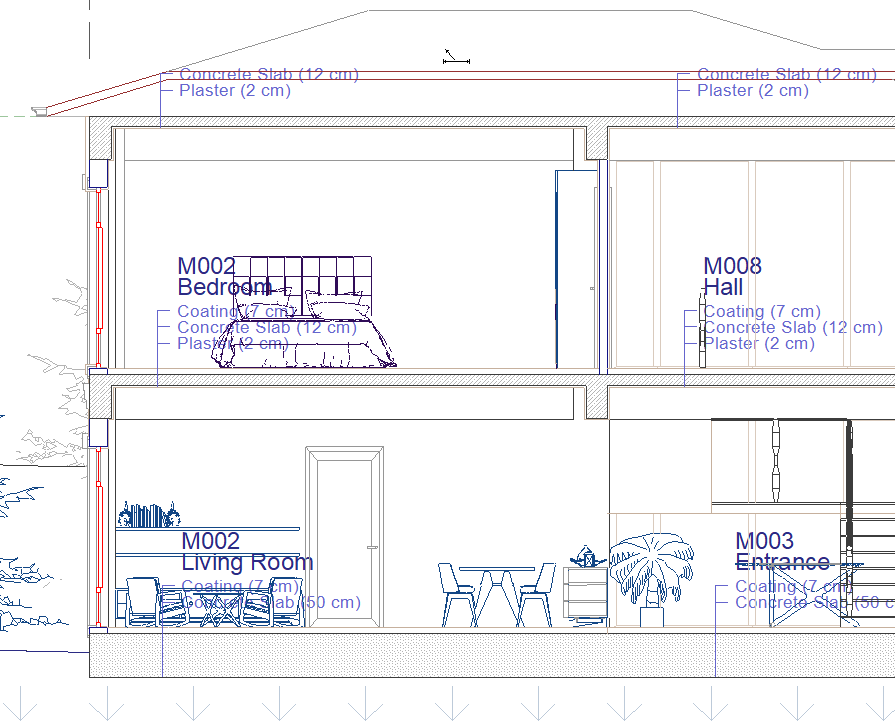

Creating the first point of the section dimension group line

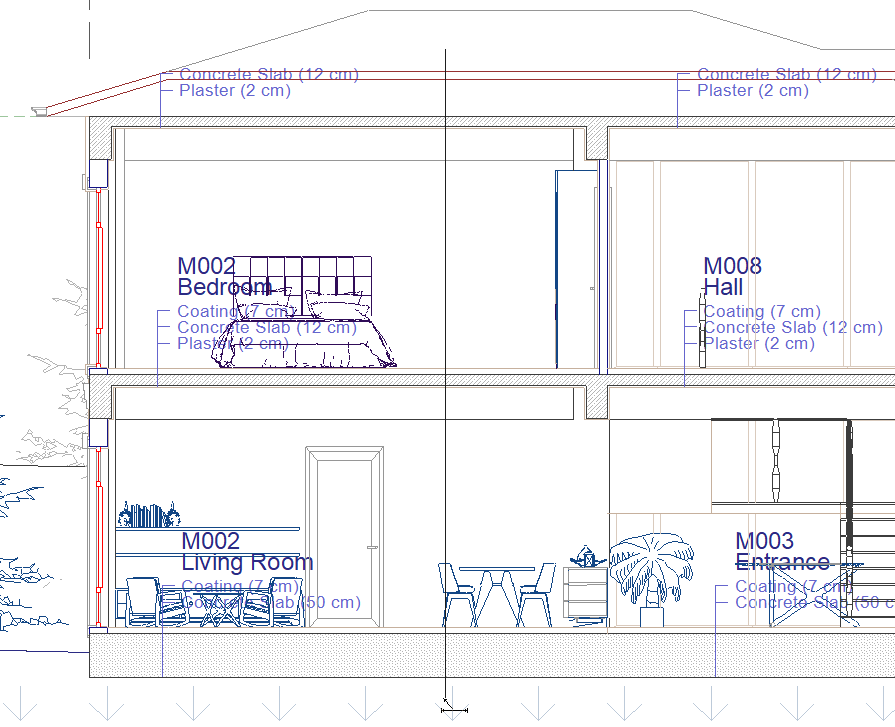

Creating the end point of the section dimension group line

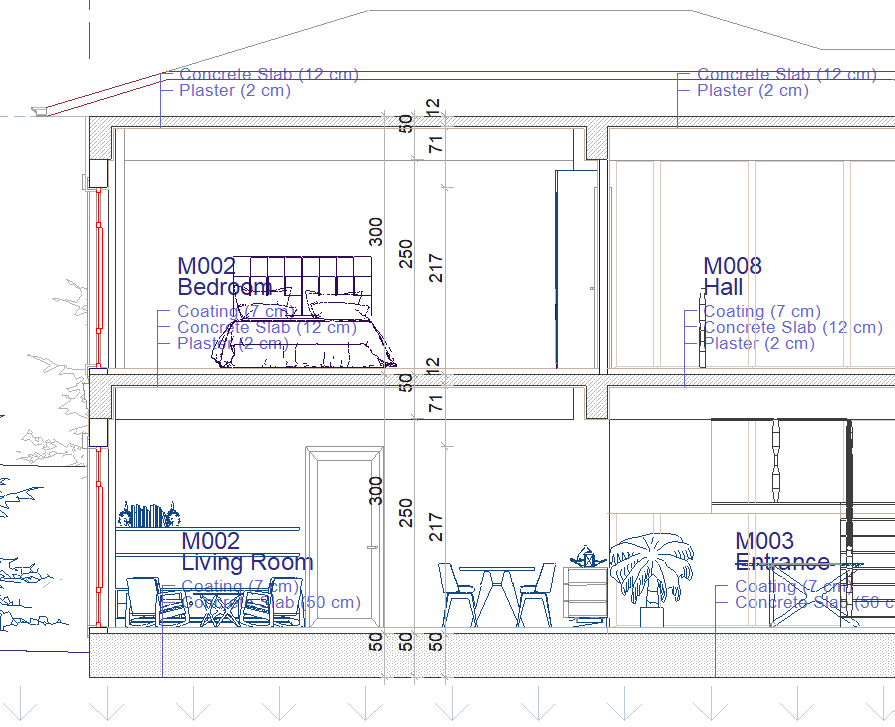

Formation of the section dimension group
